Quick Start Guide – ESR6670 Wireless Broadband Router. 1

ESR6670 3G Wireless Router

Quick Start Guide

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Connect the supplied power-adapter to the power inlet port and connect it to a wall outlet. Then, the router

automatically enters the self-test phase. During self-test phase, Power LED will blink briefly, and then will be lit

continuously to indicate that this product is in normal operation.

Minimum Requirements

xA standard CD-ROM drive

x3G data card , ADSL or cable modem should be ready for Internet connection.

xModem must provide RJ45 port to connect with ESR6670.

xMicrosoft Windows compatible PC/Notebook with UPnP enabled network adapter

xCAT 5 network cable(s), RJ45 port on PC/Notebook.

STEP 1

Power up the device.

Wait for POWER led on front panel lights up & remains stable.

STEP 2

Insert Wizard CD into your CD-ROM drive and browse it with Windows Explorer.

Click on “Wizard.exe” to activate SMART WIZARD.

STEP 3

Click on [Setup Wizard] and follow the instruction given on the screen to complete the initial device configuration.

Please note that your 3G data card may take more than 20 seconds to initiate and respond to ESR6670. Please be

patient and pay attention to the 3G LED on the top panel. Green Light on 3G LED signifies that your 3G card is ready.

Step 4

Click Next to Proceed with the wizard on the connection of the router.

Please contact your local ISP for Internet access account detail including

Username (or account) and Password. You may need to keep the

information handy during the setup process.

Quick Start Guide – ESR6670 Wireless Broadband Router. 2

Step 5

Click ‘Next” to start connection

Step 6

Click “ Next’ to proceed to next step

Step 7

Click ‘Next’ to proceed

Step 8

Click ‘Next’ to proceed

Quick Start Guide – ESR6670 Wireless Broadband Router. 3

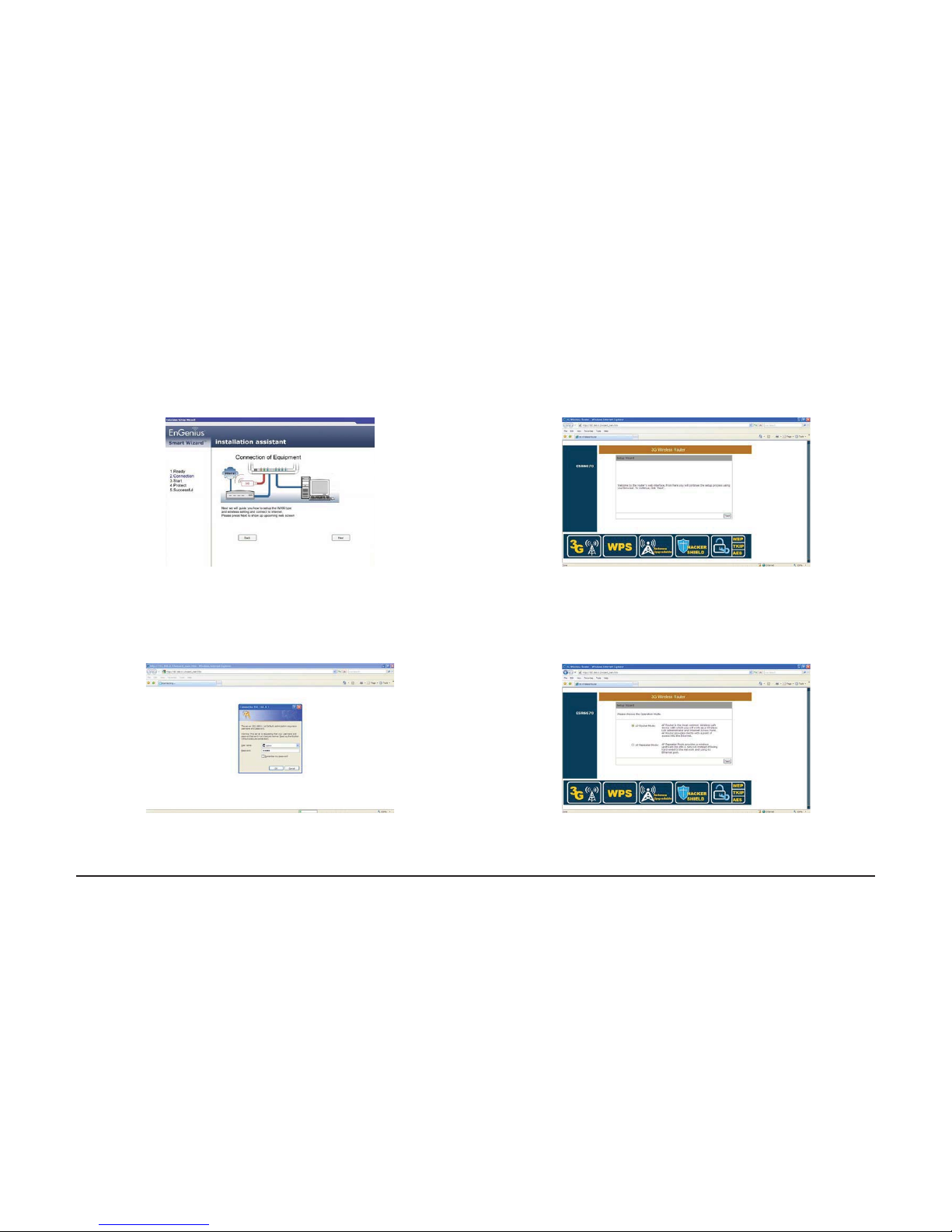

Step 9

Click ‘Next’ to proceed

Step 10

Enter User Name and password ‘admin’

Step 11

Click ‘Next’ to proceed the 3G installation

Step 12

Select ‘AP Router Mode’ and click ‘Next’

Quick Start Guide – ESR6670 Wireless Broadband Router. 4

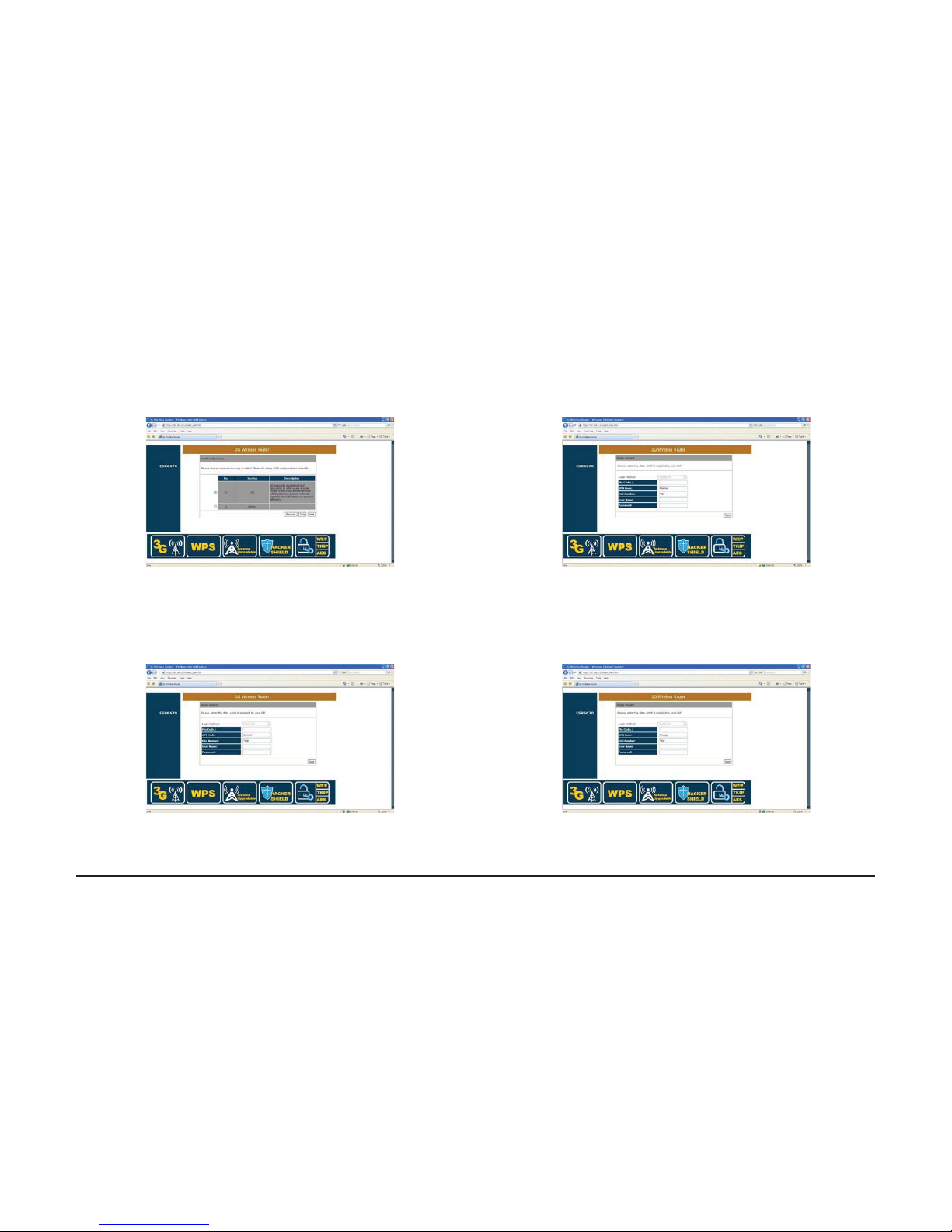

Step 13

Select ‘3G’ and click ‘Next’

Step 14a

For M1 users input APN Code: Sunsurf and Dial Number: *99#

Step 14b

For Singnet Users input APN Code: Internet and Dial Number: *99#

Step 14c

For Starhub Users input APN Code: Shwap and Dial Number *99#

Quick Start Guide – ESR6670 Wireless Broadband Router. 5

Step 15

Enter Desired SSID to be broadcast, this will be the WiFi name for the user to connect to the router wirelessly. Click

‘Next’ after this step have been done to proceed.

Step 16

Click ‘Reboot’ for the router to initialize the configuration.

Step 17

Check 3G connection status

Once unit reboots, click ‘System’ and scroll to check 3G connection status.

Step 18

Setup WiFi Security

Click on ‘Wireless’ to check/amend SSID to desired. Next Click on ‘Security’ to define WiFi encryption.

Quick Start Guide – ESR6670 Wireless Broadband Router. 6

Step 19

Click on ‘Encryption’ to select desired type of encryption for the router WiFi

Note:

If Pin Code is required, click on ‘Internet’

Click on ‘3G’ and input Pin Code and Click ‘Apply’ unit will re-initialize and load settings.
