Model SPL-4H Side Plate
for OnSite™ WR-5U Wall Rack
1.!OVERVIEW ............................................................... 1!
2.!APPLICATIONS ........................................................ 1!
3.!DESCRIPTION .......................................................... 1!
4.!INSTALLATION ......................................................... 1!
5.!TESTING AND TROUBLESHOOTING.................... 2!
6.!CUSTOMER SERVICE............................................. 2!
7.!WARRANTY & REPAIRS ......................................... 2!
8.!SPECIFICATIONS .................................................... 2!
1. OVERVIEW
Model SPL-4H (Figure 1) is an optional side plate that
provides additional cable management for Enginuity’s
OnSite WR-5U Wall Rack. The SPL-4H provides two
adjustable cable take-up reels, sized to maintain proper
bend radius in fiber applications. The metal plate can be
attached to either side of the WR-5U frame using the
included hardware.
Document Status
Whenever updates are made to this product or practice,
they will be noted in this paragraph.
2. APPLICATIONS
Adjustable split reels on the SPL-4H side plate provide
slack management for cables that connect to equipment
in the WR-5U wall rack. This is especially helpful when
connecting to equipment with long jumpers fed from a
fiber distribution point.
3. DESCRIPTION
The SPL-4H consists of a metal mounting plate with two
split cable reels, pre-attached as shown in Figure 1.
Tapped screw holes on the mounting plate allow the reels
to be repositioned if desired. Examples of alternate
positioning of the reels are shown in Figure 2.
4. INSTALLATION
The SPL-4H shipping carton contains the following:
•One (1) mounting plate with pre-attached cable reels
•Two (2) #10-32 x 3/8” Phillips-head screws
•Product documentation
To install and use the SPL-4H side plate, refer to Figure 3
and the steps below.
!Slide the two narrower tabs at the edge of the SPL-4H
into the openings on the side of the WR-5U, toward
the rear of the mounting.
"Align the wide tabs at the front edge of the SPL-4H
with the threaded holes on the side of the WR-5U
frame. Use the two (2) included #10-32 x 3/8” screws
to securely fasten the side plate to the frame.
#Carefully wrap cables around the take-up reels to
reduce slack as needed. Example routing is shown in
Figure 4. Alternate mounting holes are located on the
side plate for repositioning the half-reels, if desired.
Figure 1. Model SPL-4H Side Plate
Figure 2. Example repositioning of cable reels
001-01-000079 Rev. 000 Page 2 of 2
5. TESTING AND TROUBLESHOOTING
Each piece of equipment installed in the WR-5U should
be tested according the manufacturer’s instructions.
6. CUSTOMER SERVICE
If technical or customer assistance is required, please
contact Enginuity at the following address or phone
number:
Enginuity Communications
3545 Stern Avenue
St. Charles, Illinois 60174
Toll Free: 1-800-980-3266
www.enginuitycom.com
7. WARRANTY & REPAIRS
Warranty
Enginuity warrants this product for one (1) year from date
of purchase. Any attempt to repair or modify the
equipment by anyone other than an authorized Enginuity
representative will void the warranty.
This limited warranty does not cover any losses or
damages resulting from shipment to or from the
customer, or from improper installation, abuse,
modifications, or unauthorized repair by other than
Enginuity personnel.
Repair and Return
Enginuity equipment will be repaired or replaced without
cost during the warranty period if the product is defective
for any reason other than abuse, improper use, or
improper installation. Before returning defective
equipment, first request a Return Material Authorization
(RMA) number from Enginuity. Once an RMA number is
obtained, return the unit, freight prepaid, along with a brief
description of the problem, to:
Enginuity Communications
3545 Stern Avenue
St. Charles, Illinois 60174
ATTN: Repair & Return Dept.
Replacements will be shipped in the fastest manner
consistent with the urgency of the situation. Repair or
replacement of faulty equipment beyond the warranty
period is available for a nominal charge. Contact
Enginuity for details.
8. SPECIFICATIONS
Part Number
SPL-4H
Description
Side Plate for WR-5U with (2)
adjustable take-up reels
Height
10.5 inches
Width
11.3 inches
Depth
1.3 inches
Weight
2.5 pounds

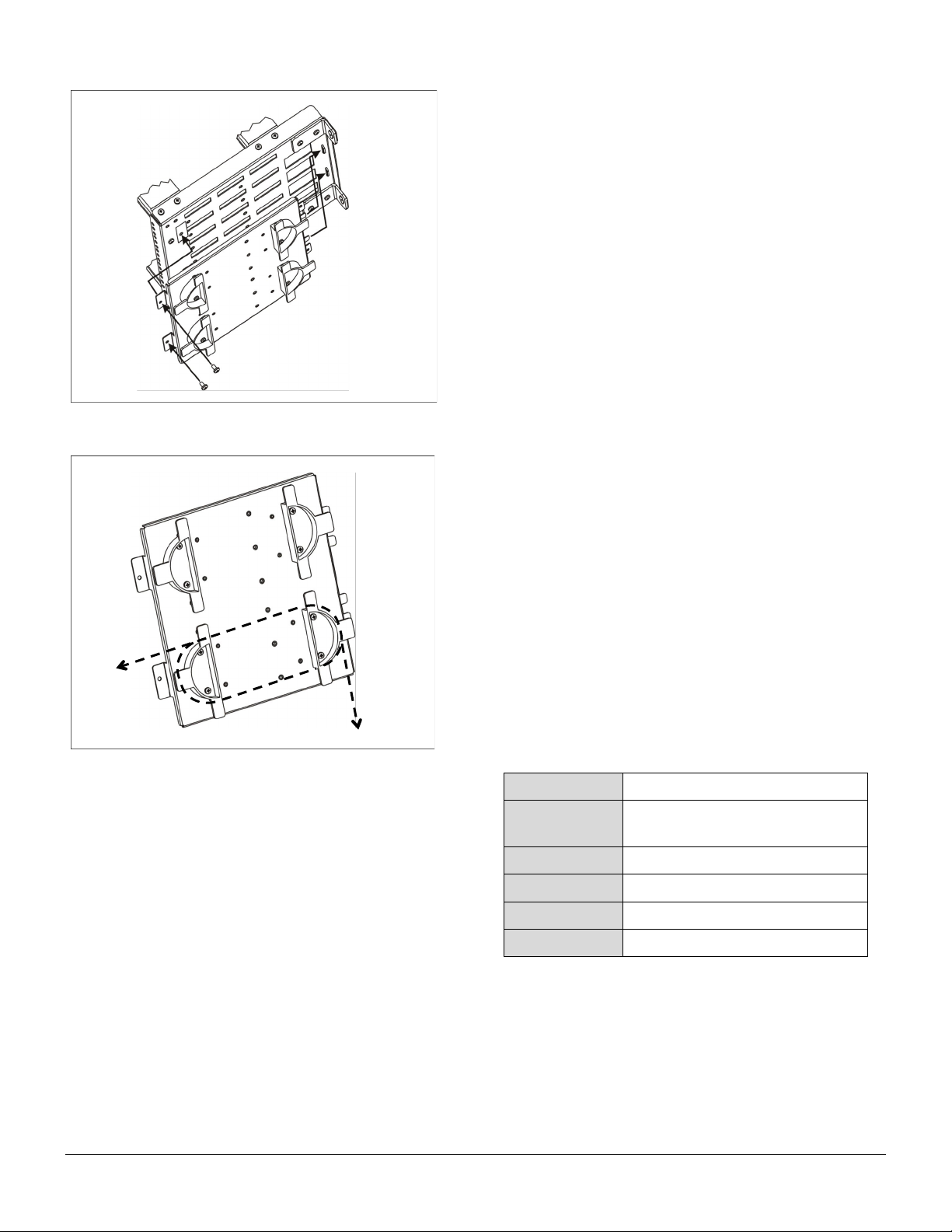

Figure 4. SPL-4H installation
Figure 3. Cable take-up reel routing
