Episode EA-AMP-HYB-2D-1000 Bedienungsanleitung

QUICK START GUIDE

EA-AMP-HYB-2D-1000

EA-AMP-HYB-2D-2000

EA-AMP-HYB-2D-1000

CH.SEL

PROTECT

CH2 ADJUST | SET

BACK

CLIP

-10

-20

SIGNAL

PROTECT

CH1

CLIP

-10

-20

SIGNAL

ATTENTION! RISQUEDE CHOC ! ÉLECTRIQUE PAS OUVRIR !

CAUTION

RISKOF ELECTRICAL SHOCK!

DONOT OPEN! !

Use only a 250V fuse

Employer uniquement aux

un fusible de 250V

C UL

LIFTED

OFF

110 V FUSE T8AH 250V

230V FUSE T4A H250V

118V110-120VAC-60H-230W

230V230-240AC-50Hz-230W

SPEAKER OUT

BRIDGE

DIGITAL

CH1

CH2

LINE OUT

CH1

CH2

LINK ACT

OUT

LINE IN

TRIGGER

DC 12 V

SERIAL

CONTROL

NETWORK

CONTROL

OUT

CH2 CH1

page | 2

www.snapav.com Support 866.838.5052

INTRODUCTION

Thank you for purchasing Episode® Amplifiers. To get started, follow these

instructions. For detailed specifications and configuration recommendations

please see the product manual posted on our website.

This amplifier is a 2 channel (70V or 8ohm selectable on each) designed for

applications requiring two channel stereo audio, or two mono zones of audio with

different sources or levels. Channels can also be bridged to increase output power

and send a singular mono signal.

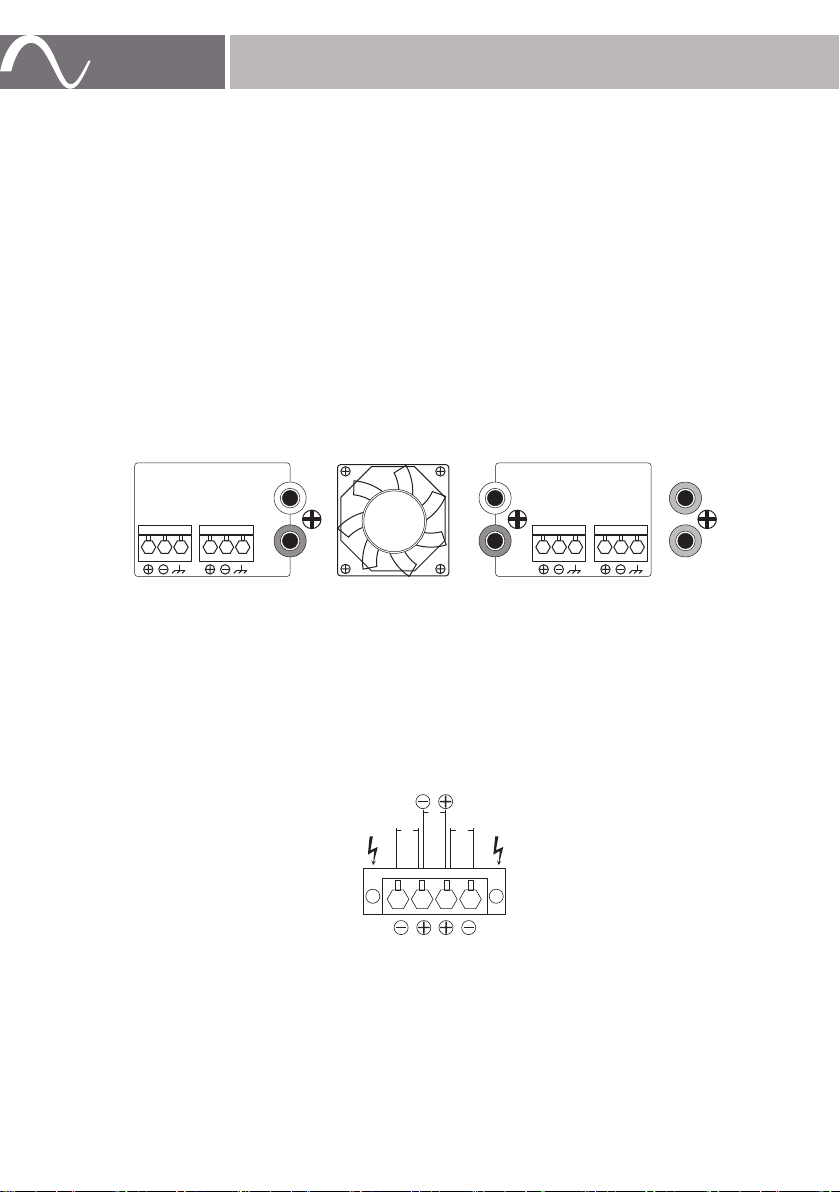

SOURCE CONNECTIONS

Balanced and unbalanced connections are available as shown below. Line out

connections may be used to send audio signals to other equipment.

DIGITAL

CH1

CH2

LINE OUT

CH1

CH2

LINE IN

OUT

SPEAKER CONNECTIONS

Use 14 or 16 gauge stranded two-conductor speaker wire. Connect the appropriate

conductor to each screw terminal, observing correct polarity. Bridged markings

are also shown below. Use burial rated wire as necessary for outdoor applications.

SPEAKER OUT

BRIDGE

CH2 CH1

www.snapav.com Support 866.838.5052

page | 3

IP/OVRC CONTROL

Connect the amplifier to a LAN with internet access to activate an OvrC connection.

Create a new account at www.OvrC.com, or log into an existing account. Select

“Add a Device” and enter the device’s MAC address and serial number (this

information can be found next to the service tag on the product). If OvrC locates

the device, directions to continue setup will be displayed.

The local UI can be accessed without OvrC by entering the IP address into a web

browser. Default login information is shown below:

• Username: episode

• Password: episode

The following settings can be changed in the web GUI:

• System Status

• Power On (Button, 12V Trigger, Audio Sense)

• Input/Output Configuration

• Audio Routing Configuration

• Network IP and Clock Settings

• EQ Presets for Episode Speaker Configurations

• Custom DSP Control

NOTE: To display the IP address of the amplifier, press the “MENU”

button until “Device Info” is displayed, then turn the right-hand knob.

WARRANTY

2-Year Limited Warranty

Episode® Amplifiers have a 2-Year Limited Warranty. This warranty includes

parts and labor repairs on all components found to be defective in material or

workmanship under normal conditions of use. This warranty shall not apply to

products that have been abused, modified or disassembled. Products to be

repaired under this warranty must be returned to a designated service center

with an assigned return authorization (RA) number. Contact technical support at

[email protected] for an RA number.

CONTACTING TECHNICAL SUPPORT

866.838.5052

[email protected]

WARNING: This product can expose you to chemicals including Cadmium,

which is known to the State of California to cause cancer and Reproductive

harm. For more information go to www.P65Warnings.ca.gov.

Rev: 190402-1120
