Epomaker Shadow-X Bedienungsanleitung

QUICK START GUIDE

Epomaker

UK REP

Shadow-X

2 3 4 5 6 7 8 9

HOME

END

CTRL WIN ALT ALT MENU CTRL

70% Hot Swappable RGB 2.4Ghz/Bluetooth 5.0/Wired

Mechanical Gaming Keyboard With LCD Screen

Should you require more assistance please email us at [email protected]

EC REP

PGDN

COMPLIANT

Made in China

Manufacturer: Shenzhen Changyun Technology CO.,Ltd.

Address: Seventh Floor, Kai Daer Building, No.168 Tongsha Road,

Xili Street, Nanshan Disctrict, Shenzhen,Guangd0ng, CN

Email: [email protected]

Web: www.epomaker.com

APEX CE SPECIALISTS LIMITED

unit 3d North Point House, North Point Business Park,

New Mallow Road cork, T23 AT2P, Ireland

Contact: Wells Tel: +353212066339

APEX CE SPECIALISTS LIMITED

89 princess Street, Mancheste, MI 4HT, UK

Contact: Wells E—mail:

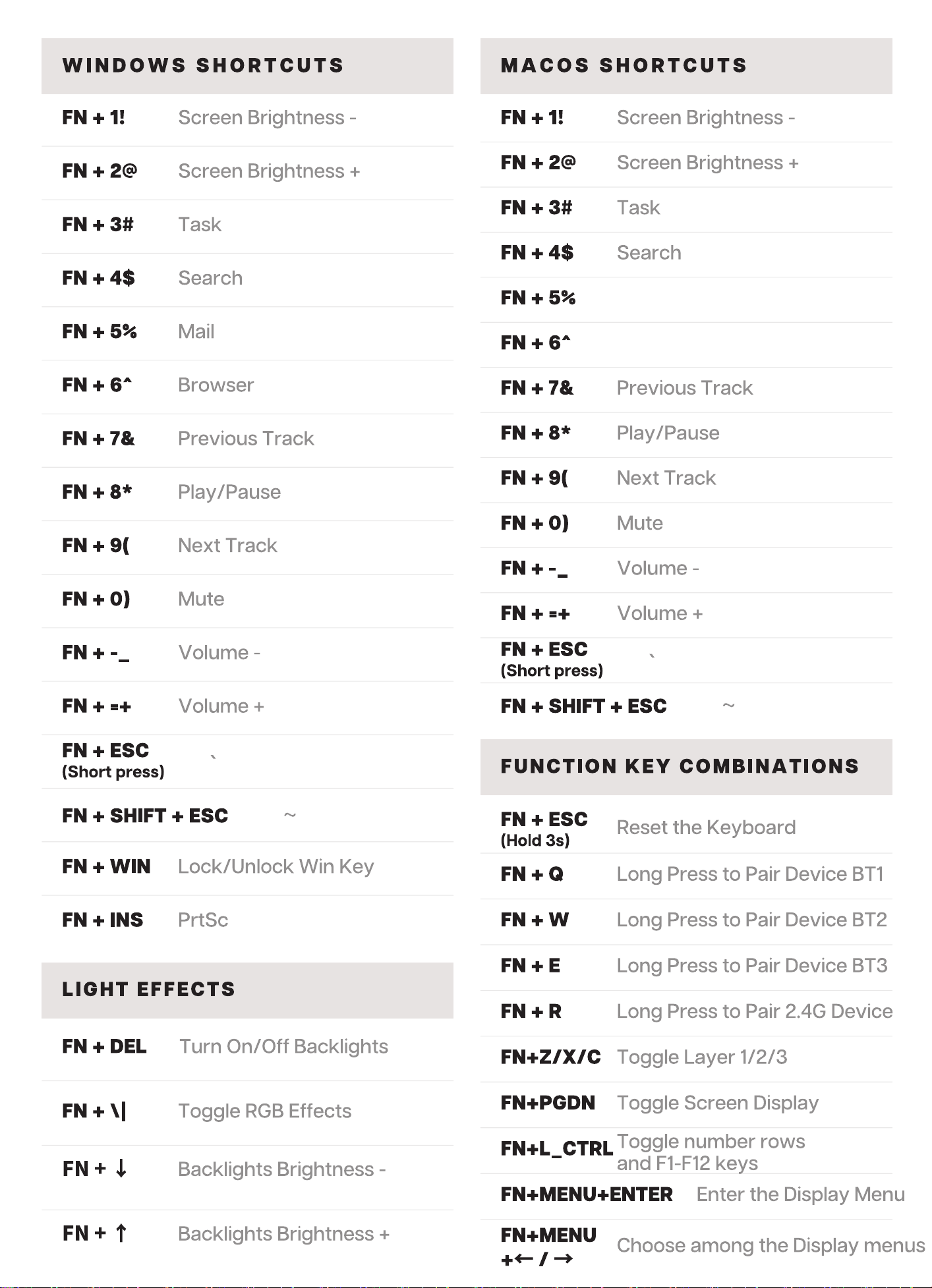

WINDOWS SHORTCUTS

Screen Brightness -

Screen Brightness +

Task

Mail

Browser

Previous Track

Play/Pause

Next Track

Mute

Volume -

Volume +

FN + ESC

(Short press)

FN + SHIFT + ESC

MACOS SHORTCUTS

Screen Brightness -

Screen Brightness +

Task

Previous Track

Play/Pause

Next Track

Mute

Volume -

Volume +

FN + ESC

(Short press)

FN + SHIFT + ESC

FUNCTION KEY COMBINATIONS

FN + WIN

FN + INS

Lock/Unlock Win Key

prtSc

LIGHT EFFECTS

Turn On/Off Backlights

FN + DEL

FN + ESC

(Hold 3s)

FN+E

FN+R

FN+ZIX/C

FN+PGDN

Reset the Keyboard

Long Press to Pair Device BTI

Long Press to Pair Device BT2

Long Press to Pair Device BT3

Long Press to Pair 2.4G Device

Toggle Layer 1/2/3

Toggle Screen Display

FN+t

Toggle RGB Effects

Backlights Brightness -

Backlights Brightness +

Toggle number rows

FN+L_CTRL and Fl-F12 keys

Enter the Display Menu

FN+MENU+ENTER

FN+MENU Choose among the Display menus

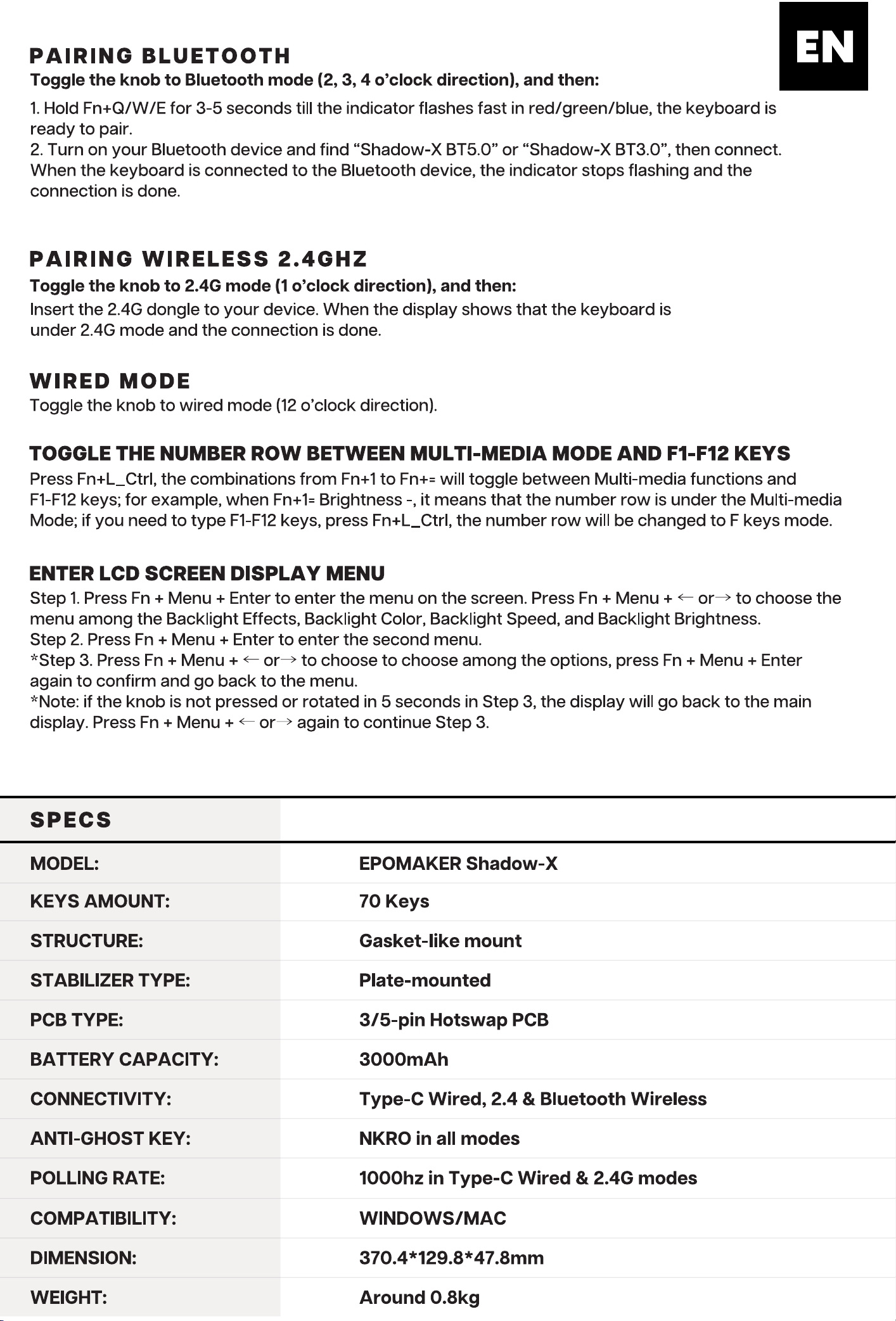

PAIRING BLUETOOTH

Toggle the knob to Bluetooth mode (2, 3, 4 0'clock direction), and then:

1.Hold Fn+Q/W/E for 3-5 seconds till the indicator flashes fast in red/green/blue, the keyboard is

ready to pair.

2. Turn on your Bluetooth device and find "Shadow-X BT5.O" or "Shadow-X BT3.O", then connect.

When the keyboard is connected to the Bluetooth device, the indicator stops flashing and the

connection is done.

PAIRING WIRELESS 2.4GHZ

Toggle the knob to 2.4G mode (1 0'clock direction), and then:

Insert the 2.4G dongle to your device. When the display shows that the keyboard is

under 2.4G mode and the connection is done.

WIRED MODE

Toggle the knob to wired mode (12 0'clock direction).

TOGGLE THE NUMBER ROW BETWEEN MULTI-MEDIA MODE AND Fl-F12 KEYS

Press Fn+L_Ctrl, the combinations from Fn+l to Fn+= will toggle between Multi-media functions and

Fl-F12 keys; for example, when Fn+l= Brightness -, it means that the number row is under the Multi-media

Mode; if you need to type Fl-F12 keys, press Fn+L_Ctrl, the number row will be changed to F keys mode.

ENTER LCD SCREEN DISPLAY MENU

Step 1.Press Fn + Menu + Enter to enter the menu on the screen. Press Fn + Menu + or— to choose the

menu among the Backlight Effects, Backlight Color, Backlight Speed, and Backlight Brightness.

Step 2. Press Fn + Menu + Enter to enter the second menu.

*Step 3. Press Fn + Menu + or—>to choose to choose among the options, press Fn + Menu + Enter

again to confirm and go back to the menu.

*Note: if the knob is not pressed or rotated in 5 seconds in Step 3, the display will go back to the main

display. Press Fn + Menu + <—or— again to continue Step 3.

SPECS

MODEL:

KEYS AMOUNT:

STRUCTURE:

STABILIZER TYPE:

PCB TYPE:

BATTERY CAPACITY:

CONNECTIVITY:

ANTI-GHOST KEY:

POLLING RATE:

COMPATIBILITY:

DIMENSION:

WEIGHT:

EPOMAKER Shadow-X

70 Keys

Gasket-like mount

Plate-mounted

3/5-pin Hotswap PCB

3000mAh

Type-C Wired, 2.4 & Bluetooth Wireless

NKRO in all modes

1000hz in Type-C Wired & 2.4G modes

WINDOWS/MAC

Around 0.8kg

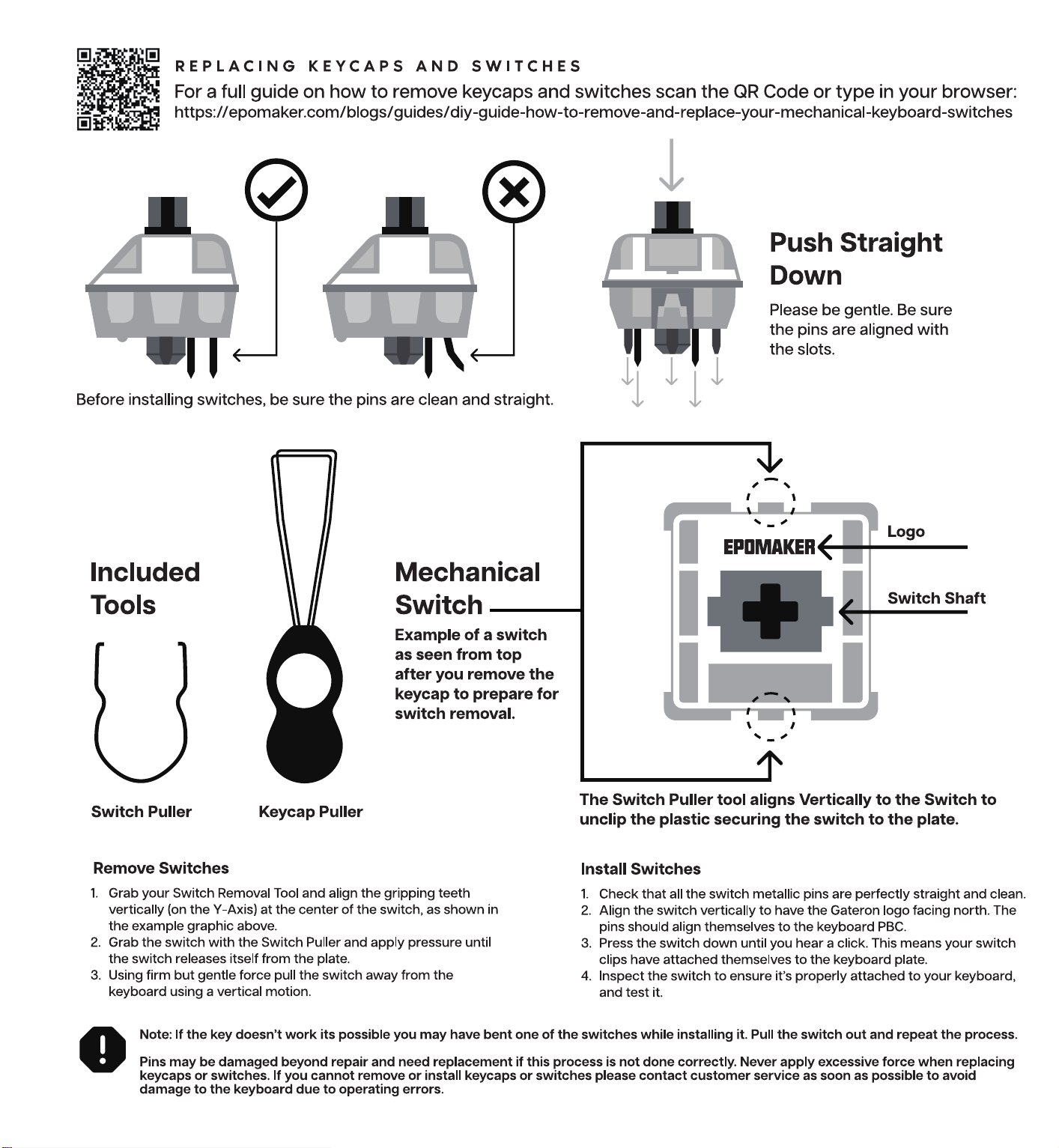

REPLACING KEYCAPS AND SWITCHES

For a full guide on how to remove keycaps and switches scan the QR Code or type in your browser:

https://epomaker.com/blogs/guides/diy-guide-how-to-remove-and-replace-your-mechanical-keyboard-switches

x-L

ooo

Before installing switches, be sure the pins are clean and straight.

Push Straight

Down

Please be gentle. Be sure

the pins are aligned with

the slots.

EPOMAKER

Included

Tools

Switch Puller

Remove Switches

Mechanical

Switch

Example of a switch

as seen from top

after you remove the

keycap to prepare for

switch removal.

Logo

Switch Shaft

Keycap Puller

I. Grab your Switch Removal Tool and align the gripping teeth

vertically (on the Y -Axis) at the center of the switch, as shown in

the example graphic above.

2. Grab the switch with the Switch Puller and apply pressure until

the switch releases itself from the plate.

3. Using firm but gentle force pull the switch away from the

keyboard using a vertical motion.

The Switch Puller tool aligns Vertically to the Switch to

unclip the plastic securing the switch to the plate.

Install Switches

. Check that all the switch metallic pins are perfectly straight and clean.

2. Align the switch vertically to have the Gateron logo facing north. The

pins should align themselves to the keyboard PBC.

3. Press the switch down until you hear a click. This means your switch

clips have attached themselves to the keyboard plate.

Inspect the switch to ensure it's properly attached to your keyboard,

and test it.

Note: If the key doesn't work its possible you may have bent one of the switches while installing it. Pull the switch out and repeat the process.

Pins may be damaged beyond repair and need replacement if this process is not done correctly. Never apply excessive force when replacing

keycaps or switches. If you cannot remove or install keycaps or switches please contact customer service as soon as possible to avoid

damage to the keyboard due to operating errors.

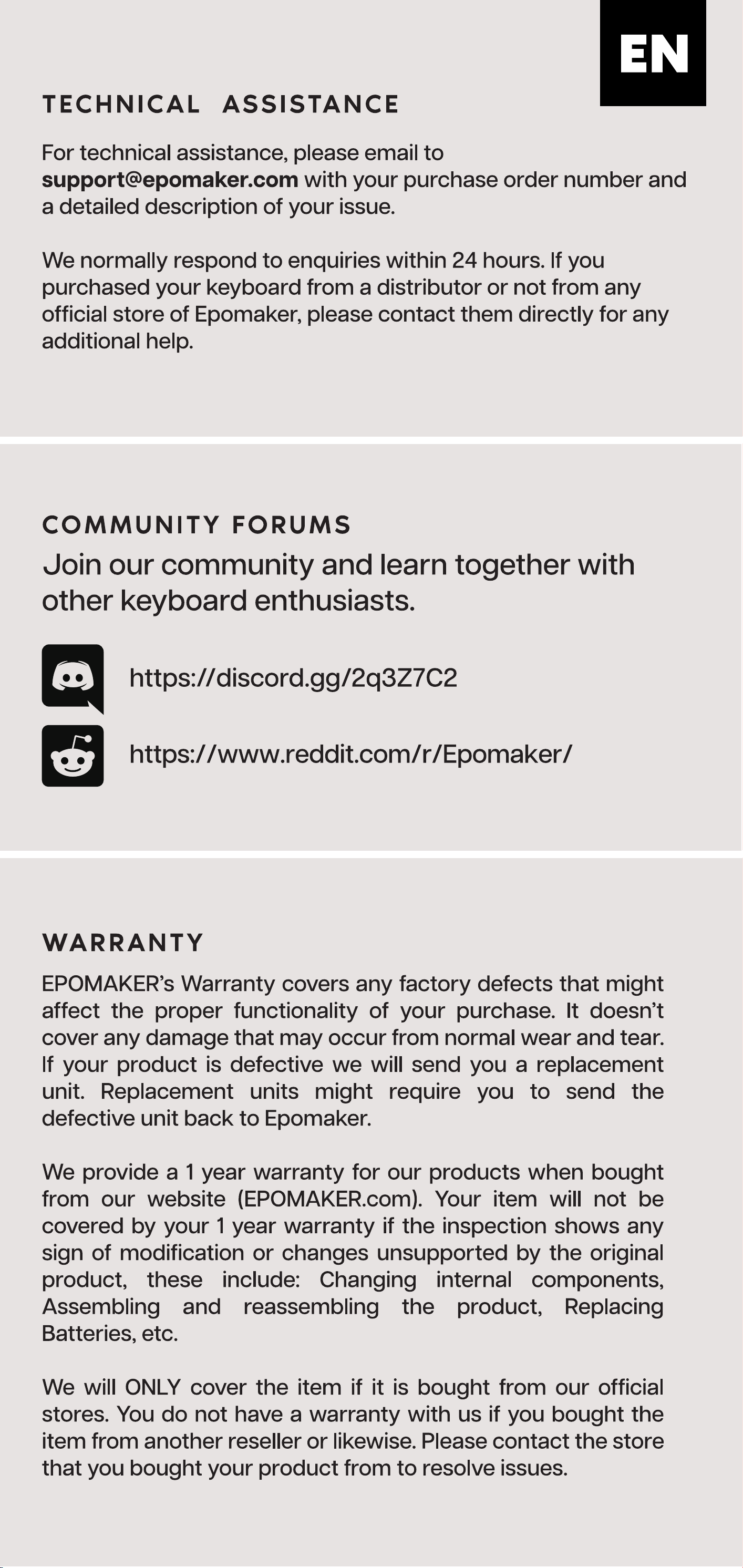

TECHNICAL ASSISTANCE

For technical assistance, please email to

[email protected] with your purchase order number and

a detailed description of your issue.

We normally respond to enquiries within 24 hours. If you

purchased your keyboard from a distributor or not from any

official store of Epomaker, please contact them directly for any

additional help.

COMMUNITY FORUMS

Join our community and learn together with

other keyboard enthusiasts.

https://discord.gg/2q3Z7C2

https://www.reddit.com/r/Epomaker/

WARRANTY

EPOMAKER's Warranty covers any factory defects that might

affect the proper functionality of your purchase. It doesn't

cover any damage that may occur from normal wear and tear.

If your product is defective we will send you a replacement

unit. Replacement units might require you to send the

defective unit back to Epomaker.

We provide a 1 year warranty for our products when bought

from our website (EPOMAKER.com). Your item will not be

covered by your 1 year warranty if the inspection shows any

sign of modification or changes unsupported by the original

product, these include: Changing internal components,

Assembling and reassembling the product, Replacing

Batteries, etc.

We will ONLY cover the item if it is bought from our official

stores. You do not have a warranty with us if you bought the

item from another reseller or likewise. Please contact the store

that you bought your product from to resolve issues.
