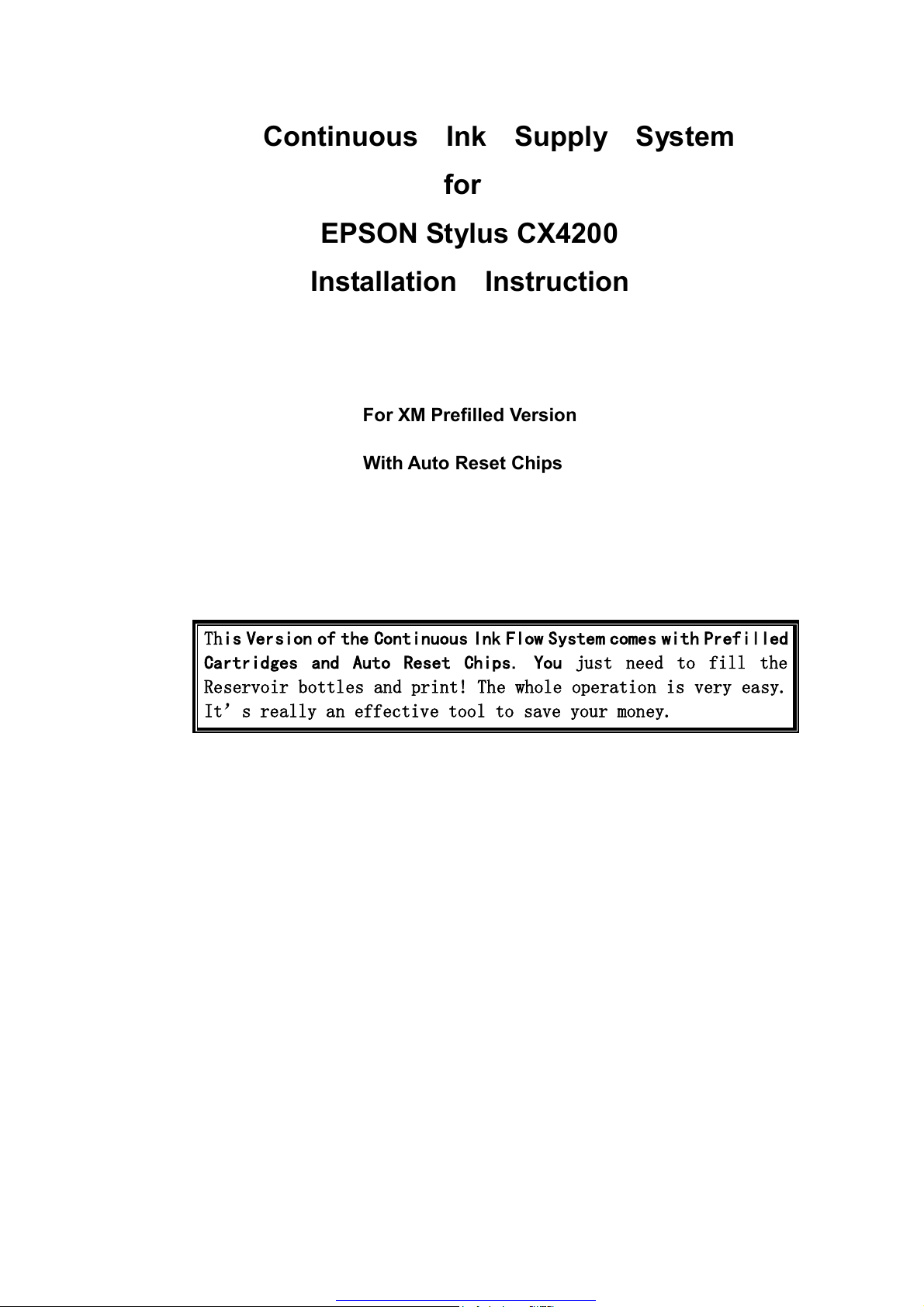

ContinuousInkSupplySystem

for

EPSONStylusCX4200

InstallationInstruction

ForXMPrefilledVersion

WithAutoResetChips

This Version of theContinuousInk Flow SystemcomeswithPrefilled

Cartridges and Auto ResetChips.You justneed to f

ill the

Reservoir bottles and print! Thewhole operationis very easy.

It s really an effective tool to save your money.

Get other manuals https://www.bkmanuals.com

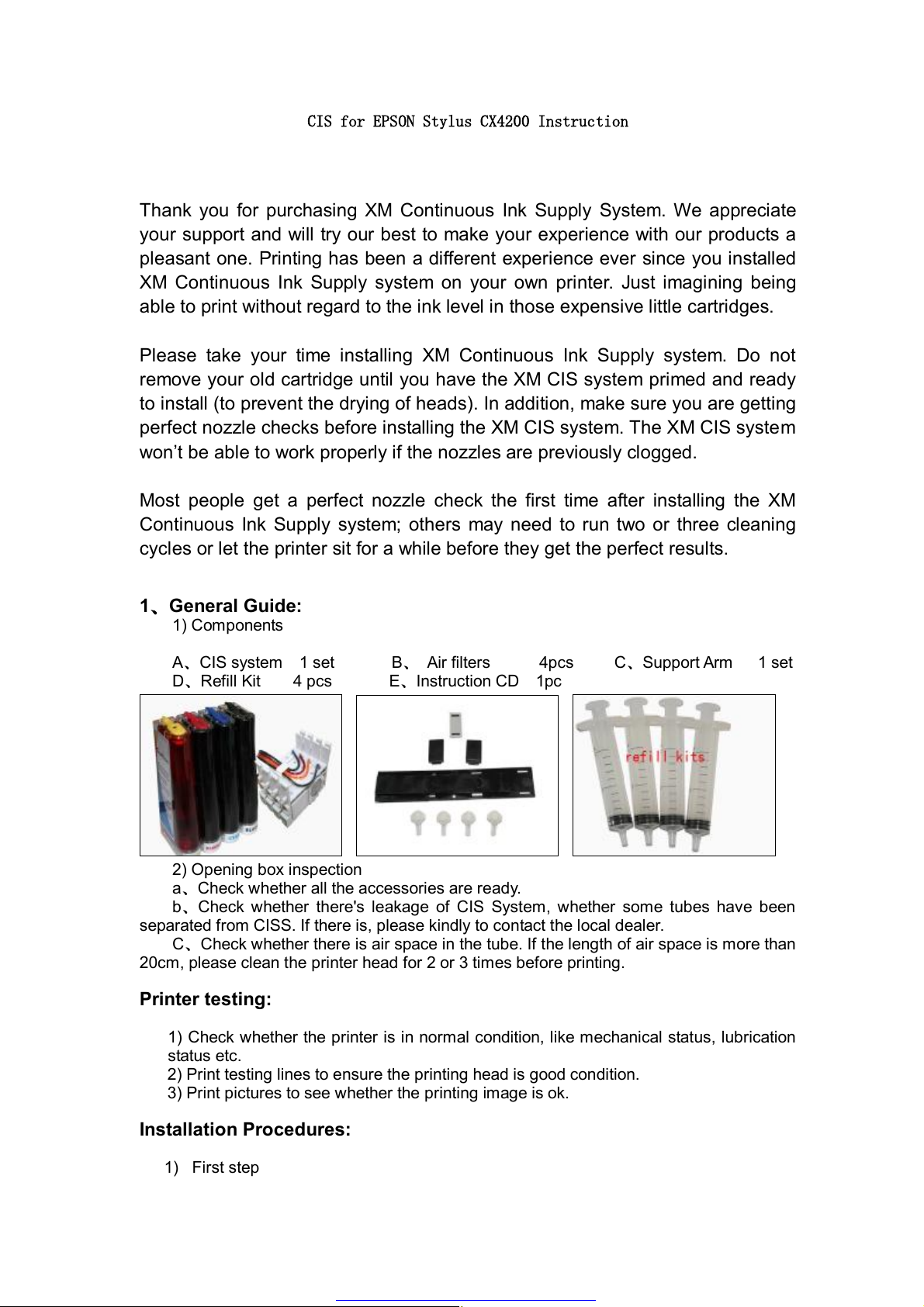

CIS for EPSON Stylus CX4200 Instruction

ThankyouforpurchasingXMContinuousInkSupplySystem.Weappreciate

yoursupportandwilltryourbesttomakeyourexperiencewithourproductsa

pleasantone.Printinghasbeen adifferentexperienceeversinceyou installed

XMContinuousInkSupplysystemon yourownprinter.Justimagining being

abletoprint withoutregardtothe inklevelinthoseexpensivelittlecartridges.

Pleasetakeyourtimeinstalling XMContinuousInkSupplysystem.Donot

removeyouroldcartridgeuntilyou havethe XMCISsystemprimed and ready

toinstall(toprevent the dryingof heads). Inaddition, makesureyou aregetting

perfect nozzlechecks beforeinstallingthe XMCISsystem. The XMCISsystem

won t be abletoworkproperlyif thenozzlesarepreviouslyclogged.

MostpeoplegetaperfectnozzlecheckthefirsttimeafterinstallingtheXM

ContinuousInkSupplysystem;othersmayneed toruntwoorthree cleaning

cyclesorlet theprintersit forawhilebeforetheyget theperfect results.

1General Guide:

1)Components

ACISsystem1setB Airfilters4pcs C SupportArm1set

DRefill Kit4pcs E Instruction CD 1pc

2)Openingboxinspection

aCheck whetherall the accessoriesareready.

bCheck whetherthere'sleakageofCISSystem,whethersometubeshavebeen

separated fromCISS. Ifthereis, pleasekindlytocontact the localdealer.

CCheck whetherthereisairspaceinthetube. Ifthe lengthofairspaceismorethan

20cm, pleaseclean the printerheadfor2or3timesbeforeprinting.

Printertesting:

1)Check whetherthe printerisinnormalcondition,likemechanicalstatus,lubrication

statusetc.

2)Print testinglinestoensuretheprintinghead isgood condition.

3)Print picturestosee whethertheprintingimageisok.

InstallationProcedures:

1)First step

Get other manuals https://www.bkmanuals.com

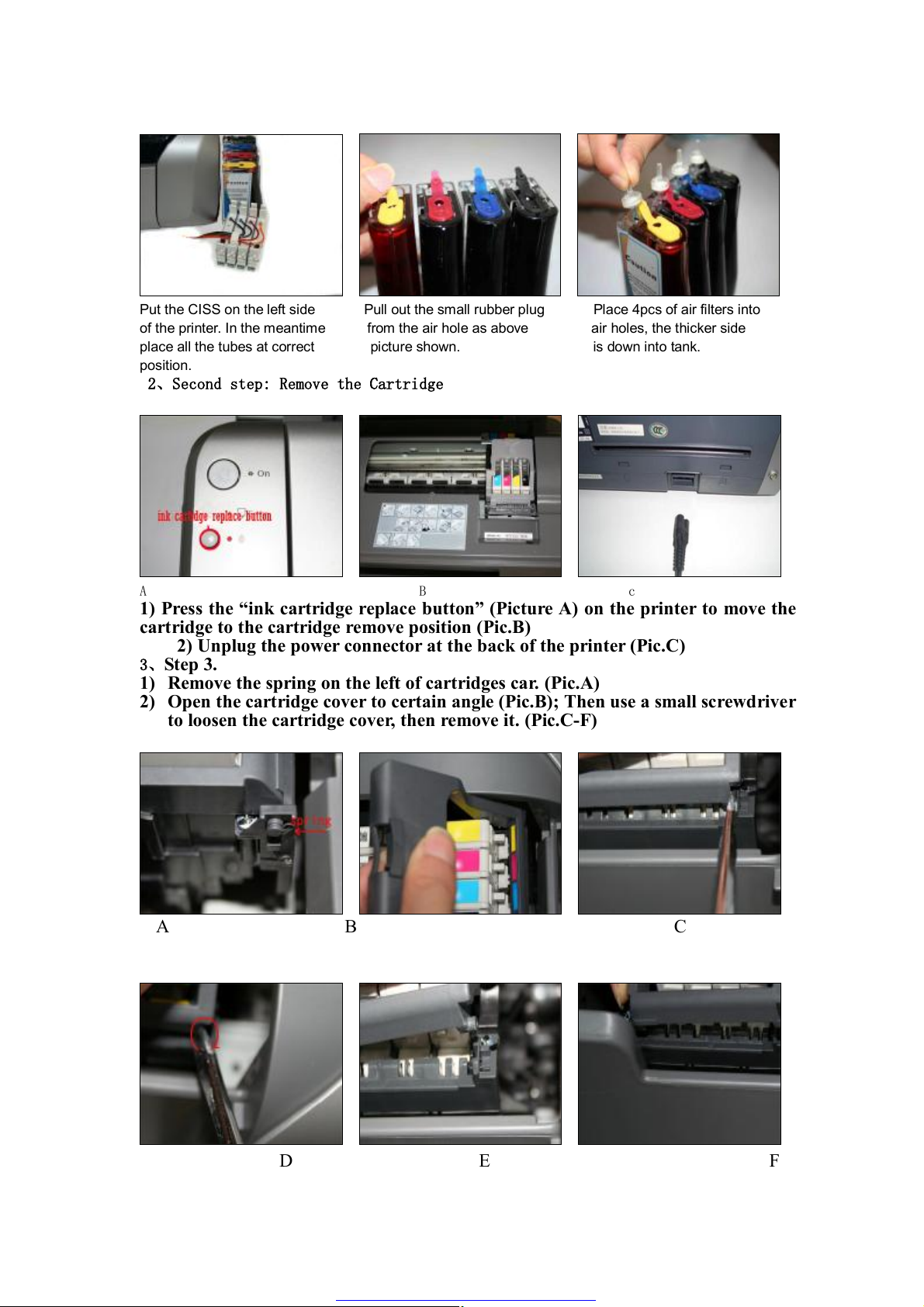

PuttheCISSontheleftsidePulloutthesmallrubberplug Place4pcsofairfiltersinto

oftheprinter.Inthemeantimefromtheairholeasaboveairholes,thethickerside

placeallthetubesatcorrectpictureshown.isdownintotank.

position.

2、Second step:Remove the Cartridge

A Bc

1)Pressthe inkcartridgereplacebutton”(PictureA)ontheprintertomovethe

cartridgetothecartridgeremoveposition(Pic.B)

2)Unplugthepowerconnectoratthebackoftheprinter(Pic.C)

3、Step3.

1) Removethespringontheleftofcartridgescar.(Pic.A)

2) Openthecartridgecovertocertainangle(Pic.B); Thenuseasmallscrewdriver

toloosenthecartridgecover, thenremoveit. (Pic.C-F)

ABC

DEF

Get other manuals https://www.bkmanuals.com

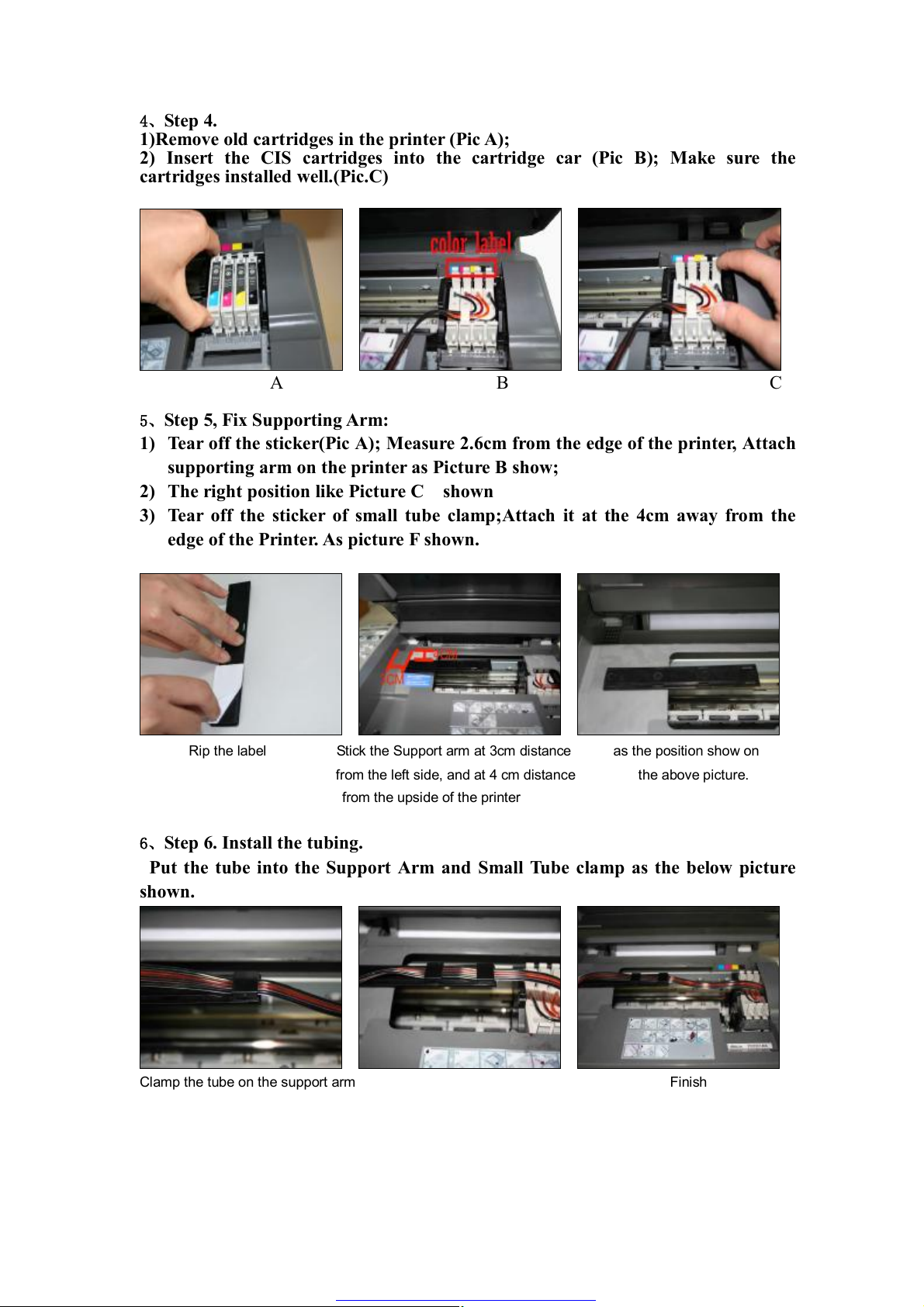

4、Step4.

1)Removeoldcartridgesintheprinter(PicA);

2)InserttheCIScartridgesintothecartridgecar(PicB);Makesurethe

cartridgesinstalledwell.(Pic.C)

ABC

5、Step5,FixSupportingArm:

1) Tearoffthesticker(PicA); Measure2.6cmfromtheedgeoftheprinter,Attach

supportingarmontheprinterasPictureBshow;

2) TherightpositionlikePictureCshown

3) Tearoffthestickerofsmalltubeclamp;Attachitatthe4cmawayfromthe

edgeofthePrinter.AspictureFshown.

RipthelabelSticktheSupportarmat 3cmdistanceastheposition showon

fromtheleftside,andat 4cmdistancetheabovepicture.

fromtheupsideoftheprinter

6、Step6.Installthetubing.

PutthetubeintotheSupportArmand SmallTubeclampasthebelowpicture

shown.

Clampthetubeon thesupport armFinish

Get other manuals https://www.bkmanuals.com

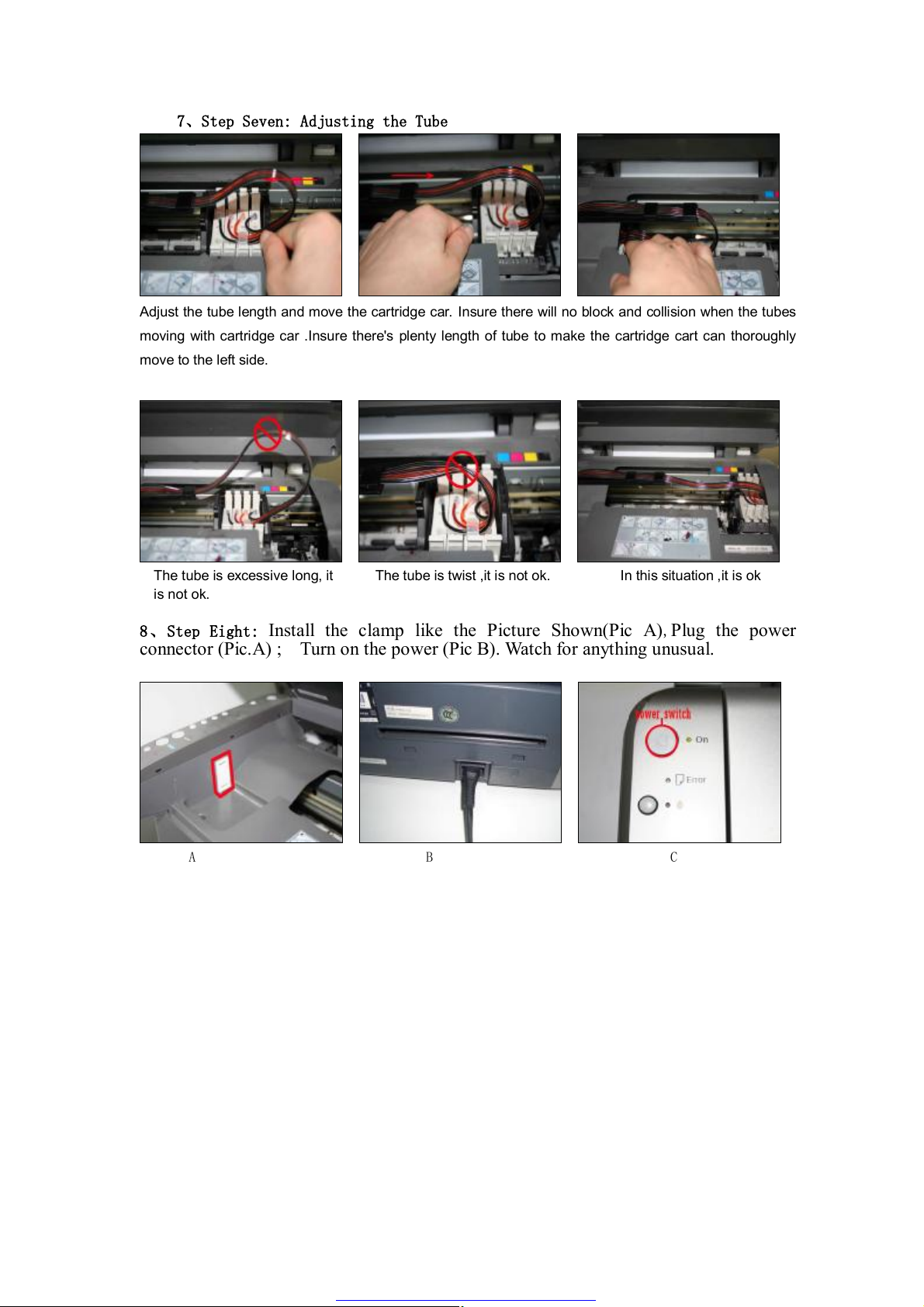

7、Step Seven: Adjusting the Tube

Adjustthetubelengthandmovethecartridgecar. Insuretherewill noblock andcollisionwhenthetubes

movingwithcartridgecar.Insurethere'splentylengthoftubetomakethecartridgecartcanthoroughly

movetotheleft side.

Thetubeisexcessivelong,itThetubeistwist,itisnotok.Inthissituation,itisok

isnotok.

8、Step Eight: InstalltheclamplikethePictureShown(PicA),Plug thepower

connector(Pic.A);Turnonthepower(PicB).Watchforanythingunusual.

A B C

Get other manuals https://www.bkmanuals.com

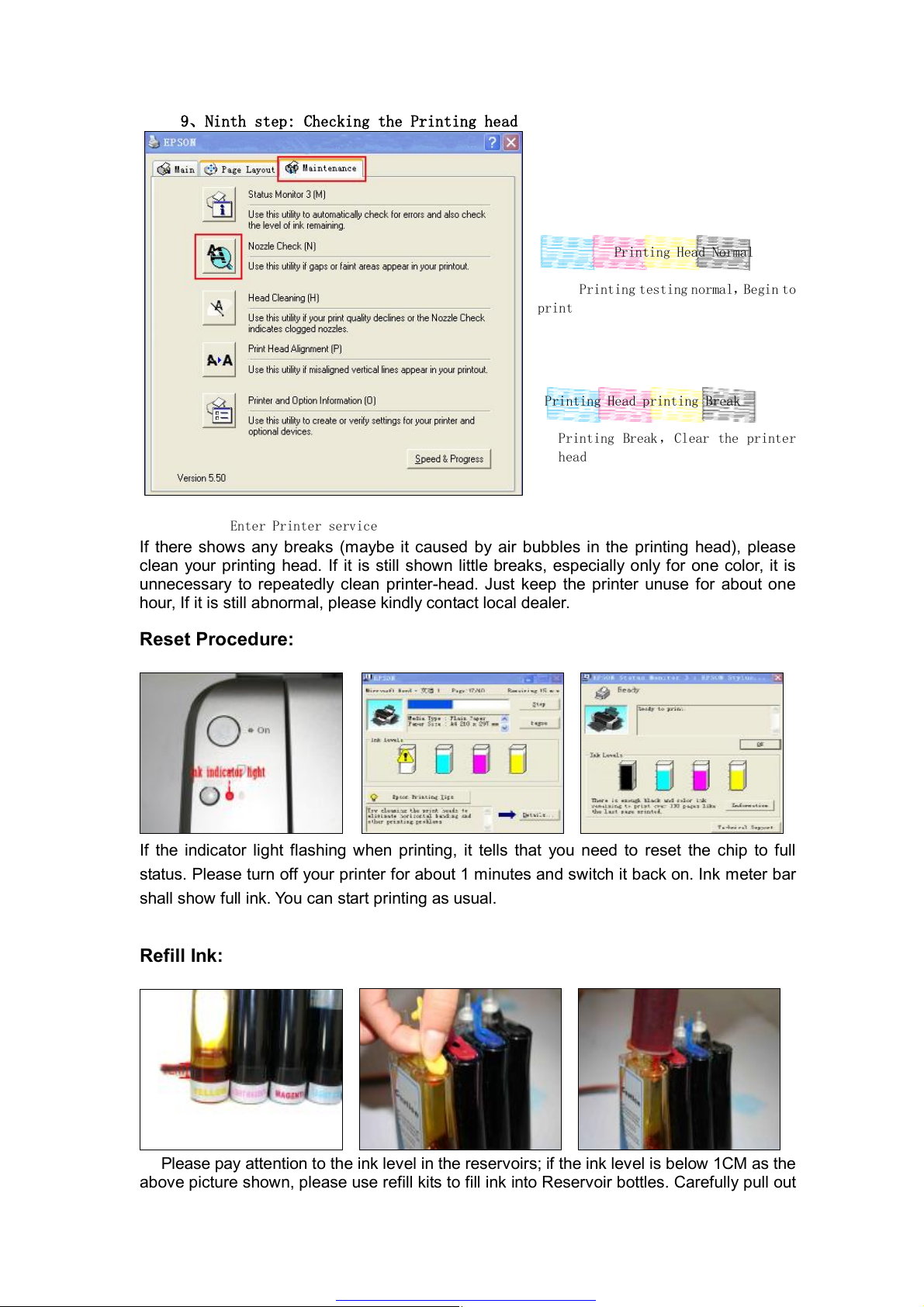

9、Ninth step: Checking the Printing head

Printing HeadNormal

Printingtestingnormal Beginto

Printing Headprinting Break

PrintingBreak Clearthe printer

head

EnterPrinterservice

Ifthereshowsanybreaks (maybeitcausedbyairbubblesintheprintinghead),please

clean yourprintinghead.Ifitisstill shownlittlebreaks,especiallyonlyforonecolor,itis

unnecessarytorepeatedlycleanprinter-head.Justkeeptheprinterunuseforaboutone

hour, Ifit isstill abnormal, pleasekindlycontact localdealer.

ResetProcedure:

Ifthe indicatorlightflashingwhen printing,ittellsthatyouneedtoresetthechiptofull

status. Pleaseturnoff yourprinterforabout1minutesandswitchitback on.Inkmeterbar

shall showfullink.Youcanstart printingasusual.

Refill Ink:

Pleasepayattention totheinklevelinthe reservoirs; ifthe inklevelisbelow1CMasthe

abovepictureshown, pleaseuserefill kitstofillinkintoReservoirbottles.Carefullypull out

Get other manuals https://www.bkmanuals.com

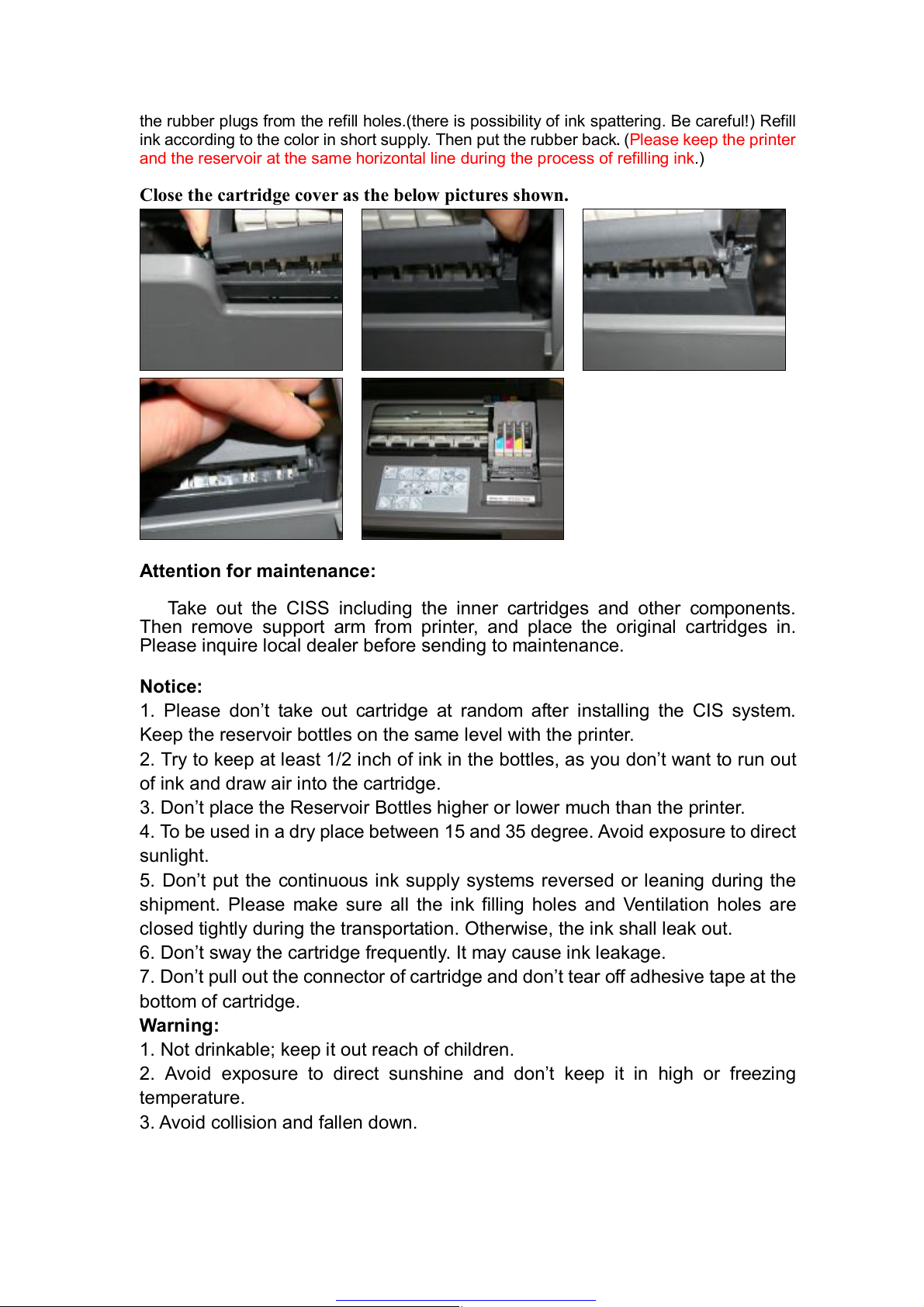

the rubberplugsfromthe refillholes.(thereispossibilityof inkspattering.Becareful!)Refill

inkaccordingtothecolorinshortsupply. Thenputtherubberback.(Pleasekeeptheprinter

and the reservoirat the samehorizontallineduringthe process ofrefillingink.)

Closethecartridgecoverasthebelowpicturesshown.

Attentionformaintenance:

TakeouttheCISS includingtheinnercartridgesandothercomponents.

Thenremovesupportarmfromprinter,andplacethe originalcartridgesin.

Pleaseinquirelocaldealerbeforesending tomaintenance.

Notice:

1.Pleasedon ttakeoutcartridge atrandomafterinstalling theCISsystem.

Keep the reservoirbottleson thesamelevelwiththe printer.

2.Trytokeep at least 1/2inchof inkinthe bottles, asyou don twanttorun out

of inkand drawairintothecartridge.

3. Don t placethe ReservoirBottleshigherorlowermuchthan the printer.

4.Tobeusedinadryplacebetween 15and 35degree.Avoidexposuretodirect

sunlight.

5.Don tputthe continuousinksupplysystemsreversedorleaningduring the

shipment. Pleasemakesureallthe inkfillingholesandVentilation holesare

closedtightlyduring the transportation. Otherwise, the inkshallleakout.

6. Don t swaythe cartridge frequently. It maycauseinkleakage.

7.Don tpull outthe connectorof cartridge anddon ttearoffadhesivetapeatthe

bottomof cartridge.

Warning:

1. Not drinkable; keepit outreachof children.

2.Avoidexposuretodirectsunshineanddon tkeepitinhighorfreezing

temperature.

3.Avoidcollision and fallendown.
