Epson AcuLaser C8600 Bedienungsanleitung

Color Laser Printer

Setup Guide Setup Guide 4021253-00

EUL

Color Laser Printer

Where to Find Information

Setup Guide (this manual)

Contains information on placing and assembling the printer, and

installing the printer driver.

User Guides

The CD-ROM shipped with your printer includes

the following guides as well as the printer driver.

Note:

Microsoft®Internet Explorer 4.0 or later, or Netscape Navigator®4.0

or later, must be installed on your computer to view the Reference Guide

and the Administrator’s Guide. Adobe®Acrobat®Reader™ 4.0 or later

must be installed on your computer to view the Quick Reference.

Reference Guide (HTML)

❏How to use the printer

❏How to solve problems

❏How to keep your printer in good condition

❏Safety information and technical specifications

Administrator’s Guide (HTML)

Provides network administrators with information on both the

printer driver and network settings.

Quick Reference (PDF)

Provides you with a list of LCD panel messages, solutions for

paper jam problems, and other information about your printer

that you may need to refer to on a regular basis. We recommend

printing the guide and keeping it near the printer.

Color Laser Printer

Setup Guide

1 Safety Instructions . . . . . . . . . . . . . . . . . . . . 1

2 Assembling the Printer . . . . . . . . . . . . . . . 10

3 Installing Options . . . . . . . . . . . . . . . . . . . . 18

4 Testing and Connecting the Printer . . . . 28

5 Installing the Printer Software. . . . . . . . . . 32

6 Printing the Quick Reference Guide. . . . 37

system, or transmitted in any form or by any means, mechanical, photocopying, recording,

or otherwise, without the prior written permission of SEIKO EPSON CORPORATION. No

patent liability is assumed with respect to the use of the information contained herein. Neither

is any liability assumed for damages resulting from the use of the information contained

herein.

Neither SEIKO EPSON CORPORATION nor its affiliates shall be liable to the purchaser of

this product or third parties for damages, losses, costs, or expenses incurred by purchaser or

third parties as a result of: accident, misuse, or abuse of this product or unauthorized

modifications, repairs, or alterations to this product, or (excluding the U.S.) failure to strictly

comply with SEIKO EPSON CORPORATION’s operating and maintenance instructions.

SEIKO EPSON CORPORATION and its affiliates shall not be liable against any damages or

problems arising from the use of any options or any consumable products other than those

designated as Original EPSON Products or EPSON Approved Products by SEIKO EPSON

CORPORATION.

EPSON and EPSON ESC/P are registered trademarks and EPSON AcuLaser and EPSON

ESC/P 2 are trademarks of SEIKO EPSON CORPORATION.

Microsoft and Windows are registered trademarks of Microsoft Corporation in the United

States and/or other countries.

Adobe and PostScript are trademarks of Adobe Systems Incorporated, which may be

registered in certain jurisdictions.

Apple and Macintosh are registered trademarks of Apple Computer, Inc.

General Notice: Other product names used herein are for identification purposes only and

may be trademarks of their respective owners. EPSON disclaims any and all rights in those

marks.

Warnings, Cautions, and Notes

wWarnings must be followed carefully to avoid bodily injury.

cCautions must be observed to avoid damage to your

equipment.

Notes contain important information and useful tips on the

operation of your printer.

Safety Instructions 1

1Safety Instructions

Laser Printer Precautions

This printer uses laser technology. The following precautions

apply whenever you use the printer. Even if you are familiar with

other types of printers, be sure to follow these precautions

carefully to ensure safe, efficient operation.

❏Because the printer weighs approximately 70 kg (154 lbs)

without the consumable or optional products installed, one

person should not lift or carry it. Four people should carry the

printer, lifting it at the correct positions. Refer to the

instructions in the Unpacking Sheet.

❏Be careful not to touch the fuser, which is marked CAUTION!

HIGH TEMPERATURE, or the surrounding areas. If the printer

has been in use, the fuser and the surrounding areas may be

very hot.

❏Do not insert your hand into the fuser unit as some

components are sharp and may cause injury.

❏Avoid touching the components inside the printer unless

instructed to do so in this guide.

Do not insert your hand

into the fuser unit.

CAUTION! HIGH TEMPERATURE

2Safety Instructions

❏Never force the printer’s components into place. Although the

printer is designed to be sturdy, rough handling can damage

it.

❏When handling toner cartridges, always place them on a

clean, smooth surface.

❏Do not attempt to modify toner cartridges or take them apart.

They cannot be refilled.

❏Do not touch the toner. Keep the toner away from your eyes.

❏Do not dispose of used toner cartridges, waste toner

collectors, or photoconductor units in fire, as theycan explode

and cause injury. Dispose of them according to local

regulations.

❏Wait at least one hour before using a toner cartridge or a

photoconductor unit after moving it from a cool to a warm

environment to prevent damage from condensation.

❏When removing the photoconductor unit, avoid exposing it

to light for more than 5 minutes. The unit contains a

blue-colored light-sensitive drum. Exposure to light can

damage the drum, causing dark or light areas to appear on

the printed page and reducing the service life of the drum. If

you need to keep the unit out of the printer for long periods,

cover it with an opaque cloth.

Safety Instructions 3

❏Be sure not to scratch the surface of the photoconductor unit’s

drum. When you remove the photoconductor unit from the

printer, always set the unit on a clean, smooth surface. Also,

avoid touching the drum, since oil from your skin can

permanently damage its surface and may affect print quality.

❏To get the best print quality, do not store the photoconductor

unit in an area subject to direct sunlight, dust, salty air, or

corrosive gases (such as ammonia). Avoid locations subject to

extreme or rapid changes in temperature or humidity.

❏Be sure to keep consumable components out of the reach of

children.

❏Do not leave jammed paper inside the printer. This can cause

the printer to overheat.

Important Safety Instructions

Read all of the following instructions before operating your

printer:

❏Follow all warnings and instructions marked on the printer.

❏Unplug the printer from the electrical outlet before cleaning.

Use a damp cloth for cleaning. Do not use liquid or aerosol

cleaners.

❏Do not use the printer near water.

❏Do not place the printer on an unstable surface.

❏Slots and openings, located on the front, back and top of the

printer, are provided for ventilation. Keep these slots and

openings clear to allow proper ventilation. Avoid placing the

printer on a soft surface, like a bed or a sofa, or in a small

enclosed area, as this restricts proper ventilation.

4Safety Instructions

❏Connect your printer to an electrical outlet that meets the

power requirements of this printer. Your printer’s power

requirements are indicated on a label attached to the printer.

If you are not sure of the power supply specifications in your

area, contact your local power company or consult your

dealer.

❏The interface connector for this printer is Non-LPS

(non-limited power source).

❏If you are unable to insert the AC plug into the electrical

outlet, contact an electrician.

❏Do not put your printer where the cord will be stepped on.

❏Avoid sharing outlets with other appliances.

❏When using an extension cord, be careful not to exceed its

recommended amperage limit. Also, be sure that all items

plugged into the electrical outlet do not exceed a total of 15

amperes.

❏Never push objects of any kind through cabinet slots as they

may touch dangerous voltage points or short out parts that

could result in fire or electric shock.

❏Never spill liquid of any kind onto the printer.

❏Unless specifically instructed in this guide, do not attempt to

service this product yourself. Opening or removing those

covers that are marked Do Not Remove may expose you to

dangerous voltage points or other risks. Contact a qualified

service representative for service.

Safety Instructions 5

❏Unplug the printer and contact a qualified service

representative under the following conditions:

❏Adjust only those controls that are covered by the operating

instructions. Improper adjustment of other controls may

result in damage that requires repair by a qualified service

representative.

❏If you plan to use the printer in Germany, observe the

following:

To provide adequate short-circuit protection and

over-current protection for this printer, the building

installation must be protected by a 10 or 16 amp circuit

breaker.

Safety Information

Power cord

cCaution:

Be sure the AC power cord meets the relevant local safety

standards.

A. If liquid has entered the printer

B. If the printer has been exposed to rain or water

C. If the printer does not operate normally or exhibits a

distinct change in performance

D. If the printer has been dropped or the cabinet damaged

E. If the power cord or plug is damaged or frayed

6Safety Instructions

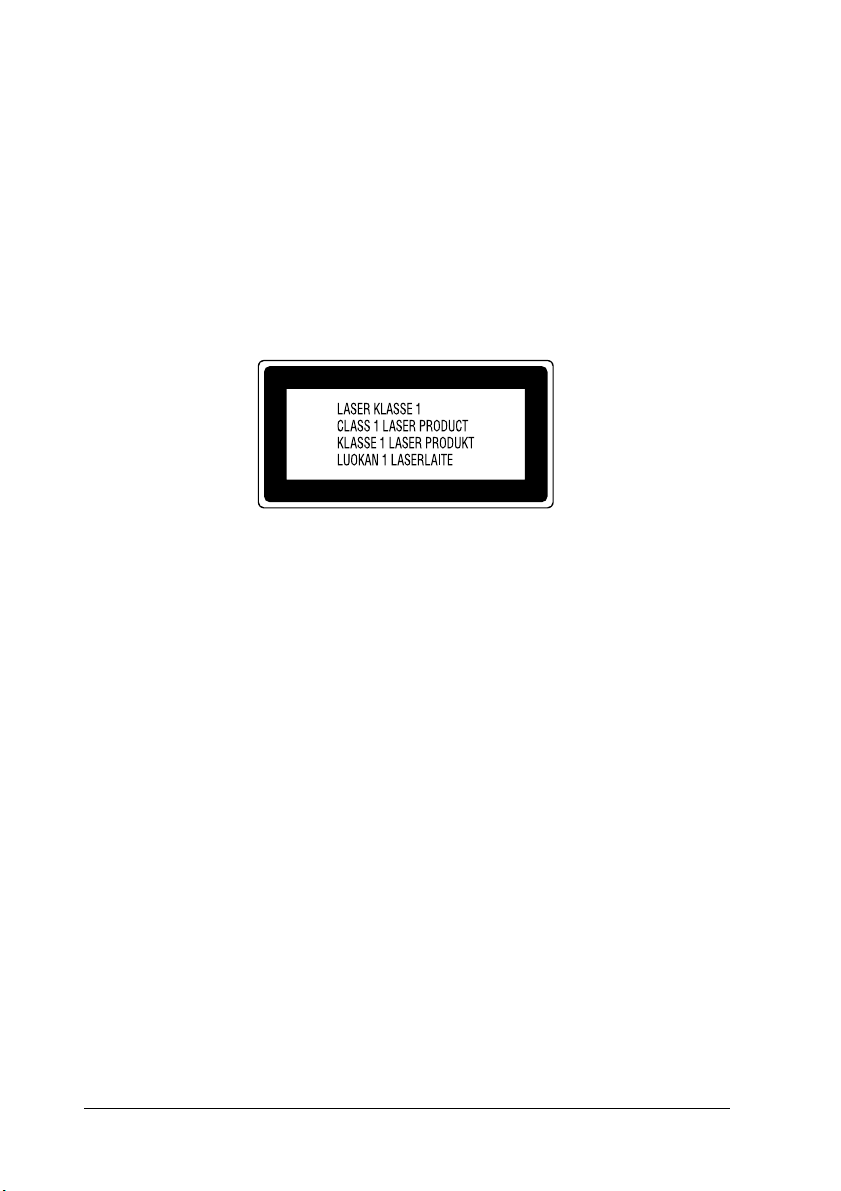

Laser safety labels

Your printer is a Class 1 laser product as defined in the IEC 60825

specifications. The label shown is attached in countries where

required.

wWarning:

The use of controls, or the performance of procedures and

adjustments other than those specified in this guide may result in

hazardous radiation exposure.

Internal laser radiation

This is a Class IIIb Laser Diode Assembly that has an invisible

laser beam. The printer head unit is NOT A SERVICE ITEM.

Therefore, the printer head unit should not be opened under any

circumstances. An additional laser warning label is affixed to the

inside of the printer.

CDRH regulations

For information about the Center for Devices and Radiological

Health of the U.S. Food and Drug Administration, see the

Reference Guide on the CD-ROM.

Max. Radiation Power

Wave Length

5mW

780 nm

Andere Handbücher für AcuLaser C8600

Inhaltsverzeichnis

Andere Epson Drucker Handbücher

Epson

Epson L3100 Series Bedienungsanleitung

Epson

Epson 875DCS - Stylus Photo Color Inkjet Printer Bedienungsanleitung

Epson

Epson C11C560111 - PLQ 20 B/W Dot-matrix Printer Bedienungsanleitung

Epson

Epson ActionLaser II Abmessungen

Epson

Epson SC-F7270 Bedienungsanleitung

Epson

Epson XP-302 Bedienungsanleitung

Epson

Epson EMP-TW 1000 Bedienungsanleitung

Epson

Epson Artisan 1430 Bedienungsanleitung

Epson

Epson 875DC - Stylus Photo Color Inkjet Printer Bedienungsanleitung

Epson

Epson AcuLaser C3800 Series Kurzanleitung

Epson

Epson AcuLaser C4200 Kurzanleitung

Epson

Epson TM-H5000II series Bedienungsanleitung

Epson

Epson Stylus pro 3800 portrait edition Bedienungsanleitung

Epson

Epson Stylus Pro 9860 Bedienungsanleitung

Epson

Epson Stylus Printer SX100 Bedienungsanleitung

Epson

Epson Stylus Pro 7000 Series Bedienungsanleitung

Epson

Epson XP-410 Bedienungsanleitung

Epson

Epson L800 Bedienungsanleitung

Epson

Epson Stylus Color Stylus Color II Bedienungsanleitung

Epson

Epson Stylus Pro 9890 Series Bedienungsanleitung

Epson

Epson SecurColor TM-C3400 Bedienungsanleitung

Epson

Epson M100 Bedienungsanleitung

Epson

Epson 5700i - EPL B/W Laser Printer Bedienungsanleitung

Epson

Epson WorkForce WF-7610 Bedienungsanleitung

Beliebte Drucker Handbücher anderer Marken

Lexmark

Lexmark 1400 Series Handbuch

Canon

Canon i70 Series Bedienungsanleitung

Evolis

Evolis Elypso Bedienungsanleitung

Kyocera

Kyocera FS-9530DN Bedienungsanleitung

Canon

Canon LASER SHOT LBP-1210 Bedienungsanleitung

Samsung

Samsung BIXOLON SRP-350plusF Bedienungsanleitung

Canon

Canon PIXMA PRO-1 Series Bedienungsanleitung

Canon

Canon PIXMA G3560 Einrichtungshandbuch

Dell

Dell Color Laser Printer 2130cn Bedienungsanleitung

Tektronix

Tektronix Phaser 840 Bedienungsanleitung

Canon

Canon CLBR 460ps Bedienungsanleitung

Eltron

Eltron P210 Guide Bedienungsanleitung

Ricoh

Ricoh MD-P1 Bedienungsanleitung

Canon

Canon imagePASS-A2 Bedienungsanleitung

Canon

Canon S820D Bedienungsanleitung

IRA3D

IRA3D POETRY4 Bedienungsanleitung

Ricoh

Ricoh Aficio AP400 Bedienungsanleitung

BIXOLON

BIXOLON SRP-352plusV Bedienungsanleitung
