Epson J7100 - TM Two-color Inkjet Printer Bedienungsanleitung

TM-J7000/J7100

TM-J7500/J7600

User’s Manual / Bedienungsanleitung

Gebruikershandleiding / Manuel d’utilisation

Manual do utilizador / Manual del usuario

Manuale dell’utente

404054802

112

TM-J7000/J7100 TM-J7500/J7600

TM-J7000/J7500 TM-J7100/J7600

7891112

656

7891112 10

TM-J7000/J7100 TM-J7500/J7600

TM-J7500/J7600

TM-J7000/J7100

TM-J7000/J7500 TM-J7100/J7600

TM-J7000/J7100

300 mm {12"} 200 mm {8"}

150 mm {6"}

TM-J7500/J7600

DIP Switch Tables

TM-J7000/J7100, TM-J7500/J7600 Specifications

*Full-column printing

Serial

SW Function On Off

1 Reserved — Fixed to

Off

2 Interface condition

selection By the DIP

switch By the

memory

switch

3 Handshaking XON/XOFF DTR/DSR

4 Word length 7 bits 8 bits

5 Parity check Yes No

6 Parity selection Even Odd

8Transmission speed selection (See Serial

transmission speed table.)

Serial transmission speed

1-7 1-8 Transmission speed

On On 9600 bps

Off On 19200 bps

On Off 38400 bps

Off Off 115200 bps

Parallel

SW Function On Off

1-8 Reserved Fixed to Off.

Receipt Slip Endorsement

(TM-J7000/J7100)

Print method Serial inkjet Dot Matrix Method

Print density 180 × 180 dpi

Print font Font (standard) Font A: 12 × 24, Font B: 9 × 17

Column capacity

(columns)

82.5 mm: 42/56

76 mm: 40/53

69.5 mm: 36/48

57.5 mm: 30/40

TM-J7000/J7100:

48/64

TM-J7500/J7600:

80/106

46/61

Character size (W ×

H) (standard)

1.41 × 3.38 mm/0.99 × 2.40 mm

(not including horizontal spacing)

Character set 95 Alphanumeric, 37 International,128 × 11 Graphic

Characters per inch

(standard)

Font A (12 × 24): 15 cpi, Font B (9 × 17): 20 cpi

Paper Dimensions (mm) 57.5 ±0.5, 69.5 ±0.5,

76 ±0.5, 82.5 ±0.5

Maximum outside

diameter: 83 mm

68~230 (W) ×

68~297 (L)

(min. 68 ×152)

68~101.6 (W) ×

150~223 (L)

Thickness (mm) 0.06~0.09 0.09~0.2 0.09~0.13

Print speed

(Economy,

High speed

mode)

Character (font B) Paper width 76 mm:

14.3 lps TM-J7000/J7100: 13.7 lps *

TM-J7500/J7600:

9.9 lps *

Graphic Paper width 76 mm:

43 mm/s TM-J7000/J7100: 40 mm/s *

TM-J7500/J7600:

29.1 mm/s *

Bar code, Two-dimentional code UPC-A, UPC-E, JAN13(EAN13), JAN8(EAN8), CODE39,

CODE93, CODE128, ITF, CODABAR(NW7), PDF417

dpi: dots per 25.4 mm (dots per inch)

lps: lines per second

cpi: characters per 25.4 mm (dots per inch)

TM-J7000/J7100 TM-J7500/J7600

Interface RS-232 or IEEE 1284

Dealer option: RS-485, USB, 10Base-T I/F

Data buffer Receive buffer 4 KB

User defined

buffer

12 KB

User NV memory 384 KB (Max.)

Ink cartridge Color Single color: Black SJIC8(K) (for TM-J7000 or TM-J7500 only)

Two color: Black SJIC6(K) (for TM-J7100 or TM-J7600 only),

Red SJIC7(R), Blue SJIC7(B), Green SJIC7(G)

Life Single color: Approx. 20 million characters

Two color: Approx. 15 million characters

Power 24 VDC ±10%

Power

consumption

Operating Mean: Approx. 0.5 A

Stand-by Approx. 70 mA Approx. 80 mA

D.K.D. function 2drives

Reliability

Life

Mechanism Receipt: 15,000,000 lines, Slip: 5,000,000 lines

Print head 1600 million shots/nozzle

Autocutter 1,500,000 cuts

Temperature

/humidity

Printing 10~35°C {50~95°F} 20~80% RH

Must be no condensation

Operating 5~40°C {41~104°F} 20~80% RH

Must be no condensation

Storage Ink installed: –20~40°C {–4~104°F} 20~85% RH

Ink not installed: –20~60°C {–4~140°F} 5~85% RH

Must be no condensation

Overall dimensions (mm) 195 × 237 × 188 (W × D × H) 251 × 237 × 188 (W × D × H)

Mass (approx.) 4.4 kg

(including the ink cartridge) 4.9 kg

(including the ink cartridge)

English

TM-J7000/J7100

TM-J7500/J7600

User’s Manual

DIP Switches and Specifications

The technical specifications and the information about the DIP switches are at the beginning of this

manual.

Illustrations

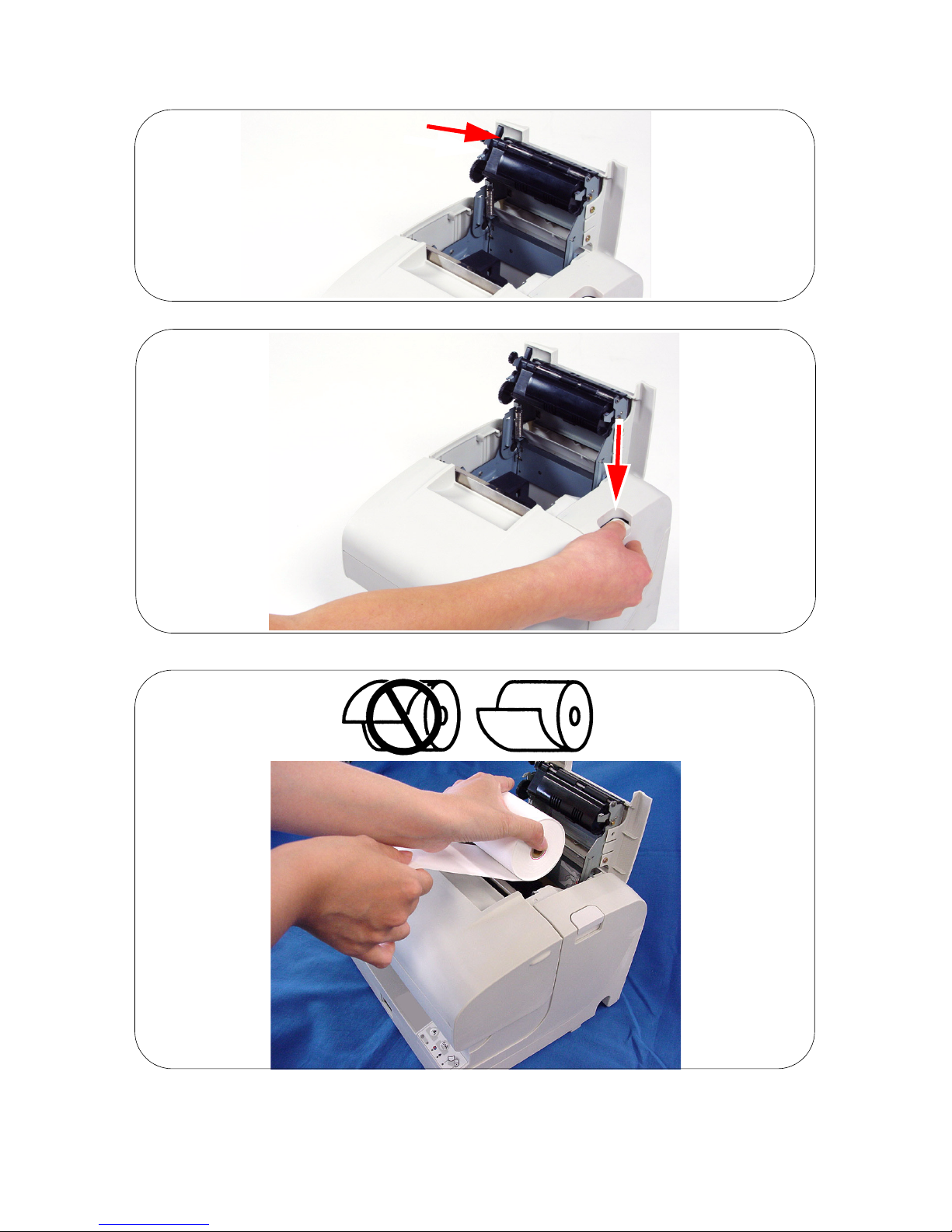

All of the illustrations are at the beginning of this manual. They are identified by letters (A, B, C . . .). In the

text the illustrations are referred to by these letters. (“See illustration A,” for example.) Some of these

illustrations have numbered arrows or lines pointing to parts of the illustration. See the list below for the

meaning of the numbers.

transmitted in any form or by any means, electronic, mechanical, photocopying, recording, or otherwise,

without the prior written permission of Seiko Epson Corporation. No patent liability is assumed with

respect to the use of the information contained herein. While every precaution has been taken in the

preparation of this book, Seiko Epson Corporation assumes no responsibility for errors or omissions.

Neither is any liability assumed for damages resulting from the use of the information contained herein.

Neither Seiko Epson Corporation nor its affiliates shall be liable to the purchaser of this product or third

parties for damages, losses, costs, or expenses incurred by purchaser or third parties as a result of:

accident, misuse, or abuse of this product or unauthorized modifications, repairs, or alterations to this

product, or (excluding the U.S.) failure to strictly comply with Seiko Epson Corporation’s operating and

maintenance instructions.

Seiko Epson Corporation shall not be liable against any damages or problems arising from the use of any

options or any consumable products other than those designated as Original EPSON Products or EPSON

Approved Products by Seiko Epson Corporation.

EPSON and ESC/POS are registered trademarks of Seiko Epson Corporation.

NOTICE: The contents of this manual are subject to change without notice.

Illustration AIllustration BIllustration M

1. Roll paper cover 5. PAPER FEED 9. INK OUT (Black) 13. Projections

2. Ink cartridge cover 6. CLEANING 10. INK OUT (Color) 14. Screws

3. Control panel 7. PAPER OUT 11. ERROR 15. Fixing plate

4. Power supply switch 8. CUT SHEET 12. POWER

2TM-J7000/J7100 – TM-J7500/J7600 User’s Manual

English

EMC and Safety Standards Applied

Product Name: TM-J7000/TM-J7100,

TM-J7500/TM-J7600

Model Name: M184A, M184B

The following standards are applied only to the

printers that are so labeled. (EMC is tested using

the EPSON power supplies.)

Europe: CE marking

Safety: TÜV (EN 60950)

North America: EMI: FCC/ICES-003 Class A

Safety: UL 60950/CSA C22.2

No. 60950

Japan: EMI: VCCI Class A

Oceania: EMC: AS/NZS 3548 Class B

WARNING

The connection of a non-shielded printer interface

cable to this printer will invalidate the EMC

standards of this device.

You are cautioned that changes or modifications

not expressly approved by Seiko Epson

Corporation could void your authority to operate

the equipment.

CE Marking

The printer conforms to the following Directives

and Norms:

Directive 89/336/EEC EN 55022 Class B

EN 55024

IEC 61000-4-2

IEC 61000-4-3

IEC 61000-4-4

IEC 61000-4-5

IEC 61000-4-6

Only for TM-J7000/J7100 IEC 61000-4-8

IEC 61000-4-11

FCC Compliance Statement For

American Users

This equipment has been tested and found to

comply with the limits for a Class A digital device,

pursuant to Part 15 of the FCC Rules. These limits

are designed to provide reasonable protection

against harmful interference when the equipment

is operated in a commercial environment.

This equipment generates, uses, and can radiate

radio frequency energy and, if not installed and

used in accordance with the instruction manual,

may cause harmful interference to radio

communications.

Operation of this equipment in a residential area is

likely to cause harmful interference, in which case

the user will be required to correct the interference

at his own expense.

For Canadian Users

This Class A digital apparatus complies with

Canadian ICES-003.

Important Safety Information

This section presents important information intended to ensure safe and effective

use of this product. Read this section carefully and store it in an accessible

location.

Key to Symbols

The symbols in this manual are identified by their level of importance, as defined

below. Read the following carefully before handling the product.

WARNING:

Warnings must be followed carefully to avoid serious bodily injury.
