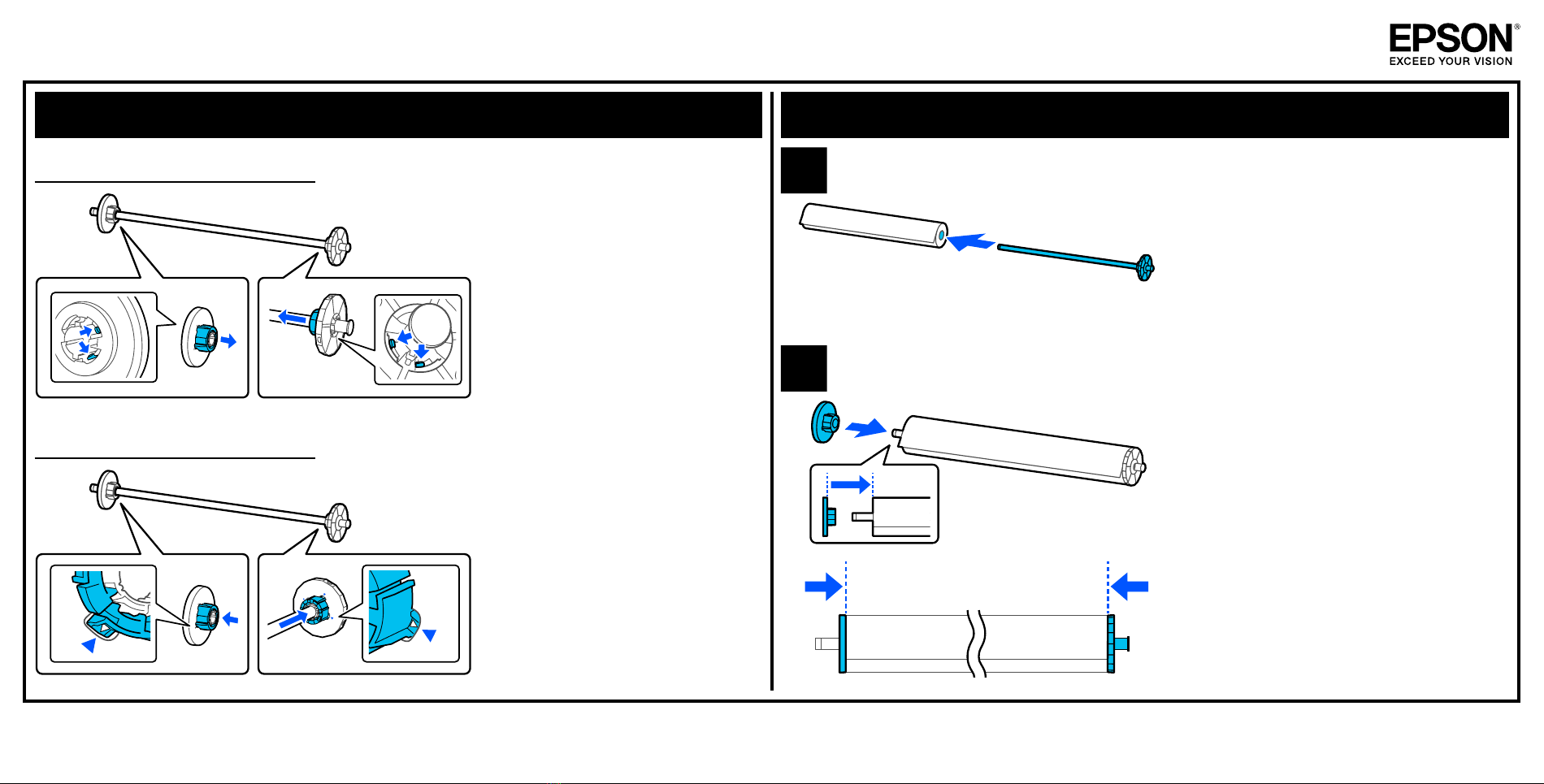

2-inch Core/3-inch Core Loading the Roll Paper on the Spindle

When using a 2-inch core

Remove the core adapters from

the media edge guide on both

sides.

When using a 3-inch core

Attach the core adapters to

the media edge guide on both

sides.

Insert the spindle with the roll paper

facing the direction shown in the

illustration.

Attach the media edge guides so that

there are no gaps between them and

the roll paper.

CMP0347-00 EN

Loading Roll 1 Removing Roll 1

1Set the paper support to the

position shown in the illustration. 3Lower the spindle lock lever.

2Place the spindle into the grooves

with the black media edge guide

on the right.

1Eject the roll paper. 3Remove the spindle.

2Raise the spindle lock lever.

Loading Roll 2

1Set the paper support to the position

shown in the illustration. 3Pull out the roll2 unit. 5Return the roll2 unit.

2Raise the spindle lock lever. 4Place the spindle into the grooves with

the black media edge guide on the right. 6Lower the spindle lock lever.

Removing Roll 2

1Eject the roll paper. 3Pull out the roll2 unit. 5Place the spindle into the grooves

with the black media edge guide

on the right.

7Lower the spindle lock lever.

2Raise the spindle lock lever. 4Remove the spindle. 6Return the roll2 unit.

Loading Cut Sheets/Poster Board (Front) Loading Cut Sheets/Poster Board (Back)

Make sure there is enough space at the

front/back of the printer.

Load poster board vertically.

4Align the paper with the

alignment position on the right

side with the side to be printed

facing up.

1Select [Menu] - [General Settings]

- [Printer Settings] - [Paper Source

Settings] - [Cut Sheet/Poster

Board Slot] - [Front].

2Select [Paper Setting] - [Cut Sheet]

or [Poster Board].

Choose a paper type that matches

the paper in the printer.

3Set the paper support to the

position shown in the illustration. 5Insert the paper straight into the

printer to the position shown in

the illustration.

Make sure there is enough space at the

front/back of the printer.

Load poster board vertically.

4Go to the rear of the printer, align

the paper with the alignment

position on the left side with the

side to be printed facing up.

1Select [Menu] - [General Settings]

- [Printer Settings] - [Paper Source

Settings] - [Cut Sheet/Poster

Board Slot] - [Back].

2Select [Paper Setting] - [Cut Sheet]

or [Poster Board].

Choose a paper type that matches

the paper in the printer.

3Set the paper support to the

position shown in the illustration. 5Insert the paper straight into the

printer to the position shown in

the illustration.

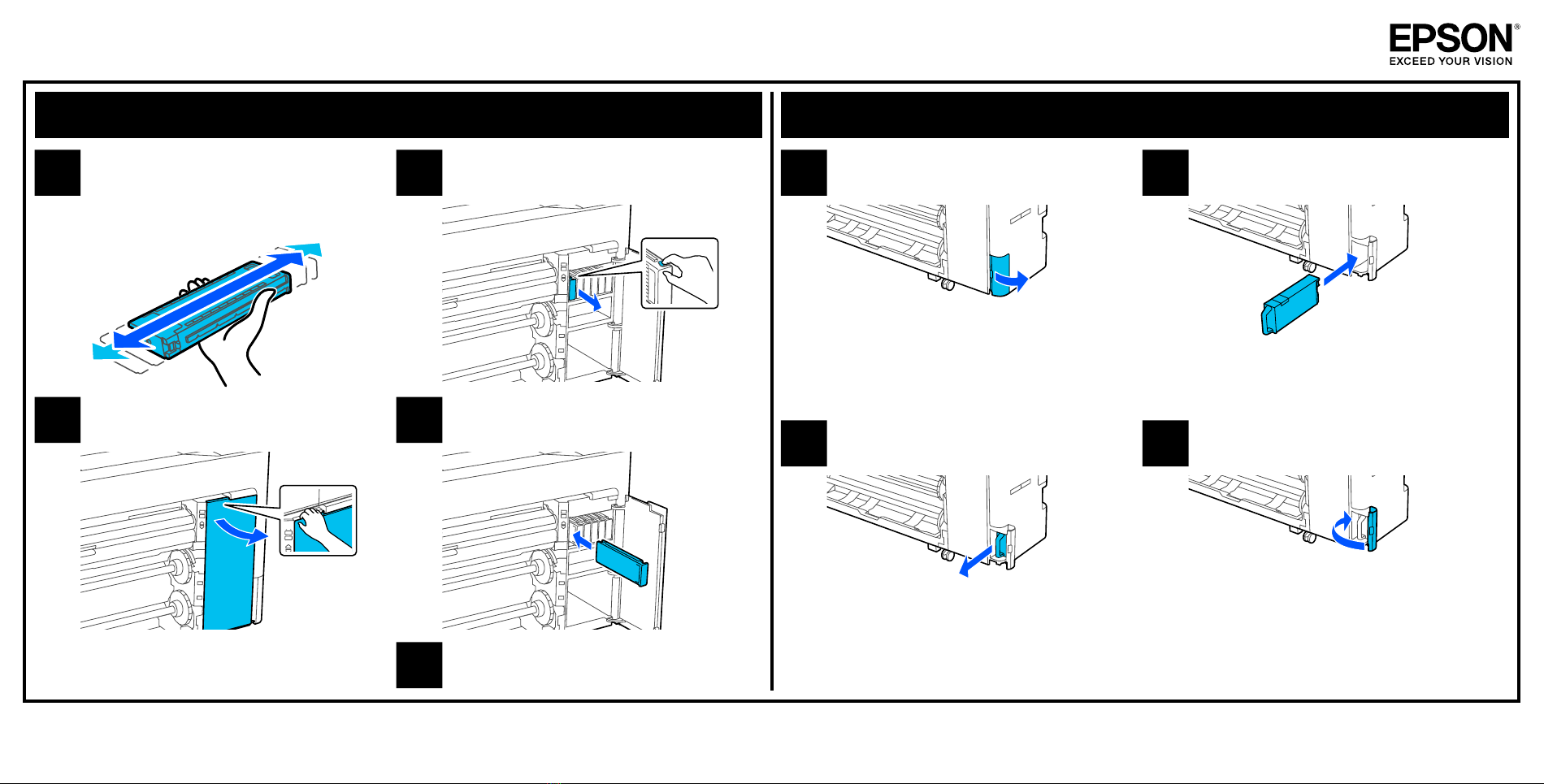

Replacing Ink Cartridges Replacing Maintenance Box

Shake the ink cartridge for 10

seconds 30 times horizontally in

approximately 10 cm movements

as shown in the illustration.

3Place your nger into the gap and

remove the ink cartridge.

Open the ink cartridge cover.

4Push the ink cartridge in rmly.

Close the ink cartridge cover.

1Open the maintenance box cover. 3Carefully insert the new

Maintenance Box.

2Pull out Maintenance Box. 4Close the maintenance box cover.
