Epson Stylus C84N Betriebsanleitung

EPSON Stylus C84N

Supplement

Includes information about networking utilities

and installation on Windows98 and Me

any form or by any means, electronic, mechanical, photocopying, recording, or otherwise, without the prior

written permission of SEIKO EPSON CORPORATION. The information contained herein is designed only for

use with this EPSON printer. EPSON is not responsible for any use of this information as applied to other

printers.

Neither SEIKO EPSON CORPORATION nor its affiliates shall be liable to the purchaser of this product or third

parties for damages, losses, costs, or expenses incurred by purchaser or third parties as a result of: accident, misuse,

or abuse of this product or unauthorized modifications, repairs, or alterations to this product, or (excluding the

U.S.) failure to strictly comply with SEIKO EPSON CORPORATION’s operating and maintenance instructions.

SEIKO EPSON CORPORATION shall not be liable for any damages or problems arising from the use of any

options or any consumable products other than those designated as Original EPSON Products or EPSON

Approved Products by SEIKO EPSON CORPORATION.

Trademarks

EPSON and EPSON Stylus are registered trademarks of SEIKO EPSON CORPORATION. EPSON Software is

a trademark of Epson America, Inc.

General Notice: Other product names used herein are for identification purposes only and may be trademarks of

their respective owners. EPSON disclaims any and all rights in those marks.

The ENERGY STAR emblem does not represent EPA endorsement of any product or service.

Contents

Introduction 5

EpsonNet External Print Server 5

Installing Printer Software on Windows 98 and Me 6

Using Status Monitor 9

Turning Status Monitor Off and On Again 10

Getting Help with Status Monitor 11

Network Software Utilities 12

Where To Get More Information 13

EpsonNet Install Wizard 14

EpsonNet WinAssist 15

EpsonNet MacAssist 15

EpsonNet WebAssist 16

EpsonNet WebManager 16

Introduction

The EPSON Stylus®C84N printer is the ideal output device for business graphics,

digital photographs, documents, and more. It includes an EpsonNet External Print

Server that you connect to the printer’s parallel port. With the print server, EpsonNet

configuration software, and additional utilities, you can monitor printer status,

manage network printers, and print across the Internet.

You can print to the EPSON Stylus C84N through the network from Microsoft®

Windows,

®Apple®Macintosh,

®UNIX,

®and IBM®OS/2.

EpsonNet External Print Server

The EpsonNet External Print Server is a combination of hardware and software that

makes the EPSON Stylus C84N printer available on your network without having to

connect it directly to a workstation.

The print server hardware supports IEEE 802.2, IEEE 802.3, Ethernet II, and

Ethernet SNAP protocols. It also supports TCP/IP, Novell®NetWare®IPX/SPX,

™

AppleTalk,

®NetBEUI, the Internet Printing Protocol (IPP), and SNMP.

Installing Printer Software on Windows 98

and Me

Before you begin, make sure that both the printer and print server are set up as

described on the Start Here sheet. Then follow the steps below to install the printer

software on Windows 98 or Me.

Note: If your network does not use DHCP, see the online Administrator’s Manual for

instructions on assigning an IP address to the printer.

1. Turn on the computer and make sure it is properly connected to the network.

Make sure the printer and print server are on.

2. Put the EPSON Printer Software CD in your CD-ROM or DVD drive.

You see the EPSON Installation Program window.

3. Double-click Install EpsonNet Direct Print and follow the on-screen

instructions to install Direct Print.

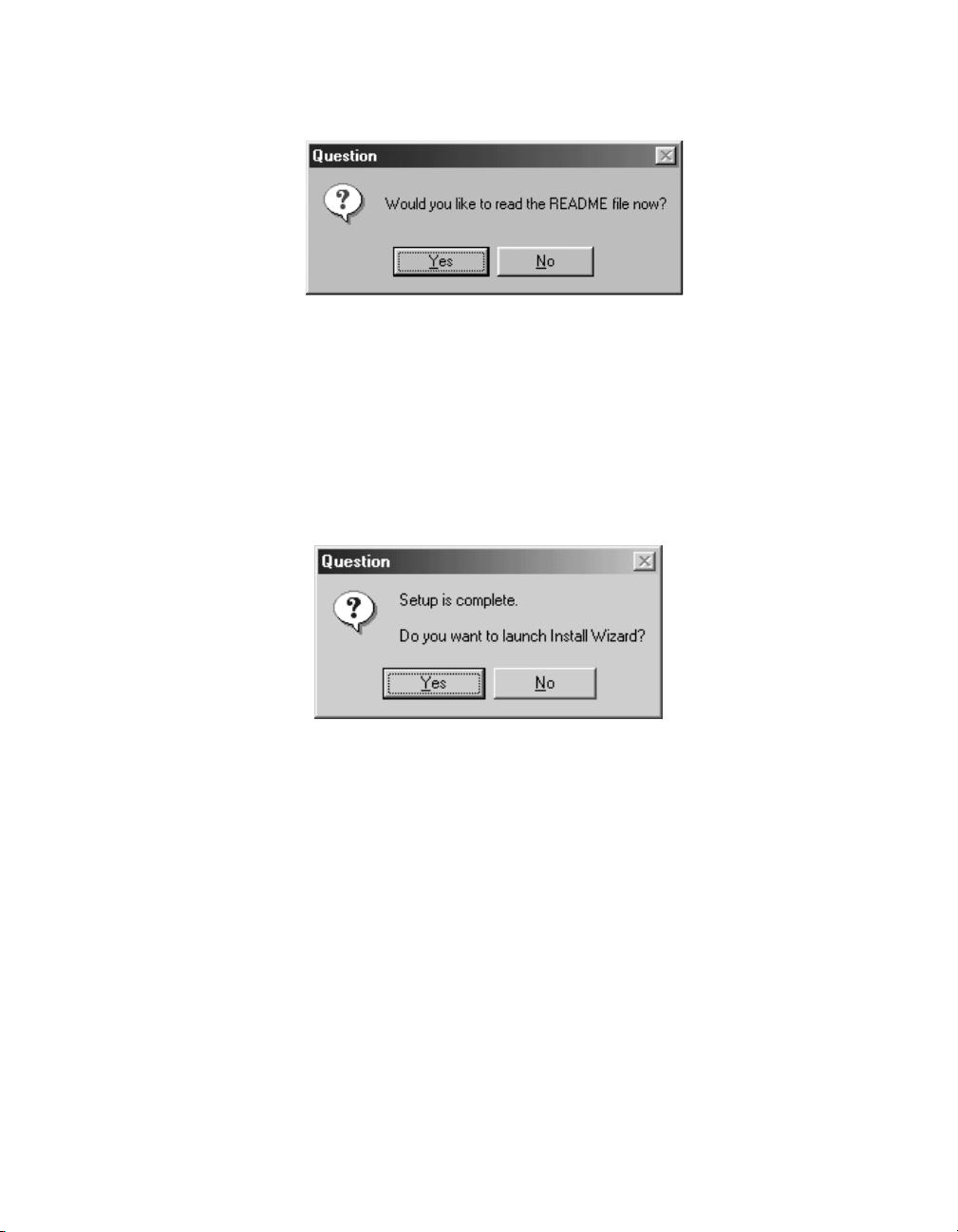

4. Click No when you see the following dialog box.

5. Restart the computer when prompted.

6. After the computer restarts, open the EPSON Program Installation window

again. To do this, double-click My Computer, double-click the C84N CD-ROM

icon, then double-click the SETUP.EXE icon.

7. Double-click Install EpsonNet Install Wizard.

8. When you see a screen like this, click Yes to open the Install Wizard:

9. You see a license agreement. Read the agreement and click Accept to continue.

Install Wizard searches the network, finds your printer, and displays it in a dialog

box. This can take 20 to 30 seconds.

10. Select the check box next to your printer and click Next.

Install Wizard automatically installs the printer driver and configures the

printer port.

11. Make sure there is letter-size paper loaded in the printer, then click the Print

button to print a test page. If the test page prints, installation was successful.

12. Click Quit.

13. Optionally, do any of the following:

■If you want to monitor the printer’s status from this computer, double-click

Install EPSON Network Status Monitor and follow the on-screen

instructions. Status Monitor automatically performs background monitoring

whenever you print a document and notifies you if the printer has any

problems.

Select the

check box next

to your printer

■Install the printer movies and User’s Guide. To do this, double-click Install

Printer Movies and User Guide (EPIC). (You may have to scroll down to

see this option.) To view the printer movies or User’s Guide, double-click the

EPSON Printer Information Center icon on your desktop.

■Install EPSON Software™Film Factory,

™

a photo management program. To

do this, double-click Install EPSON Software Film Factory. (You may have

to scroll down to see this option.) Then follow the on-screen instructions.

■View the print server Administrator’s Manual. To do this, double-click View

Administrator’s Manual. (You may have to scroll down to see this option.)

If you don’t have Acrobat Reader,

®install it when prompted.

14. Close the EPSON Installation Program window, then remove the CD-ROM

from the drive.

Using Status Monitor

EPSON Status Monitor enables you to monitor one or more network printers from

any computer running Windows 98, NT 4.0, Me, 2000, or XP. Status Monitor

shows ink levels for the printer and notifies you if the printer has any problems.

Status Monitor automatically performs background monitoring whenever you print a

document. If an error occurs, such as a paper out error, you’re automatically notified

of the problem. However, background monitoring increases network traffic, so you

may want to turn it off on some or all workstations. See “Turning Status Monitor Off

and On Again” in the next section.

Turning Status Monitor Off and On Again

To turn off Status Monitor, follow the steps below.

1. Right-click the Status Monitor icon in the taskbar and click Monitoring

Preferences.

You see the following dialog box.

2. Clear all check boxes in the Select Notification section, then click OK. Status

Monitor is now turned off.

Note: For more information about monitoring preferences, click the Help button.

To turn Status Monitor on again, repeat these steps, but select the check boxes for the

items you want to monitor.

Make sure these

check boxes are clear
