Epson Stylus COLOR 860 Bedienungsanleitung

R4C477 Setup Guide

Rev_C

A5 size SETUP.FM

12/17/99 Pass 0

Proof Sign-off:

M.Otsuka, CRE Tsukada_______

N.Nomoto _______

_______

Attaching the

Paper Support

Printing Your

First Page

Plugging

in the

Printer

Checking

the Printer

Connecting

the Printer

Installing the

Ink

Cartridges Installing the

Printer

Software

R4C477 Setup Guide

Rev_C

A5 size SETUP.FM

12/17/99 Pass 0

LProof Sign-off:

M.Otsuka, CRE Tsukada_______

N.Nomoto _______

_______

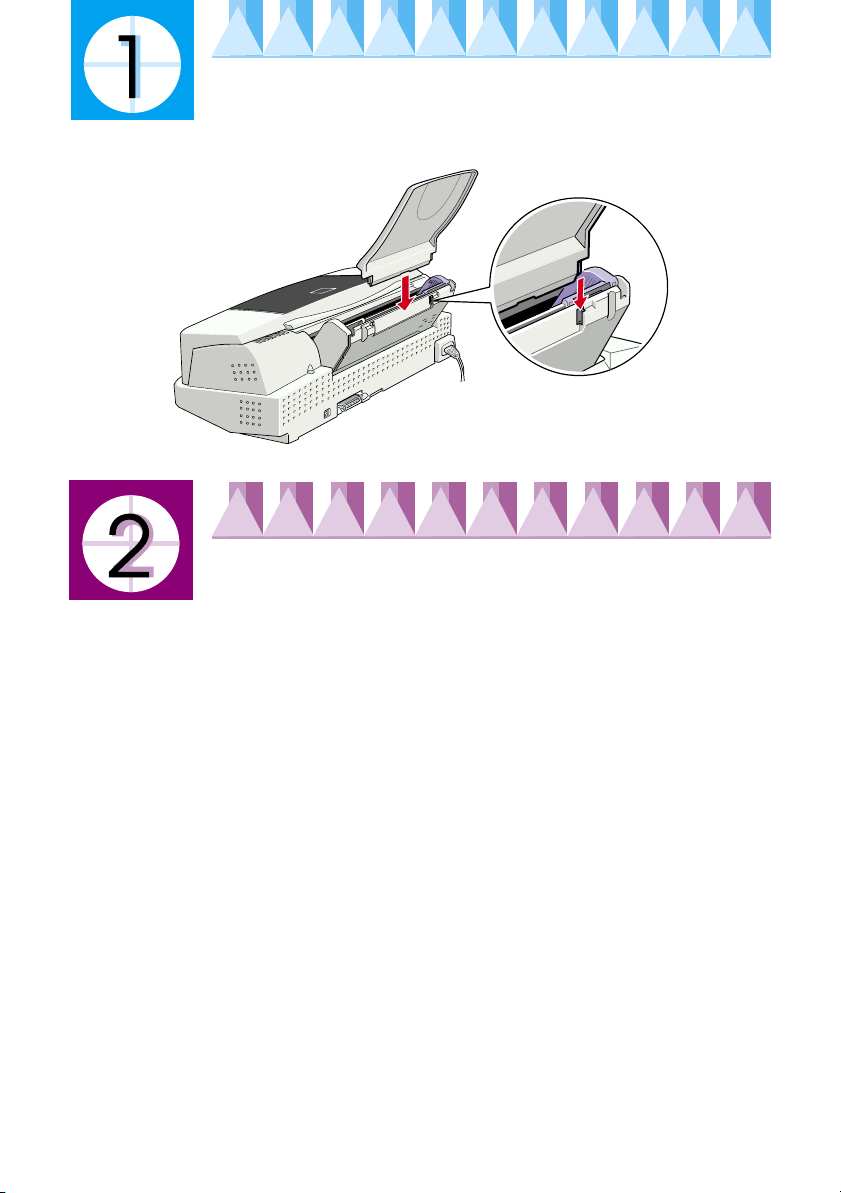

Attaching the Paper Support

Insert the paper support into the slots at the rear of the printer.

Plugging in the Printer

1. Make sure that the printer is turned off. It is off when the

P power

button protrudes slightly from the surface of the control panel.

2. Check the label on the back of the printer to make sure the voltage

required by the printer matches that of the electrical outlet you will be

plugging it into. Also, make sure that you have the correct power cable

for your power source.

cCaution:

It is not possible to change the printer's voltage. If the rated voltage and

your outlet voltage do not match, contact your dealer for assistance. Do

not plug in the power cord.

3. If the power cord is not attached to the printer, connect it to the AC inlet

on the back of the printer.

4. Plug the power cord into a properly grounded electrical outlet.

R4C477 Setup Guide

Rev_C

A5 size SETUP.FM

12/17/99 Pass 0

Proof Sign-off:

M.Otsuka, CRE Tsukada_______

N.Nomoto _______

_______

Connecting the Printer

Parallel interface for PCs

To connect the printer to your PC, you need a shielded, twisted-pair parallel

cable.

1. Make sure both the printer and computer are turned off.

2. Plug the cable connector securely into the printer's interface connector.

Then squeeze the wire clips together until they lock in place on both

sides. If your cable has a ground wire, connect it tothe ground connector

below the interface connector.

3. Plug the other end of the cable into the computer's parallel interface. If

there is a ground wire at the computer end of the cable, connect it to the

ground connector at the back of the computer.

Using a USB connection

To connect the printer to a USB port, you need a standard shielded USB

cable. Follow these steps.

1. Plug the appropriate end of the cable into the USB port on the back of

the printer. (The end that fits the printer has a different shape from the

end that fits the computer.)

2. Connect the other end of the cable to the computer’s USB port.

R4C477 Setup Guide

Rev_C

A5 size SETUP.FM

12/17/99 Pass 0

LProof Sign-off:

M.Otsuka, CRE Tsukada_______

N.Nomoto _______

_______

Installing the Printer Software

After connecting the printer to your computer, you need to install the

software included on the “Printer Software for EPSON Stylus COLOR 860”

CD-ROM shipped with your printer.

Your printer software includes:

❏Printer driver and Utilities

The printer driver is the software that runs, or “drives,” your printer.

With it, you can make settings such as print quality, speed, media type,

and paper size. The Nozzle Check, Head Cleaning, and Print Head

Alignment utilities help you keep your printer in top operating

condition. EPSON Status Monitor 3 (for Windows) or EPSON

StatusMonitor (for Macintosh) notifies you of printer errors and

displays printer status information such as the amount of ink

remaining. The Status Monitor also guides you when replacing ink

cartridges.

❏Online Guides

The online Reference Guide and Color Guide help you learn more about

your printer and color printing.

If you are using the floppy disk version of the software, make a backup copy

of the EPSON printer software disk before you begin installation. If you

wish to make a floppy disk version of the printer software on your CD-

ROM, you can use the driver disk creation utility included on the CD.

Installing in Windows 95, 98, and NT 4.0 for parallel interfaces

1. Turn on your printer. If the New Hardware Found screen or any other

Wizard appears when you turn on your computer, click Cancel.

2. Insert the printer software CD shipped with your printer in the CD-

ROM drive. The Installer dialog box appears. (For floppy disk users,

insert the disk in a disk drive, double-click the My Computer icon, then

double-click the floppy disk drive icon, and then Setup.exe)

3. Click Install to start the printer software installation.

4. The Setup utility opens automatically. Follow the on-screen instructions

to install the ink cartridge, check the print head nozzles, and clean the

print head. When a message appears informing you that the setup is

complete, click OK.

After setup is complete, go to step 7 to print your first page.

If the setup utility does not start, go to step 5 to install the ink cartridge using

the printer’s control panel.

R4C477 Setup Guide

Rev_C

A5 size SETUP.FM

12/17/99 Pass 0

Proof Sign-off:

M.Otsuka, CRE Tsukada_______

N.Nomoto _______

_______

Installing in Windows for USB interfaces (Windows 98 pre-

installed PCs only)

If you connected your printer using the USB interface, you need to install

the EPSON USB Printer Device Driver and the printer software included in

the printer software CD-ROM.

Note:

To connect your printer to the USB interface on your PC, you must purchase a

USB cable.

The installation for the USB Printer Device Driver allows you to install the

printer software as well. You do not need to install the printer software

separately. Follow the steps in this section to install the software.

cCaution:

Make sure that you really want to install the USB Printer Device Driver

before beginning the installation process. Do not click Cancel during

installation, as this can create problems with the installed driver.

1. Make sure Windows 98 is running.

2. Turn on your printer. The following dialog box appears.

3. Click Next and follow the instructions on the screen.

4. When the following dialog box appears, select Specify a location and

type D:\Win9x in the text box (if your CD-ROM drive has a drive letter

other than “D”, substitute the appropriate letter) or click Browse, then

display the contents of the CD-ROM in the window that appears and

double-click "Win9x". Insert the printer software CD-ROM, then click

Next.

Type here.

Make sure that

D:\Win9x is displayed

correctly.

Then click here.

Clear any selected

boxes.

R4C477 Setup Guide

Rev_C

A5 size SETUP.FM

12/17/99 Pass 0

LProof Sign-off:

M.Otsuka, CRE Tsukada_______

N.Nomoto _______

_______

5. Click Next to begin the device driver installation.

6. After the installation is completed, the following dialog box appears.

Click Finish.

7. The printer software installation automatically starts and the following

dialog box appears. Click Next.

8. When the dialog box below appears, click Next and follow the

instructions on the screen.

If the Wizard instructs you to restart, you must restart your computer.

After installation, if the setup utility does not start, go to step 5 to install the

ink cartridge using the printer's control panel.

Click here.

R4C477 Setup Guide

Rev_C

A5 size SETUP.FM

12/17/99 Pass 0

Proof Sign-off:

M.Otsuka, CRE Tsukada_______

N.Nomoto _______

_______

Ensuring that the USB Driver was installed correctly

Use the following procedure to confirm that the USB driver was installed

correctly.

1. Click the Start button, point to Settings and click on the Printers folder.

Make sure that the icon for the printer appears in the Printers folder.

2. Click the printer icon, and select Properties from the File menu.

3. Click the Details tab and make sure that EPUSBx: (EPSON Stylus

COLOR 860) is displayed in the Print to the following port list box.

4. If the correct port is not displayed, refer to the Troubleshooting section

of the Daily Use guide or the Online Guide.

Installing in Macintosh

cCaution:

Turn off all virus protection programs before you install your printer

software.

Note:

To connect your printer to the USB interface on your Macintosh, you must purchase

a USB cable.

Follow these steps to install your printer software.

1. Turn on your Macintosh and insert the software CD in the CD-ROM

drive.

2. The EPSON printer software disk opens automatically.

R4C477 Setup Guide

Rev_C

A5 size SETUP.FM

12/17/99 Pass 0

LProof Sign-off:

M.Otsuka, CRE Tsukada_______

N.Nomoto _______

_______

3. If a single Installer icon appears, double-click the icon. If separate

folders containing installer icons for several languages appear, double-

click the folder for your preferred language, then double-click the

Installer icon inside it.

4. After the initial screen appears, click Continue. The following dialog

box appears.

5. To install all of the printer software included on your printer software

CD-ROM, make sure the Install Location box displays the correct disk

drive and click Install.

6. When a message appears informing you that the installation is finished,

click Restart to complete the installation and restart your computer.

Selecting your printer in the Chooser

After you have installed the printer software, you need to open the Chooser

to select your printer. You have to choose the printer the first time you use

it or whenever you want to switch to another printer. Your Macintosh will

always print using the last printer selected.

1. Choose Chooser from the Apple menu. Then click your printer's icon

and the port your printer is connected to.

2. Click the Background Printing radio buttons to turn background

printing on or off.

When background printing is on, you can use your Macintosh while it

is preparing a document for printing. In order to use the EPSON

Monitor3 utility to manage print jobs, background printing must be

turned on.

3. Close the Chooser.

R4C477 Setup Guide

Rev_C

A5 size SETUP.FM

12/17/99 Pass 0

Proof Sign-off:

M.Otsuka, CRE Tsukada_______

N.Nomoto _______

_______

Installing in Windows 3.1

Follow these steps to install the software in Windows 3.1.

1. Make sure Windows 3.1 is running and the Program Manager window

is open.

2. Insert the printer software CD shipped with your printer in the CD-

ROM drive. (If you use the floppy disk version, insert it in a disk drive.)

3. Choose Run from the File menu. The Run dialog box appears. In the

Command Line box, type D:SETUP and click OK. If the CD-ROM drive

has a drive letter other than “D” or if you are using the floppy disk

version, substitute the appropriate letter.

4. The installation program begins copying the printer software files.

5. When the installation is complete, click OK to exit the installation

program.

The installation program automatically selects this printer as the default

printer for Windows applications.

Installing the Ink Cartridges

Using the setup utility for Windows 95, 98, and NT 4.0

If you have Windows 95, 98, or NT 4.0 installed on your computer, the Setup

utility should open automatically when your printer software installation

is complete. Follow the on-screen instructions to complete the setup and

proceed to step 7, “Printing Your First Page”.

The Setup utility cannot be accessed by Windows 3.1 and Macintosh users.

Please refer to the following section, “Using the Printer’s control panel” and

to step 6, “Checking the Printer” for instructions on completing the setup

using the printer’s control panel.

Using the printer’s control panel

When you can not access the setup utility, use the printer’s control panel to

install the ink cartridge.

Before installing the ink cartridges, note the following.

wWarning:

The ink cartridges are self-contained units. Under ordinary use, ink will

not leak from a cartridge. If ink does get on your hands, wash them

thoroughly with soap and water. If ink gets into your eyes, flush them

immediately with water.

R4C477 Setup Guide

Rev_C

A5 size SETUP.FM

12/17/99 Pass 0

LProof Sign-off:

M.Otsuka, CRE Tsukada_______

N.Nomoto _______

_______

Note:

Do not open the ink cartridge packages until just before you install them, or the ink

may dry up.

Install the ink cartridges as follows:

1. Lower the output tray; then open the printer cover.

2. Turn on the printer by pressing the

P power button.

The print head moves to the left, which is the ink cartridge installation

position. The

power light flashes and the

and

ink out lights come

on.

cCaution:

Do not move the print head by hand. Otherwise you may damage the

printer.

3. Lift up the ink cartridge clamps.

Andere Handbücher für Stylus COLOR 860

Inhaltsverzeichnis

Andere Epson Drucker Handbücher

Epson

Epson FX-870 Bedienungsanleitung

Epson

Epson FX-980 - Impact Printer Bedienungsanleitung

Epson

Epson LQ-1050 Bedienungsanleitung

Epson

Epson 785EPX - Stylus Photo Color Inkjet Printer Bedienungsanleitung

Epson

Epson U375 - TM B/W Dot-matrix Printer Bedienungsanleitung

Epson

Epson AcuLaser C9100 Bedienungsanleitung

Epson

Epson TM-m30III Gebrauchs- und Pflegehandbuch

Epson

Epson 3880 - Stylus Pro Color Inkjet Printer Bedienungsanleitung

Epson

Epson Office B40W Bedienungsanleitung

Epson

Epson SureColor T3000 Bedienungsanleitung

Epson

Epson PictureMate Flash - PM 280 - PictureMate Flash Compact Photo... Bedienungsanleitung

Epson

Epson Stylus Pro 7700 Series Bedienungsanleitung

Epson

Epson EPL-N2550 Bedienungsanleitung

Epson

Epson SC-P900 Series Bedienungsanleitung

Epson

Epson STYLUS CX5100 Handbuch

Epson

Epson Stylus DX3800 Series Betriebsanleitung

Epson

Epson Stylus Pro 7900 Bedienungsanleitung

Epson

Epson 4000 - Stylus Pro Color Inkjet Printer Gebrauchs- und Wartungshandbuch

Epson

Epson Stylus CX3100 Bedienungsanleitung

Epson

Epson EPI-4000 Bedienungsanleitung

Epson

Epson Stylus Photo Printer PX800FW Bedienungsanleitung

Epson

Epson T88IV - TM Two-color Thermal Line Printer Bedienungsanleitung

Epson

Epson Stylus Color 980 Installations- und Betriebshandbuch

Epson

Epson WF-C5790DWF Bedienungsanleitung

Beliebte Drucker Handbücher anderer Marken

Lexmark

Lexmark 1400 Series Handbuch

Canon

Canon i70 Series Bedienungsanleitung

Evolis

Evolis Elypso Bedienungsanleitung

Kyocera

Kyocera FS-9530DN Bedienungsanleitung

Canon

Canon LASER SHOT LBP-1210 Bedienungsanleitung

Samsung

Samsung BIXOLON SRP-350plusF Bedienungsanleitung

Canon

Canon PIXMA PRO-1 Series Bedienungsanleitung

Canon

Canon PIXMA G3560 Einrichtungshandbuch

Dell

Dell Color Laser Printer 2130cn Bedienungsanleitung

Tektronix

Tektronix Phaser 840 Bedienungsanleitung

Canon

Canon CLBR 460ps Bedienungsanleitung

Eltron

Eltron P210 Guide Bedienungsanleitung

Ricoh

Ricoh MD-P1 Bedienungsanleitung

Canon

Canon imagePASS-A2 Bedienungsanleitung

Canon

Canon S820D Bedienungsanleitung

IRA3D

IRA3D POETRY4 Bedienungsanleitung

Ricoh

Ricoh Aficio AP400 Bedienungsanleitung

BIXOLON

BIXOLON SRP-352plusV Bedienungsanleitung
