Introduction

After your projector has been mounted on the wall, read this booklet to:

■Install the software on your computer

■Connect the cables to your computer

■Use the remote control

■Turn on the projector and adjust the image

■Calibrate and use the pens

■Use Easy Interactive Tools

■Solve basic problems

This booklet explains how to use the projector with a laptop or other computer.

You can also connect the projector to video players, document cameras, or other

equipment. For additional information, see the on-screen User’s Guide. For

network information, see the on-screen EasyMP®guides included on the

BrightLink™450Wi CD.

Before using the projector, make sure you read the safety instructions in the on-

screen User’s Guide on the projector CD.

Please follow these guidelines as you read your projector instructions:

Warning:

Warnings must be followed carefully to avoid bodily injury.

Caution:

Cautions must be observed to avoid damage to your equipment.

Note:

Notes contain important information about your projector.

English

4Getting Started

Getting Started

Before you can use your interactive projector, you need to install the software and

connect the cables to your computer. Then you can turn on the projector and

calibrate.

Installing the Software

This section explains how to install the software for the interactive pens and your

on-screen manuals. If you need to install the software for network projection and

monitoring, see your on-screen EasyMP guides for instructions.

Periodically, it’s a good idea to check Epson’s support website for free updates to

your Easy Interactive software. Visit epson.com/support/brightlinkdownloads

(U.S.) or epson.ca/support/brightlinkdownloads (Canada).

Even if you have RM Easiteach®or other interactive whiteboard software, you

must install the Easy Interactive Driver from the CD labeled “Epson Projector

Software for Easy Interactive Function.”

Installing the Easy Interactive Driver

1. Insert the CD labeled “Epson Projector Software for Easy Interactive

Function” in your computer.

Windows®:If you see the AutoPlay window, click Run

EIDriverV100_Setup.exe. If you see a User Account Control screen,

click Continue or Yes.

Macintosh®:Double-click EIDriverV100_Setup in the Epson window.

2. Select your language.

3. Follow the on-screen instructions to install the software.

Installing the Software 5

4. When you see one of the following screens, select Register to Startup

(Windows) or Start up (Macintosh) and Launch Easy Interactive Driver.

5. Click Finish (Windows) or Continue (Macintosh).

6. Follow the on-screen instructions to finish installing the software and start

Easy Interactive Driver.

Installing Easy Interactive Tools and Manuals

1. Insert the BrightLink 450Wi CD in your computer.

Windows: If you see the AutoPlay window, click Run Setup.exe. If you see a

User Account Control screen, click Continue or Yes.

Macintosh: Double-click the Epson icon.

2. Select your language.

Windows Macintosh

6Getting Started

3. When you see the following screen, click Install and follow the on-screen

instructions.

4. Follow the on-screen instructions to finish installing the software and

manuals, and register your projector.

5. After you have finished the installation, double-click the Download Easy

Interactive Tools link on your desktop.

6. Follow the instructions on the screen to download and install the Easy

Interactive Tools.

Note:

You can also visit the following website to download Easy Interactive Tools:

www.epson.com/support/brightlinkdownloads (U.S.)

www.epson.ca/support/brightlinkdownloads (Canada)

Installing the Pen Batteries 7

Installing the Pen Batteries

Make sure the pen batteries are installed. To check the batteries, press the button.

If the indicator light is green, the batteries have enough power.

It’s a good idea to attach a commercially-available cord or lanyard to the pens.

If you need to install or replace the batteries, use two alkaline AAA batteries. If you

have a battery charger, you can also use rechargeable AAA batteries.

1. Press in the tab on the battery cover as you lift the cover off.

2. Install two batteries, inserting the +and –ends as shown.

3. Replace the battery cover and press it down until it clicks into place.

Battery indicator

light Button

Cord

attachment

slot

8Getting Started

Installing the Remote Control Batteries

Make sure the remote control batteries are installed. If you need to install or

replace them, use 2 AA alkaline batteries.

1. Press in on the catch on the battery cover as you lift the cover off.

2. Install two batteries, inserting the +and –ends as shown.

3. Replace the battery cover and press it down until it clicks into place.

Connecting the Cables 9

Connecting the Cables

You can connect the projector to any computer that has a standard monitor out

port using the VGA computer cable that came with the projector.

In addition, you must connect the USB cable before you can use the interactive

pens. If the cable is not long enough to reach your computer, you may need to use

a USB booster cable (not included).

You can also project through the USB port (USB display) or through a network.

However, the VGA monitor out port on your computer provides the best

performance when used with the interactive pens.

Connecting the VGA Computer Cable

1. Locate the VGA computer cable connected to the projector.

2. Connect the other end of the cable to your computer’s monitor out port.

VGA computer cable USB cable

10 Getting Started

Connecting the USB Cable for the Interactive Pens

In order to use the interactive pens, you must connect the USB cable to the

projector and your computer.

1. Locate the USB cable connected to the projector.

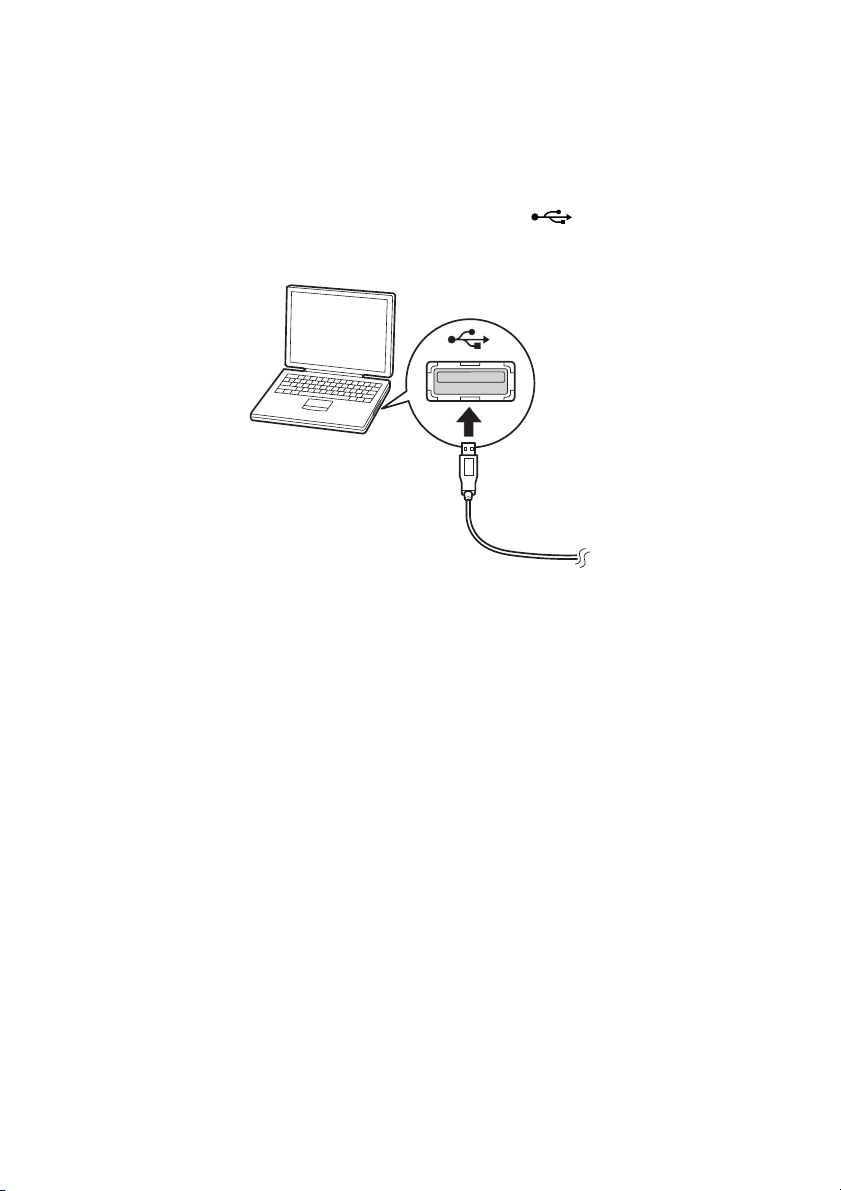

2. Connect the flat end of the cable to any available USB port on your

notebook or desktop computer.
