Epson EMP-8200 - XGA LCD Projector Bedienungsanleitung

1-F C 1-F M 1-F Y 1-F BK

EN EN EN EN

WARNING Never look into the lens while

the projector's power is turned on.

Be sure to read the Owner's Manual thoroughly before using this projector.

Printed on 100% recycled paper.

QUICK REFERENCE GUIDE

1-F BK2

402127501

(9002308)

Printed in Japan

02.02

.1A(C01)

1-B C 1-B M 1-B Y 1-B BK

EN EN EN EN

Operation indicator

Lamp indicator

Temperature

indicator

Setting Up Adjust the distance between the projector and

the screen until the desired image size is obtained

* When installing against wall, leave a space of about

20cm (7.9 in.) between the projector and the wall.

Page 16 of

Owner's Manual

screen size

20 cm

(7.9 in.)

20 cm

(

7.9 in.

projection

distance

1.1–1.4

(3.6–4.6)

1.5–1.8

(4.8–6.2)

2.3–2.8

(7.3–9.4)

3.0–3.8 (9.8–12.6)

3.8–4.8 (12.3–15.8)

7.6–9.7 (24.8–31.9)

11.4–14.6 m (37.3–48.1 ft.)

30"

40"

60"

80"

100"

200"

300"

120

160

120

200

150

410

300

610

460 (cm)

Checking the indicators

The projector is equipped with indicators that alert you to problems with projector operation.

The following tables show what the indicators mean and how to remedy problems that they indicate.

*1 If an indicator is showing a status which does not appear in the previous tables, contact your dealer or nearest address provided at "International

Warranty Conditions" in "Safety Instructions/World-Wide Warranty Terms" included in the package.

*2 Contact your dealer for a spare lamp.

Page 70 of

Owner's Manual

Troubleshooting

Operation Indicator

Indicator status Problem and remedy

Illuminated

in Orange

Illuminated

in Green

Blinking

in Orange

Blinking

in Green

Standby condition.

This is the only time when the power cord

can be disconnected.

Projection will start a few moments after

has been pressed.

Cool-down in progress.

After while, the projector switches to the

standby condition (the indicator lights orange).

Warm-up in progress.

After warm-up is complete, projection

will start when an image signal is input.

Blinking

in Red

Extinguished

Internal problem.

Stop using the projector and ask for projector

to be repaired. *1

The power is not switched on.

Projecting in progress.

Temperature Indicator

Indicator status Problem and remedy

Excessive internal temperature (overheating).

The lamp goes off automatically and projection

becomes impossible. Wait for approximately 5

minutes with the projector in that state. After 5

minutes has passed, pull out the power plug

and re-insert it.

After re-inserting it, press the and turn on

the power again.

Illuminated

in Red

Extinguished The power has not been switched on or normal

projection is in progress.

Blinking

in Red

Blinking

in Orange

Internal problem.

Stop using the projector and ask for projector

to be repaired. *1

High-speed cooling in progress.

If the internal temperature rises any higher,

projection will stop.

Check that the air inlet and exhaust vents are clear

and that the indoor temperature is not too high.

Power

Lamp Indicator

Indicator status Problem and remedy

Blinking

in Red

Blinking

in Orange

Extinguished

Nearing the time for replacing the lamp.

Prepare a new lamp. *2

The power has not been switched on or normal

projection is in progress.

Lamp error.

Remove the lamp and check if it is broken.

If the lamp is not broken, reinstall it. If the lamp

is broken, replace it with a new lamp. *2

2-F C 2-F M 2-F Y 2-F BK

EN EN EN EN

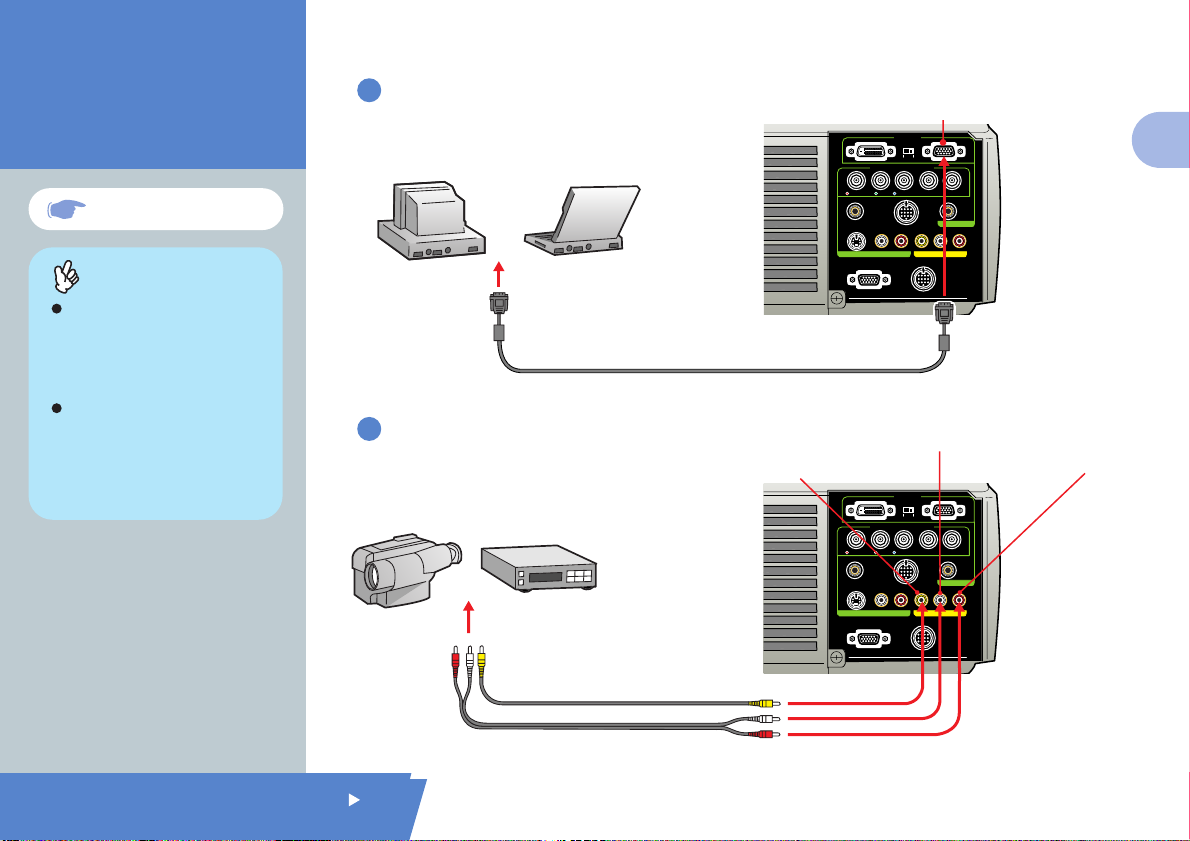

Connections Connecting to a computer

Connecting to a video source

* Turn off the power for both the projector and the other equipment before connecting them.

Computer cable (accessory)

Setting Up /

Connections

Troubleshooting

Viewing the online help

This projector is provided with an online help function which can be used when you have a

problem using the projector.

Press or .

Select the item to view.

Press the on

the projector's control panel.

Or tilt the on the

remote control.

Accept the selected item.

Press the on the

projector's control panel.

Or press the on the

remote control.

The selected item will appear

on the screen.

Help Help

Projector Remote Control

Help

Monitor Out Stack Out

Computer 2 /

Component Video

Computer 1

Audio

Mouse/Com

S-Video S-Audio/Audio2 L-Audio-RVideo

Remote

R/Cr/Pr B/Cb/Pb H/C Sync V SyncG/Y

To computer's

monitor port

(video port)

Computer 1 port

Monitor Out Stack Out

Computer 2 /

Component Video

Computer 1

Audio

Mouse/Com

S-Video S-Audio/Audio2 L-Audio-RVideo

Remote

R/Cr/Pr B/Cb/Pb H/C Sync V SyncG/Y

RCA Audio cable (accessory)

RCA Video cable (accessory)

To video output port (yellow)

Video port (yellow) Audio R port (red)

Audio L port (white)

To audio output L

port (white)

To audio output R

port (red)

Page 42 of

Owner's Manual

Pages 18,28 of Owner's

Manual

(HELP Menu)

Help for the image

Help for the sound

Language selection(Language)

If you follow the instructions to solve the problem

unsuccessfully, unplug the power from the wall outlet and

contact with your local dealer.

:Select :Exit:Enter

(HELP Menu)

An image does not appear on the Screen.

The image is not in focus.

The image is blurred.

The image is not displayed fully on the Screen.

(cut off/too big/too small/partial)

The colors of the image are not correct.

The image is too dark.

The image is trapezoid.

:Select :Return:Enter :Exit

Depending on the shape of the

computer monitor port, it may not be

possible to make connections with the

accessory computer cable. Please

convert it using a commercially

available adapter, etc.

Connect the second computer to the

[Computer2] port when two computers

are to be connected. Use the computer

cable (mini D-Sub 15pin/5BNC)

supplied with the projector for this

connections.

Tip

2-B C 2-B M 2-B Y 2-B BK

EN EN EN EN

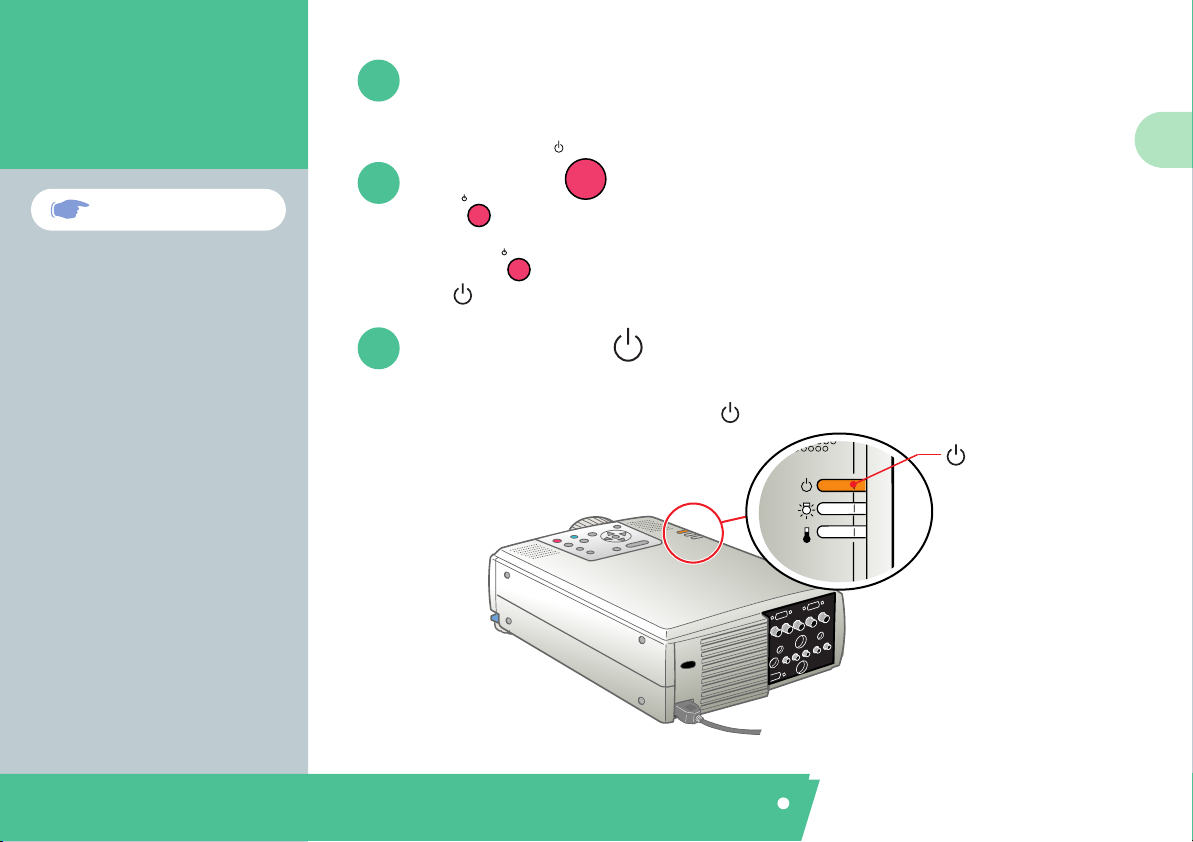

Momentarily turning off images and sound

The A/V Mute function momentarily pauses the image and sound, and displays either a blank blue

or black screen or the user's logo screen. It can be used when you do not want to show viewers

details of operations such as selecting different files when computer images are being projected.

A/V Mute function

Page 44 of

Owner's Manual

Functions for

Enhancing Projection

Press .

Press once more.

Power

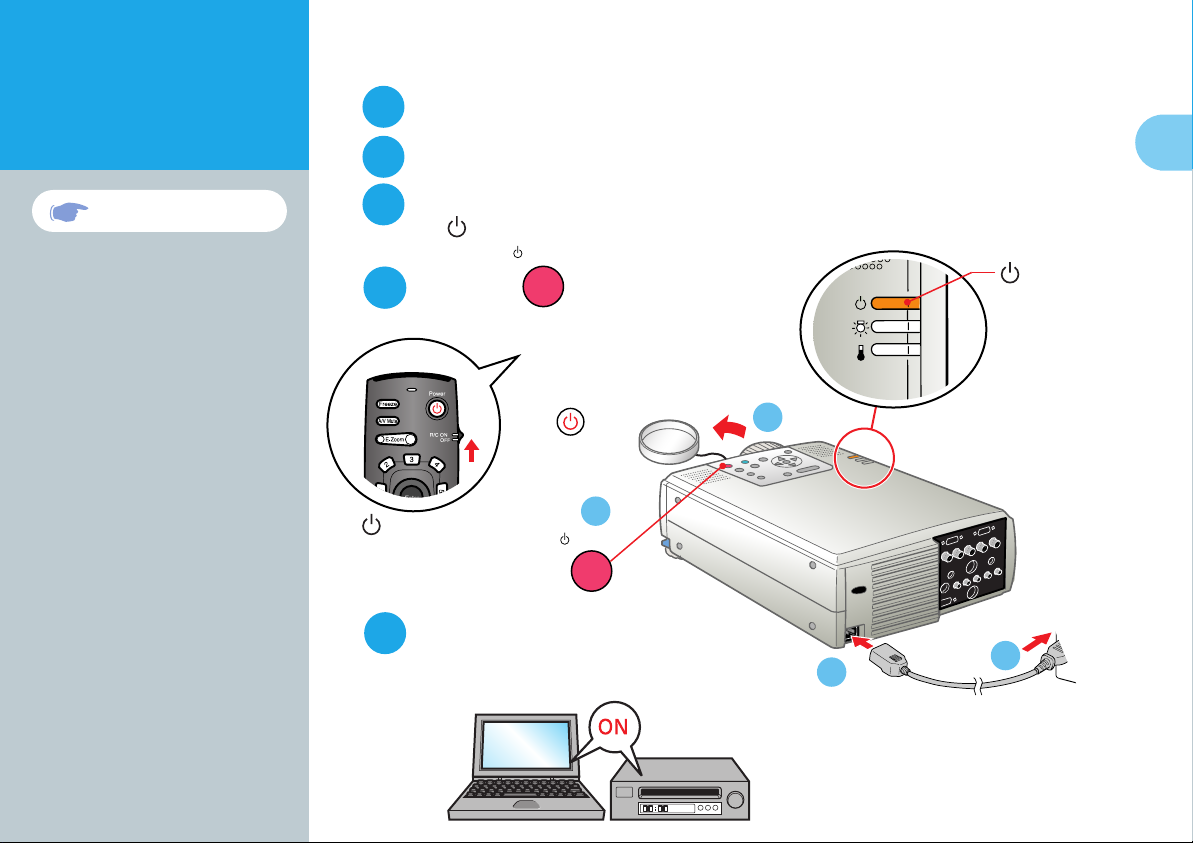

Projecting 1Remove the lens cover.

Press the to turn on the

projector's power.

Connect the power cord to the projector.

Turn on the power for the

input source.

In the case of a VCR, press the PLAY button.

Connect the power cord to an electrical outlet.

Power

(Operation Indicator)

The will start

flashing green and

projection will start.

(Warm-up in progress)

Power

If using the remote control, set

the R/C switch to the ON

position and then press

the . 1

First press the , select "Setting" and then "A/V Mute". Then select the type of screen to be displayed

when projection is being stopped. The following choices are available. The default setting is the black screen.

Projection of the images and sound will be restarted.

If you use this function while projecting moving images, the images and sound will still continue to be

played back, and you cannot return to the point where the A/V Mute function was activated.

The will light orange.

Page 31 of

Owner's Manual

3-F C 3-F M 3-F Y 3-F BK

EN EN EN EN

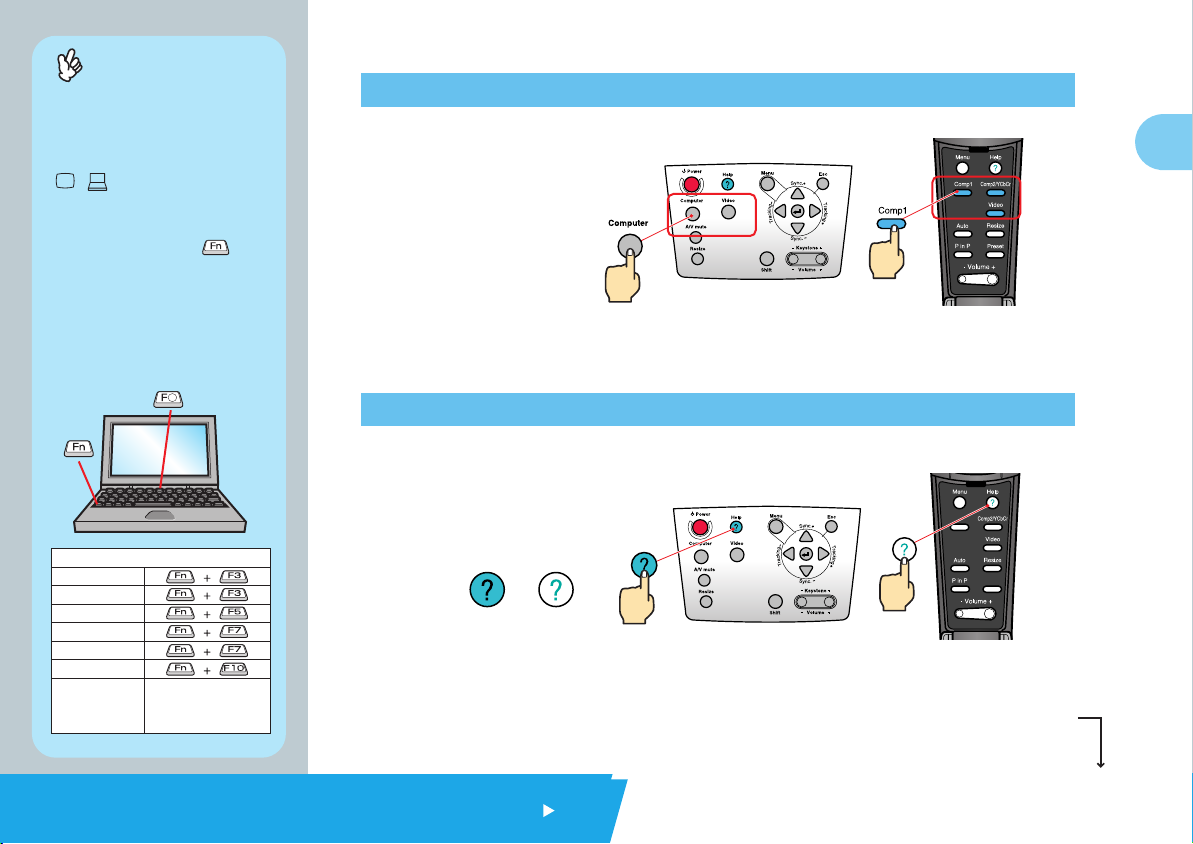

If images do not appear ...

If you have other problems ...

Refer to the online

Help information.

* Refer to Troubleshooting.

Press the or

and then

follow the instructions.

Projecting

Press the button that

corresponds to the

port into which

the image device

is connected to

change the input signal. Projector Remote Control

Projector Remote Control

Help

Help Help

Help

Enlarging part of projected images

E-Zoom function

Page 47 of

Owner's Manual

Functions for

Enhancing Projection

Press to enlarge the image being projected.

Tilt the on the remote control to scroll to the area that is to be viewed.

Press .

Press the right side

of the button to

enlarge the image.

Press the left side of the

button to reduce the size

of the enlarged area.

Enlargement ratio

Displays any

required part.

To cancel the enlargement effect,

press the .

Tip

If a laptop computer or a computer with a

LCD screen has been connected to the

projector, you may need to change the

output destination for image signals

depending on the computer keys ( The

, and other displays are

situated on the computer keys) or the

computer's settings. The output

destination can normally be changed by

holding down the computer's and

pressing one of the Function keys.

Once the source has been changed, after

a short wait the projector will start

projecting. If the output has been

changed to external output, only the

external output should be used.

For details, refer to the documentation

provided with your computer.

After restarting the computer,

change the Control Panel

monitor and sound settings

so that Mirroring is active.

Examples of changing output

NEC

Panasonic

TOSHIBA

IBM

SONY

FUJITSU

Macintosh

Tip

3-B C 3-B M 3-B Y 3-B BK

EN EN EN EN

Enhancing presentation materials

Effect function

Page 48 of

Owner's Manual

Press . Press .

Press .

Functions for

Enhancing Projection

Press .

Displays the stamp icon. The

stamp icon will switch between

three different types whenever

is pressed. Tilt the to

move the stamp icon, and then

press to stamp the stamp

icon in position.

Displays the square icon. Tilt the

to move the icon to the

starting point, and then press .

Tilt the again to move the

icon to the ending position, and

then press .

Displays the spotlight. The

spotlight will switch between three

different sizes whenever is

pressed. Tilt to move the

spotlight.

Displays the bar. The bar will

switch between three different

types whenever is pressed.

Tilt up and down to move

the bar.

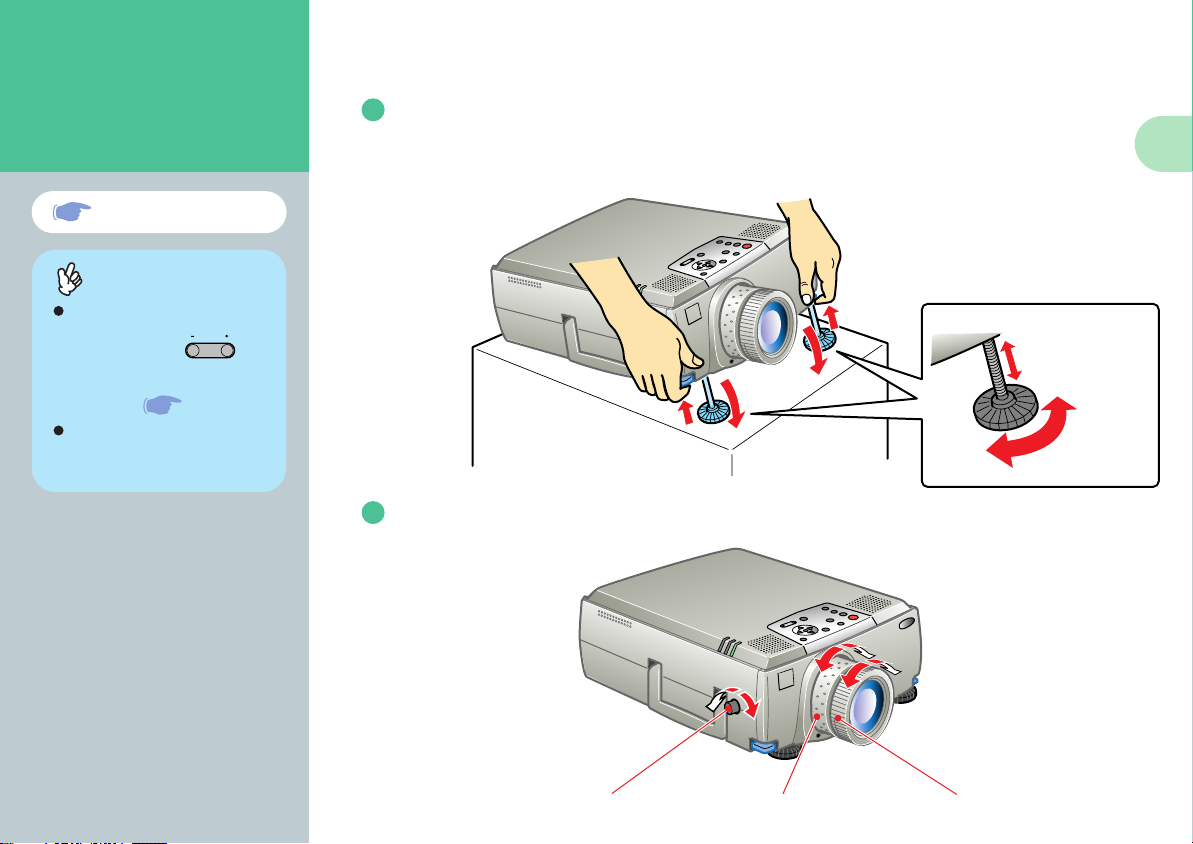

Adjustment Adjusting the projection angle

Adjusting the image size and focus

Lift the front of the projector while pulling up the foot adjust lever, adjust the amount extension or

retraction of the front foot, then adjust the projector’s projection angle.

Focus adjustmentImage size adjustmentProjection position adjustment (up/down)

Becomes higher

To make fine adjustments:

Becomes

lower

Pages 37-40 of Owner's

Manual

See page 7.

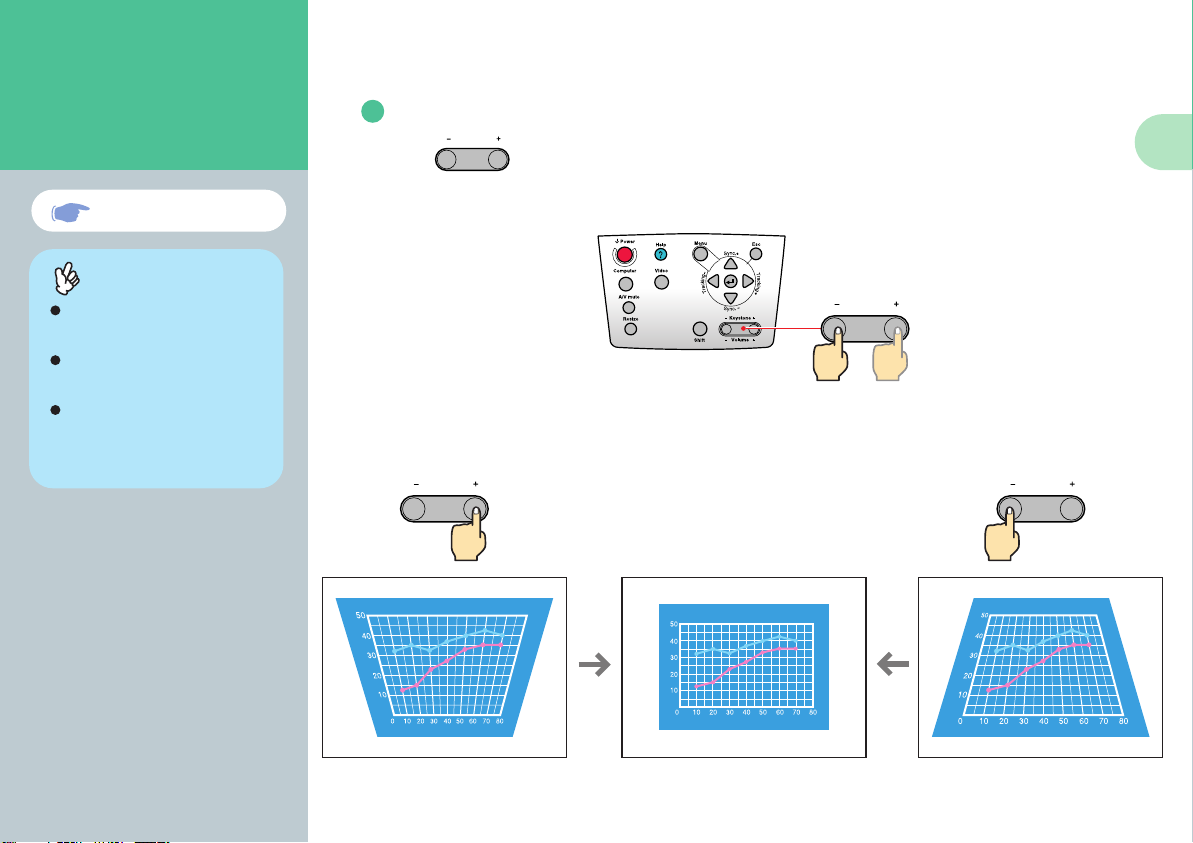

If you change the projection angle,

you may get keystone distortion in the

images.You can use the on

the projector's control panel to correct

keystone distortion.

To store the extended front feet, pull

up the foot adjust lever and then slowly

lower the front panel.

Keystone

Tip

Press to erase the stamps,

squares, spotlights and bars set

for decorative purposes.

Tip

4-F C 4-F M 4-F Y 4-F BK

EN EN EN EN

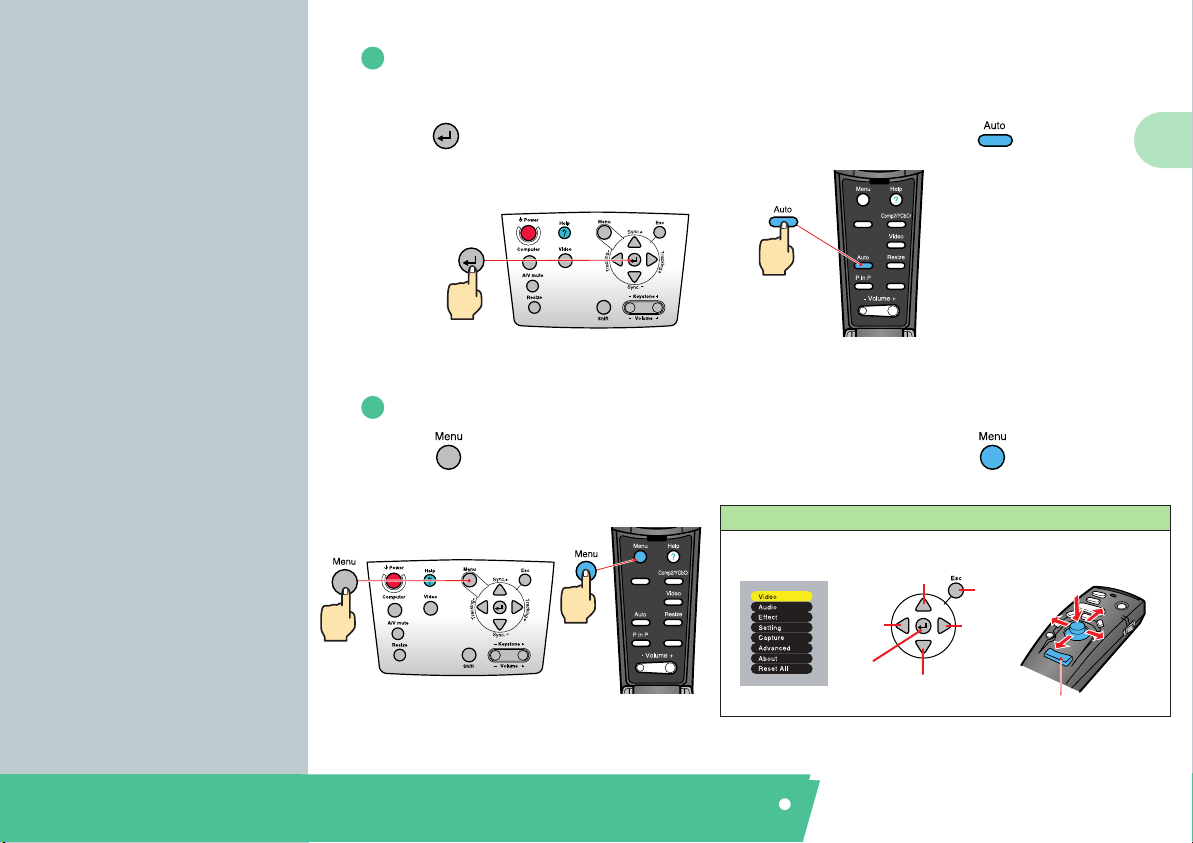

Automatically adjusting computer images to the

optimum settings

Other adjustments

Adjustment /

Turning Off the Projector

Press on the operation panel or open the cover on the remote control and press to

automatically adjust the tracking, the display position and the synchronization.

Press on the operation panel or open the cover on the remote control and press to display

the setting menu on the projection screen. Then adjust the required settings, such as brightness,

contrast and sharpness.

Using the on-screen menus

Menu screen Remote control

Projector panel

operations

Move up

Move down

Move

left

Select/Execute

Move

right

Return

Select/Execute

Move

down

Return

Move

right

Move

left

Move

Functions for

Enhancing Projection

Wireless mouse Effect

E-Zoom A/V Mute

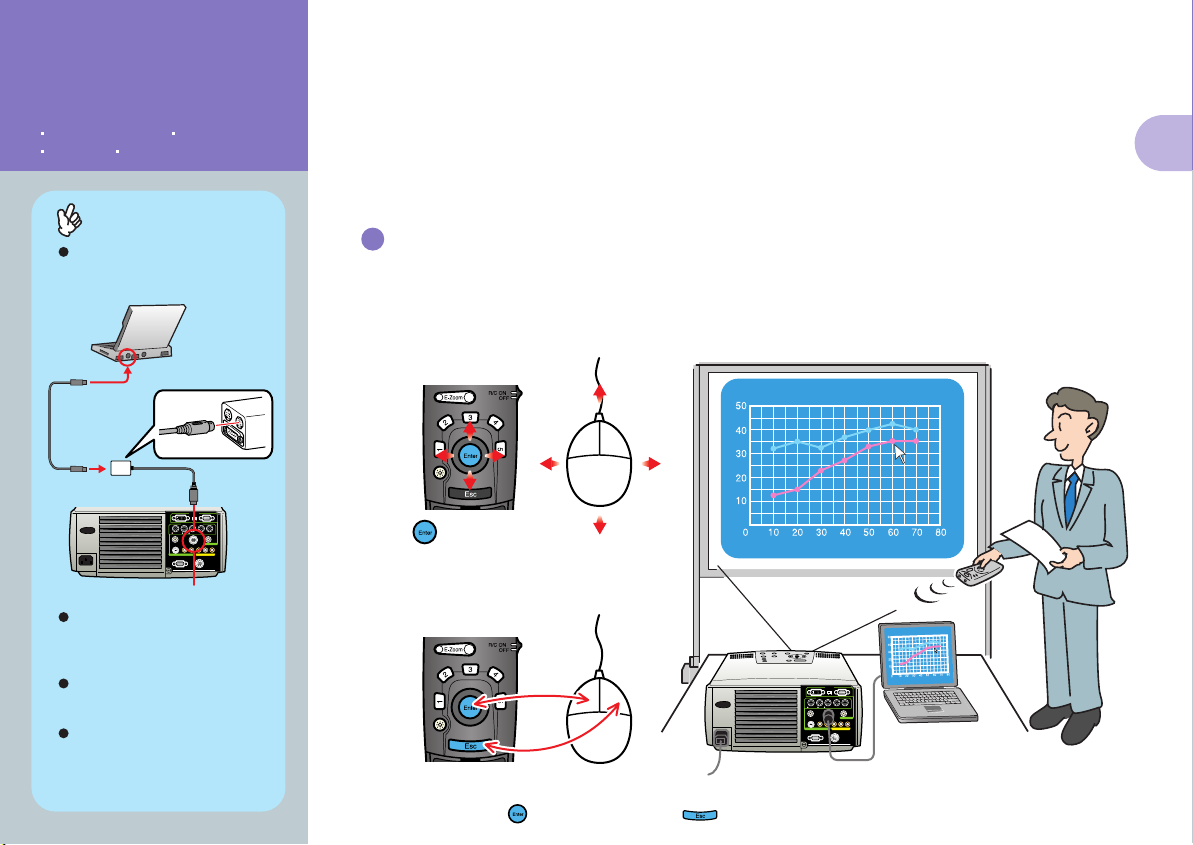

Using the remote control for one-person presentations

The remote control can be used to carry out the same functions as left-clicking and right-clicking mouse buttons

on a computer. You can use the remote control to control the computer's mouse pointer from a distance.

Tilt the in the direction you

want the mouse pointer to go.

This projector is equipped with a variety of useful functions

for enhancing projection.

Refer to the corresponding pages of the Owner's Manual for

details on each function.

Remote ControlProjector

Mouse clicks

For left clicks: Press For right clicks: Press

Mouse

MonitorOut StackOut

Computer2 /

ComponentVideo

Computer1

Audio

Mouse/Com

S-Video S-Audio/Audio2 L-Audio-RVideo

Remote

R/Cr/Pr B/Cb/Pb H/CSync V SyncG/Y

Mouse pointer movement

Mouse/USB port

Mouse/Com port

MonitorOut StackOut

Computer2 /

ComponentVideo

Computer1

Audio

Mouse/Com

S-Video S-Audio/Audio2 L-Audio-RVideo

Remote

R/Cr/Pr B/Cb/Pb H/CSync V SyncG/Y

The following connections are

required to use the remote control as

a wireless mouse.

Depending on the mouse in use, it

is necessary to use the supplied

mouse cable that is supported by the

mouse.

Use the USB mouse cable if you

are connecting to the computer’s USB

port.

If a mouse cable other than a USB

mouse cable is connected while the

power supply is switched on, it may

result in malfunctions or damage.

Mouse cable

(accessory)

Main cable

(accessory)

Tip

4-B C 4-B M 4-B Y 4-B BK

EN EN EN EN

Turning Off

the Projector

Press the twice to turn off the projector's power.

Turn off the power for the equipment connected

to the projector.

Check that the is lit steadily with an orange color,

and then disconnect the power cord.

* Set the R/C switch on the remote control

to the OFF position.

Adjustment /

Turning Off the Projector

Power

(Operation Indicator)

Press once to display the confirmation message in order to prevent miss-operations.

Press it once more to switch off the power supply. It is possible to switch off the power supply

by pressing twice consecutively.

The will start flashing orange. (Cool-down in progress)

Power

Page 35 of

Owner's Manual

If the power cord is disconnected while the is still flashing orange,

it may cause problems with projector operation.

Adjustment

If the images have keystone distortion ...

Press on the projector's control panel to correct the keystone distortion.

Correcting keystone distortion

Page 38 of

Owner's Manual

Projector

Keystone Keystone

When the top area

is spread open.

When the bottom area

is spread open.

Keystone

When keystone correction is carried

out, the projected image will become

smaller.

The trapezoid correction state is

recorded in memory. Please readjust it

when the projection angle is changed.

If the images become uneven in

appearance after keystone correction is

carried out, decrease the Sharpness

setting.

Tip

4-B C 4-B M 4-B Y 4-B BK

EN EN EN EN

Turning Off

the Projector

Press the twice to turn off the projector's power.

Turn off the power for the equipment connected

to the projector.

Check that the is lit steadily with an orange color,

and then disconnect the power cord.

* Set the R/C switch on the remote control

to the OFF position.

Adjustment /

Turning Off the Projector

Power

(Operation Indicator)

Press once to display the confirmation message in order to prevent miss-operations.

Press it once more to switch off the power supply. It is possible to switch off the power supply

by pressing twice consecutively.

The will start flashing orange. (Cool-down in progress)

Power

Page 35 of

Owner's Manual

If the power cord is disconnected while the is still flashing orange,

it may cause problems with projector operation.

Adjustment

If the images have keystone distortion ...

Press on the projector's control panel to correct the keystone distortion.

Correcting keystone distortion

Page 38 of

Owner's Manual

Projector

Keystone Keystone

When the top area

is spread open.

When the bottom area

is spread open.

Keystone

When keystone correction is carried

out, the projected image will become

smaller.

The trapezoid correction state is

recorded in memory. Please readjust it

when the projection angle is changed.

If the images become uneven in

appearance after keystone correction is

carried out, decrease the Sharpness

setting.

Tip

4-F C 4-F M 4-F Y 4-F BK

EN EN EN EN

Automatically adjusting computer images to the

optimum settings

Other adjustments

Adjustment /

Turning Off the Projector

Press on the operation panel or open the cover on the remote control and press to

automatically adjust the tracking, the display position and the synchronization.

Press on the operation panel or open the cover on the remote control and press to display

the setting menu on the projection screen. Then adjust the required settings, such as brightness,

contrast and sharpness.

Using the on-screen menus

Menu screen Remote control

Projector panel

operations

Move up

Move down

Move

left

Select/Execute

Move

right

Return

Select/Execute

Move

down

Return

Move

right

Move

left

Move

Functions for

Enhancing Projection

Wireless mouse Effect

E-Zoom A/V Mute

Using the remote control for one-person presentations

The remote control can be used to carry out the same functions as left-clicking and right-clicking mouse buttons

on a computer. You can use the remote control to control the computer's mouse pointer from a distance.

Tilt the in the direction you

want the mouse pointer to go.

This projector is equipped with a variety of useful functions

for enhancing projection.

Refer to the corresponding pages of the Owner's Manual for

details on each function.

Remote ControlProjector

Mouse clicks

For left clicks: Press For right clicks: Press

Mouse

MonitorOut StackOut

Computer2 /

ComponentVideo

Computer1

Audio

Mouse/Com

S-Video S-Audio/Audio2 L-Audio-RVideo

Remote

R/Cr/Pr B/Cb/Pb H/CSync V SyncG/Y

Mouse pointer movement

Mouse/USB port

Mouse/Com port

MonitorOut StackOut

Computer2 /

ComponentVideo

Computer1

Audio

Mouse/Com

S-Video S-Audio/Audio2 L-Audio-RVideo

Remote

R/Cr/Pr B/Cb/Pb H/CSync V SyncG/Y

The following connections are

required to use the remote control as

a wireless mouse.

Depending on the mouse in use, it

is necessary to use the supplied

mouse cable that is supported by the

mouse.

Use the USB mouse cable if you

are connecting to the computer’s USB

port.

If a mouse cable other than a USB

mouse cable is connected while the

power supply is switched on, it may

result in malfunctions or damage.

Mouse cable

(accessory)

Main cable

(accessory)

Tip

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Epson Projektor Handbücher

Epson

Epson PowerLite Home Cinema 600 Bedienungsanleitung

Epson

Epson BrightLink 696Ui Bedienungsanleitung

Epson

Epson PowerLite Home Cinema 710HD Bedienungsanleitung

Epson

Epson V11H255020 - PowerLite 83c XGA LCD Projector Referenzhandbuch

Epson

Epson EH-TW6100W Bedienungsanleitung

Epson

Epson EB-G6350NL Bedienungsanleitung

Epson

Epson 835p - PowerLite XGA LCD Projector Bedienungsanleitung

Epson

Epson PowerLite S11 Bedienungsanleitung

Epson

Epson PowerLite Home 10+ Bedienungsanleitung

Epson

Epson PowerLite 750c Bedienungsanleitung

Epson

Epson EB-945 Montageanleitung

Epson

Epson PowerLite 1260 Bedienungsanleitung

Epson

Epson PowerLite EB-805F Bedienungsanleitung

Epson

Epson PowerLite 800p Bedienungsanleitung

Epson

Epson PowerLite W7 Bedienungsanleitung

Epson

Epson EX90 Referenzhandbuch

Epson

Epson G5150 - Wireless Lan Module 802.11A/B/G Referenzhandbuch

Epson

Epson 1735W - PowerLite WXGA LCD Projector Bedienungsanleitung

Epson

Epson EMP 822 Bedienungsanleitung

Epson

Epson 830p - PowerLite XGA LCD Projector Bedienungsanleitung

Epson

Epson EMP-X3 Bedienungsanleitung

Epson

Epson EB-G6550WU Guide Konfigurationshandbuch

Epson

Epson V11H818053 Bedienungsanleitung

Epson

Epson CO-FH01 Bedienungsanleitung

Beliebte Projektor Handbücher anderer Marken

iEmmet

iEmmet MP-312 Bedienungsanleitung

Sony

Sony VPL-HS10 Marketing Specifications & Features Bedienungsanleitung

Sony

Sony VPL-HW65ES Service-Handbuch

Toshiba

Toshiba TLP-791U Bedienungsanleitung

Philips

Philips LC1341 Referenzhandbuch

Panasonic

Panasonic PTL735NTU - LCD PROJECTOR-NETWORK IB Bedienungsanleitung

NEC

NEC NP600S EDU Bedienungsanleitung

BenQ

BenQ SH753P Bedienungsanleitung

Eiki

Eiki EK-623U series Bedienungsanleitung

Christie

Christie LHD700 Bedienungsanleitung

Navitar

Navitar FX Bedienungsanleitung

InFocus

InFocus LitePro 560 Bedienungsanleitung

Sony

Sony SRX-R815P Bedienungsanleitung

Vivitar

Vivitar DP1500 X Bedienungsanleitung

Acer

Acer C20 Series Bedienungsanleitung

Asus

Asus ZenBeam Latte Bedienungsanleitung

BOXLIGHT

BOXLIGHT CP-322i/CP-634i Bedienungsanleitung

JVC

JVC 1108TTH-AO-AO Bedienungsanleitung
