Epson EMP-S1H Bedienungsanleitung

Adjusting the Image Size

The size of the projected image is determined by the distance from the lens to the screen. The

following values should be used as a guide for setting up the projector.

Connecting to a Computer

Turn off the power for both the projector and the computer before connecting.

Quick Reference Guide

Be sure to read the accompanying

User's Guide before using the projector. WARNING Do not look into the lens while the

projector's power is turned on.

pThe computer cable supplied with the projector may not match the monitor port on

some computers. In such cases, you will need to purchase a separate adapter.

sUser's Guide

" Projection distance and screen size"

Distance from centre of lens to bottom edge of screen

Screen size

Centre of

lens

* When installing against a wall, leave about 20 cm (7.9in.) between the projector and the wall.

sUser's Guide

"Connecting to a Computer"

To computer

monitor port

Computer/Component Video port (blue)

Computer cable

(accessory)

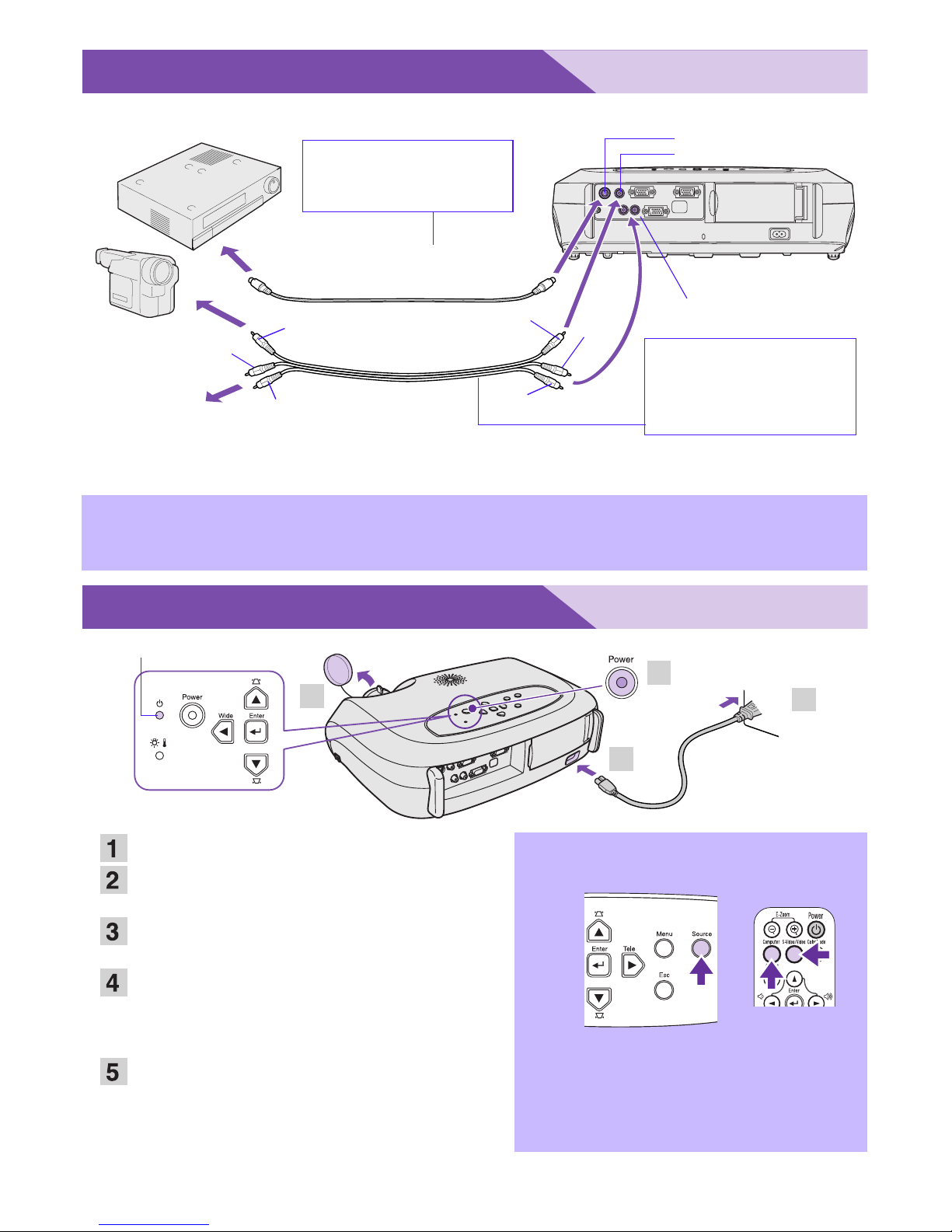

Connecting to Video Equipment

Turn off the power for both the projector and video equipment before connecting.

* To output sound from the video equipment through the projector's in-built speaker, connect the video

equipment and the projector with the an A/V cable (white/red), or an RCA audio cable.

Quick Start

pIf connecting a component video source (such as a DVD player), you can use the

optional component video cable to connect the source to the Computer/Component

Video port at the rear of the projector.

Remove the lens cover.

Connect the projector's power cable with

the projector.

Insert the power cable into a wall socket.

The Power indicator lights orange.

Turn on the power for the signal input

source.

For video equipment, press [Play] to start

playback.

Press the [Power] button to turn on the

projector's power.

A beep will sound indicating the lamp has been

turned on.

The Power indicator begins to blink green, and

projection will then start (warm-up in progress).

p• If no images are projected, change the

input signal.

• When using a laptop or a PC with an in-

built monitor, select external video

output on the computer.

sUser's Guide "Selecting the Input

Source"

sUser's Guide

"Connecting to Video Equipment"

To S-Video

out port

S-Video port

S-Video cable

(commercially available)

When connecting to

video equipment with

an S-Video out port

To video

out port

To audio

out port

Video port (yellow)

Audio port

yellow

A/V cable

(commercially available)

white

yellow

red red

When connecting to

video equipment with

an composite video

out port

sUser's Guide

"Turning on the Projector"

Power indicator

Remote control

Projector

Adjustments

Turning off the Projector

•Adjusting the image angle

Raise the front of the projector while pressing the

feet buttons on both sides. Extend the front feet.

•Keystone

When the projector is not set right angles to a

screen, the display distorts in the shape of a

trapezoid. This distortion can be corrected.

•Adjusting the image size

and focus

Fine adjustments to image size

Press the [Wide] or [Tele] buttons

on the control panel to adjust the

projection size.

[Wide]: increase the size

[Tele] : reduces the size

Adjusting the focus

Turn the focus ring to adjust the

image focus.

pThe following adjustments can also be made.

• Auto Setup (computer connections)

sUser's Guide "Adjusting computer generated images"

When projecting computer images, the input signals are detected automatically and

adjusted so that the optimum images are projected. If the results of automatic

adjustment are not satisfactory, individual settings can also be adjusted manually

using the menus.

• Other adjustments sUser's Guide " Configuration Menus "

Press the [Menu] button to display the configuration menu. You can use the

configuration menu functions to adjust settings for brightness, contrast and colour.

Turn off the power for all sources

connected to the projector.

Press the [Power] button twice to turn off

the power.

The Power indicator will flash orange (cool-

down in progress/about 20 seconds).

The projector will beep twice, indicating

that cool-down has completed. Remove

the power cable.

sUser's Guide

"Adjusting the Display"

Foot adjust button

Front adjustable feet

sUser's Guide

"Turning off the Projector"

Power indicator

Operating problems may occur if the power

cable is disconnected while the Power

indicator is flashing orange.

Useful Functions

Troubleshooting

•No images appear: "No signal"

When using a laptop or a PC with an in-built monitor, select external video output on the computer.

Setup examples

Press and hold the [Fn] key, followed by the appropriate function number key.

sUser's Guide "Laptop connection"

•Checking the indicators

These indicators alert you to problems with projector operation.

sRefer to "When You Suspect a Problem" in the User's Guide for further details.

Color Mode

The following five colour modes can be selected by pressing [Color

Mode] on the remote control.

•Dynamic •Presentation •Theatre •Living Room •sRGB

sUser's Guide

"Selecting a colour

mode"

A/V Mute Playback of images and sound can be paused and resumed each

time [A/V Mute] is pressed on the remote control.

sUser's Guide

"A/V Mute"

Auto Setup Automatically adjusts the incoming signals when connected to a

computer to obtain optimum images.

sUser's Guide

"Adjusting computer

generated Images"

NEC [Fn]+[F3] SONY [Fn]+[F7]

Panasonic Fujitsu [Fn]+[F10]

To s h i b a [ F n ] + [ F 5 ] Macintosh After start up enable "Mirroring" in

the Monitors Control Panel.

IBM [Fn]+[F7]

Warning indicator lit flashing

Condition Cause/Remedy

Red

High internal temperature (overheating)

The lamp will turn off automatically and

projection will stop. Wait for about 5 minutes,

unplug the power cable and then plug it back

in again. Then press the [Power] button to

turn the projector back on.

Condition Cause/Remedy Red

(0.5 second

interval)

Lamp problem

Remove the lamp and check if it is broken. If

the lamp is not broken, re-install it. If the lamp

is broken replace by a new lamp, or contact

your local dealer for further advise. *1

Orange

Standby state

The power cable should only be

disconnected in this condition.

Projection starts when you press

the [Power] button. Red

(1 second

interval)

Internal problem

Stop using the projector and send it for

service. *2

Orange

Cool-down in progress

The projector changes to

standby (indicator lights orange)

after about 20 seconds.

The projector will beep twice to

indicate that cool-down has

completed. Orange

High-speed cooling in progress

If the temperature rises too high again,

projection will stop automatically.

Check that the air filter and air exhaust vent

are clear, and that the internal room

temperature is not too high.

Green Projection in progress

Green Warm-up in progress

After warm-up finishes,

projection starts when an image

signal is input.

*1 Contact your dealer for a spare lamp.

*2 For repairs, contact your dealer or the nearest address

provided at "International Warranty Conditions" in

Safety Instructions/World-Wide Warranty Terms.

sUser's Guide

"Troubleshooting"

Power indicator lit flashing

Printed in China

xx.xx-xA(C01) 404881700 (E)
