Epson PowerLite Home Cinema 3020plus Bedienungsanleitung

PowerLite®Home Cinema 3020+

Home Theater Projector

User’s Guide

2Contents

Contents

Introduction 5

Projector Parts 6

Remote Control 8

Optional Accessories 9

Warranty 9

Using This Manual 10

Setting Up the Projector 11

Choose a Location 11

Installing the Projector 14

Connecting the Cables 16

Connecting Video and Computer Equipment 16

Making Other Connections 18

Installing Batteries in the Remote Control 19

Charging the 3D Glasses 19

Turning the Projector On and Off 21

Turning On the Projector 21

Turning Off the Projector 21

Selecting the Image Source 22

Positioning the Image 23

Making Basic Adjustments 25

Focusing and Zooming 25

Choosing the Aspect Ratio 26

Viewing 3D Images 27

Projecting in Split Screen Mode 29

Starting a Slideshow 31

Choosing Slideshow Options 32

Choosing the Color Mode 33

Contents 3

Advanced Color Adjustments 34

Adjusting the Gamma Setting 35

Adjusting RGBCMY 36

Locking the Projector 37

Making Detailed Adjustments 38

Using the Menu System 38

Changing How the Menus Display 39

Adjusting the Picture Quality 40

Input Brightness Settings 40

Sharpness and Picture Quality Settings 42

Color Settings 43

3D Setup 45

Adjustments for Computer Images 46

Split Screen Setup 47

Selecting Memory Settings and Resetting the Projector 48

Creating Memory Settings 48

Selecting Memory Settings 48

Renaming Memory Settings 49

Deleting Saved Memory Settings 49

Resetting the Projector 50

Customizing Projector Features 51

Image Sizing 51

Screen Options 52

Other Setup Options 52

Using HDMI Link 55

Setting Up HDMI Link 55

Changing HDMI Link Settings 56

Maintenance 57

Cleaning the Lens 57

Cleaning the 3D Glasses 58

4Contents

Cleaning the Projector Case 58

Cleaning and Replacing the Air Filter 59

Replacing the Lamp 61

Resetting the Lamp Usage Timer 64

Checking the Projector Status 64

Storing the Projector 65

Transporting the Projector 65

Problem Solving 66

What To Do When the Lights Come On or Flash 66

Solving Picture Problems 68

Solving Remote Control Problems 72

Where to Get Help 73

Specifications 75

General 75

Lamp 76

Remote Control 76

Dimensions 76

Electrical 76

Environmental 77

Safety 77

Compatible Video Formats 77

ESC/VP21 Command Codes 79

Notices 80

Important Safety Information 80

FCC Compliance Statement 82

A Note Concerning Responsible Use of Copyrighted Materials 84

Trademarks 84

Introduction 5

Introduction

The PowerLite®Home Cinema 3020+ projector lets you enjoy theater-quality 3D images in

the relaxing environment of your own home. Designed especially for home cinema use, it

offers these outstanding features:

■Native 1080p (1920 × 1080) resolution, dynamic contrast ratio up to 40,000:1 and up to

2200 lumens of brightness (white light output) for incredibly rich, sharp images in any

room lighting

■Auto Iris system that constantly controls the light output based on the gamma and

black/white levels of your projected content, for perfectly adjusted images and deepest

blacks

■EPSON®C2Fine™3LCD technology for reliable picture quality, increased contrast ratio

and uniform colors

■1080Perfect™video processing for more film-like images free of noise or artifacts

■10-bit color quality for unmatched color accuracy, with over a billion colors available

■HDMI®(High-Definition Multimedia Interface®) ports for superior, uncompressed

digital video

■True 16:9 wide-format projection

■Powerful 10 W per channel stereo speaker system with two speakers

■Flexible setup configurations, including front projection and ceiling mounted, with

horizontal keystone slider for offset placement

6Introduction

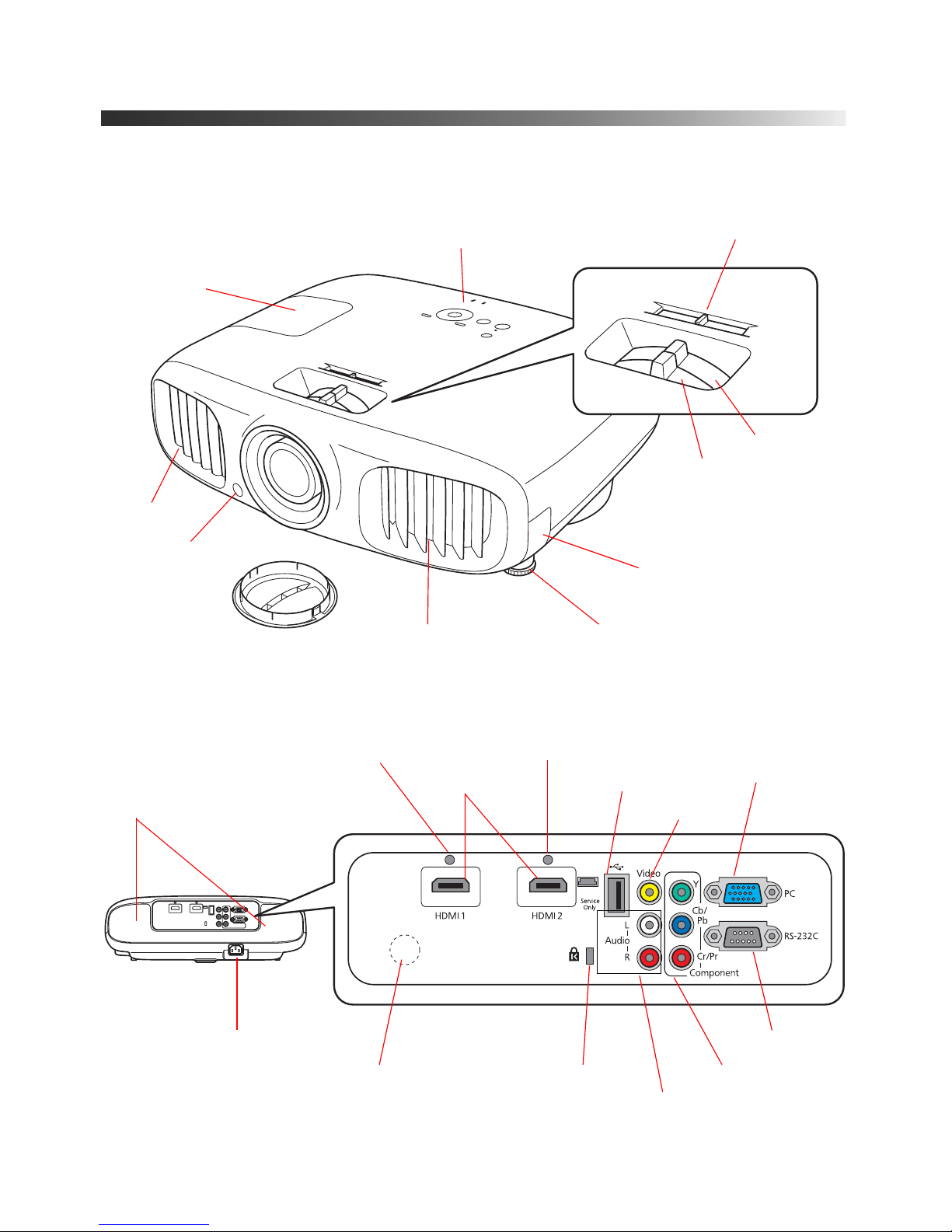

Projector Parts

Control panel

Air exhaust

Lens cover Adjustable foot

HDMI ports

Remote receiver

Horizontal keystone slider

Zoom ring

Front

Back

Lamp cover

Cable clip hole

Air intake

Air filter cover

Focus ring

Speakers

Power inlet

Cable clip hole

Kensington®lock port

Audio (L-R) port

Component port

RS-232C port

USB port

Remote receiver

Video port

PC port

Introduction 7

Brightness

sensor

Escape button

Power button

Mounting bracket

attachment points

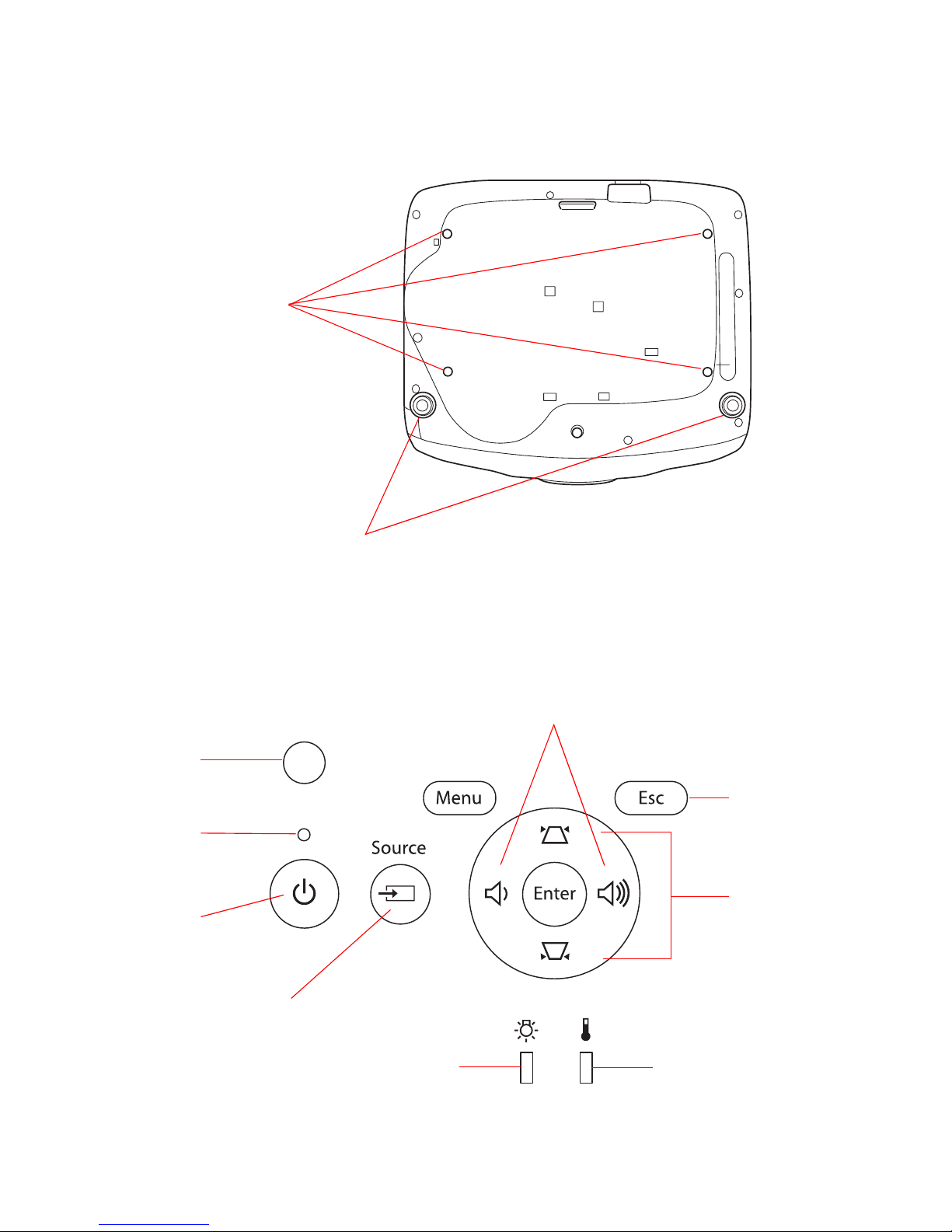

Bottom

Projector Control Panel

Front adjustable feet

Power

light

Source button

Volume/horizontal

keystone buttons

Vertical

keystone

buttons

Lamp

light

Temperature

light

8Introduction

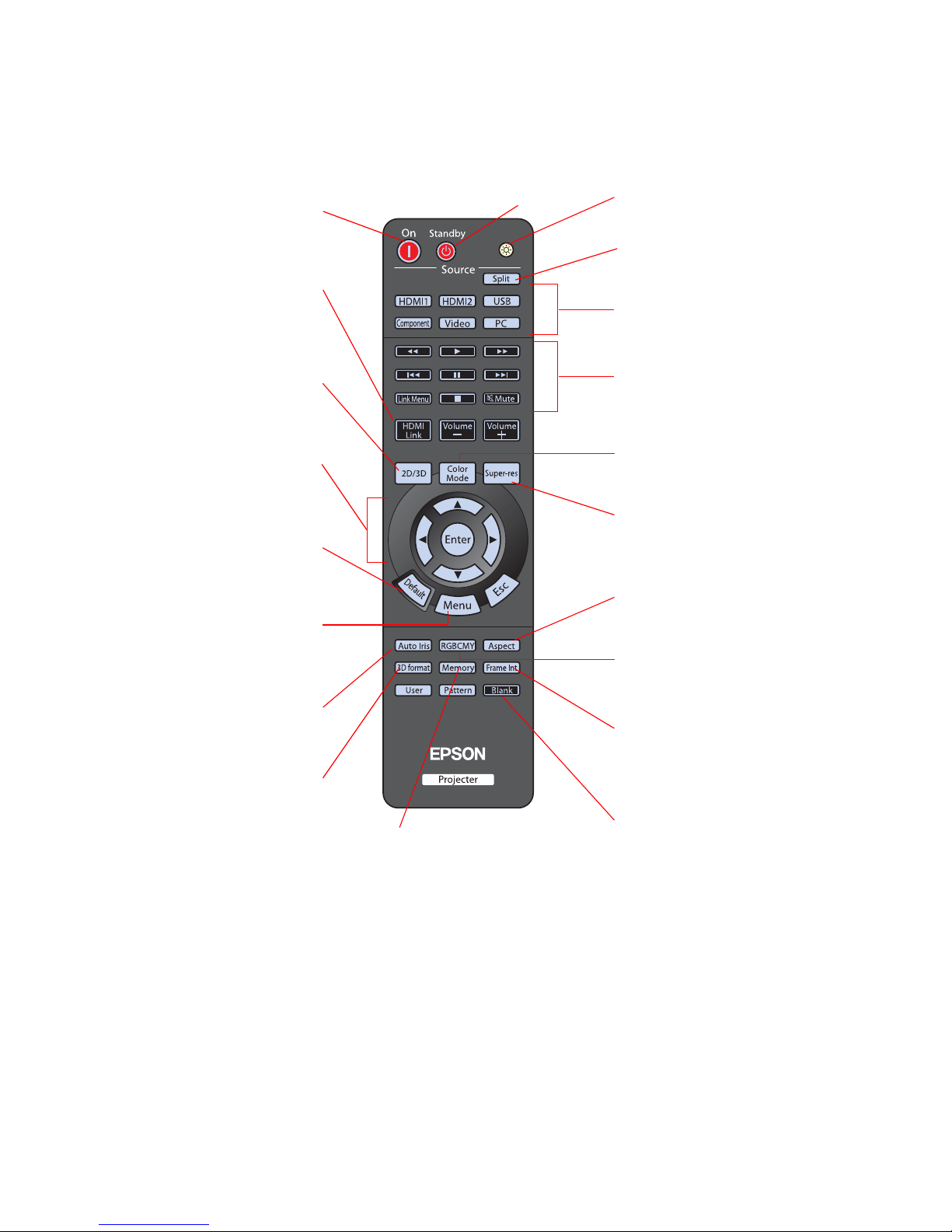

Remote Control

Source buttons

Switch between equipment

connected to the projector

On button

Turns projector on

Menu navigation

buttons

Color Mode button

Quickly change color settings

to match room lighting

Aspect button

Changes the picture’s

aspect ratio

Blank button

Temporarily stops projection o

hides the menu screen

Auto Iris button

Toggles the Auto Iris

function on or off

HDMI Link button

Enables and disables the

HDMI link function

Frame Int button

Adjusts the Frame Interpolatio

setting

Split button

Toggles the Split Screen

function on or off

Menu button

Displays the projector’s

menus

Default button

Resets menu

selection to default

values

2D/3D button

Toggles

between 2D and

3D projection

RGBCMY button

Displays the color

adjustment menu

Memory button

Accesses the memory

HDMI Link control buttons

Control playback of a linked

video device

Super-res button

Adjusts the Super-res setting

on or off

Standby button

Turns projector off

Illumination button

Lights the remote control

buttons for easy viewing

3D Format button

Adjusts the 3D Format

setting

Introduction 9

Optional Accessories

Epson provides the following optional accessories for the projector:

You can purchase these accessories from an authorized EPSON reseller. To find the nearest

reseller, please call Epson as described on page 73.

Warranty

Your projector comes with a basic two-year warranty for the projector, one-year 3D glasses

warranty, and a 90 day limited warranty for the lamp. For details, see the Quick Setup sheet.

Product Part number

Replacement lamp V12H010L68

Air filter replacement V13H134A38

Kensington security lock (anti-theft device) ELPSL01

Projector mount CHF1000

Computer cable (6 feet [1.8 meters]) V12H005C02

EPSON RF 3D Active Shutter Glasses V12H548006

PixiePlus™control system for EPSON projectors ELPSP10

Belkin Pro Series VGA / SVGA cable – 6 ft. (1.8 m) F3H982-06

Belkin PureAV HDMI audio video cable – 3 ft. (0.9 m) AV22300-03

10 Introduction

Using This Manual

This book contains all the information you need to use the projector, in addition to basic

setup and maintenance instructions, troubleshooting tips, important safety instructions,

specifications, and warranty information.

Please follow these guidelines as you read through the manual:

Warning: Must be followed carefully to avoid bodily injury.

Caution: Must be observed to avoid damage to your equipment.

Note: Contains important information about your projector.

Tip: Contains helpful projection tips.

Need additional help? Take advantage of Epson’s automated support services 24 hours a day

at global.latin.epson.com/Soporte (website available in Spanish). Use this site to view FAQs

or product information and e-mail Epson.
