INSTALLATION INSTRUCTIONS

BEFORE YOU BEGIN

Horizontal And Vertical Table Stands

and Accessories

Model: KTG-Series

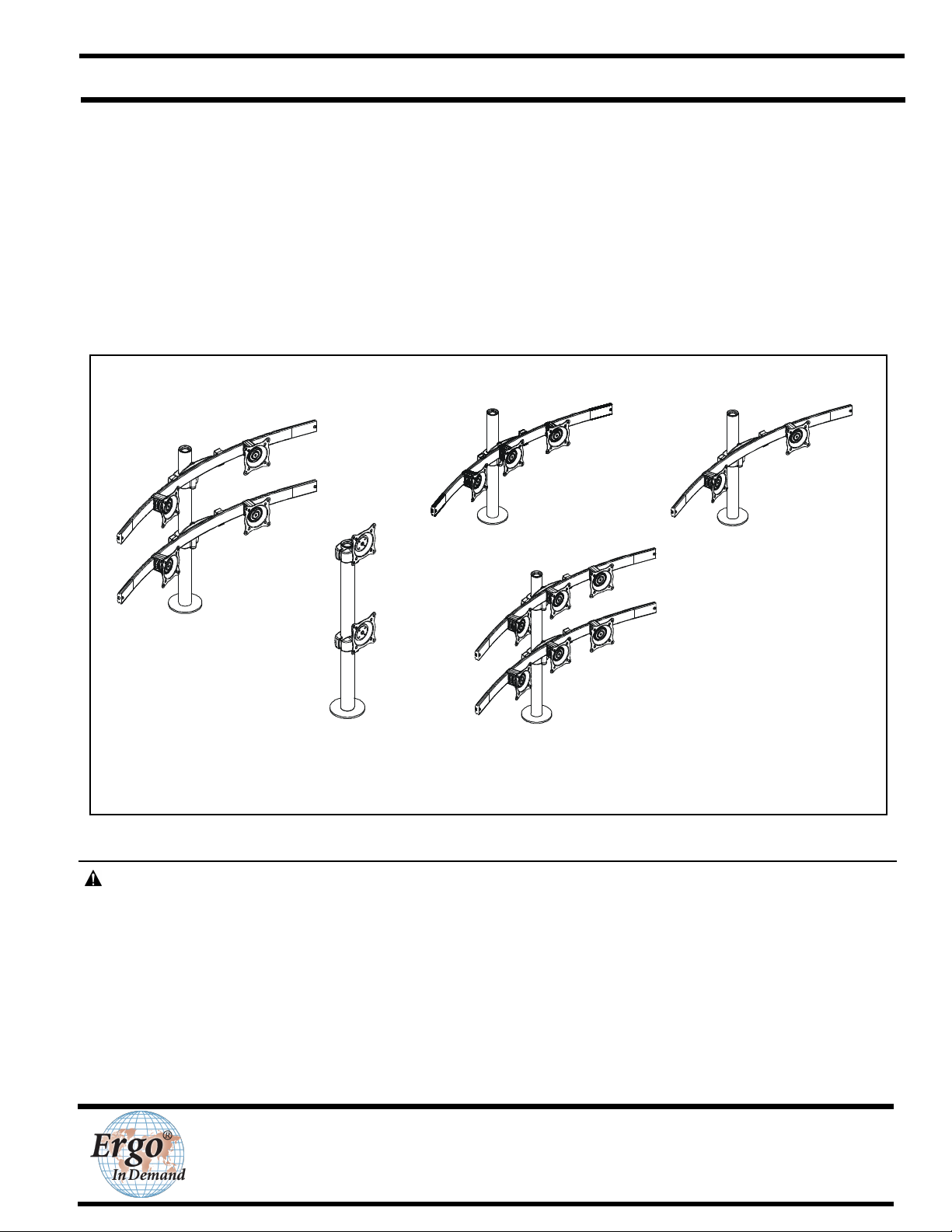

The KTG-Series is a free standing, pole mount solution for multiple displays.

KTG-440 / KTG-445

KTG-230

KTG-320 / KTG-325

KTG-220 / KTG-225

KTG-330

CAUTION!

To prevent damage to the Kit, which could affect or void the Factory warranty, and to the equipment that will be

attached to it, thoroughly study all instructions and illustrations before you begin the installation.

4900 Industry Drive

Central Point, OR 97502

1-800-888-6024

www.ergoindemand.com

Model: KTG-Series Installation Instructions

TOOLS REQUIRED FOR INSTALLATION

• Drill and 1/2" drill bit (larger if mounting through a flat surface and using cable management)

• Phillips Head Screw Driver

• 3/4" Wrench

• 3/32" Hex Key (provided)

• 5/32" Hex Key (provided)

• 7/32" Hex Key (provided)

INSPECT MOUNT BEFORE ASSEMBLY

Carefully inspect components for shipping damage . If damage is apparent, call your carrier claims agent and do not

continue with installation until the carrier has reviewed the damage.(see Figure 1)

Installation Instructions Model: KTG-Series

Table 1: Parts

QUANTITY By MODEL

ITEM DESCRIPTION 220 225 230 320 325 330 440 445

10 CENTRIS HEAD ASSEMBLY, Pole Mount 2

20 ARRAY ASSEMBLY, Dual, 27" 1 1 2

ARRAY ASSEMBLY, Dual, 34" 2

30 ARRAY ASSEMBLY, Triple, 42" 1 1

ARRAY ASSEMBLY, Triple, 54" 1

40 PIPE CAP, 1.75 OD 1 1 1 1 1 1 1 1

50 POLE, Freestand, 14" 1 1 1 1

60 POLE, Freestand, 28" 1 1 1 1

70* POLE, Freestand, 42"

80 SHEATH, Cable Management, 8" 1 1 2 1 1 2 2 2

90 N/A N/A N/A N/A N/A N/A N/A N/A

100 SCREW, Cable Management Grommet Mounting, 3/8-16 x 6" 1 1 1 1 1 1 1 1

110 GROMMET, Mounting 2 2 2 2 2 2 2 2

120 KEY, Hex, 5/32" 1 1 1 1 2 1 1 1

130 KEY, Hex, 3/16" 1 1 1 1 2 1 1 1

140 KEY, Hex, 7/32" 1

160** SCREW, Phillips Pan Head, M4 x 12mm 8 8 8 12 12 24 16 16

170** SCREW, Phillips Pan Head, M4 x 20mm 8 8 8 12 12 24 16 16

180** SCREW, Phillips Pan Head, M4 x 30mm 8 8 8 12 12 24 16 16

190** SPACER, Nylon, 3/8" (used with item 170) 8 8 8 12 12 24 16 16

200** SPACER, Nylon, 3/4" (used with item 180) 8 8 8 12 12 24 16 16

210 CLAMP, Front, Pole Mount 2

220 CLAMP, Rear, Pole Mount 2

230 SCREW, Button Head Cap, 1/4-20 x 1 1/4" 6 6

240 CLAMP, Back, Array mounting 1 1 1 1 2 2 2

250 WASHER, Flat, 1/4" 2 2 2 2 4 4 4

260 SCREW, Button Head Cap, 1/4-20 x 3/4" 2 2 2 2 4 4 4

* Indicates an available optional accessory not included with above models. For additional information pertaining to

available accessories contact a Chief Customer Service represenatative or visit us at www.chiefmfg.com.

** Quantity varies depending upon the number of displays being installed.

Model: KTG-Series Installation Instructions

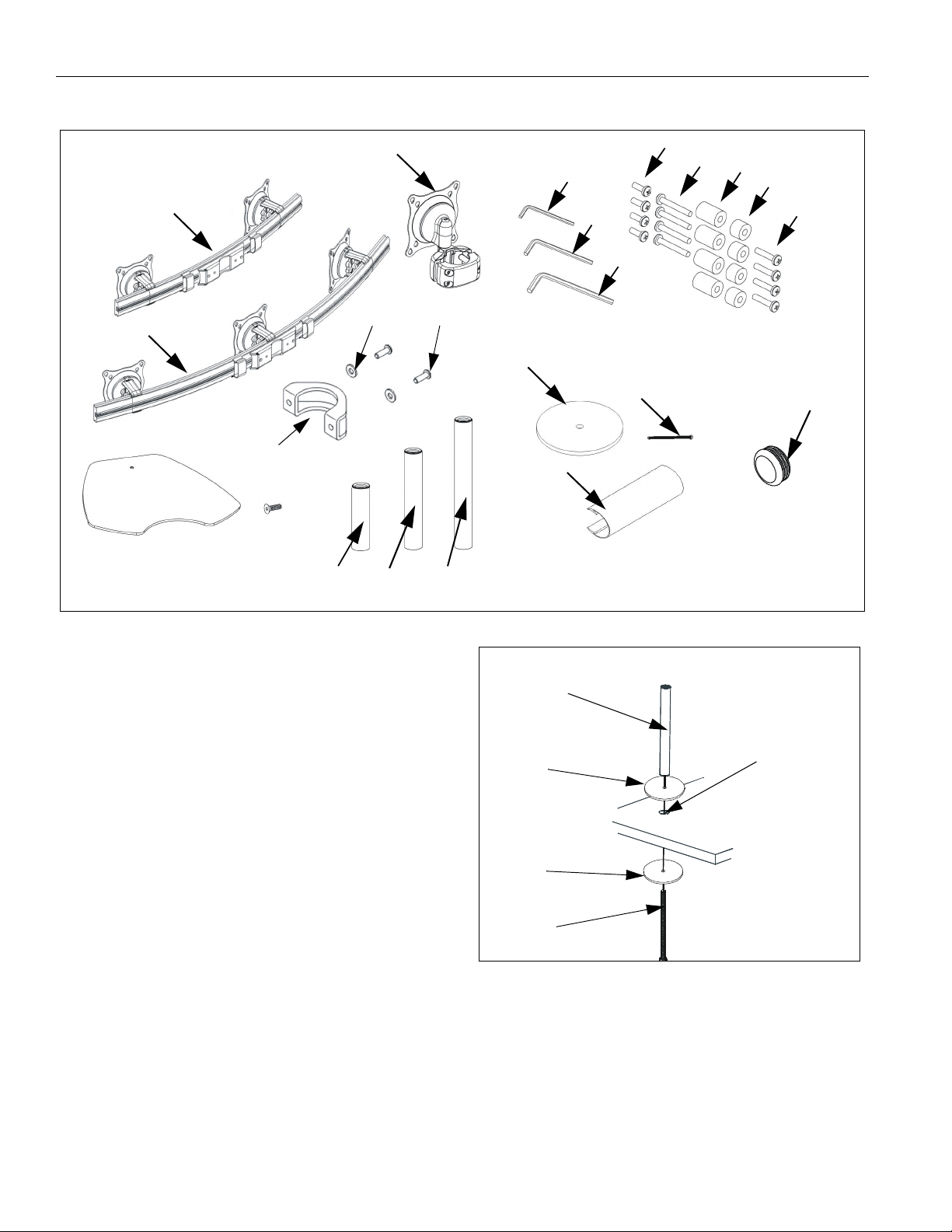

Figure 1: Parts

ASSEMBLY AND INSTALLATION

Grommet Mount Installation

To install on a flat surface:

1. Locate desired point on surface where mount is to be

installed. (see Figure 2)

2. Drill a 1/2" dia. hole through surface.

3. Slide one 3/8-16 x 6" HHCS (100) upward through

lower grommet (110), through hole in surface and

through upper grommet (110).

4. Place pole (50, 60, 70) onto upper grommet (110)

aligning threaded hole in pole bottom with threaded

end of 3/8-16 x 6" HHCS (100).

5. Thread 3/8-16 x 6" HHCS (100) into pole bottom (50,

60, 70) and tighten to secure pole and grommets

(110) to surface.

6. Add pipe cap (40) to top of pole.

7. Mount Centris head assembly or array assembly to

rail following the instructions outlined in KTG-220,

320, And 440 Assembly section of this document.

Figure 2: Grommet installation

Mount Assembly

KTG-230 Assembly

8. Place front pole clamp with Centris Head (210)

against pole in approximate mounting location.

9. Place three BHCS (230) into rear pole clamp (220)

and place against pole aligning with front pole clamp

(210). (see Figure 3)

(10 Includes 210, 220, 230)

(20)

(30)

(50) (60) (70)

(80)

(100)

(110)

(120)

(130)

(140)

(160)

(170)

(180) (190)

(200)

240

250 260

(40)

1/2" dia.

through hole

(110)

(50, 60, 70)

(100)

Installation Instructions Model: KTG-Series

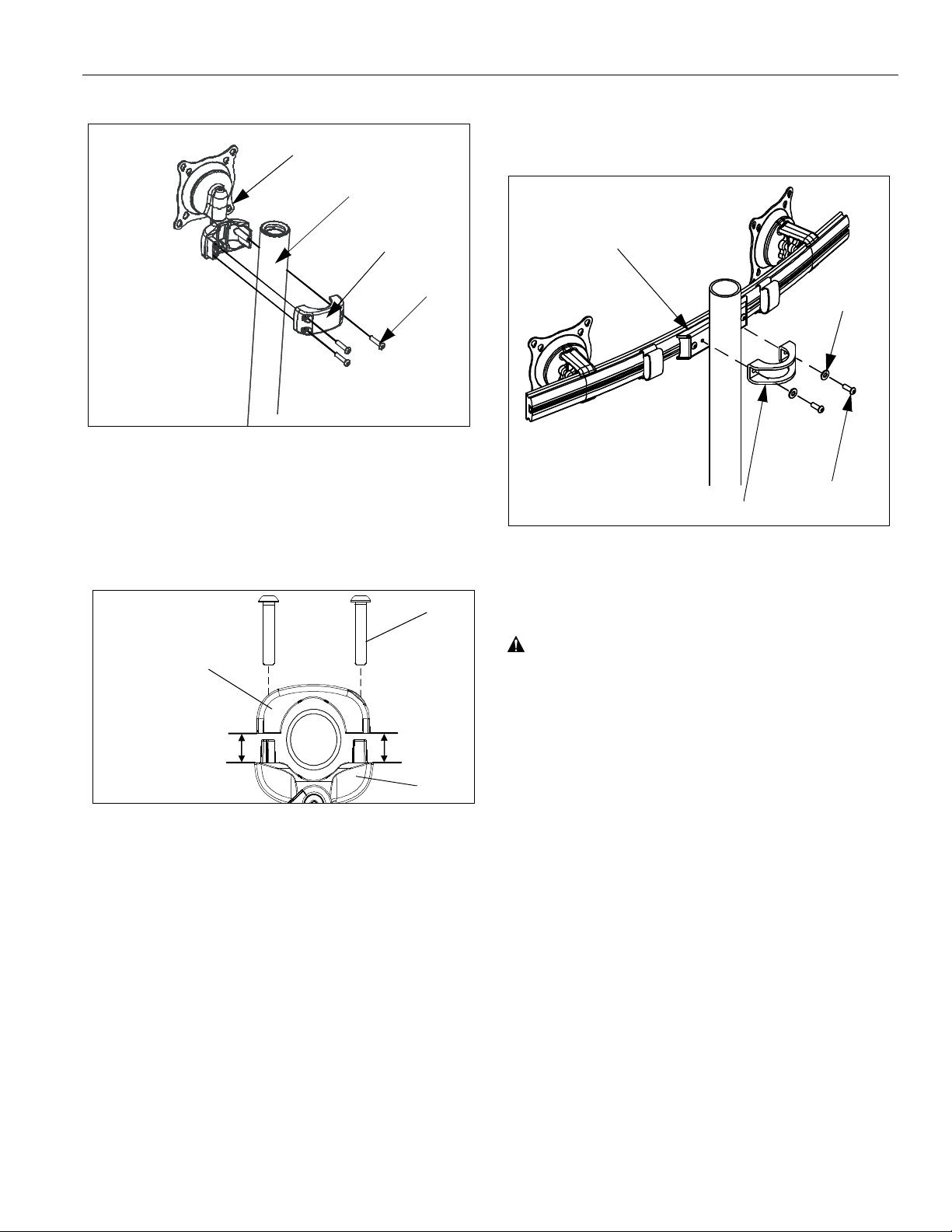

Figure 3: Mount Centris Head with Pole Clamp

NOTE: Equally tighten screws (230) against front pole

mount (210) and the rear pole clamp (220). (see

Figure 4)

Figure 4: Tightening clamp to mount

10. Secure rear pole clamp (220) to front pole mount

(210) and pole by tightening three BHCS (230) using

5/32" hex key (120). (see Figure 3)

KTG-220, 320, And 440 Assembly

To assemble the KTG-220, 320, and 440:

NOTE: If mount is being installed without the base

through a flat surface, proceed to Grommet

Mount Installation.

1. Assemblepole(50)tobase (40)usingone3/8-16x1"

FHCS (90). (see Figure 2)

2. Assemble pole clamp back (240) to pole mount front

using two FW (250) and two BHCS (260) using a

5/32" hex key. (see Figure 5)

3. Secure pole mount back (240) topole mount frontand

pole by tightening two BHCS (260) using a 5/32" hex

key.

Figure 5: Assemble Array Rail to Pole

Display Installation

Attach Centris Head to Flush Mount Display

CAUTION!

CAUTION: If display uses a screw size other than

those included in the kit, DO NOT use the screws

provided. Using the wrong screws could result in

damage to your monitor.

1. Install two M4x 12mm Phillips pan head screws (160)

intotwouppermountingholes indisplayback.

(see Figure 6)

NOTE: DO NOT fully tighten at this time.

2. Hang display on Centris head. (see Figure 7)

3. Install bottom two M4 x 12mm Phillips pan head

screws (160) through Centris head mounting holes

and into lower mounting holes in display back.

4. Tighten ALL four M4 x 12mm Phillips pan head

screws (160). (see Figure 8)

(210)

(60)

(220)

(230)

Keep equal

distance between

mount and

clamp when

tightening (210)

(220)

Pole Clamp Back (240)

Pole

(250)

(260)

Pole Mount front

with Array

Model: KTG-Series Installation Instructions

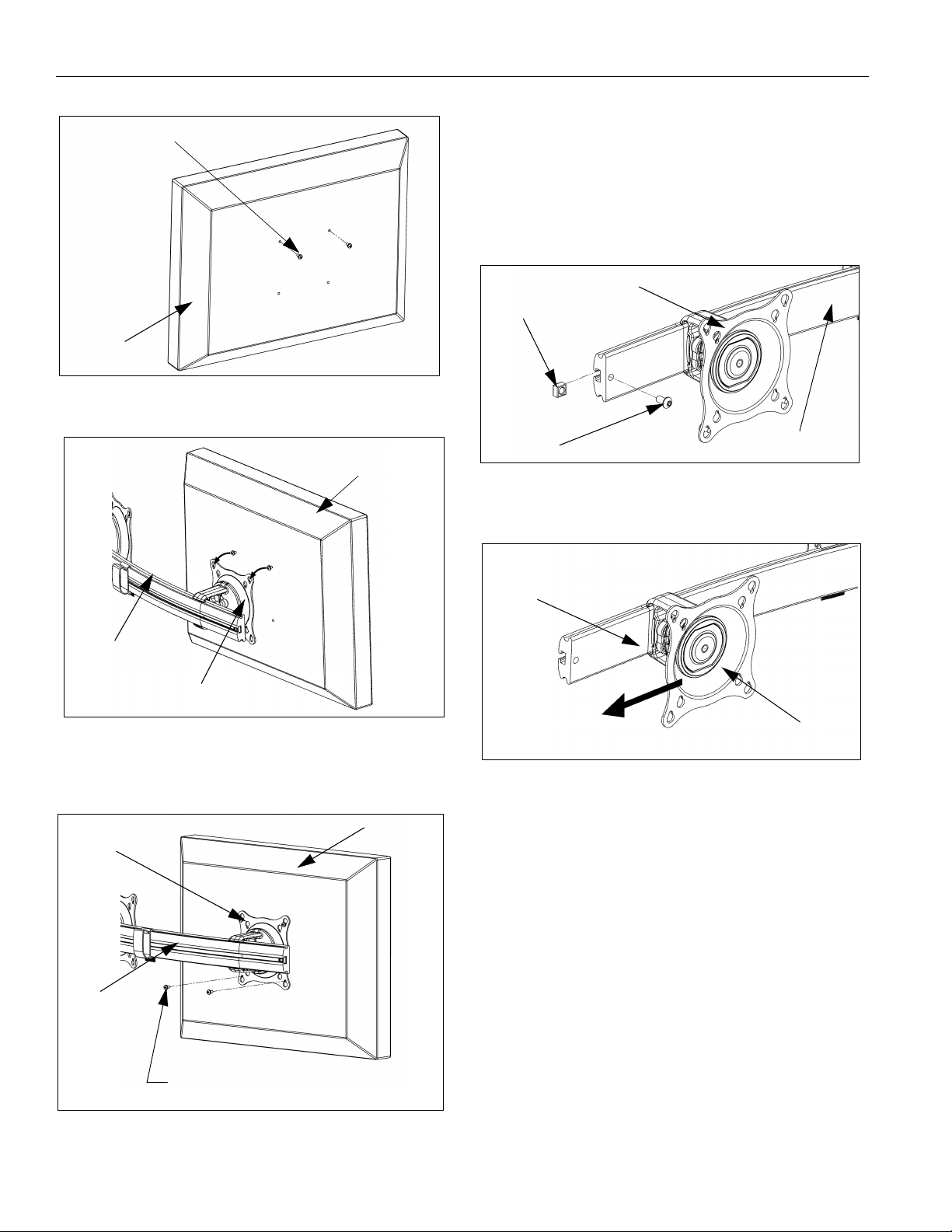

Figure 6: Prepare Display

Figure 7: Hang Display

Figure 8: Secure Display to Centris Bracket

Attach Centris Head to Recessed Mount Display

NOTE: Refer to Table 1 to select the applicable screw

and spacer combination.

1. Uninstall end lock using the 5/32" hex key (120).

(see Figure 9)

2. Remove Centris head from array rail (20, 30).

Figure 9: Remove End Lock(s)

Figure 10: Slide Centris Bracket off Array Rail

3. Place display face down on aclean drysurface.

4. Place four 3/8" or 3/4" nylon spacers (190 or 200)

over four mounting holes in display back (see Figure

11).

5. Align Centris head mounting holes with four nylon

spacers (see Figure 11).

6. Secure Centris head to display using four

M4 x 20mm Phillips pan head screws (170), or four

M4 x 30mm Phillips pan head screws (180)

(see Figure 11).

Display

M4 x 12mm Phillips Pan Head Screw (30)

Display

Centris Head

(20, 30)

Display

Centris Head

(20, 30)

(160)

Square Nut

End Lock

Centris Head

(20, 30)

Centris Head

(20, 30)

Installation Instructions Model: KTG-Series

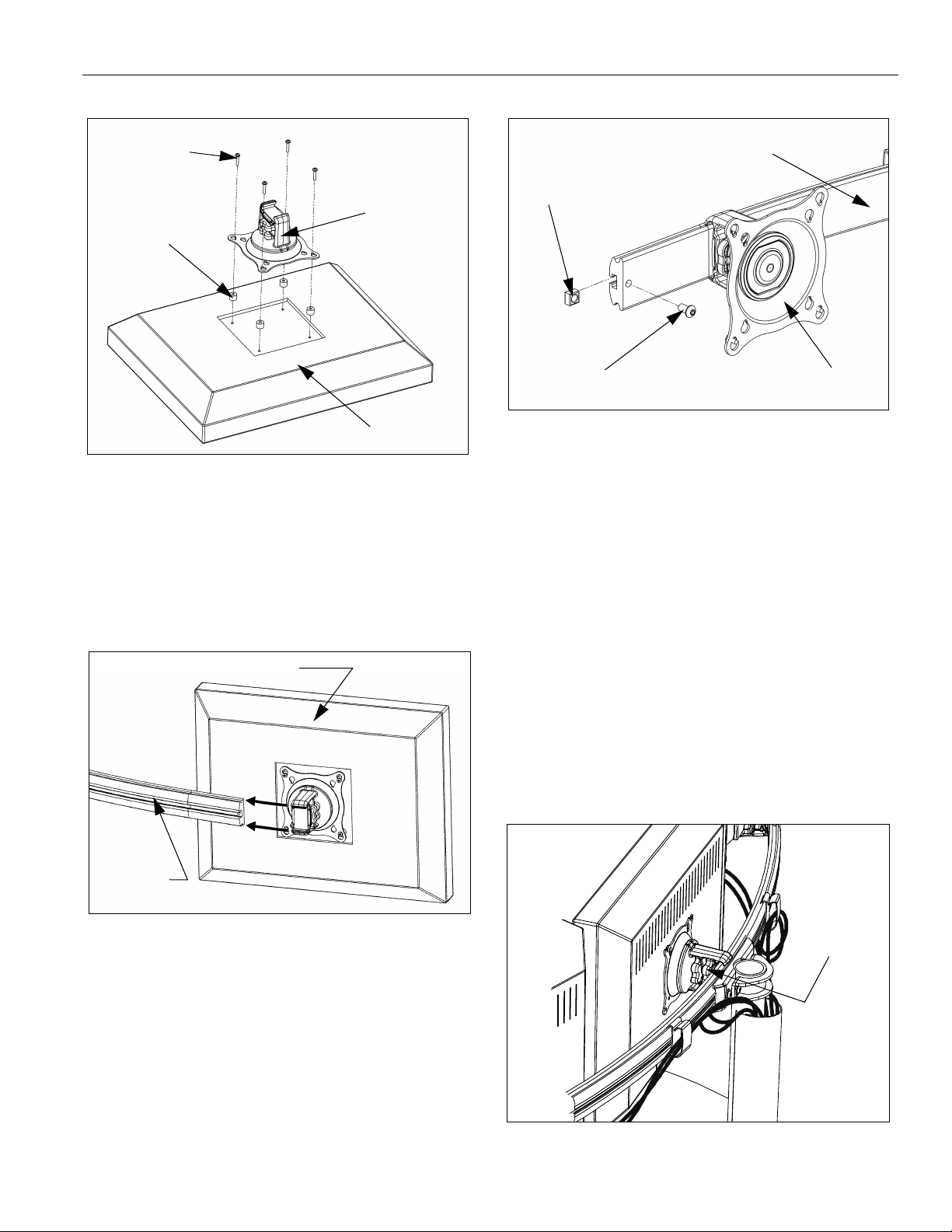

Figure 11: Mount Centris Bracket to Display

7. Slide display with Centris bracket onto array rail (20,

30) (see Figure 12).

NOTE: Repeat previous steps for each additional display.

8. Reinstall end locks into mounting rail using the 5/32"

hex key (120) (see Figure 13).

Figure 12: Mount Display with Centris Bracket to

Array Rail

Figure 13: Reinstall End Lock(s)

ADJUSTMENTS

Display Adjustment

The KTG Series mount allows horizontal, pitch, and

rotational adjustment of each display.

The KTG Series mount also allows a full 360 deg. of

display rotation with a maximum pitch range of 15° up

and 15° down.

Display Horizontal Position Adjustment

To adjust display horizontal position:

1. Loosen Centris bracket rear adjustment knob (see

Figure 14).

2. Slide Centris bracket with display left or right until

properly positioned on array rail.

3. Tighten Centris bracket rear adjustment knob.

Figure 14: Display Horizontal Adjustment

Display

Centris Head

Spacer

Phillips Pan Head Screw

(170 or 180)

(190 or 200)

Display with Centris Bracket

(20, 30)

End Lock

End Lock Retaining Screw Centris Head

(20, 30)

Horizontal

Adjustment

Knob

Model: KTG-Series Installation Instructions

Display Pitch and Roll Adjustment

To adjust display pitch or roll position:

1. Loosen Centris bracket front adjustment knob.

(see Figure 15)

2. Tilt display up or down, or adjust display roll left or

right until properly positioned.

3. Tighten Centris bracket front adjustment knob.

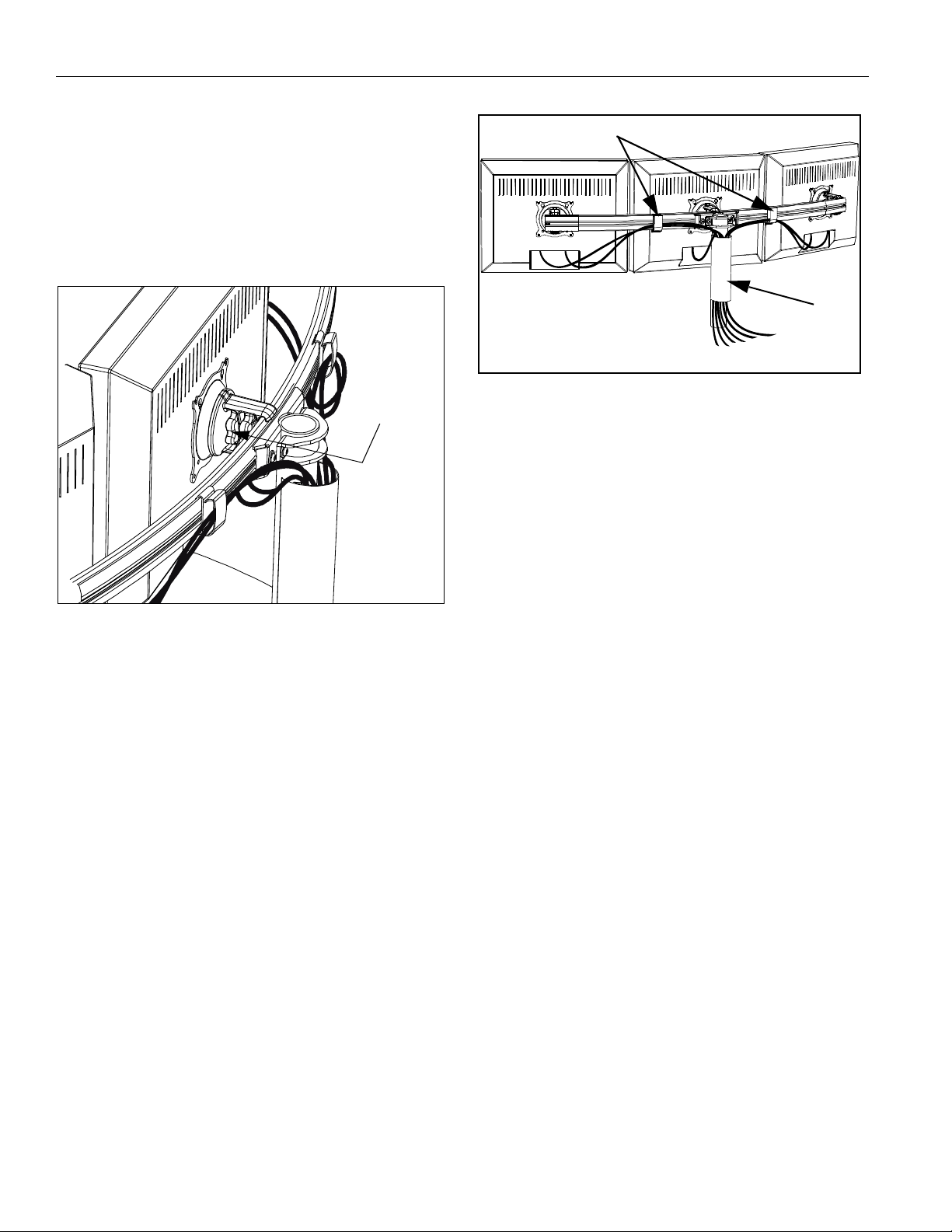

Figure 15: Display Pitch and Roll Adjustment

CABLE MANAGEMENT

The KTG Series mount includes cable management

features used to properly route and secure display

cables.

To use the cable management features:

1. Connect cables to display.

2. Route cables through cable clips on array rail.

3. Route cables down pole and away from mount and

secure to pole using sheath (80).

Figure 16: Cable Management

Pitch/Roll

Adjustment

Knob

(80)

Cable Clips
