ErgoCentric upCentric Power & Data Rail Bedienungsanleitung
Table of Content
Components........................................................3
Power & Data Rails ..................................................5
Leg Assembly and Rail Preperation .....................................6
Assemble the Power & Data Rail Systems ................................9
Installing Leg Divider Plates. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Wall Power Infeed ...............................................14
Ceiling Power Infeed .............................................15
Run Data Cables ................................................... 16
Finishing the Assembly .............................................. 18
Installation Guide
upCentric Power & Data Rail
3
upCentric Power & Data Rail | Installation Guide

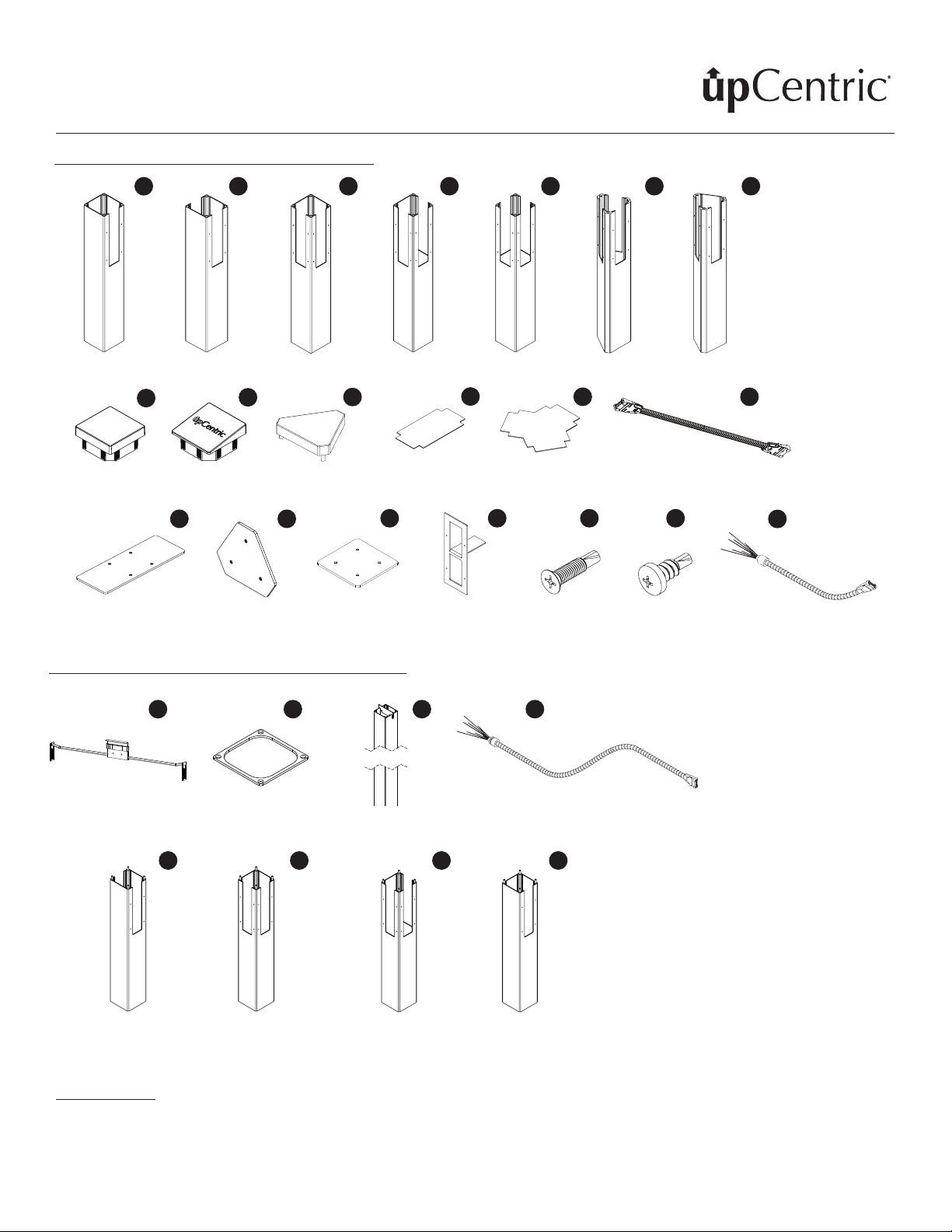

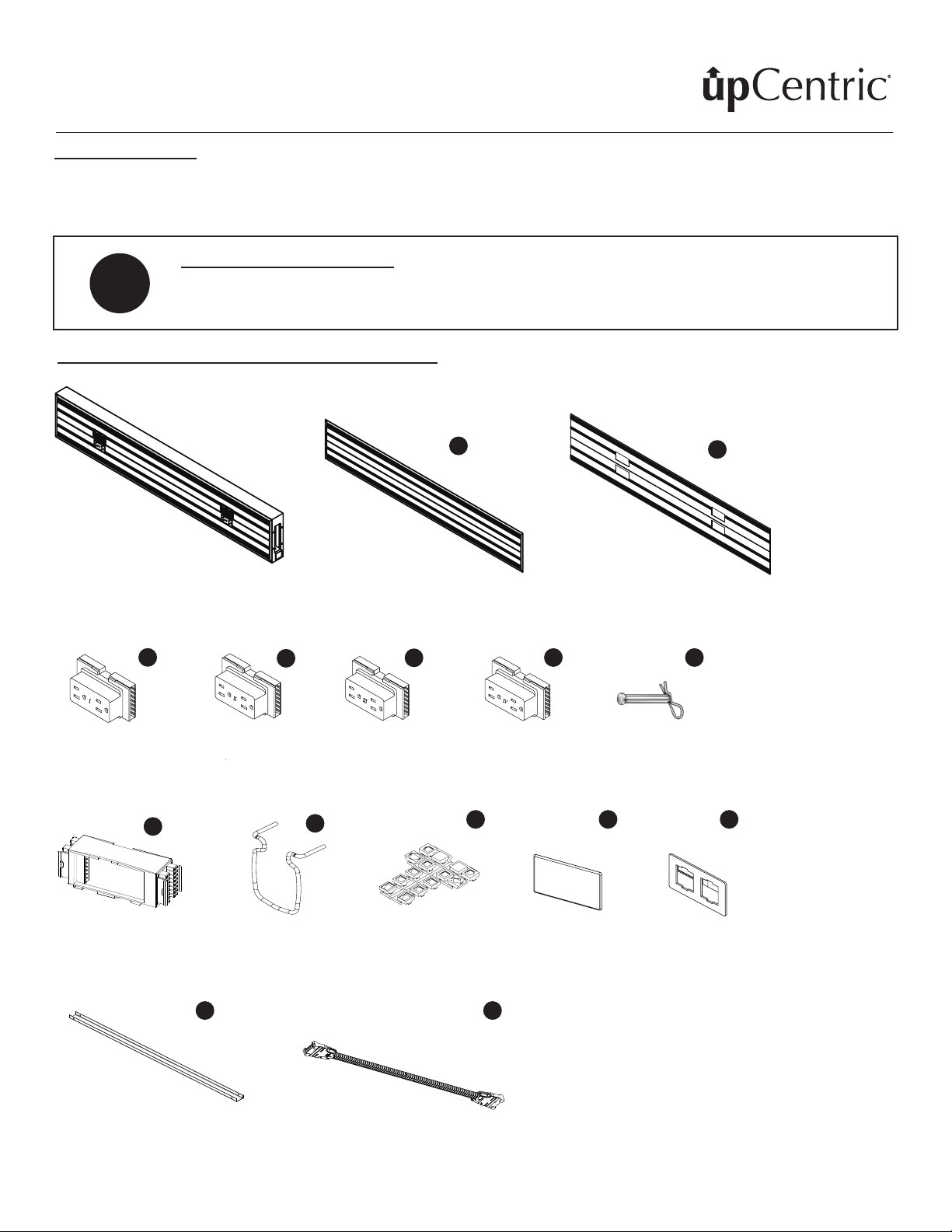

Components
Cover plate Voice/data
plate
Voice/data
adapter kit
Prior to commencing the installation, these instructions thoroughly. Utilize the accompanying diagrams to verify that all the
necessary components for your installation were included in your order. It is advisable not to dispose of the packaging until you
are completely satised with your products functionality.
• Connecting the power feed to building power should be undertaken by a licensed electrician.
• Before connecting the unit to the building power, make sure to rst connect the power feed to the unit.
Safety Instructions/Warning
!
Data cable
support clip
Rail assembly 36” - 96”
Junction block
Receptacle 1 Receptacle 2 Receptacle 3 Receptacle 4 Clevis pin
Group A: Rail parts - found inside rail, installed on rail
Inner trough 36” - 96” Jumper cable 8” - 68”
Cover Panel Cover Panel
with window
A1 A2
B1 B2 B3 B4 C
DEFG H
IJ
Installation Guide
upCentric Power & Data Rail
4
upCentric Power & Data Rail | Installation Guide
End Leg 180° Leg 90° Leg T - Leg X - Leg Y - Leg 120° - Leg
End capLeg cap 120° End cap
Flat head
screws
Pan head
screws
Foot Triangular foot
Divider plate
Infeed leg
splitter
Divider plate 120°
Square foot
*Power feed 144”
*Jumper cable 21”
Tools required
• Power Drill
• Philips #3 Bit
• Philips #2 x 3” bits or longer
Ceiling bracket
Group B: Leg parts - found in leg packaging
*Power Feed:
72” - Used for WPI legs
144” - Used for CPI legs
Group C: CPI - Ceiling power infeed specic parts
*Power feed 72”
CPI divider wall CPI 8.5’ leg
and divider wall
*Jumper Cable:
Legs 180°, 120° and 90° - Use 1 Jumper
Legs Y and T - Use 2 Jumpers
Legs X - Use 3 Jumpers
CPI leg 180 CPI leg 90 CPI leg T CPI end leg
K1 K2 K3 K4 K5 K6 K7
L1 L2 L3 M1 M2 N
O1 O2 O3 P Q R S
TUVW
X1 X2 X3 X4
Installation Guide
upCentric Power & Data Rail
5
upCentric Power & Data Rail | Installation Guide
Power & Data Rail
upCentric Power & Data Rail is designed to optimize oorplans with a clean and tidy look by providing organized power &
data for each individual desk. upCentric Power & Data Rail eliminates the need for messy wires on the oor, reducing trip
hazards and improving workplace safety.
The Byrne 8-Trac system is employed for the Power and Data Rail, incorporating UL-recognized electrical elements. It
features fast-connect components, streamlining the installation process for speed and ease. Utilizing the hardwire power
infeed enables the connection of either 12 rails or up to 24 desks.
Note: The diagrams below are shown from the top view
Conguration - 180° Conguration - 90° Conguration - 120°
Conguration - X
Conguration - T
End legLeg - 180°End leg End leg
End leg
leg - 90°
End leg
End leg
Leg - 120°
End leg
End leg End leg
End leg
End leg End leg
End leg
T- leg
X - leg
Conguration - Y
End leg
End leg End leg
Y - leg
Installation Guide
upCentric Power & Data Rail
6
upCentric Power & Data Rail | Installation Guide

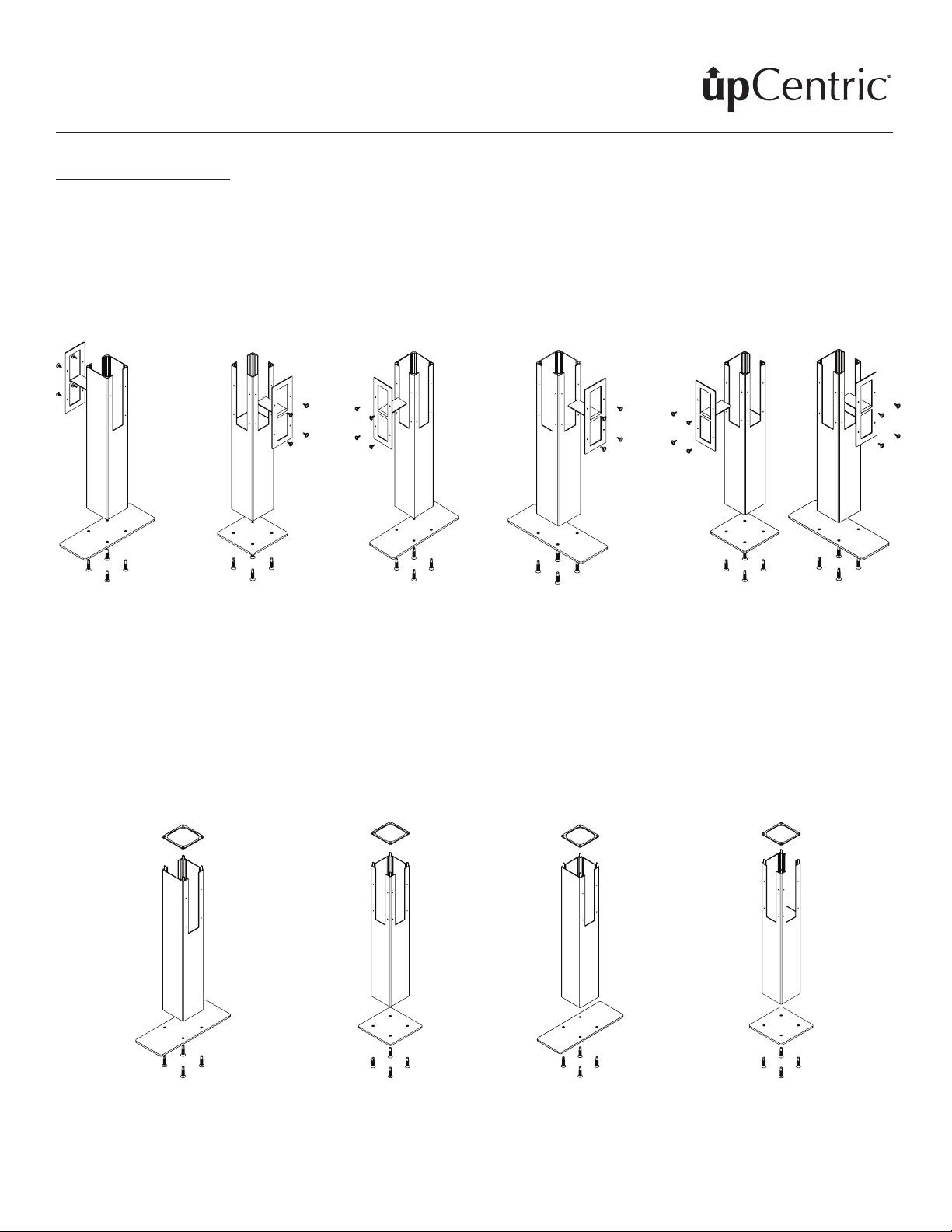

Step 1: Assemble all Connector Legs:
a) Attach foot to bottom of the leg with at head screws (Q).
b) Set aside caps (L), jumpers (N), divider plates (M), pan head screws (R),
and infeed leg splitter (P) for future use.
Square foot
End Leg
Foot 120° foot
Leg Assembly and Rail Preperation
180° Leg 90° Leg X Leg T Leg Y Leg 120° Leg
Installation Guide
upCentric Power & Data Rail
7
upCentric Power & Data Rail | Installation Guide

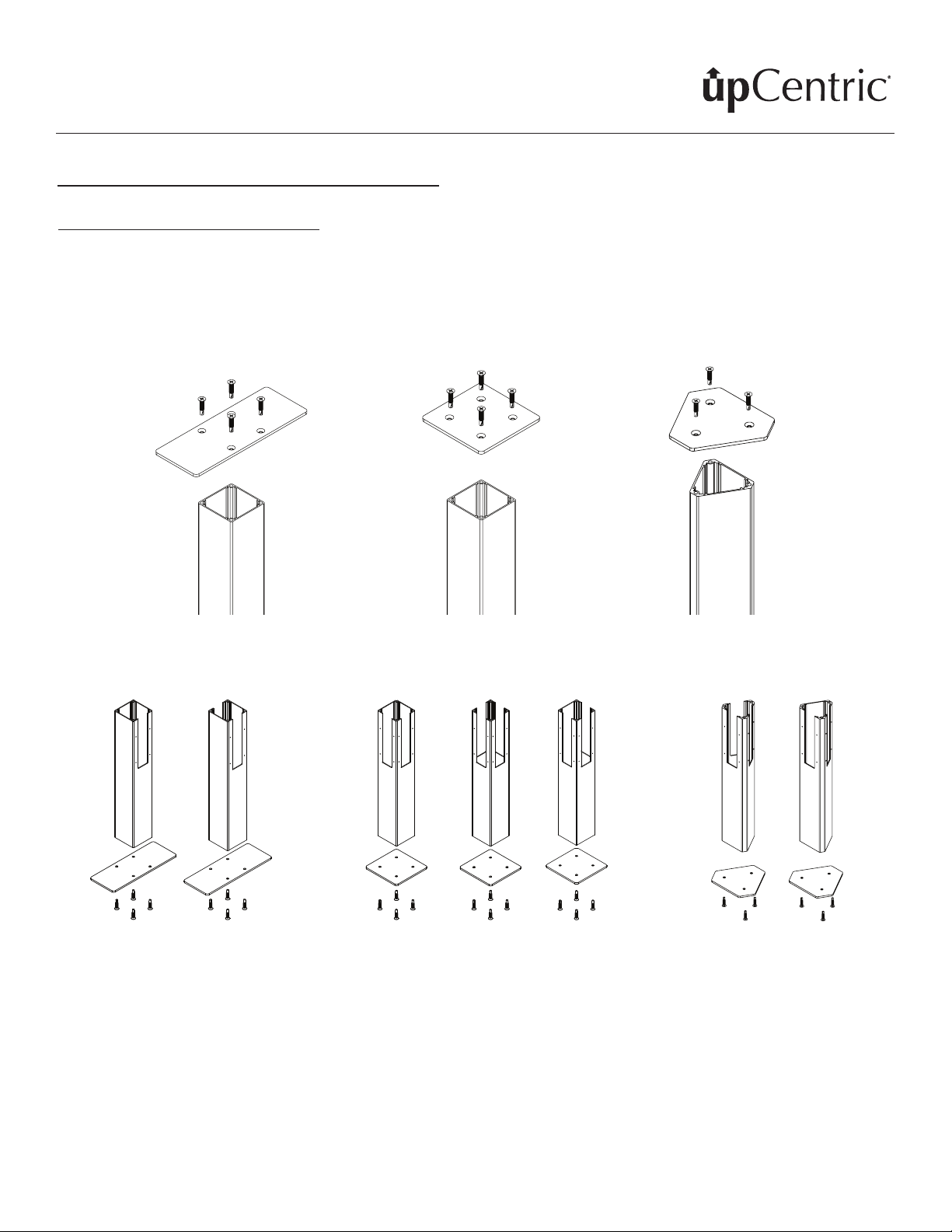

WPI - Wall Power Infeed
CPI - Ceiling Power Infeed
WPI - END WPI - END 90° L
WPI - TC WPI - 90°
CPI - 90° CPI - TC
CPI - 180°
Build Power Infeed Legs:
a) Wall Power Infeed (WPI) Legs:
i. Attach foot to bottom of each leg using at head screws (Q).
ii. Secure the Infeed plate using pan head screws (R).
b) Ceiling Power Infeed (CPI) Legs:
i. Attach the Foot to the bottom of each leg using at head screws (Q).
ii. Slide the plastic gasket (U) onto the four posts on top of each leg.
WPI - END 90° R WPI - 180°
CPI - END
Installation Guide
upCentric Power & Data Rail
8
upCentric Power & Data Rail | Installation Guide

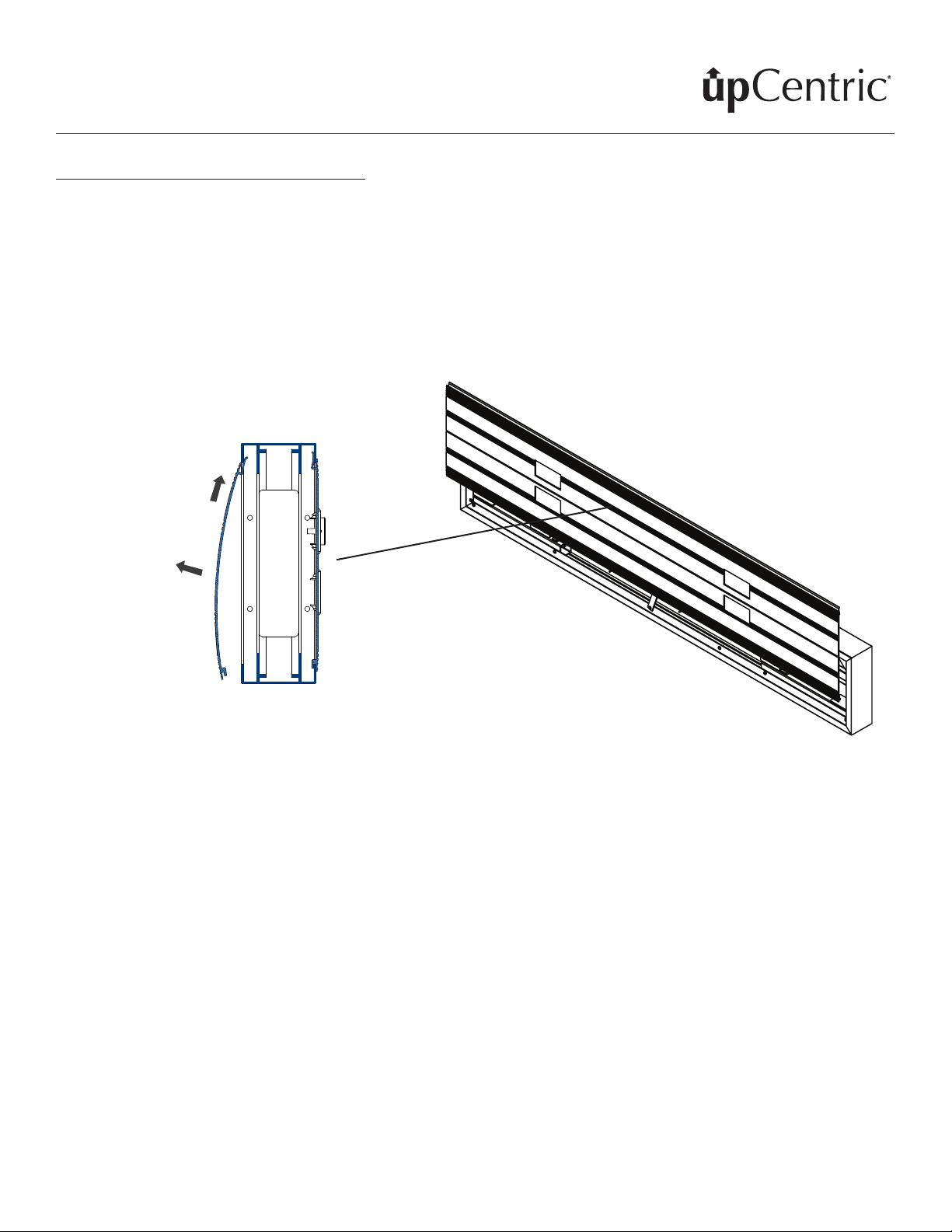

Step 2: Remove Cover Panels and VGA Kits:
a) Remove the Cover Panels from all rails and set them aside. Raise the
panel from its lower edge and then pull the panel from the center until
the bottom hook disengages from the lower lip of the rail.
b) Set aside VGA addapter kit (F) and window cover (G).
B
B
STEP 1
Rail assembly
side view
* Lift panel and pull
out from the center
to release bottom
of the panel.
Installation Guide
upCentric Power & Data Rail
9
upCentric Power & Data Rail | Installation Guide

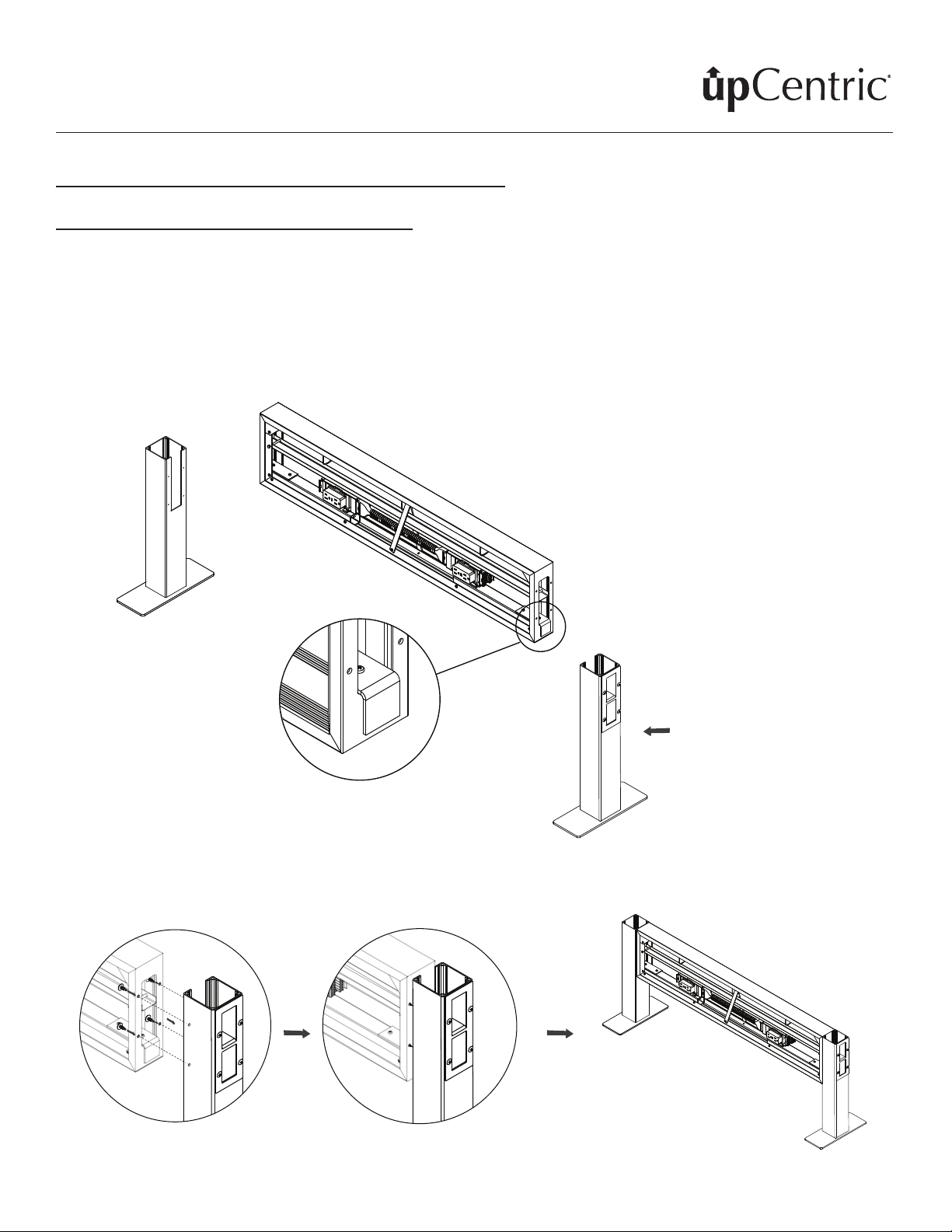

Step 3: Assemble the rst rail - “Power Infeed Rail”
a) Hook both ends of the rst rail to your power infeed leg and to the
next leg in the layout.
b) Attach rail to legs with pan head screws (R).
Note: When building a single rail system and the second leg is an
End Leg, proceed to step 7.
Assemble the Power & Data Rail Systems
Note: If building a multi beam system,
refer to your oorplan layout, and
identify the power infeed rail.
WPI
or
CPI
Installation Guide
upCentric Power & Data Rail
10
upCentric Power & Data Rail | Installation Guide

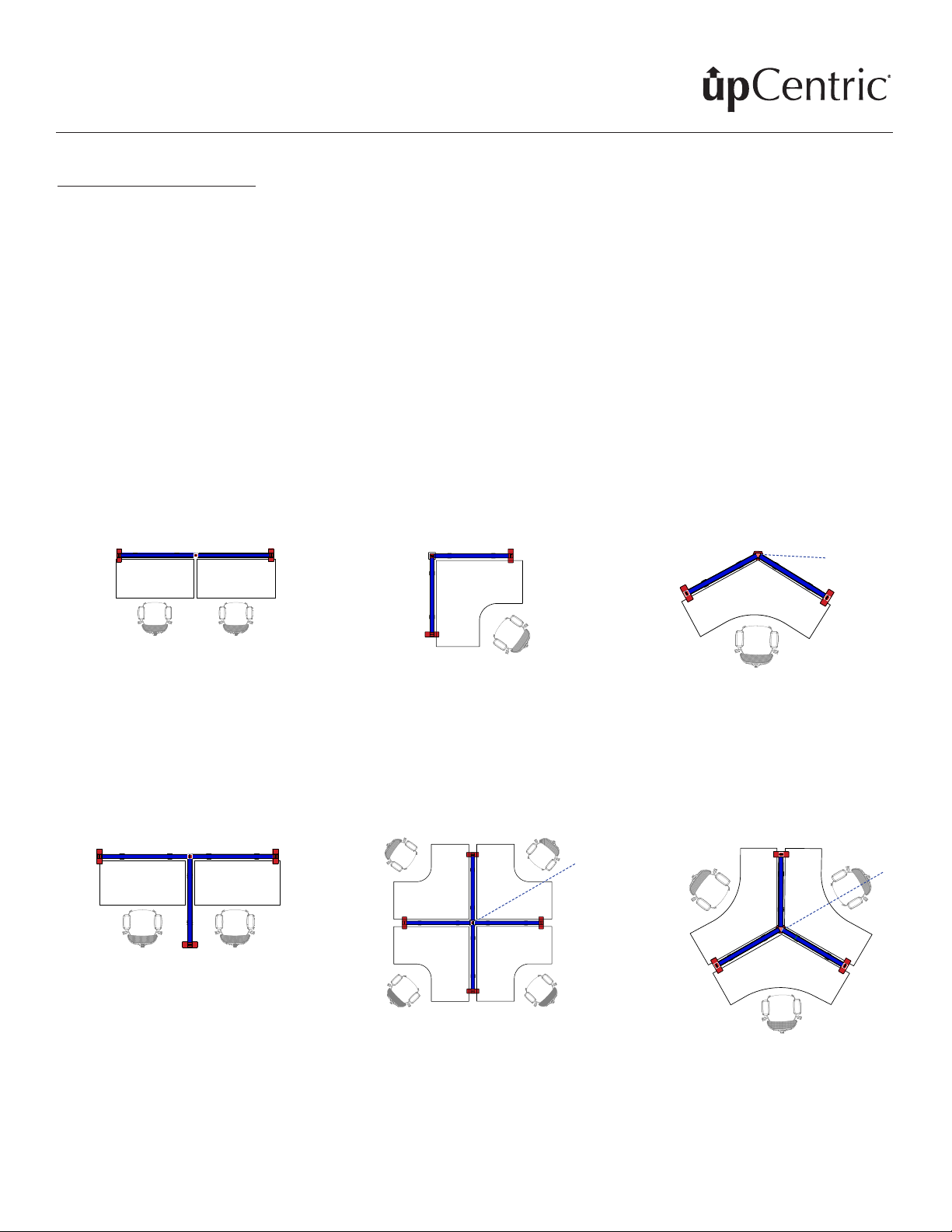

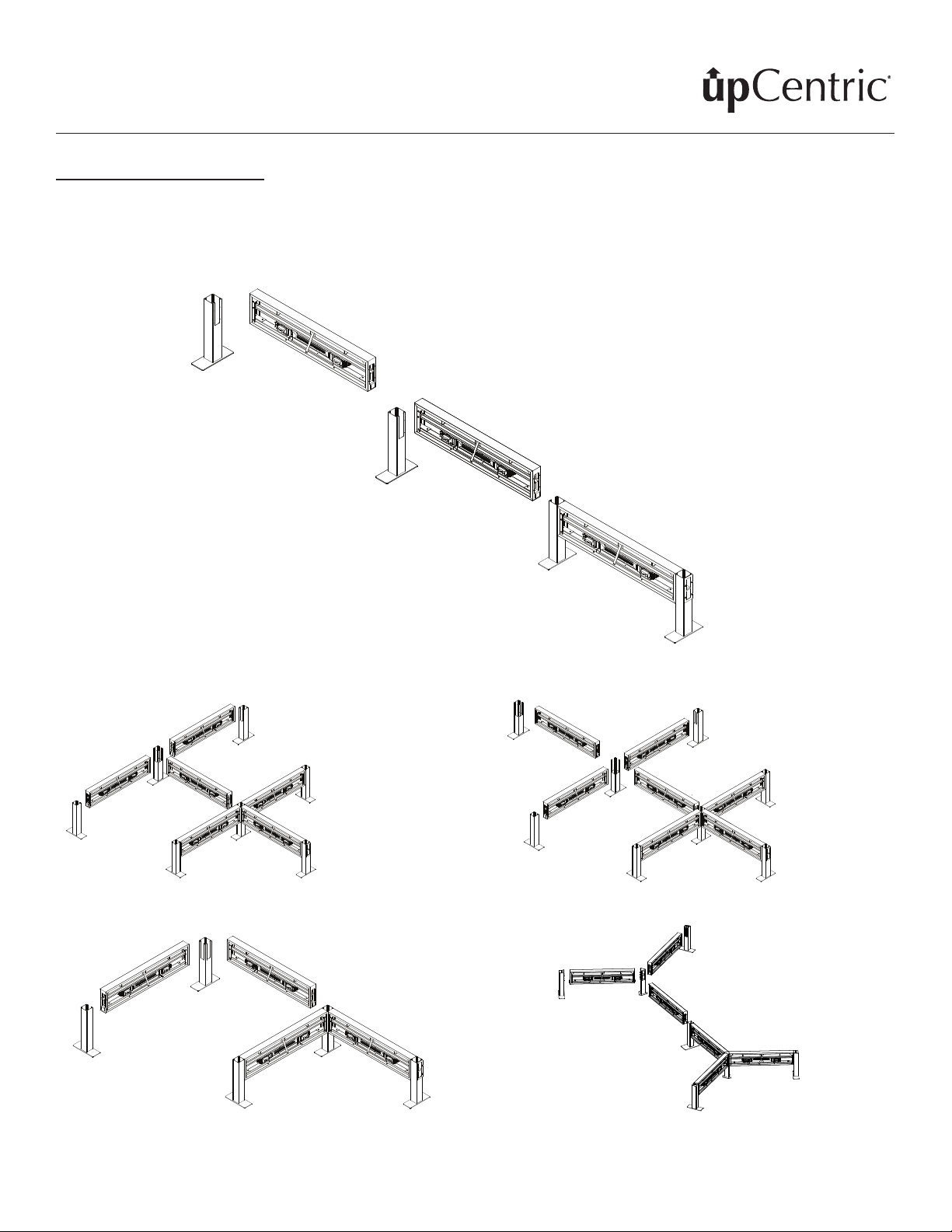

Conguration T Conguration X
Conguration 180°
Step 4: Installing the next Rail
Install the subsequent rails and legs according to the layout,
repeating the steps outlined in Step 3. Continue this process until
you have completed the entire layout.
Conguration 90° Conguration Y
