Etac Molift MRS Quattro Bedienungsanleitung

MRS Quattro

EN - Installation manual

BM22001 Rev. B 2021-06-03

Molift MRS Quattro / www.etac.com

Content

MRS Quattro.............................................2

MRS components ...................................2

About MRS Quattro................................2

General.....................................................3

Declaration of conformity........................3

Conditions for Use ..................................3

Warranty ................................................3

Product identiﬁcation..............................3

Technical Data...........................................4

Assembly ..................................................5

Supplied parts ........................................5

Mounting of Traverse boom....................5

Mounting Quattro Frame ........................5

Tip: Perpendicular frame .........................6

Mounting of legs, Ceiling height >2,4 m..6

Mounting of legs, Ceiling height = 2,4 m 7

Check list before use...............................8

Accessories - adjustable foot ...................8

How to use MRS Quattro ........................10

Lifting user ...........................................10

Transport and storage ...........................10

Accessories ............................................. 11

Battery charger ..................................... 11

Molift Air.............................................. 11

Molift Nomad....................................... 11

Boom ................................................... 11

Adjustable foot..................................... 12

In Rail Charging System......................... 12

Maintenance ........................................... 13

Cleaning and disinfection ......................13

Reconditioning...................................... 13

Recycling .............................................. 13

Spare parts ........................................... 13

Periodic Inspection .................................. 13

Periodic Inspection Scope...................... 13

Troubleshooting ......................................14

Important

This User Manual contains important safety

instructions and information regarding the use of

the Quattro and accessories.

In this manual, the user is the person being lifted.

The assistant is the person operating the hoist.

Warning!

This symbol indicates important

information related to safety.

Follow these instructions carefully.

Read User Manual before use!

It is important to fully understand

the content of the user manual

before attempting to use the

equipment.

Visit www.etac.com for download of documenta-

tion to ensure you have the latest version.

English Manual

Molift MRS Quattro / www.etac.com

MRS Quattro

MRS Quattro is a gantry intended for Molift Air

and Molift Nomad hoists. The purpose is for lifting

and transferring a person from/to bed, ﬂoor, chair,

wheelchair or toilet with a sling. The MRS Quattro

is made of light-weight materials. Traverse ranges

from 2 to 3,5 meters and the lifting capacity

is 300 kg (661 lbs). It is ideal for hospitals, and

institutions, where permanent installations are

not possible or desirable, but can also be used in

privates homes. The MRS Quattro should only be

used indoor on ﬂat surfaces. Such as Bedroom,

bathroom, living room etc.

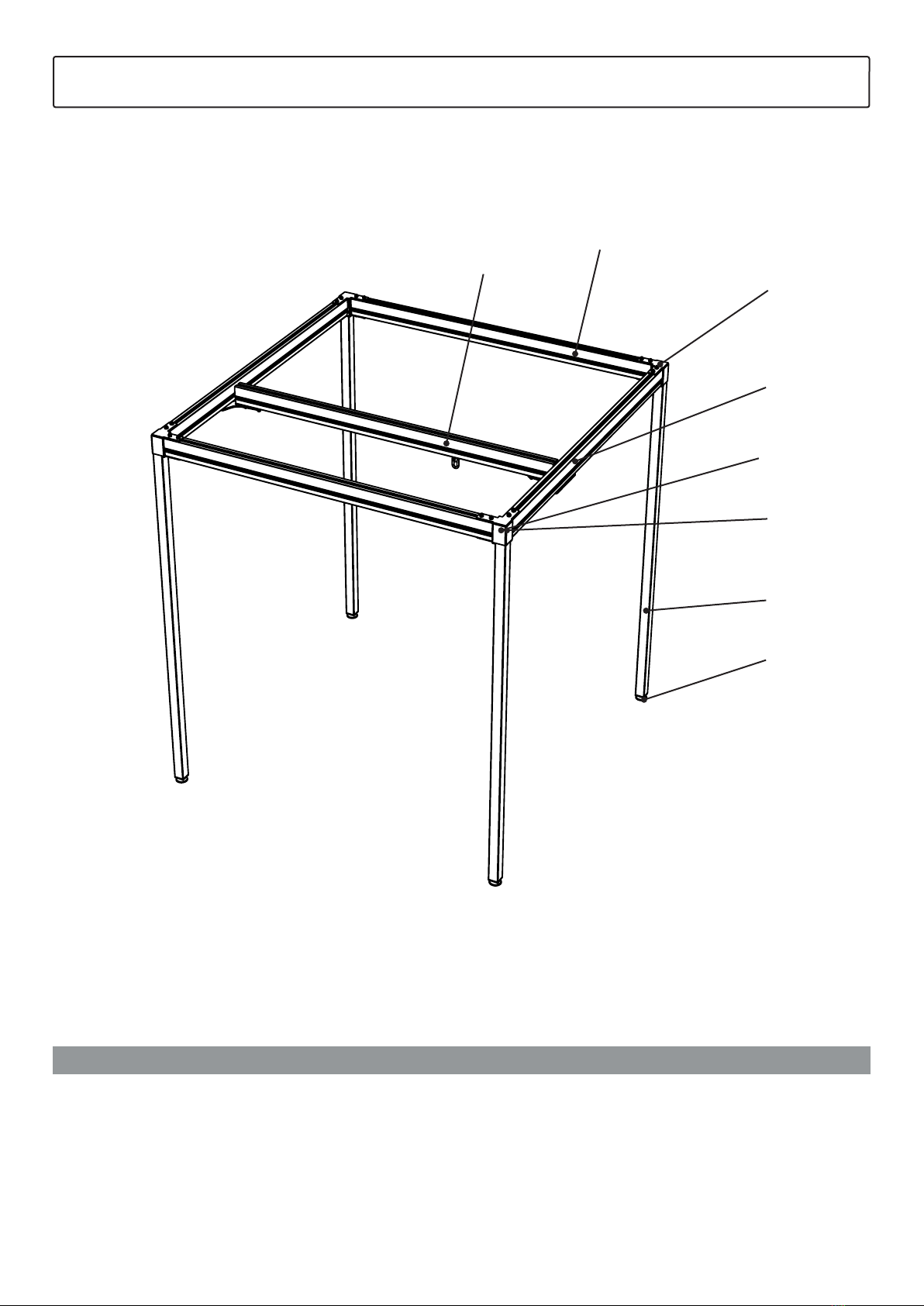

About MRS Quattro

MRS Quattro components:

Traverse

boom

Leg

Control

label

Foot

Product

label

Quattro

corner

Boom

Traverse

trolley

Molift MRS Quattro / www.etac.com

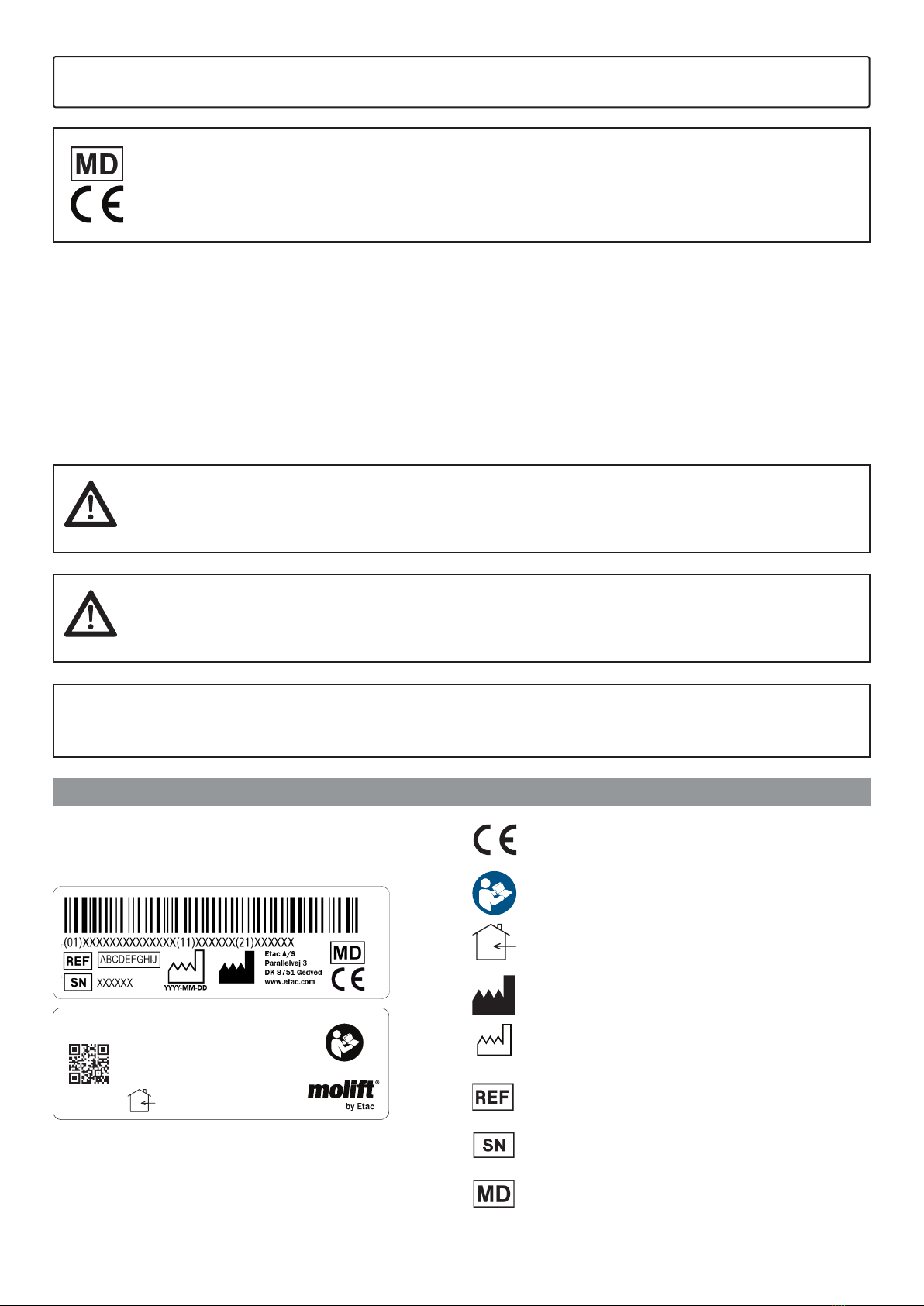

Product label

The Product label contain article number and

production date.

MRS Quattro

SWL 300kg / 661lbs

Warnng labels and Symbols

Symbols used on the product, explained in more

detail:

CE marked

Refer to user manual

Indoor Use only

Manufacturer

Date of manufacture

Catalogue number

Serial number

Medical Device

YYYY-MM-DD

Product identiﬁcation

General

CE declaration

The product, and its related accessories, described in this instruction for use (IFU), is in compliance

with the regulation (EU) 2017/745 of 5. April 2017 – as a medical device, risk class I.

Any serious incident that occurs in relation to the device should be reported to the manufacturer

and the competent authority of the Member State in which the user and/or patient is established.

Conditions for Use

Hoisting and transferring a person may contain an element of risk. A risk assessment should be carried

out prior to use and only trained personnel should use the equipment as described in the user manual.

Modiﬁcations and use of components made by other manufacturers.

We recommend only using Molift components and spare parts. Declaration of conformity is not valid

and Etac is not responsible for warranty if any modiﬁcations are made to the product. Etac shall not be

liable for faults or accidents that can occur when using components made by other manufacturers.

Only certiﬁed personnel are allowed to perform repairs.

Only suitable trained people should install this equipment.

The work contains handling of heavy loads.

Warranty notice

Two-year warranty against defects in workmanship and materials of our products.

Please refer to www.etac.com for terms and conditions.

Molift MRS Quattro / www.etac.com

Safe Working Load (SWL)

300 kg (661 lbs)

Weight of unit

Boom Kg/m: 4,2 kg/m/8,8 lbs/m

Leg with adjustable foot: 8,5 kg/18,7 lbs

Corner: 2,7kg/6,0 lbs

Total weight (Complete unit):

110,95kg ( 3x3m )

131,55kg ( 4x4m )

Available boom lengths (A):

3m or 4m

Dimensions:

Width (D): 3,16 - 4,16m

Height (B): 2,33m (2,33-2,38m

with adjustable foot)

Depth (E): 3,16 - 4,16 m

Max internal space (AxC):

3x3m or 4x4m

Material:

Steel, Anodized Aluminum, Plastic

Expected Lifetime:

The MRS Quattro has an expected lifetime

of 10 years

Technical Data

Molift MRS Quattro / www.etac.com

Supplied parts

Make sure the following parts are included in the

package.

Beware of sharp edges at the ends of

the boom.

Mounting of Traverse boom

1. Lay boom on the ﬂoor.

2. Insert trolley for the hoist into the boom.

3. Mount the traverse trolleys in each end of the

traverse boom.

4. Tighten the bolts loosely

Mounting Quattro Frame

Tip: To facilitate the installation, make 4 support

blocks, approximately 150 mm high.

1. Make sure you have free space of aprox.. 3x4

meters in the room where the MRS Quattro

will be mounted.

2. Place the support blocks on the ﬂoor.

3. Place two MRS Booms on support blocks as

picture below shows.

4. Slide in the Traverse Boom into a mid position.

5. Mount two MRS Quattro Corners to each of

the other booms.

Assembly

5 x 4 x

2 x 4 x

1 x

Molift MRS Quattro / www.etac.com

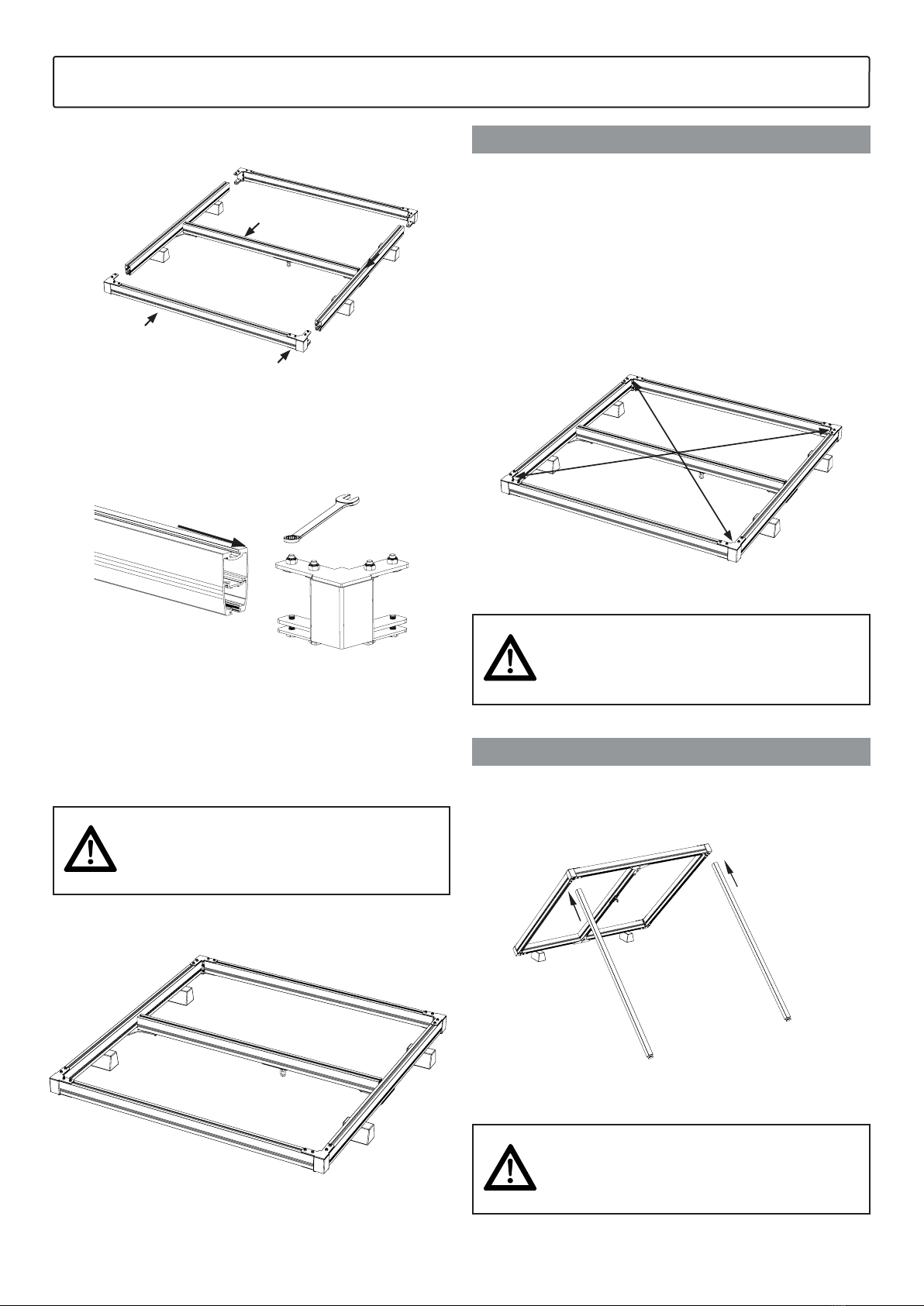

6. Attach booms with mounted corners on to

the other two boom.

7. Tighten all the bolts and nuts with a spanner.

8. Make sure all bolts are properly thightened.

Tip: Perpendicular frame.

If possible, use a tape measure to check that the

Quattro Frame is perpendicular.

1. Measure the diagonal length corner-to-corner.

The length shall be the same both ways.

2. If not; loosen the bolts and adjust.

3. When the readings is the same the frame is

square (or rectangle).

4. Tighten all bolts and nuts.

Warning for lifting of heavy loads.

Dropping the frame can cause

injury.

Mounting of legs, Ceiling height > 2,4 meter

1. Lift the Quattro frame at one side and ﬁt legs

in the corners.

2. Use an Allen key to tighten the bolts for

fastening the legs

Note! Secure the boom and trolley

from running free. Use a strap or

tape.

Secure that bolts are thightened prop-

erly. Loose bolts may cause collapse of

the Quattro when it is raised!

Assembly

Molift MRS Quattro / www.etac.com

Before raising MRS Quattro, secure

that you use rigid supports prevent-

ing Quattro from falling during the

work.

3. Lift the frame to an upright position and

attach legs at the opposite corner

Mounting of legs, Ceiling height = 2,4 m

Start from step: Perpendicular frame.

1. Detach one boom and keep the corners on.

2. Move the traverse boom to a position close

the open ends.

3. Secure the traverse boom and trolley from

moving before raising the frame.

4. Attach legs to boom with corners.

5. Raise up the open frame.

6. Attach legs to corners.

Assembly

Molift MRS Quattro / www.etac.com

Assembly

7. Tighten the bolts with an Allen key.

Before raising MRS Quattro, secure

that you use rigid supports prevent-

ing Quattro from falling during the

work and that the boom is secured.

8. Rise up the frame with legs to an upright

position.

9. Attach the boom with legs to the open frame.

10. Tighten the bolts and nuts.

11. Release the traverse boom.

Check list before use

Don’t start using MRS Quattro

before completing control accord-

ing to checklist after assembly.

Use this checklist to verify that the MRS Quattro

is properly installed and can operate correctly and

safely before use.

1. Make sure all bolts in all corners are properly

fastened.

2. Make sure all four bolts on boom are propearly

fastened.

3. Make sure the Quattro is levelled correctly for

easy movement of boom and hoist trolley.

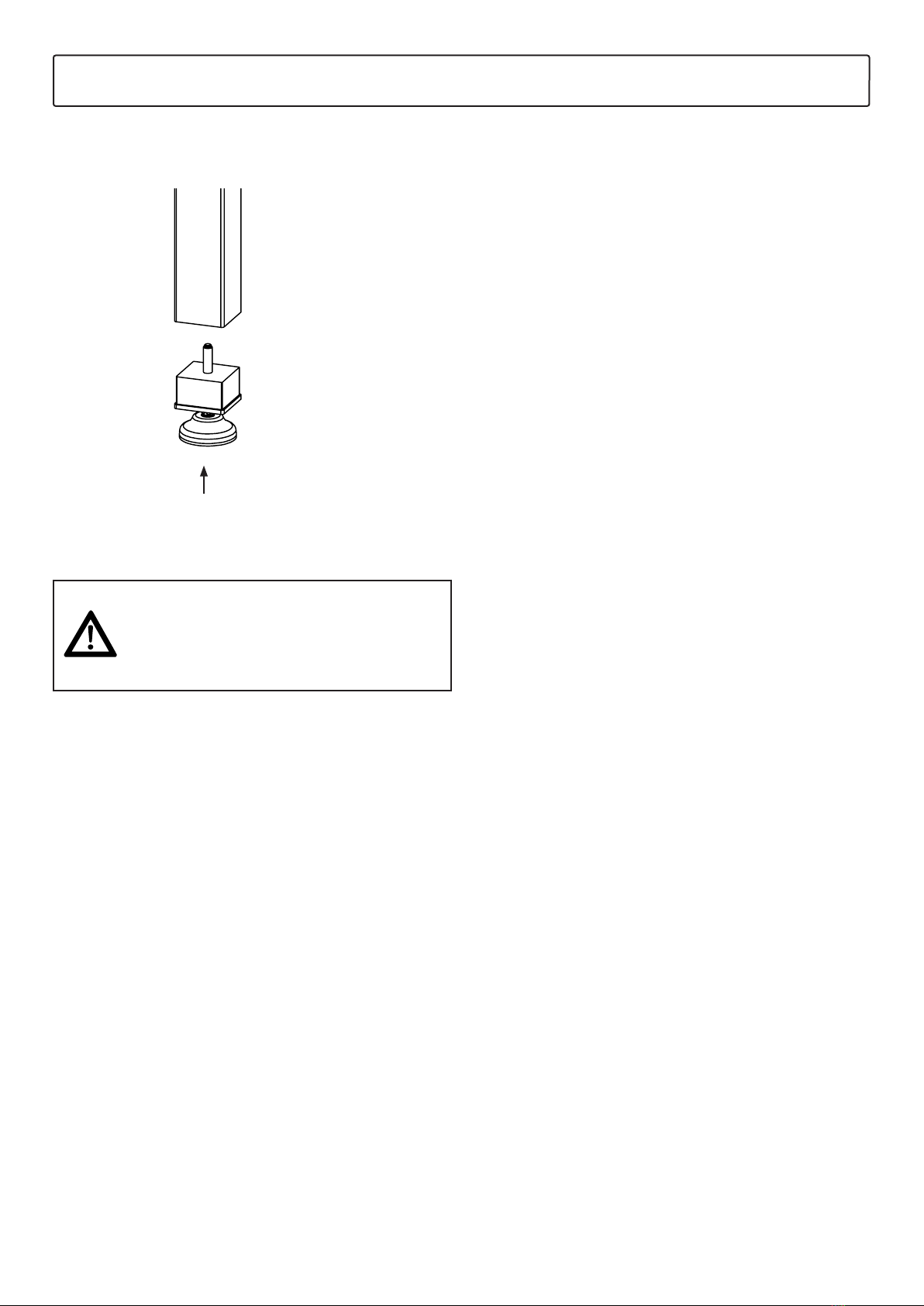

Accessories - adjustable foot

1. Remove the feet from the MRS quattro.

Molift MRS Quattro / www.etac.com

1. Attach the adjustable feet.

2. Adjust the levelling feet for horizontal position

of MRS Quattro.

Unscrewing the foot too much can

cause the foot to come loose.

Assembly
