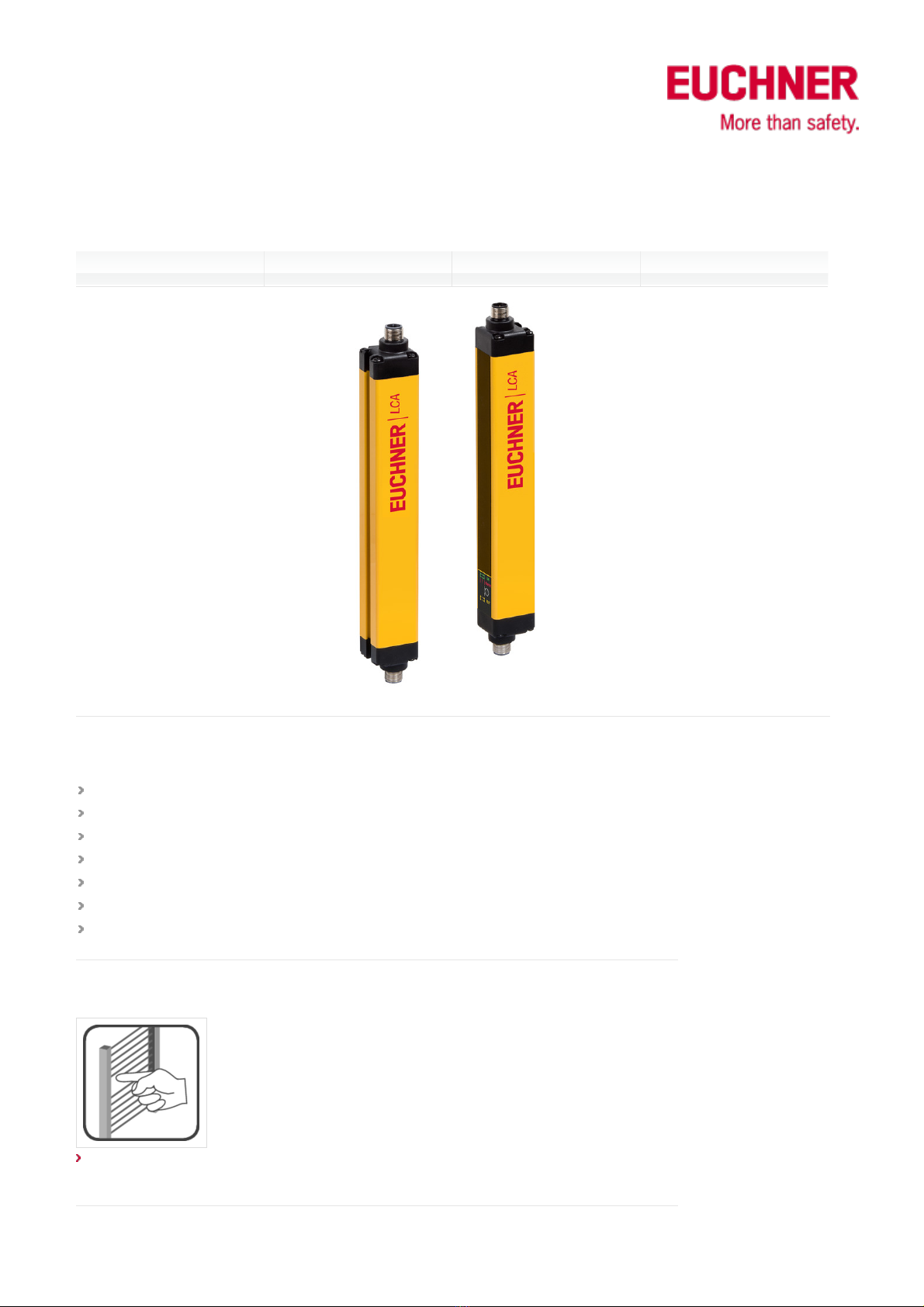

EUCHNER 156622 Bedienungsanleitung

Description Technical data Accessories Downloads
ITEM 156622 LCA-4TR-S2-14-460-AP-156622
Features
Light curtain slave 2
For cascading (series connection)
Resolution 14 mm
Protective field height 460 mm
Range 6 m
With plug connector M12
Installation material is included with the product

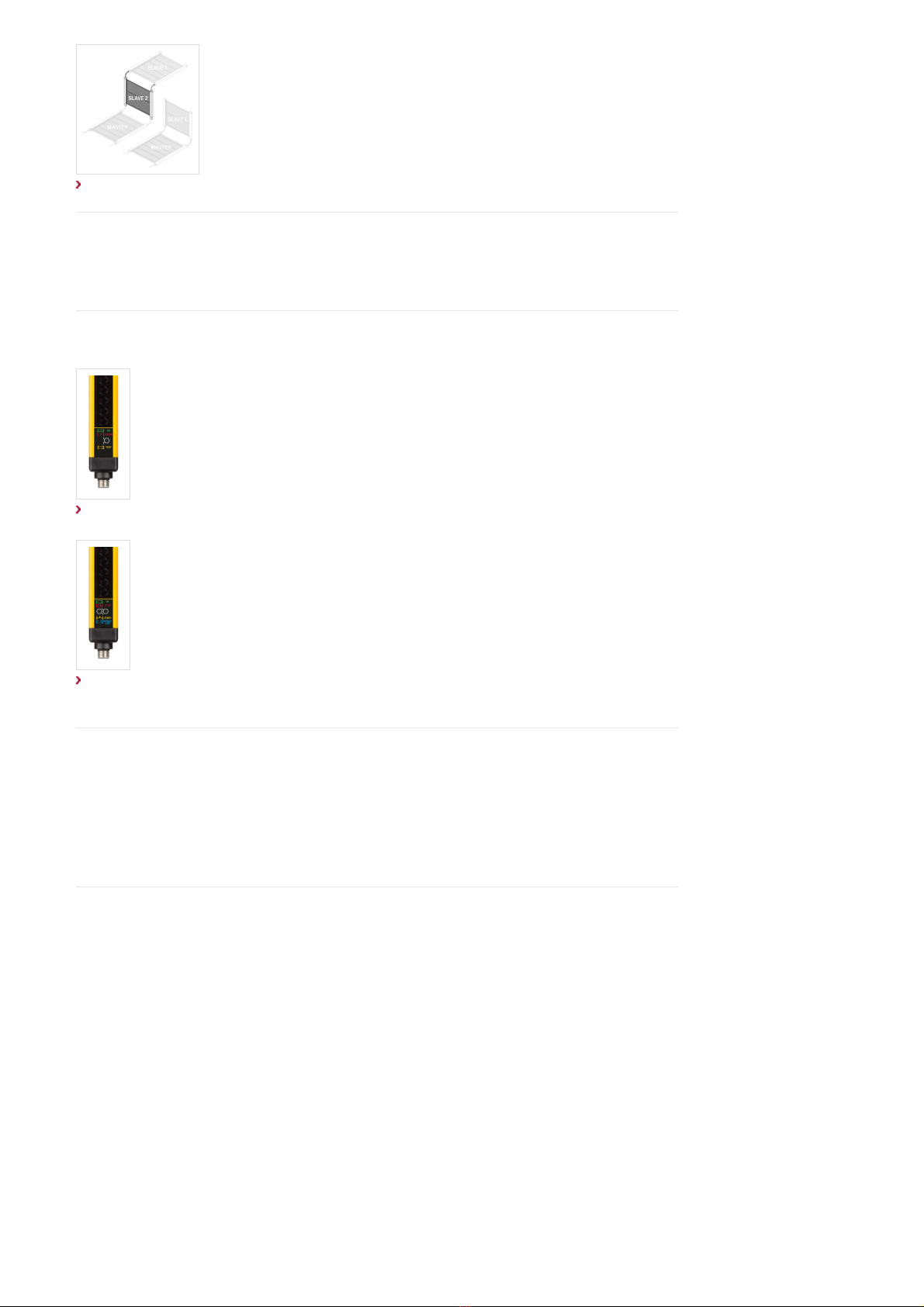

Protective function
Figure
finger protection
Cascading (series connection)

Figure

Following combinations are possible:

Variante A: Master-slave 2-slave 1

Variante B: Master-slave 1

LED function display

Figure

Transmitter

Figure

Receiver

LED OK Normal operation

LED ERROR Faults

LED STOP Stop

LED TEST Test function

LED START Start/ restart

LED SIGNAL LOW Weak signal

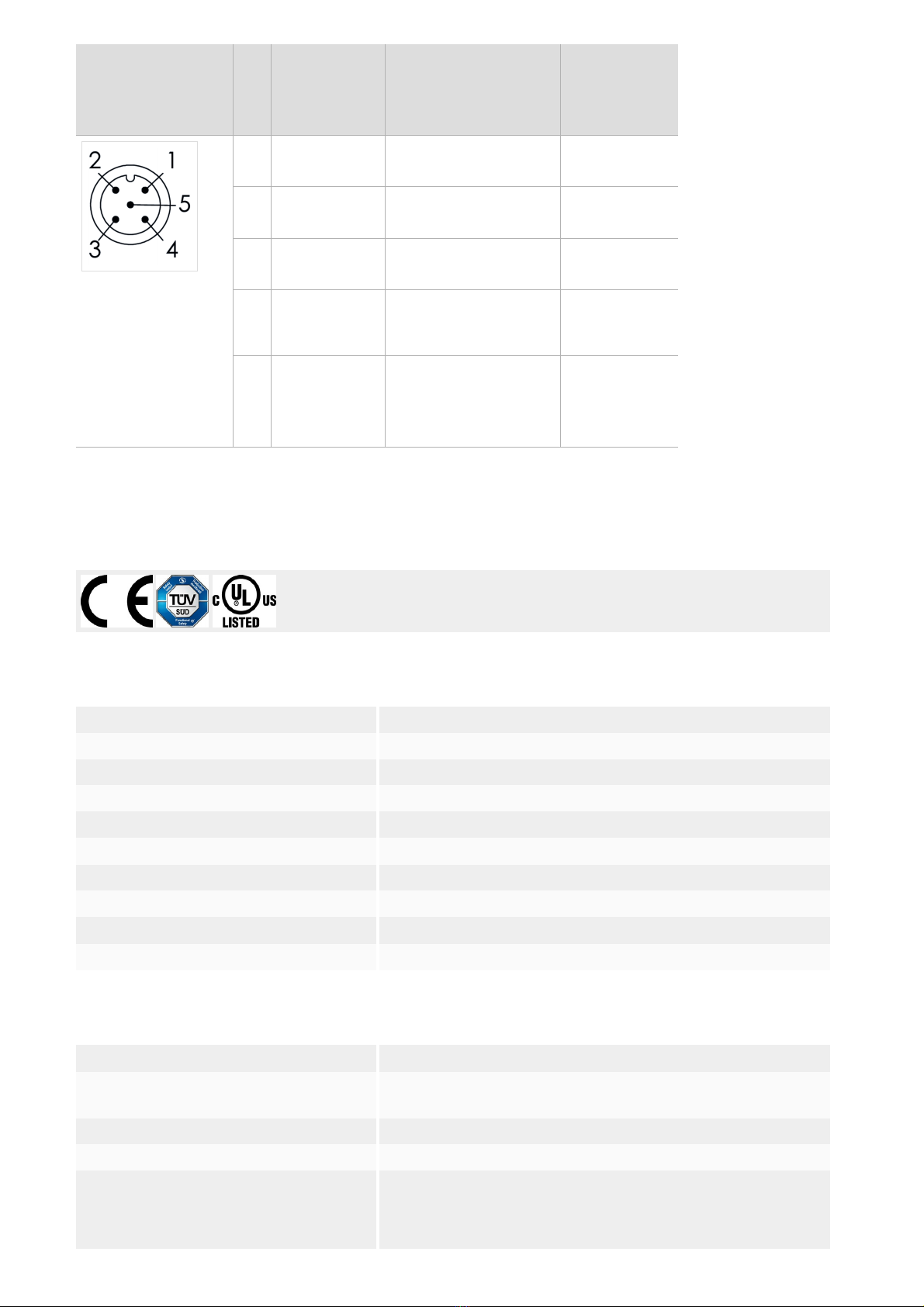

Connector assignment transmitter / receiver

Plug connector

(view of

connection side)

Pin Designation Function Conductor

coloring of

connection

cable

1 24 V DC Operating voltage, 24

V DC

2 LINE_A Communication

MASTER-SLAVE

3 0 V DC Operating voltage, 0

V DC

4 LINE_B Communication

MASTER-SLAVE

5 FE Function earth (must

be connected to meet

the EMC

requirements)

Approvals

Mechanical values and environment

Resolution 14 mm

Height of the protective field 460 mm

Height of the sensor 513 mm

Maximum length of connection cables 100 m

Range of the protective field 6000 mm

Dimensions 28x30 mm

Ambient temperature -20 ... 55 °C

Degree of protection IP 65 / IP 67

Installation position Any

Connection Plug connector M12 (5-pin transmitter / 8-pin receiver)

Electrical connection ratings

Cascadable Yes

Muting possible In combination with external sensors and an evaluation

unit

Operating voltage DC 24 V DC -20% ... +20%

Current consumption 400 mA

Power consumption

Transmitter 1 W

Receiver 2 W

[1]

[2]

[3]

[4]

[5]

LED indicator Yes

Reliability values acc. to EN ISO 13849-1

ESPE type 4

Performance Level PL e

PFH 1,38x10

Safety Integrity Level SIL 3 / SILCL 3

Mission time 20 y

In cross-section

Optional: adjustable holders

Master-slave1 and master-slave2-slave1 connections are 2x M12 5-pin

Max. 50m connection cable between master and slaves

Self-diagnostics and status

Acc. to EN 61496-1

acc. to EN ISO 13849-1

According to IEC 61508-1...4 / IEC 62061

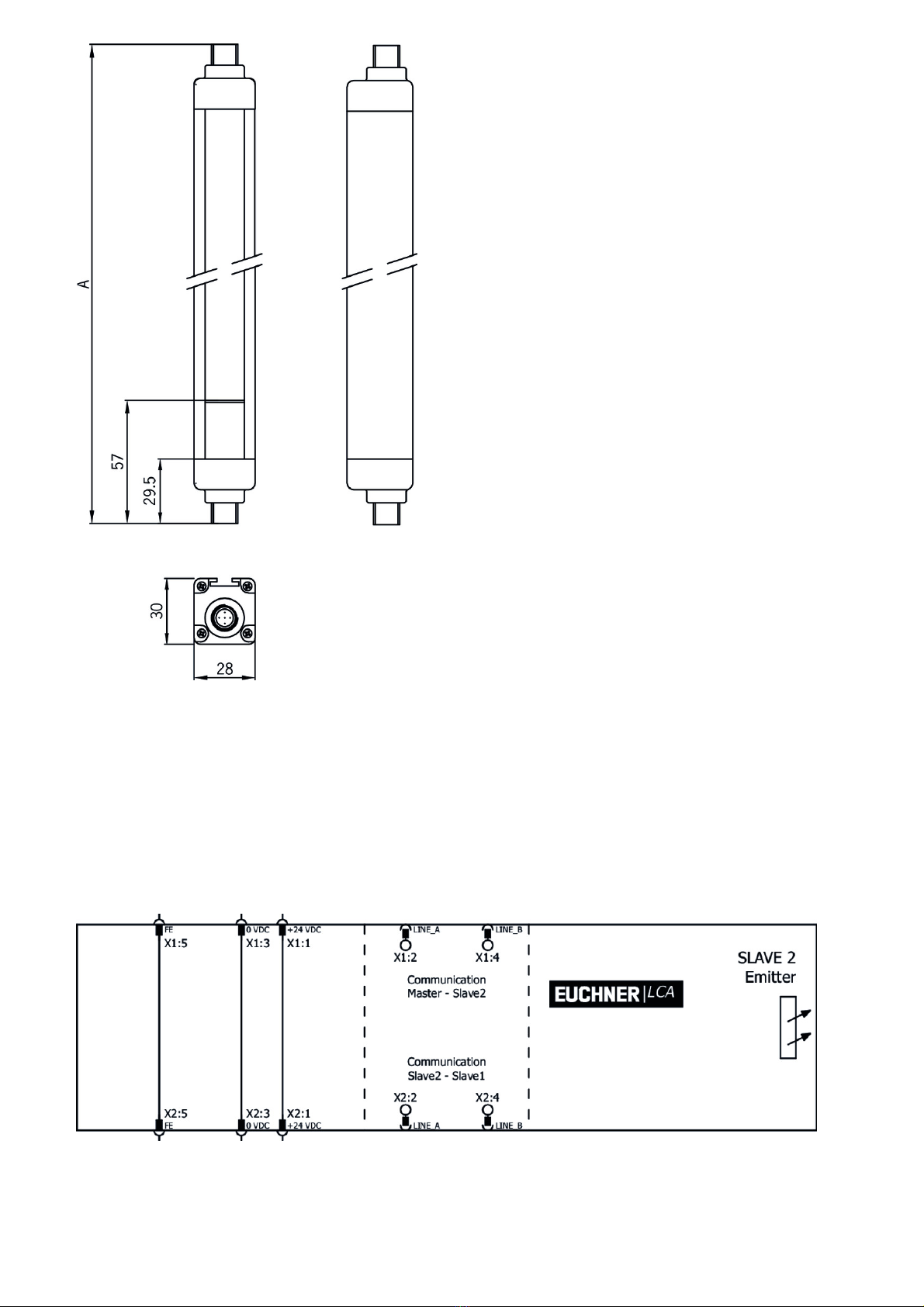

Dimension drawing

[5]

[6]

[7]

D-8

[8]

[1]

[2]

[3]

[4]

[5]

[6]

[7]

[8]

Legende

A = Height of the sensor (see technical data)

Wiring diagram transmitter

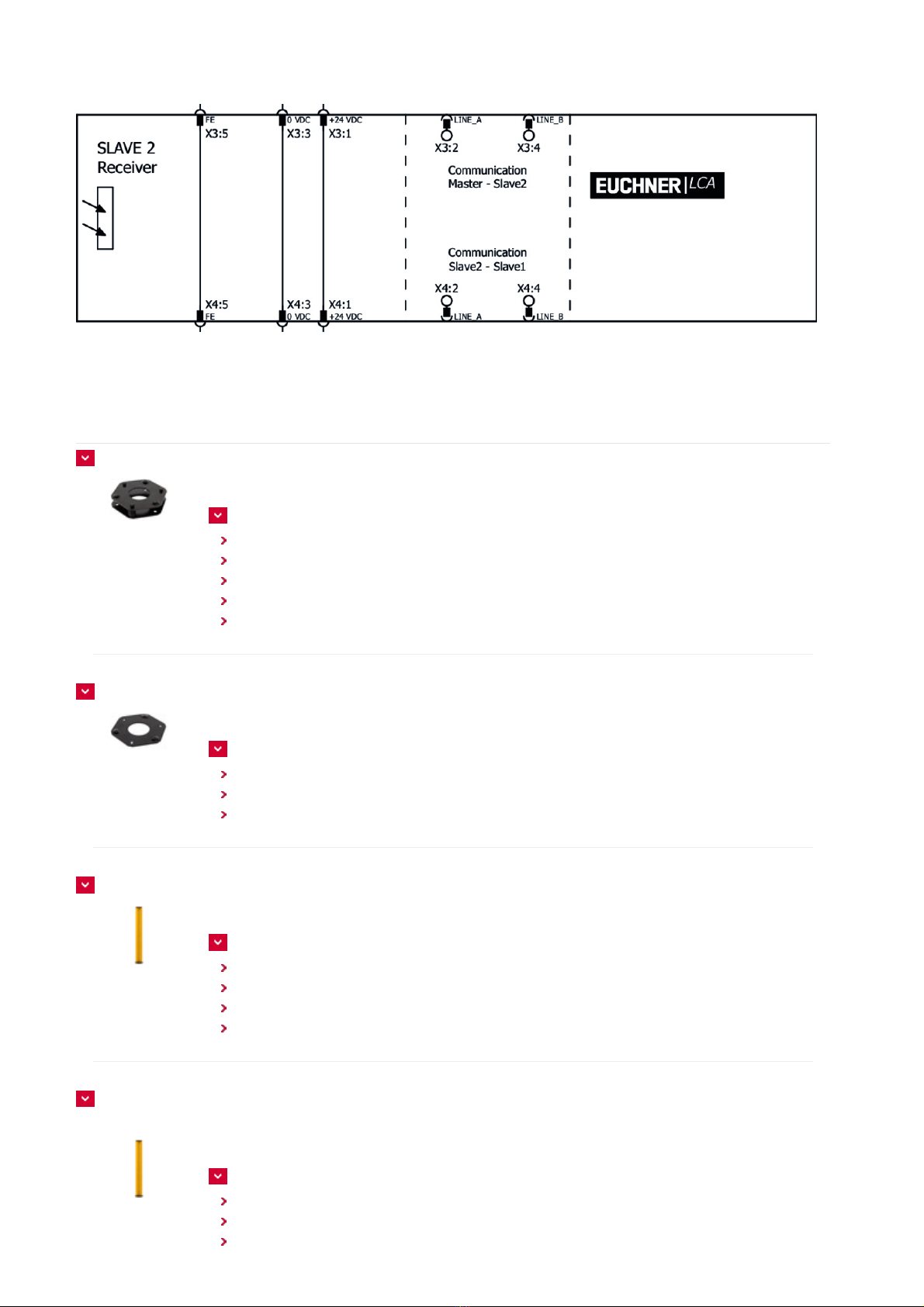

Wiring diagram receiver

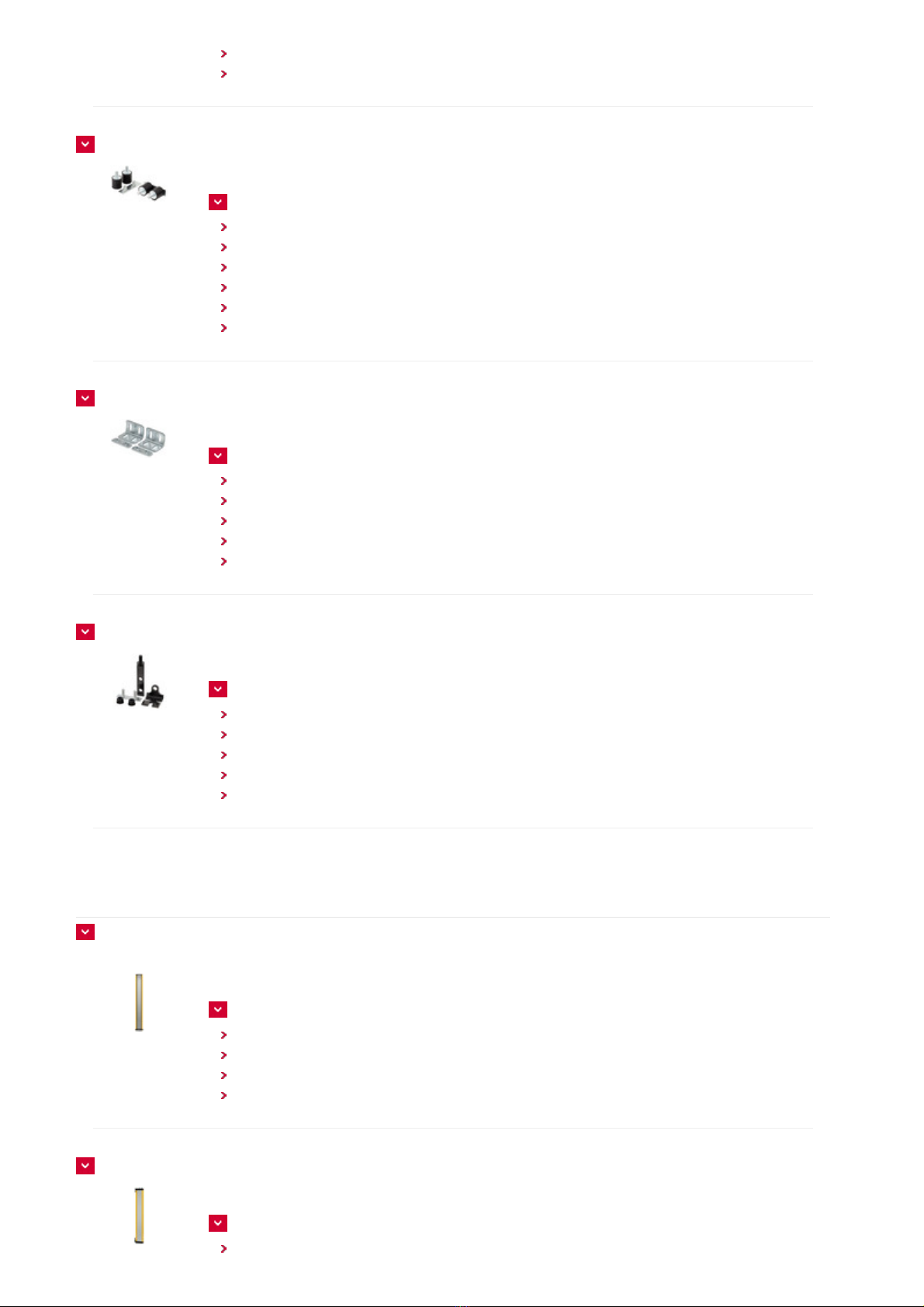

Mounting accessories

Socket for mounting pillars 202 x 224 x 55 mm

156884 AM-OS-P-AA-156884

Features

Socket for mounting pillars

Spring-mounted floor plate made of steel

Improved compensation of unevenness

Adjustable via adjusting screws

Height 55 mm

Socket for mounting pillars 202 x 224 x 34 mm

156885 AM-OS-P-AB-156885

Features

Socket for mounting pillars

Adjustable via adjusting screws

Height 34 mm

Mounting pillar for protective field heights from 160 - 610 mm or 2 beam light grids

156886 AM-OS-C-A1-1000-156886

Features

Mounting pillar for light grids and light curtains LCA

For protective field heights from 160 - 610 mm or for 2 beams

Protects against damage

Straightforward adjustment using spherical circular level in the cover

Mounting pillar with cable gland for protective field heights from 160 - 610 mm or for 2 beam

light grids

156890 AM-OS-C-A1-M-1000-156890

Features

Mounting pillar for light grids and light curtains LCA

For protective field heights from 160 - 610 mm or for 2 beams

With integrated cable gland PG11

Protects against damage

Straightforward adjustment using spherical circular level in the cover

8 x vibration damper for protective field heights from 310 - 1,060 mm

156917 AM-OS-D-V08-156917

Features

Vibration damper for light grids and light curtains LCA

For protective field heights 310 - 1060 mm

Packaging unit 8 pcs.

For reducing vibration

Protects against damage

Installation either on the product or on mounting pillar

4 x adjustable holder

156919 AM-OS-B-A1-V04-156919

Features

Set of 4 holders for light grids and light curtains LCA

For protective field heights up to 1210 mm

Adjustable horizontally / vertically

Quick mount using two screws

Can be mounted directly on LCA

4 x adjustable holder 180°

156921 AM-OS-B-A2-V04-156921

Features

Set of 4 holders for light grids and light curtains LCA

Can be rotated by 180°

Adjustable horizontally / vertically

Quick mount using two screws

Can be mounted directly on LCA

Function expansion

Mounting pillar with deflection mirror for protective field heights from 160 - 610 mm or for 2

beam light grids

156894 AE-OS-SC-1000-156894

Features

Mounting pillar with deflection mirror for light grids and light curtains LCA

For protective field heights from 160 - 610 mm or for 2 beams

Protects against damage

Straightforward adjustment using spherical circular level in the cover

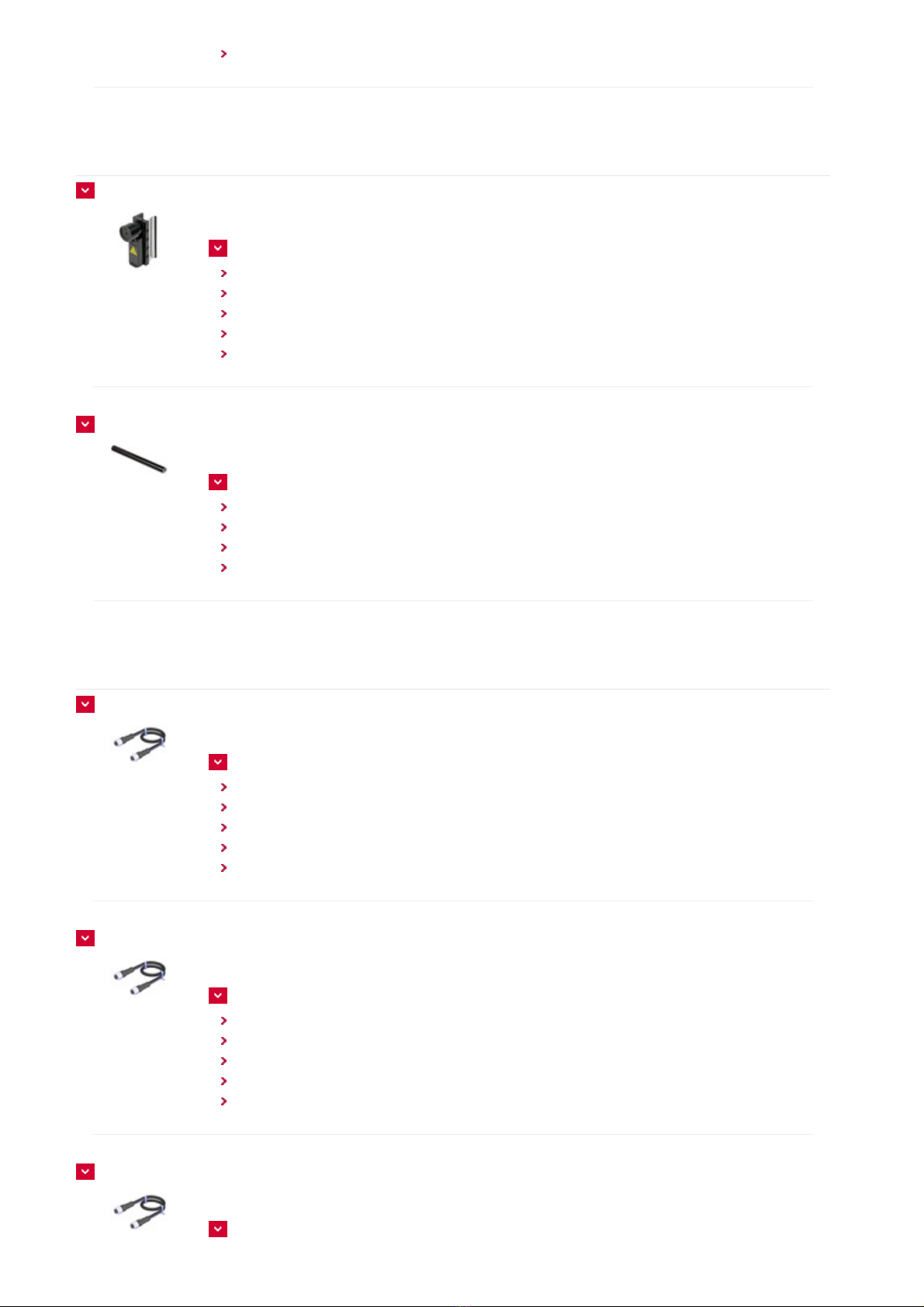

Deflection mirror for protective field height 460 mm

156905 AE-OS-S-460-156905

Features

Deflection mirror with adjustable holder for light curtains LCA

For protective field height 460 mm

Miscellaneous accessories

Laser alignment aid

156915 AY-OS-LSR-156915

Features

Laser alignment aid for light grids and light curtains LCA

Light source: Laser diode – wavelength 650 nm

Laser class 2

Usable range 100 m

Straightforward clamping on the transmitter

Test rod Ø 14 mm

156922 AY-OS-FTR-14-156922

Features

Test rod for light curtains LCA

Used for function test

Ø 14 mm

Cylinder with matt surface

Connection material

Connection cable for cascading M12, 0.3m

156926 C-M12F05-05X034PV0,30-M12F05-156926

Features

Connection cable for cascading

2 x M12 female plug, 5-pin

Straight plug connector

PVC cable

Cable length 0.3 m

Connection cable for cascading M12, 3m

156927 C-M12F05-05X034PV03,0-M12F05-156927

Features

Connection cable for cascading

2 x M12 female plug, 5-pin

Straight plug connector

PVC cable

Cable length 3 m

Connection cable for cascading M12, 5m

156928 C-M12F05-05X034PV05,0-M12F05-156928

Features

Connection cable for cascading

2 x M12 female plug, 5-pin

Straight plug connector

PVC cable

Cable length 5 m

Connection cable for cascading M12, 10m

156929 C-M12F05-05X034PV10,0-M12F05-156929

Features

Connection cable for cascading

2 x M12 female plug, 5-pin

Straight plug connector

PVC cable

Cable length 10 m

Connection cable for cascading M12, 25m

156930 C-M12F05-05X034PV25,0-M12F05-156930

Features

Connection cable for cascading

2 x M12 female plug, 5-pin

Straight plug connector

PVC cable

Cable length 25 m

Instructions

Manual de instrucciones Barreras/cortinas fotoeléctricas LCA 4

Doc. no. Version Language Download

Betriebsanleitung Lichtgitter/ Lichtvorhänge LCA

Operating Instructions Light Grids/ Light Curtains

LCA 4

2504709 02-02/18 5.2 MB

Mode d'emploi Barrières photoélectriques /

rideaux lumineux LCA 4

2504709 02-02/18 3.1 MB

Manual de instrucciones Barreras/cortinas

fotoeléctricas LCA 4

2504709 02-02/18 3.1 MB

Catalogs

Light grids and light curtains LCA Barreras fotoeléctricas y cortinas fotoeléctricas LCA Barrières

photoélectriques et rideaux lumineux LCA Lichtgitter und Lichtvorhänge LCA

Doc. no. Version Language Download

Lichtgitter und Lichtvorhänge LCA 157084 03-03/18 2.5 MB

Barrières photoélectriques et rideaux lumineux

LCA

157086 03-03/18 2.5 MB

Barreras fotoeléctricas y cortinas fotoeléctricas

LCA

157087 03-03/18 2.5 MB

Light grids and light curtains LCA 157085 03-03/18 2.5 MB

Declaration of conformity

EU-Konformitätserklärung

Doc. no. Version Language Download

EU-Konformitätserklärung

Declaración UE de conformidad

Déclaration UE de conformité

Dichiarazione di conformità

EU declaration of conformity

2503625 02-08/17 0.2 MB
