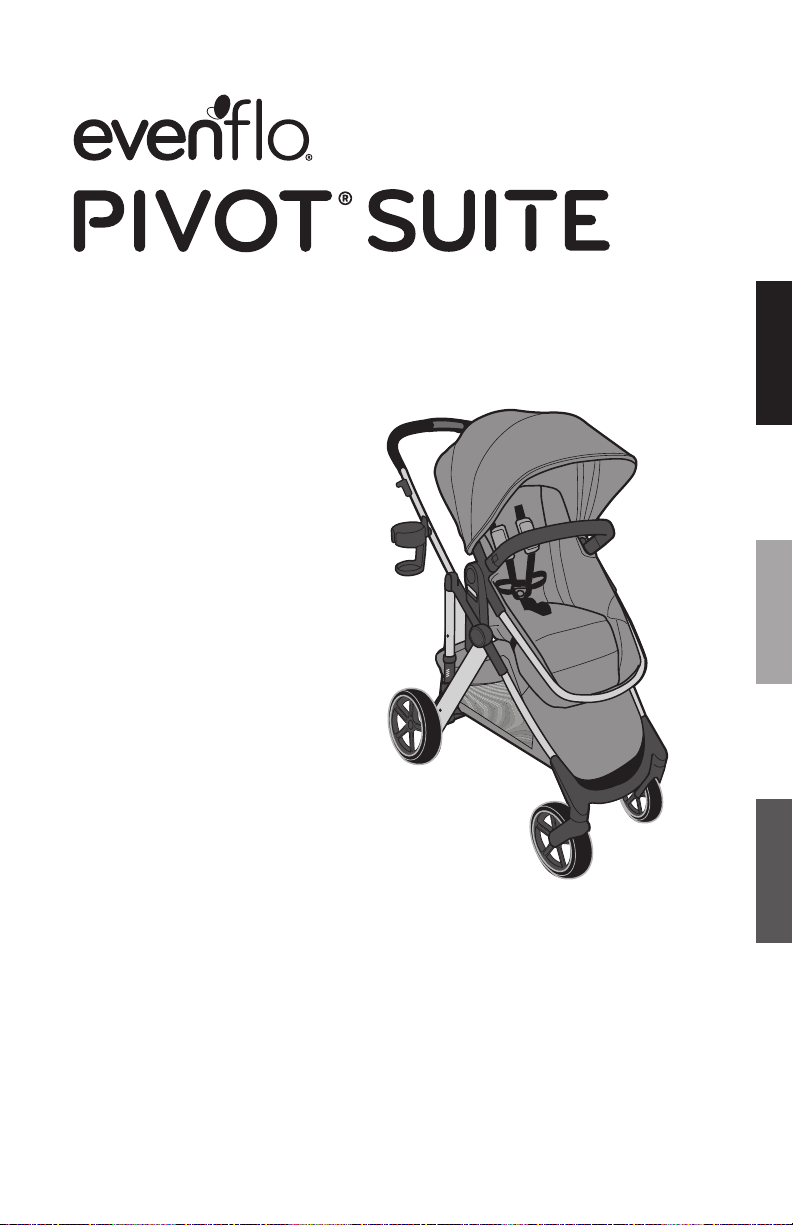

Evenflo PIVOT SUITE Bedienungsanleitung
Stroller/Travel System
Poussette/Système de déplacement
Carriola/Sistema de viaje
Read all instructions before assembly and use of product.
KEEP INSTRUCTIONS FOR FUTURE USE.
Lire les instructions avant l’assemblage et l’utilisation du produit.
CONSERVER CES INSTRUCTIONS POUR RÉFÉRENCE
ULTÉRIEURE.
Lea todas las instrucciones antes de ensamblar y usar el producto.
GUARDE LAS INSTRUCCIONES PARA USO FUTURO.
© 2022 Eveno Company, Inc. 25701721 08/22
STROLLER
Up to 55 lbs (25 kg)
Up to 45 in (114.3 cm)
POUSSETTE
Jusqu’à 25kg (55lb)
Jusqu’à 114,3cm (45po)
CARRIOLA
Hasta 25 kg (55 lb)
Hasta 114,3 cm (45 in)
ENGLISHENGLISHESPAÑOL FRANÇAIS
Warnings.. ..................................................................................................................................4
Important Information......................................................................................................... 7
Identification of Parts ........................................................................................................... 8
Choosing Mode of Use ......................................................................................................... 9
Assembling Your Stroller................................................................................................... 10
Using Your Stroller............................................................................................................... 15
Using your Stroller with the Recommended Infant Car Seats ......................... 23
Pivot Suite Use Configurations...................................................................................... 26
Care and Maintenance....................................................................................................... 28
Limited Warranty.................................................................................................................. 28
• www.evenflo.com • USA: 1-800-233-5921 8 AM – 5 PM E.T.
• Canada: 1-937-773-3971 •México: 800-706-1200
Table of Contents
ENGLISH
1.
Canopy
2.
Parent Handle
3.
Fold Release
Lever
4.
Cupholder
5.
Toddler Seat
Release Button
6.
Rotating Seat
Mount
7.
Swivel Wheel
8.
Lower Seat Fold
Button
9.
Footrest
10. Harness
Buckle
11.
Harness Cover
12.
Bumper Bar
13. Shoulder Straps
14.
Canopy Window
15.
Upper Seat Fold
Button
16.
Multi-Position
Recline Handle
17.
Multi-Position
Recline Strap
18.
Side Frame Lock
19.
Suspension
20.
Storage Basket
21.
Brakes
1
2
6
5
9
3
4
7
10
11
12
13
Holds Evenflo SafeMax™ or LiteMax™ Infant Car Seats Only
Features
21
16
17
18
19
20
14
15
8
4
WARNING! DEATH or SERIOUS
INJURY can occur.
• Only use Evenflo SafeMax™ and LiteMax™ infant car seats
with this stroller.
Other infant car seats or carriers are not designed to fit the
stroller frame unless specified in the instructions. Any car seats
used with this stroller that are not specified in the instructions may
result in serious injury to your child.
• NEVER leave child unattended. ALWAYS keep child in view
while in the stroller.
• Adult assembly required. Take care when unpacking and
assembling; contains small parts and some items with sharp
edges.
• To prevent a possible choking hazard, remove and discard
packing material before using this product.
•To avoid serious injury from child falling or slipping out of stroller,
ALWAYS use the waist restraint in Toddler Seat Mode and
Carriage Mode.
• DO NOT carry or roll stroller on stairs or escalators with child in it.
• DO NOT hang items on handle bar or place them on the canopy
as they can tip stroller over and injure child.
•Be sure stroller is fully assembled and locked in unfolded position
before using.
• ALWAYS exercise care when going over curbs or steps, and
never use stroller for anything other than transporting your child.
Push stroller at a normal walking pace only; faster strolling can
cause a loss of control and injury to the child.
• DO NOT place hot liquids in cup holder. Spills can burn you or
your child.
• To avoid serious injury from child falling out of stroller, DO NOT
raise or recline seat with child in stroller.
• DO NOT use stroller if any parts are missing or broken.
• DO NOT allow child to climb on, into, out of, or around stroller.
• DO NOT allow child to stand on the footrest. Stroller may tip over
and injure child.
READ AND FOLLOW ALL WARNINGS AND INSTRUCTIONS!
FAILURE TO DO SO COULD RESULT IN
SERIOUS INJURY OR DEATH!
5
READ AND FOLLOW ALL WARNINGS AND INSTRUCTIONS!
FAILURE TO DO SO COULD RESULT IN
SERIOUS INJURY OR DEATH!
• DO NOT carry additional children, goods, or accessories in or on
this stroller except as advised in these instructions. The stroller
is intended for use with one child and to accommodate only the
additional weights in storage as listed in these instructions.
• Care must be taken when folding or unfolding stroller to prevent
finger injury to you or your child in hinge areas. Make sure child is
not in the seat or near the stroller when folding or unfolding.
• NEVER leave stroller on a hill or incline, even with brakes set.
Stroller may tip, injuring the child.
• To avoid accidental rolling, ALWAYS set brakes when stroller is
not being pushed.
• AVOID STRANGULATION:
– DO NOT suspend strings or toys from the canopy.
– DO NOT place stroller anywhere near cords from window
blinds, draperies, phone, etc.
– DO NOT place items with a string around your child’s neck
such as hood strings or pacifier cords.
– If not properly secured, the child may slip into leg openings
and strangle.
•When making adjustments to the stroller, ALWAYS ensure that
all parts of the child’s body are clear of any moving parts of the
stroller.
• The canopy is not intended to provide UV protection.
• Sharp or heavy objects placed in pockets may cause damage to
the stroller, or injury to the child.
• To ensure safety for your baby, please refer to the manufacturer’s
instructions for the use of your recommended infant car seats and
keep all instructions available for reference.
• DO NOT lift stroller by using the infant car seat handle when
installed on stroller.
•If unable to securely attach the infant car seat to this stroller,
remove the car seat and contact Evenflo ParentLink at
1-800-233-5921 (USA), 1-937-773-3971 (Canada),
or 800-706-1200 (México).
ENGLISH
WARNING! DEATH or SERIOUS
INJURY can occur.
6
READ AND FOLLOW ALL WARNINGS AND INSTRUCTIONS!
FAILURE TO DO SO COULD RESULT IN
SERIOUS INJURY OR DEATH!
•To avoid stroller instability and tip-overs, DO NOT load cup holder
with over 1 lb (0.45 kg), and the main cargo basket with over 10
lbs (4.5 kg).
• NEVER use the toddler seat without the canopy attached.
• NEVER lift or carry the toddler seat by the bumper bar.
• NEVER use the stroller frame without the toddler seat or car seat
attached.
• NEVER use toddler seat in a motor vehicle or use it as a booster
seat.
• To avoid falls, never remove toddler seat from the stroller with
child in it.
• To avoid falls, always make sure the toddler seat or car seat
is securely attached into the seat mounts on both sides of the
stroller before placing child in the seat.
• When stroller is in carriage mode, it is intended for a child from
birth up to 6 months of age OR who is incapable of sitting upright
unassisted. ONLY use the stroller in the upright position with a
child who is capable of sitting upright unassisted.
• NEVER use seat in the carriage mode position unless the straps
under the seat are unbuckled and the seat is set up in Carriage
Mode as per the instructions.
• DO NOT exceed the maximum weight limits defined in the infant
car seat or accessory manuals.
• NEVER use harness covers that are included on your stroller seat
in your infant car seat.
WARNING! DEATH or SERIOUS
INJURY can occur.
7
Child Requirements - When stroller is in carriage mode,
it is intended for a child up to 6 months of age
OR who is
incapable of sitting upright unassisted
. Only use the stroller in
the upright position with a child who is capable of sitting
upright unassisted.
• Maximum weight:
- 55 lbs (25 kg) in toddler seat
• Maximum height:
- 45 inches (114.3 cm) in toddler seat
IMPORTANT: Read instructions carefully before use. Save
these instructions for future reference. It is very important to
assemble the stroller according to these instructions. If you are
missing parts, do not use stroller and call
Evenflo ParentLink
at 1-800-233-5921 (U.S.A.)
, 1-937-773-3971 (Canada), or
800-706-1200 (México) to order replacement parts.
For future reference, record the Model Number and Date
of Manufacture below. You can find this information on
one of the rear stroller legs.
Model Number: _____________________________
Date of Manufacture: ________________________
Registration Information
Please register this product so we can reach you if there is a
safety alert or recall. We will not sell, rent, or share your
personal information. To register your product, please complete
and mail the card that came with it or visit our online
registration at
www.evenflo.com/registerproduct.
ENGLISH
Important Information
8
Cupholder (1)
Front Wheel Assembly (2)
Rear Wheel (2)
Frame
Toddler Seat
Bumper Bar
Basket Assembly
Bar
Identication of Parts
9
YOUR STROLLER SEAT CAN BE USED IN TWO DIFFERENT
MODES:
TODDLER SEAT MODE OR CARRIAGE MODE.
Your stroller seat is shipped in carriage mode with the buckles
unfastened under the footrest of the toddler seat. You will need to
follow the instructions completely to make sure you set up your
stroller in your preferred mode of use.
After the frame and the wheels have been assembled, you can
choose to set the stroller up in Carriage Mode or Toddler Seat
Mode by following instructions on pages 12 - 16.
Toddler Seat Mode Carriage Mode
ENGLISH
Choosing Mode of Use
10
Grab the parent’s handle and
pull upward until the stroller
opens fully with an audible
click.
Make sure the stroller is
locked in the open position by
pushing down on the parent’s
handle.
2
3
1To protect ooring, place a
protective covering (carton)
beneath the stroller during
assembly.
Unlatch side frame lock.
Continue holding the lock
open while unfolding the
stroller.
CLICK!
Side Frame Lock
Care must be taken when folding or unfolding stroller
to prevent finger injury in hinge areas.
WARNING! DEATH or SERIOUS
INJURY can occur.
Assembling Your Stroller - Frame
Andere Handbücher für PIVOT SUITE
1
Inhaltsverzeichnis
Andere Evenflo Kinderwagen Handbücher
Evenflo
Evenflo Pivot Troop Bedienungsanleitung
Evenflo
Evenflo Omni Plus Bedienungsanleitung
Evenflo
Evenflo AERO Bedienungsanleitung
Evenflo
Evenflo PIVOT XPAND 13812459 Bedienungsanleitung
Evenflo
Evenflo Parallel Bedienungsanleitung
Evenflo
Evenflo Charleston Bedienungsanleitung
Evenflo
Evenflo Reversi Bedienungsanleitung
Evenflo
Evenflo Pivot Xplore Dreamz Bedienungsanleitung
Evenflo
Evenflo INVIGOR8 Bedienungsanleitung
Evenflo
Evenflo Pivot Xplore Dreamz Bedienungsanleitung
Evenflo
Evenflo OTTO Bedienungsanleitung
Evenflo
Evenflo FlexLite PRO Bedienungsanleitung
Evenflo
Evenflo INVIGOR8 Bedienungsanleitung
Evenflo
Evenflo Pivot Xpand Bedienungsanleitung
Evenflo
Evenflo Snugli Bedienungsanleitung
Evenflo
Evenflo PIVOT XPLORE All-Terrain Stroller Wagon Bedienungsanleitung
Evenflo
Evenflo SIBBY Bedienungsanleitung
Evenflo
Evenflo Pivot Xpand Bedienungsanleitung
Evenflo
Evenflo GOLD PIVOT XPAND X TILE Bedienungsanleitung
Evenflo
Evenflo EPIC Bedienungsanleitung
