EverFocus EZN3160 Plus Bedienungsanleitung

EZN Plus Series

Outdoor IR Bullet IP Camera

Quick Installation Guide

Release Date: October, 2012

EZN Plus Series

1. Overview

The EZN Plus Series is a bullet type IP camera designed for outdoor use. The series comes in three

models: EZN3160 Plus / 3260 Plus / 3340 Plus.

Model Name Megapixel WDR

EZN3160 Plus 1.3 MP Yes

EZN3260 Plus 2 MP Yes

EZN3340 Plus 3 MP No

4 5 6789

No. Item Name Descriptions

1 TV-Out Connector Connects to a handheld test monitor for adjusting camera focus

and zoom.

2 Focus / Zoom Control Press this control to the left or right to adjust camera focus. To

zoom in / out the camera view, press this control up or down.

3 Reset Button Resets all configurations to the factory default settings.

4 Lens Varifocal lens.

5 Micro SD / SDHC Slot For inserting a micro SD / SDHC card.

6 IR LEDs 44 IR LEDs for infrared illumination in night vision applications.

7 Light Sensor Detects lights.

8 Camera Cover

Remove the cover for adjusting camera focus and zoom /

inserting a micro SD card or connecting to a handheld test

monitor.

9 Sunshield Protect the camera from the direct rays of the sun.

EZN Plus Series

System Requirements

Before installing, please check that your computer meets the following system requirements.

•Operating System: Microsoft Windows XP / Vista (32-bit) / 7 (32-bit)

•Microsoft Internet Explorer 7 or above

Packing List

•EZN Plus Series Camera x 1 •4-Pin Terminal Block x 1

•Quick Mounting Ring x 1 •Software CD x 1

•RJ-45 Connector x 1 •Quick Installation Guide x 1

•Mounting Kit x 1

-Long Screw x 4 (for attaching the Quick Mounting Ring to the mounting surface)

-Short Screw x 4 (for connecting the camera base to the quick Mount Ring)

-Screw Anchor x 4 (in conjunction with Long Screw)

-Hexagon Key x 1 (for adjusting the camera position)

-Hexagon Wrench x 1 (for removing the sunshield)

-Torx Wrench x 1 (for removing the lock tab)

-Mounting Template x 1

Note: Contact the shipper if any items appear to have been damaged in the shipping process. If any

items are missing, notify your EverFocus Electronics Corp. Sales Representative or Customer Service

Branch. Please also keep the shipping carton for possible future use.

2. 4-Pin Data Cable

The 4-Pin Data Cable provides connections for power, audio input / output and alarm input / output.

The wires are illustrated and defined below. Note that microphones with external power supplies

are required.

Alarm Input / Output

Audio Input (Pink)

Audio Output (Green)

12V DC Input

Pin Assignment for Alarm Input / Output

4 3 2 1

Pin 1: Alarm GND

Pin 2: Alarm In

Pin3: Alarm Out-

Pin4: Alarm Out+

EZN Plus Series

3. Installation

This installation guide provides the basic instructions on installing an EZN Plus bullet IP camera. For

details, please refer to the User’s Manual in the software CD.

3.1 Mounting and Wiring

Follow the steps below for mounting and wiring the camera.

1. Before screwing the camera to the wall, drill four holes on the wall according to the

hole-positions on the supplied Quick-Mounting Ring. If you wish to run the wires into the

wall, drill another hole in the middle of the circular area within the Quick-Mounting Ring.

2. Push the four supplied anchors into the four holes on the wall.

3. Place the Quick-Mounting Ring against the anchoring surface so that the holes line up.

Screw the Quick-Mounting Ring to the wall using the supplied Long Screws.

Quick-Mounting Ring

Long Screws

4. Screw the camera body to the Quick-Mounting Ring using the supplied four Short Screws.

a. If you want to wire the cables from the side of the camera base:

Camera Base Quick-Mounting Ring

Cables

EZN Plus Series

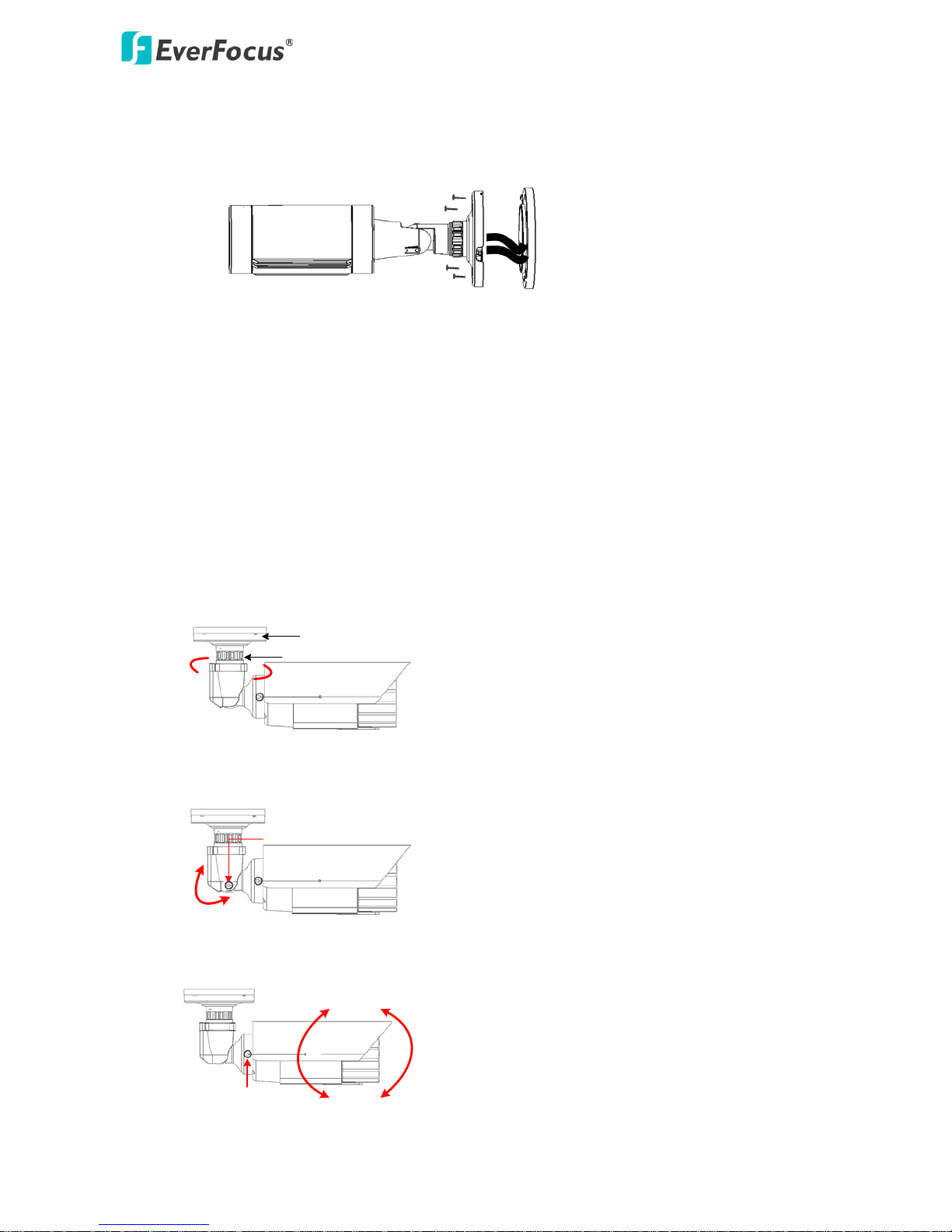

b. If you want to wire the cables through the wall, feed the cables through the wall and

then screw the camera base to the Quick-Mounting Ring.

Camera Base Quick-Mounting Ring

Cables

5. Connect the network, power and other cables of the camera to the related devices. Please

refer to 2. 4-Pin Data Cable earlier in this Quick Installation Guide.

6. Optionally insert a micro SD / SDHC card into the card slot. Please refer to 3.2 Inserting a

Micro SD Card later in this Quick Installation Guide.

7. Access the camera live view. See 4. Accessing the Camera. Or connect a handheld test

monitor to the TV-out connector on the camera module for setting image zoom and focus.

Please refer to 3.3 Adjusting Camera Focus / Zoom later in this Quick Installation Guide.

8. Adjust the camera angles.

Pan Adjustment: Twist the Base Disk forcefully until it unscrews from the Lock Ring. Rotate

the camera 360° to the desired position and then screw the Lock Ring until it locks against

the Base Disk.

Base Disk

Lock Ring

360°

Tilt Adjustment: Loosen the Tilt Screw using the provided hexagon key and adjust the tilt

angle 90°.

90°

Tilt Screw

Rotational Adjustment: Loosen the Rotate Screws on both side of the camera body using

the providing hexagon key and rotate the camera 360° (180° to the left / 180° to the right).

180°

Rotate Screw

180°

EZN Plus Series

3.2 Inserting a Micro SD Card

You can optionally insert a micro SD card to the card slot on the camera module for recording

videos.

1. Remove the Sunshield from the camera. Loosen the screw on the Sunshield using the

provided hexagon wrench. Slide the Sunshield out from the rail on the camera body.

Screw

Sunshield

Camera Body

2. Unscrew the Fix Screw using the provided torx wrench and then remove the Lock Tab.

Lock Tab

Fix Screw

3. Rotate and then remove the camera cover.

4. Insert a micro SD card into the card slot.

Micro SD Card Slot

5. Slide the Sunshield back to the camera body.

Note: When properly installed, the rear-side of the Sunshield should be even with the

rear-side of the camera body. Extending the Sunshield in order to shade the lens will

compromise the image quality.

EZN Plus Series

3.3 Adjusting Camera Focus / Zoom

After wiring the cables, you can adjust the camera focus and zoom for better image quality.

1. Follow Steps 1 ~ 3 in 3.2 Inserting a Micro SD Card to remove the camera cover.

2. Connect the power cable of the camera to the power source.

3. Connect a handheld test monitor to the TV-out connector for setting image zoom and

focus.

4. To adjust camera focus, push the Focus / Zoom Control to the left or right. To zoom in /

out the camera, push the Focus / Zoom Control up or down.

Reset

Button

TV-Out

Connector Focus / Zoom

Control

5. Slide the Sunshield back to the camera body.

Note: When properly installed, the rear-side of the Sunshield should be even with the

rear-side of the camera body. Extending the Sunshield in order to shade the lens will

compromise the image quality.

EZN Plus Series

4. Accessing the Camera

You have to assign an IP address for your camera to be accessible. To assign an IP address to the

camera, use the IP Utility (IPU) software included in the software CD. Please connect the camera in

the same LAN of your computer.

1. Install and then start the IPU program . The following dialog box appears.

2. Click Find Devices to search the cameras connected in the LAN. The default network values of

the cameras will be displayed. By default, the network protocol of the camera is DHCP.

3. To configure the network settings, select a camera and then click Login/Multi Login to log in.

4. Type the user ID and password. Click OK.

Note:

1. The default user ID is user1 and the default password is 11111111.

2. If you select more than one camera that has the same user ID / password, you will be able

to log in several cameras at once.

5. To change the IP address, double-click the IP Address of the camera. Type a new IP address and

then click Set IP Address to save the settings.

EZN Plus Series

You can also change the other settings by double-clicking the values. After configuring the

values, click Save Configuration.

Note: Most networks uses DHCP to assign IP address, if you are unsure of your network

settings, please consult your network administrators for configuration details.

6. To access the camera, highlight the camera and click Connect to Selected IP. The Internet

Explorer window pops up.

7. Type the user ID and password to log in. The Live View window of the camera appears.

Note:

1. You might be required to download ActiveX for viewing the camera feed. If asked, click Yes.

2. To enable Remove Live View, Firmware Upgrade and ActiveX Prompt on Internet Explorer,

some settings have to be complete. Please refer to 5.2 Settings for Microsoft Internet

Explorer in the User’s Manual.

EZN Plus Series

5. Network Connections

You can use one of the methods below to connect the camera to the network.

Router or LAN Connection

This is the most common connection in which the IP camera is connected to a router and allows

multiple users on and off site to see the IP camera on a LAN/WAN (Internet). The camera must be

assigned an IP address that is compatible with its LAN. By setting up port forwarding on the router,

you can remotely access the cameras from outside of the LAN via the Internet. To remotely access

the Web interface of the IP camera, please refer to 7.3.2 DDNS in the User’s Manual. To set up port

forwarding, please consult the manual of the router.

Straight-through LAN patch cable

Right: Pinout of a straight-through cable.
