EverFocus EHD525EX Bedienungsanleitung

EVERFOCUS

1/3” Sony ExView Day/Night

Rugged Dome Color Camera

Operation Instructions

Model No. EHD525EX

Please read this manual first for correct installation and operation. This manual should be retained

for future reference. The information in this manual was current when published. The

manufacturer reserves the right to revise and improve its products. All specifications are therefore

subject to change without notice.

PRECAUTIONS

1. Do not install the camera near electric or magnetic fields.

Install the camera away from TV, radio transmitter, magnet, electric motor, transformer,

audio speakers since the magnetic fields generate from above devices will distort the video

images.

2. Never disassemble the camera nor put impurities in it.

Disassembly or impurities may result in trouble or fire.

3. Never face the camera toward the sun.

Direct sunlight or severe ray may cause fatal damage to sensor and internal circuit.

4. Keep the power cord away from water and liquid.

Touching the wet power cord may result in electric shock.

5. Never install the camera in areas exposed to water, oil or gas.

Water, oil or gas may result in failure, electric shock or fire.

6. Cleaning

Do not touch the surface of sensor by hand directly. Use a soft cloth to remove the dirt from

the camera body. Use lens tissue or a cotton swab and ethanol to clean the sensor and the

camera lens.

7. Do not operate the camera beyond the specified temperature, humidity or

power source ratings.

Use the camera at temperatures within -40℃~ 50℃(-40℉ ~ 122℉) and humidity

between 20%~ 80%. The input power source is 12VDC/24VAC.

PREFACE

The most technically advanced EHD series are the newest vandal-resistant Color Rugged

Dome Camera from EverFocus Electronics. The Color Rugged Dome Camera can

withstand a blow from a 10-pound sledgehammer and has a built-in heater that allows for

operation in low temperatures. It is perfect for all high-profile crime-prone applications

such as building entrances, retail stores, and shopping malls. The extremely EHD series

are unquestionably one of the world's toughest cameras and is your best choice for

vandal resistance. EHD525EX is designed with True Day/Night function that allows

removable Auto IR Cut and an enhanced B/W sensitivity, while turning the image from

color to B/W.

FEATURES

z560 TVL of horizontal resolution

z1/3” Sony ExView CCD with low light sensitivity of 0.1 lux/F=1.2

zRevolutionary integrated 10-bit Digital Signal Processor (DSP) delivers excellent

picture quality and sharp color images

zDesigned with polycarbonate shell to withstand the impact of a 10 lb sledgehammer

zAluminum base with smoke color shell

zDay/Night with IR cut removable module

zDual voltage: 12VDC or 24VAC

PACKAGE CONTENTS

Standard Accessories

zCamera Unit x 1

zAccessory Pack includes:

- Screws x 4

- Expanding Screws x 4

- Wrench x 1

zConduit x 1

zPower & Video Cable x 1

zDesiccant Pack x 1

zManual x 1

Optional Accessory

zWall Mount Bracket (BA-EHD)

SPECIFICATIONS

Pickup Device 1/3'' SONY EXView CCD

Video Format NTSC or PAL

Scanning System NTSC: 525 TV lines, 60 fields/sec

PAL: 625 TV lines, 50 fields/sec

Picture Elements 768 x 494(NTSC) ; 752 x 582(PAL)

Horizontal Resolution 560TVL

Sensitivity 0.1Lux/F=1.2

S/N Ratio Over 50dB(AGC off)

Electronic Shutter 1/50(1/60)~1/100,000

Lens Type

Vari-focal lens, Auto Iris

f=2.9~10mm, F=1.2

f=3.6~9mm

f=9~22mm, F=1.6

*Lens models and availability vary in different regions

Back Light Comp. ON/OFF Switch

Auto Gain Control ON/OFF Switch

Flickerless ON/OFF Switch

Auto White Balance Yes

Gamma Correction 0.45

Video Output

2 video outputs

BNC 1.0Vp-p, 75ohm

Additional testing video output 1.0Vp-p, 75ohm

Sync. Mode Line Lock/Internal Sync.

Weatherproof IP66

Vandal Resistant Yes

Heater Yes, built-in

Power Source 12VDC/24VAC

Power Consumption

24VAC: 6VA max. (Heater OFF)

24VAC: 20.5VA max. (Heater ON)

12VDC: 4W max. (Heater OFF)

12VDC: 11.5W max. (Heater ON)

Dimensions 130mm(W) x 98.8mm(H) x 130mm(D);

5.1"(W) x 3.9"(H) x 5.1"(D)

Weight 1.7kg ; 3.7lbs

Operating Temperature -40°C~50°C ;- 40°F~122°F (20%~80% Humidity)

Certifications FCC/CE

DIMENSIONS

INSTALLATION

1. Loosen the 4 fix screws on the housing cover by using the attached wrench (Figure 1).

Carefully uncap the housing cover as the direction shown below (Figure 2), please pay

attention not to damage the lens. To remove the housing cover, push the hinges to the

bottom of the bracket, the hinges can be easily removed from the bracket.

Figure 2

2. Remove the camera.

To remove the camera, first unplug the wire connection on the back of the camera. Then

loosen the 2 locking screws on the camera base, push the camera base to the right (toward

heater direction, as shown in Figure 3), remove the camera from the mounting base.

Reinstall the camera and the cable while the base mounting is completed.

3. Mounting the base.

Conduit plug setscrew

Side conduit entry

Back conduit entry

Mounting Setscrew

Locking Screws

Vari-Focal Lens

Heater

Figure 1

Figure 3

Figure 4

Attach the base to the wall or ceiling, fix the base by the 4 setscrews attached in the

accessory pack. The dome is weighted 1.7kg, please make sure if the mounting is

strengthened enough to support it, if not, please reinforce the mounting according

to the environment.

Note: The diameter of the screw hole isψ4.7mm.

Caution: To prevent moisture leaking into the housing, apply an appropriate

gasket or sealant around the conduit connection.

The camera comes with a conduit plug

pre-installed in the PF 1/2 conduit entry on

the side. The screw can be removed and

installed in the back conduit entry. Loosen

the conduit plug setscrew (as shown in

Figure 5) before removing the conduit plug.

Side conduit entry (PF1/2)

Conduit plug

Back conduit entry (PF1/2)

Figure 5

4. Re-assemble Camera

1. When mounting COLOR RUGGED DOME CAMERA on the wall,

please aim the “Wall” in line with the triangle “S” marked on the

lead frame. (Factory default)

2. When mounting COLOR RUGGED DOME CAMERA on the ceiling,

please aim the “Ceiling” in line with the triangle “S” marked on the

lead frame.

Figure 6-1

“Wall”

“Ceiling”

Figure 6-2

5. Wire Connection

Connect the power supply cable (24VAC/12VDC), video output and alarm

output to the proper connectors shown as Figure 7.

The V. Phase adjustment screw is located on the termination board. The

vertical phase may require adjustment to synchronize the vertical phase of the

camera with other camera in the system when it is to be used in the line-lock

Termination Board

Video

Alarm COM

Micro Switch for Alarm trigger

GND

Alarm NO Alarm NC

Power In (+)

V. Phase Adjustment VR

Figure 7

Power In (-)

sync mode. Make the adjustment when the vertical phase of the camera does

not match with other cameras.

6. View Angle Adjustment

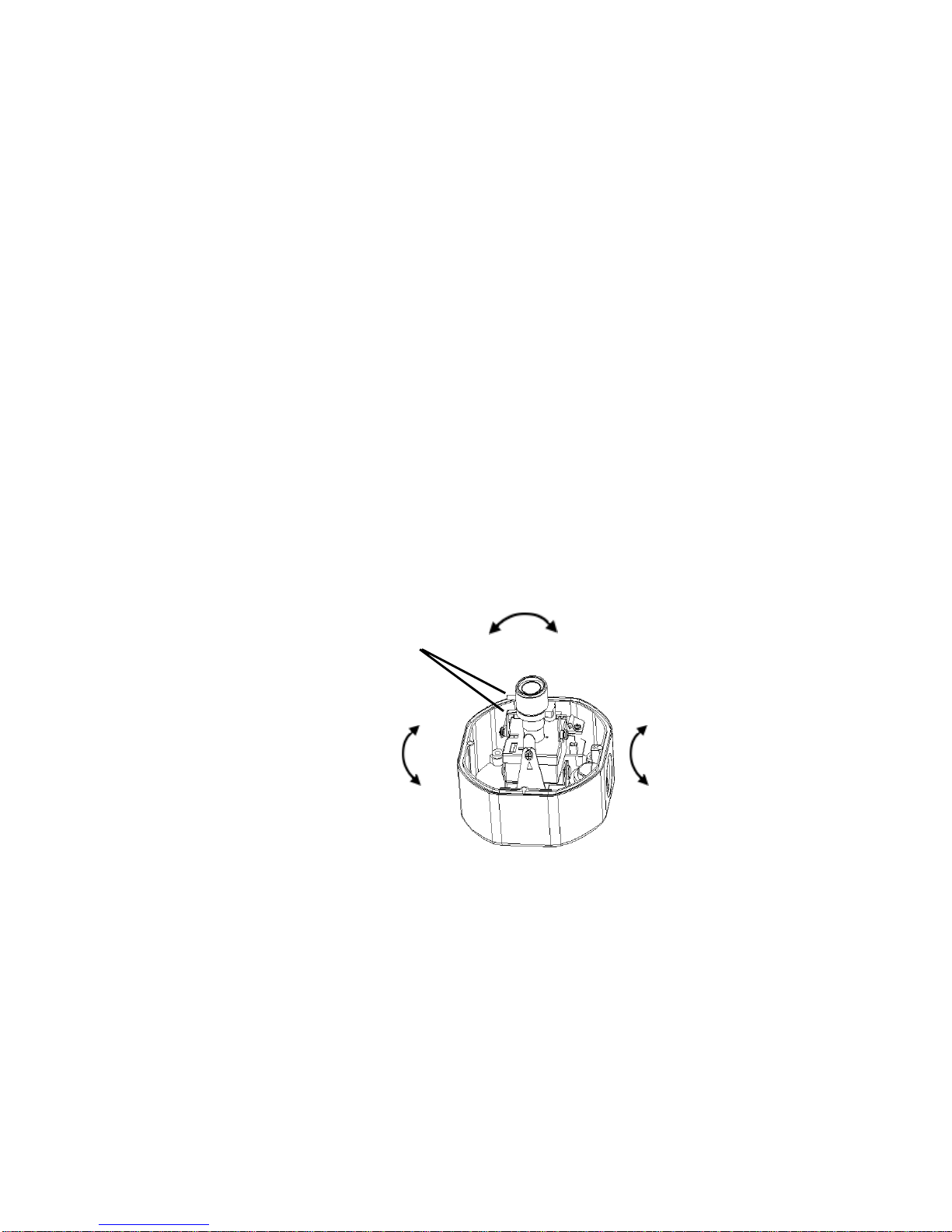

The camera can be rotated 360° horizontally, 140°vertically and 60° 3’rd axis

view angles (as shown in Figure 8). Adjust the proper camera view angle as

needed. If a vari-focal lens is used, you may adjust the focus and zoom of

the lens to bring the object in focus. Be sure to loosen the locking screws on

the lens before you make adjustment.

Figure 8

Lens fixing Screws

140°

360°

60°

7. Repositioning the adjustment stick (only for 3.6-9mm Vari-focal lens)

a) The default position of adjustment stick is shown as below:

b) While zooming In/Out with the adjustment stick, it may obstruct other adjustments

of Iris Level and Video Output.

c) In this case, you can gently take off the adjustment stick and place it to the other

hole at its right-hand side. This will allow you to adjust zooming function smoothly.
