EverFocus EMN2560 Bedienungsanleitung

EMN2560

5-Megapixel IR & WDR,

Outdoor Mini Fixed Dome Network Camera

Quick Installation Guide

Release Date: April, 2021

All the images including product pictures or screen shots in this document are for example only.

The images may vary depending on the product and software version. Information contained in

this document is subject to change without notice.

EverFocus Taiwan:

2F., No.12, Ln. 270, Sec. 3, Beishen Rd., Shenkeng Dist., New Taipei City 222, Taiwan

TEL: +886 2 2662 2338FAX: +886 2 2662 3632www.everfocus.com.tw

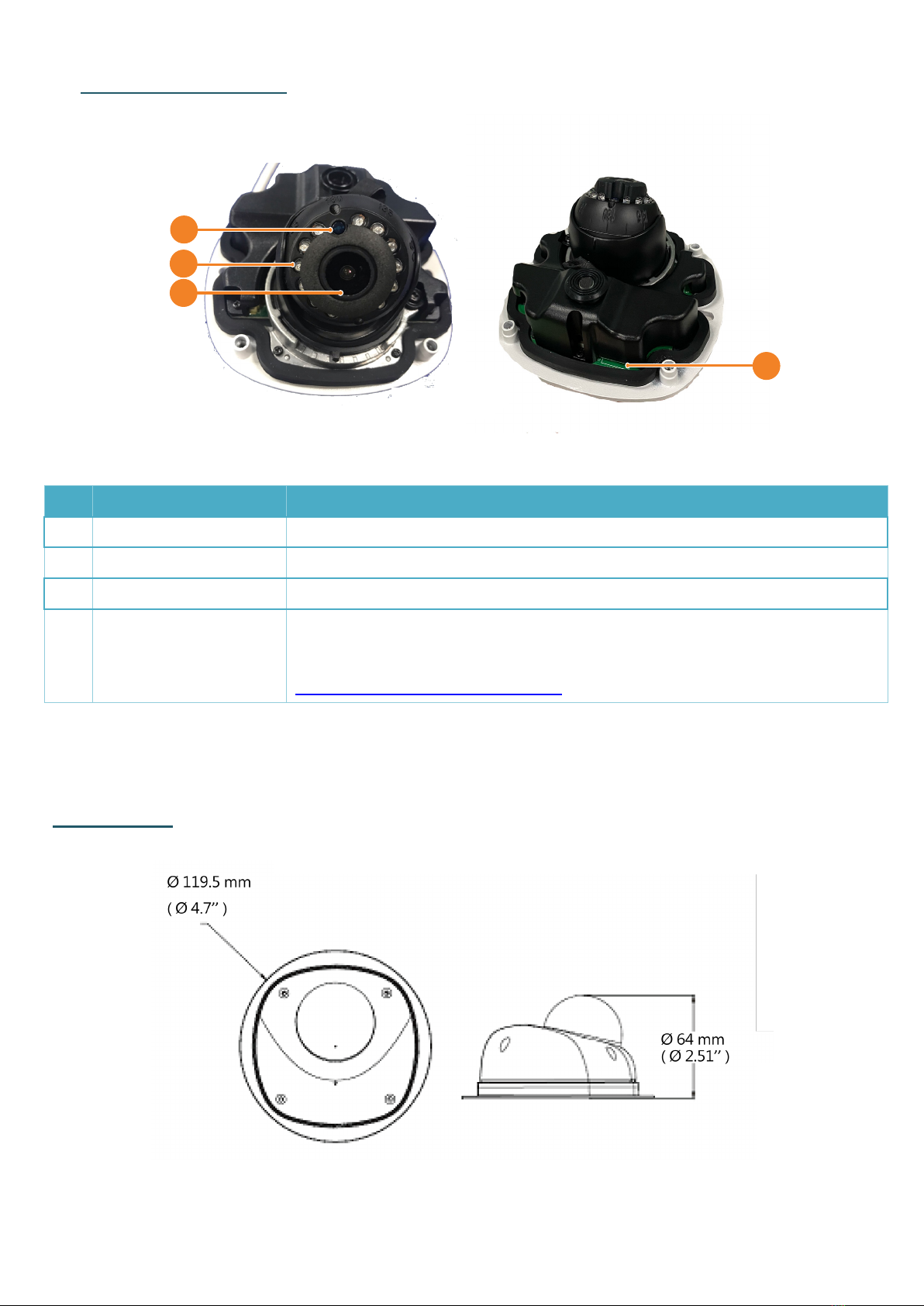

1. Physical Description

No.

Item Name

Descriptions

Light Sensor

Detects lights.

IR LEDs

IR LEDs for infrared illumination in night vision applications.

Lens

Camera Lens.

4 Micro SD Card Slot

Insert a micro SD card. Please go to the product page on

EverFocus website to see the latest Storage Compatibility List.

http://www.everfocus.com.tw

Dimensions

Packing List

Please check that there is no missing item in the package before installing.

EMN2560

Camera x 1

2. MAC Address Sticker x 2

3. Cable Gland Kit x 1 (connect to the LAN/PoE cable for waterproofing)

4. Screw x 4 (With Screw Anchor x 4; to lock the Mounting Plate)

5. Small Screw x 2 (to lock the camera base to the mounting plate)

6. Angle Adjustment Tool x1

7. Desiccant Bag x 1

8. Hexagon Wrench x 1

9. Mounting Sticker x 1

10. Mounting Plate x 1

11. Quick Installation Guide x 1

Note:

1. Equipment configurations and supplied accessories vary by country. Please consult

your local EverFocus office or agents for more information. Please also keep the

shipping carton for possible future use.

2. Contact the shipper if any items appear to have been damaged in the shipping process.

2. Cables

The cables provide connections for network and power.

LAN / PoE Cable

12VDC Power Input

3. Installation

1. Before screwing the camera to the wall, stick the supplied Mounting Sticker on the wall /

ceiling to mark the positions for installation. Drill four holes on the wall / ceiling according

to the supplied sticker and push the supplied four Screw Anchors into the four holes on

the wall / ceiling. Drill another hole in the middle of the Sticker if you wish to run the

wires through the wall / ceiling.

Wall / Ceiling

2. Attach the Mounting Plate onto the wall, use the supplied 4 Screws to mount it on the

wall.

Wall / Ceiling

3. Remove the camera cover by unscrewing the four screws using the supplied Hexagon

Wrench.

4. Screw the camera module to the Mounting Plate:

a. Before mounting the camera module onto the Mounting Plate, thread the cables

through the wall or along the wall.

Through the wall / ceiling: run the cables through the hole on the wall / ceiling.

Along the wall: break the side cut plate on the Mounting Plate and then run the cable

from the side cut.

b. Use the supplied 2 Small Screws to lock the camera module to the Mounting Plate.

Camera Module

Mounting Plate

5. Connect the camera to power. You can either connect the camera to a 12VDC power

source or to a PoE switch using the PoE cable.

6. Connect the camera to the network using the supplied Cable Gland Kit.

a. Insert a RJ-45 network cable (without the RJ-45 connector on the one end) through

the supplied Waterproof Ring, Cable Gland, Stopper and Screw Cap accordingly.

Waterproof Ring Cable Gland Stopper Screw Cap

b. Connect the RJ-45 cable to the LAN/PoE Cable of the camera.

RJ-45 Cable

LAN/PoE Cable

c. Tightly screw the Cable Gland and Screw Cap to the Rugged RJ-45 Connector Cable.

Screw Cap

Cable Gland

d. Crimp the RJ-45 connector onto the RJ-45 network cable. Note that the wires should

be placed into the RJ-45 connector based on the following order (from left to right).

Orange with white stripe

Orange

Green with white stripe

Blue

Blue with white stripe

Green

Brown with white stripe

Brown

7. Optionally insert a micro SD card into the card slot (please refer to 1. Physical

Description).

8. Access the web interface of IP camera (please refer to chapter 4. Accessing the Camera),

and check if the camera is facing toward your desired direction.

9. To adjust camera viewing angles, loosen the screw to adjust the pan / tilt / rotate angles.

You can optionally use the Angle Adjustment Tool to tilt and rotate the angle to your

desired direction.

Use Angle Adjustment Tool

to tilt and rotate the angle

10. Before screwing back the camera cover, remove the 2 Desiccant Bags from the inner

side of the Camera Cover and replace them with the supplied Desiccant Bag. Screw the

camera cover back to the camera.

Remove the 2 Desiccant Bags

Note: Please screw back the

Camera Cover immediately

after replacing the Desiccant

Bag to reduce the absorption

capacity of the Desiccant Bag

inside the camera body.

11. Screw back the Camera Cover, and the installation is complete.

4. Accessing the Camera

You can look up the IP address of the IP camera using the IP Utility (IPU) program. You can

download the IP Utility from EverFocus website (key word search: "IP Utility").

The default network is DHCP. However, if there is no dynamic IP address assigned to the

device, its IP will switch to 192.168.0.10. By default, the ID is admin and there is no

password. Please input a password for the first-time login.
