EverFocus EZ Tracker EFN3320 Bedienungsanleitung

EFN Series Fisheye Network Camera

3MP 360 ePanoramic View, IP68, IK10

Quick Installation Guide

Indoor Outdoor

Release Date: August, 2014

EFN Series Fisheye IP Camera

1. Physical Description

The EFN Series is designed for indoor and outdoor use. The series comes in three models:

Model Megapixel Type Protection Rating PoE 12 VDC Audio I/O

EFN3320 3 MP Indoor - Yes - - -

EFN3320

3 MP Indoor - Yes Yes Yes Yes

EFN3321 3 MP Outdoor IP68, IK10 Yes Yes Yes Yes

Indoor Type

Rear View Front View

No. Item Name Descriptions

1 Reset Button Press the button for 7 seconds to reset all configurations to

the factory default settings.

2 Micro SDHC / SDXC Slot For inserting a micro SDHC / SDXC card.

3 Fisheye Lens Fisheye lens with fixed IRIS and IR corrected.

Dimensions

EFN Series Fisheye IP Camera

Outdoor Type

52 6

Item Name Descriptions

1 Lens Fisheye lens with fixed IRIS and IR corrected.

2 Cable Gland Equipped with three plugs inserted in the cable conduits for

waterproofing.

3 Reset Button Resets all configurations to the factory default settings. Press and

hold the Reset Button for 10 seconds by using a pen or a paper click.

4 Micro SDHC / SDXC

Slot

Insert a micro SDHC / SDXC card.

5 Terminal Block A 12-pin terminal block. See 2.Cables and Terminal Block below.

6 LAN / PoE Port Connects to a 10/100 Ethernet or PoE.

Dimensions

EFN Series Fisheye IP Camera

Minimum System Requirement

Before installing, please check that your computer meets these system requirements.

•Operating System: Microsoft Windows XP / Vista (32-bit) / 7 (32-bit)

•Microsoft Internet Explorer 7 or above

Packing List

Please check that there is no missing item in the package before installing.

Indoor Type

•Camera x 1 •Screw x 3 (with 3 Anchors)

•RJ-45 Connector x 1 •Spacer x 1

•Mounting Template x 1 •Software CD x 1

•Tilting Wall Mount Bracket (15° tilt angle) x 1 •Quick Installation Guide x 1

Outdoor Type

•Camera x 1 •Desiccant Bag x 2

•Base Plate Screw x 4 •Inner Paper x 1

•Screw Anchor x 4 •Software CD x 1

•Hexagon Screwdriver x 1 •Quick Installation Guide x 1

Note:

1. Equipment configurations and supplied accessories vary by country. Please consult

your local EverFocus office or agents for more information. Please also keep the

shipping carton for possible future use.

2. Contact the shipper if any items appear to have been damaged in the shipping

process.

Optional Accessory (for Outdoor Type)

One Adapter Plate with 4 Screws

The Adapter Plate is designed for installing the

camera to the wiring box on the wall. Please

refer to Step 3.d in 3.3 Outdoor Type for more

details.

EFN Series Fisheye IP Camera

2. Cables and Terminal Block

This section describes the cables and terminal block of the fisheye cameras. The EFN3320 only

features a PoE cable.

For EFN3320c (Indoor)

The Cables provide connections for Network, power, audio input / output, alarm input / output and

video test output. Note that the audio line in/out cable features a 3.5mm TRS connector. Be sure to

prepare speakers / microphones with TRS connector (see TRS Connector image below). Also,

speakers / microphones with a (built-in) amplifier and external power supply are required.

Alarm Input / Output

Audio Input (TRS Line-in)(Pink)

Audio Output (TRS Line-out)(Green)

Video Test-Out (BNC)

12 VDC Input

LAN / PoE Cable

4 3 2 1

Pin Assignment from Alarm I/O

Pin 1: Alarm In (+)

Pin 2: Alarm GND (-)

Pin 3: Alarm COM (-)

Pin 3: Alarm Out (+)

TRS Connector

Left Channel (Tip)

Right Channel (Ring)

Ground (Sleeve)

To activate the Audio function, the Enable Audio must be checked.

See Audio Settings in 7.2.1 Streaming and Audio in the User’s

Manual.

For the Video Test-Out cable to work, the Stream 4 must be

disabled (unchecked), see Stream Settings in 7.2.1 Streaming

and Audio in the User’s Manual.

EFN Series Fisheye IP Camera

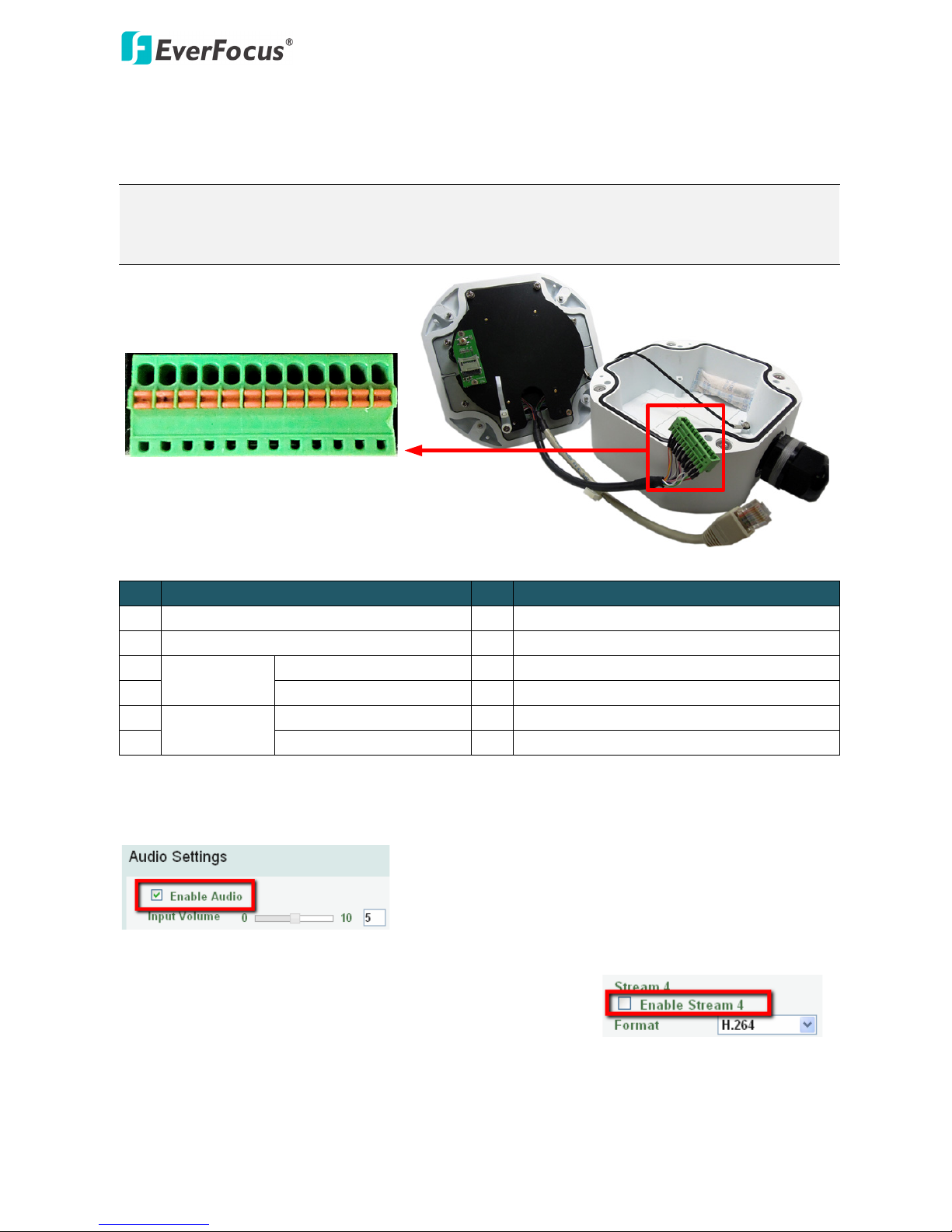

For EFN3321 (Outdoor)

The I/O terminal block, located on the camera module, can be used to develop applications for

alarm input and output, two-way audio, TV-output or a variety of other functions.

Note:

1. You can unplug the terminal block from the camera module for easier wiring.

2. Microphones / speakers with an (built-in) amplifier and external power supply are required.

1 2 3 4 5 6 7 8 9 10 11 12

Camera Module

No. Functions No. Functions

1 12 VDC Input 7 Audio Input C (TRS Line-in)

2 Digital GND 8 Audio GND

3 Alarm Out Alarm Output C (+) 9 Audio Output (TRS Line-Out)

4 Alarm COM C (-) 10 Audio GND

5 Alarm In Alarm Input C (+) 11 CVBS Output

6 Digital GND (-) 12 Digital GND

To activate the Audio function, the Enable Audio must be checked. See Audio Settings in 7.2.1

Streaming and Audio in the User’s Manual.

For the Video Test-Out cable to work, the Stream 4 must be

disabled (unchecked), see Stream Settings in 7.2.1 Streaming

and Audio in the User’s Manual.

EFN Series Fisheye IP Camera

3. Installation

3.1 Indoor Type –Ceiling / Desk Mount

Ceiling Mount Desk Mount

1. Stick the Mounting Template to the ceiling / desk. Drill the three red cross marks on the inner

circle, and the square below only if you wish to run the cables through the ceiling / desk. Note

that the square below also indicates the cable position. Point the square below to the direction

for running the cables.

For the Tilting Wall Mount Bracket

Drill a hole only if you want to run

the cables through the ceiling / desk.

EFN Series Fisheye IP Camera

2. Insert the supplied three Anchors into the three holes and then screw the Base Plate to the

ceiling / desk using the supplied three Screws.

Base Plate

3. Place the Spacer onto the rear side of the camera. Remove the cut-out from the Spacer only if

you want to run the cables along the ceiling / desk.

Spacer

4. Optionally insert the micro SDHC / SDXC card to the push-pull type SD card slot on the rear side

of the camera.

Push

Pull

Rear side of the camera

EFN Series Fisheye IP Camera

5. Align the three latches on the camera with the three holes on the Base Plate, attach the camera

to the Base Plate and then rotate clockwise to secure the camera to the Base Plate. Note that

the triangle mark on the rear side of the camera and the Base Plate should point to the same

direction.

Rear side of the camera Base Plate

6. Connect the network or power cable to the camera. The installation is now complete.

3.2 Indoor Type-Wall Mount

You can mount the camera to the wall using the supplied Base Plate or the Tilting Wall Mount

Bracket.

With the Tilting Wall Mount Bracket

With the Base Plate

EFN Series Fisheye IP Camera

1. Stick the Mounting Template to the wall. Drill the three red cross marks on the inner circle. If

you want to use the supplied Tilting Wall Mount Bracket, drill the three black cross marks on

the outer circle. Drill the square below only if you wish to run the cables through the wall. Note

that the square below also indicates the cable position. Point the square below to the direction

for running the cables.

Drill a hole only if you want to

run the cables through the wall.

Toward the ground

For the Tilting Wall Mount Bracket

2. Insert the supplied three Anchors into the three holes and then screw the Base Plate / Tilting

Wall Mount Bracket to the wall using the supplied three Screws.

Base Plate Tilting Wall Mount Bracket
