EverFocus Speed Dome EPTZ900 Bedienungsanleitung
Speed Dome
EPTZ900/500
USER MANUAL
Date: June 2006
1-1
Table of Contents
1.EPTZ900/500 OVERVIEW................................................1-3
1.1.Introduction .............................................................................................1-3
1.2.Specifications..........................................................................................1-5
1.3.Feature .....................................................................................................1-7
1.3.1.Profile of EPTZ900/500.....................................................................1-7
1.3.2.Base Board .......................................................................................1-8
1.3.3.EPTZ900/500 Control Board............................................................1-9
1.4.EPTZ900/500 Connection......................................................................1-10
1.5.EPTZ900/500 Quick Operation Guide (Work with EKB500) ...............1-11
2.EPTZ900/500 INSTALLATION.......................................2-12
2.1.Packing List...........................................................................................2-12
2.2.Cable Needed.........................................................................................2-12
Power Cable...........................................................................................2-12
Video Cable............................................................................................2-13
Control Cable.........................................................................................2-13
Alarm Cable ...........................................................................................2-13
2.3.Initial Setup............................................................................................2-13
2.3.1.Address Setting..............................................................................2-14
2.3.2.Communication Protocol Setting..................................................2-17
2.3.3.Transmission Speed Setting (Baud Rate Setting) .......................2-17
2.3.4.Video Format Setting.....................................................................2-18
2.3.5.RS-485 Bus Terminator Resistance..............................................2-18
2.4.Rack and Speed Dome Installation......................................................2-20
1-2
2.4.1.Installation Requirements..............................................................2-20
2.4.2.EPTZ900 Dome Camera Wall Mount Installation .........................2-20
2.4.3.EPTZ500 Dome Camera Installation .............................................2-24
2.5.Separately Sold Accessories................................................................2-27
2.5.1.Pole mount......................................................................................2-27
2.5.2.Pole adapter....................................................................................2-27
2.5.3.Corner mount .................................................................................2-27
2.5.4.Multi-Function Keyboard Controller ...........................................2-27
3.EPTZ900/500 CAMERA SETUP MENU.........................3-28
3.1.Structure of the Setup Menu ................................................................3-28
3.1.1.Camera Setup Menu.......................................................................3-29
4.EPTZ900/500 FUNCTION SETUP AND OPERATION...4-33
4.1.Manual Control Mode............................................................................4-33
4.2.Auto Pan Mode ......................................................................................4-33
4.3.Position Setting.....................................................................................4-33
4.4.Tour Mode ..............................................................................................4-34
4.5.Alarm Link to a Position/Tour...............................................................4-35
4.6.Other operations ...................................................................................4-35
APPENDIX B: Protocol............................................................4-37
1-3
1. EPTZ900/500 OVERVIEW
1.1. Introduction
EPTZ900/500, an intelligent high-speed dome camera is ready to secure your
property with its omni-directional and exact monitoring. An 18X optical and 12X digital
zoom combining with a high-performance chip makes captured images clear and
vivid. The other powerful camera functions this type of speed dome equips with:
¾PAL / NTSC image format suppose.
¾Auto and fast focus increases the searching speed and precision.
¾Auto Iris adjusts the monitoring image to the best brightness.
¾White Balance function makes the shades of color more natural in different
light conditions.
¾BLC (Backlight Compensation) function makes objects clear in a high
illumination background.
¾Color / B&W images auto switching to enhance the sensitivity in a low light
condition or at night.
Furthermore, the micro control unit enables camera a nimble and exact movement
from minimal 0.01°/sec to maximal 360°/sec. It can go to every preset position in 1
second. It also has other advantages such as:
¾192 preset positions are available.
¾16 cruise tours can be set, and each tour contains up to 16 positions.
¾Up to256 speed domes can be supported on a RS485 bus when all speed
domes are controlled by multi-function keyboard controller.
¾Auto heater and fan to fit all kinds of temperature.
¾Provide 4 alarm inputs and 1 alarm output.
1-4
All of the features make the intelligent high-speed dome camera works for a wide
range and demanding application such as banks, airports, stations, casinos, streets
of cities, intelligent buildings, and etc.
1-5
1.2. Specifications
Model EPTZ900 EPTZ500
Pickup Device 1/4" type Sony Super HAD CCD
Video Format NTSC or PAL
Scanning System NTSC: 525 TV lines, 60 fields/sec
PAL: 625 TV lines, 50 fields/sec
Picture Elements 768 x 494 ( NTSC ) , 752 x 582 ( PAL )
Horizontal Resolution 480 TVL
Sensitivity 1.0 Lux/F=1.4
S/N Ratio (AGC OFF) Over 50dB
Electronic Shutter 1/50~1/10,000 (s)
Digital Slow Shutter No
Shutter Selection No
Lens Type 18x optical zoom , f=4.1 mm (wide) to 73.8mm (tele) , F1.4 to F3.0
Zoom Ratio 216x max (18x Optical and 12x Digital Zoom )
Auto ICR No
Black Light Comp. ON/OFF
Auto Gain Control Auto
White Balance Auto/Indoor/Outdoor
Video Output BNC 1.0Vp-p , 75ohm
Sync. Mode Line Lock/Internal Sync
Power Source 24VAC
Power Consumption 18W; 70W with heater 18W
Operating Temperature -40°C~50°C ; -40°F~122°F 0°C~50°C ; 32°F~122°F
Operating Moisture ≤95%
Communication RS-485
Communication Speed 1200/2400/4800/9600bps
Horizontal Rotation Speed 0.1°/s－360°/s (1-239 grade shift gears)
Horizontal Rotation Range 360° unlimited rotation
Tilt Rotation Range 90° pendulum motion
Auto Flip Rotates 180° when camera tilts to the vertical position
Auto Zoom Speed Control Control speed auto-adjusted according to zoom length changing
Auto Pan, 2 Points Scanning Can set freely
Auto Pan Speed 1－239 grade available
Dwell Time (2 points) 1－239 second available
Preset Positions 192 positions
1-6
Running To Position Speed 1－239 grade available,0.1º/s - 360º/s
Dwell Time At Preset Position 1－239 second available
Tour 16 group
Tour Point Per Group 16 preset positions
Fan, Heater (EPTZ900) Fan & Heater auto starts No
Position Accuracy ±0.1°
Alarm 4 in 1 out with tour/position auto triggering
Proportional Pan Speed Yes
Built-in menu for functions Yes
Built-in Protocols Auto, EVF, Plus-D, A-Type, Pelco-D, Pelco-P
Communication RS485
Address editable through DIP
switch Yes
Speed Dome Address 0-255
Manual Pan/tilt speed Pan: 0.1º ~ 180º/s Tilt: 0.1º ~ 180º/s
Weatherproof Ratings IP66 Indoor
Dimensions 218.5mm (W) x 267.5mm (H) / 208.5mm (W) x 221.6mm (H)
/
8.6" (W) x 10.5" (H) 8.2" (W) x 8.7" (H)
Weight 4.2kg/9.25lbs 2.15kg/4.8lbs
Certifications CE ; FCC
1-7
1.3. Feature
1.3.1. Profile of EPTZ900/500
EPTZ900
Wall Mount Bracket
Housing
Inner Housing
M5 Bolt (Hex) x3
M3 Bolt x3
BNC Cable
Power Cable
RS485 Cable
Connection Bus
Bulb
Mechanical Part
Camera Module
Control board
Base PCB board
EPTZ500
Housing
Clip
BNC Cable
Power Cable
RS485 Cable
Connection Bus
Bulb
Mechanical Part
Camera Module
Control board
Base PCB board
Ceiling
Button
1-8

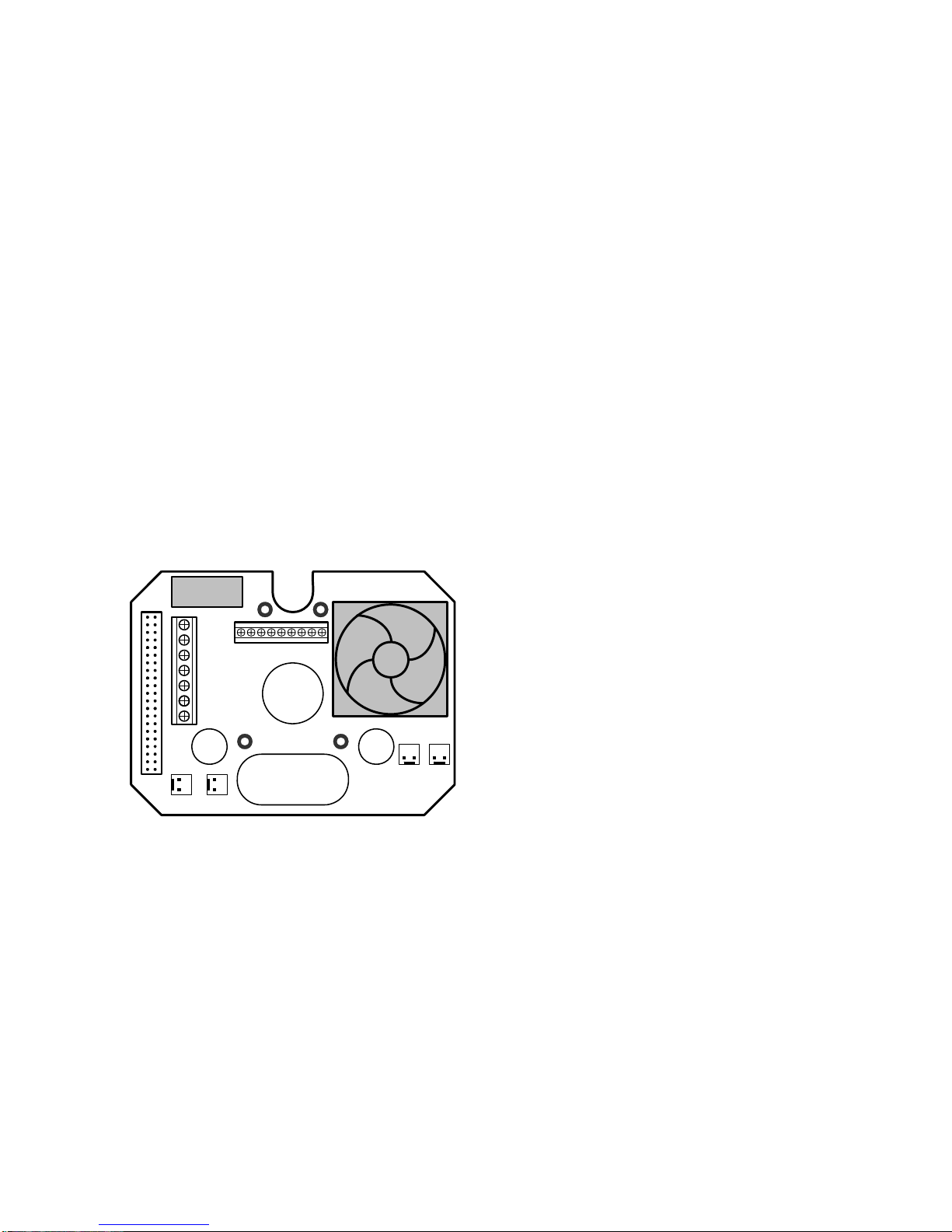

1.3.2. Base Board
The base board that is on the bottom of the housing connects to power cable, video
cable, control cable, alarm cable, fan and heater (fan and heater are for EPTZ900 only). In
order to connect to cables, the board needs to be taken off, and put back after finishing
connecting to all cables. The connectors of cable names are marked on the board in white
text. The details of the alarm connector (JP5) are shown on the APPENDIX A.
For EPTZ900, JP1, JP3 and JP6 that are two-pin connectors on the base board need to
be taken off during installation. JP1 and JP3 are connectors for heater, and they can be
switched. JP6 is a fan controller connector that turns on/off of the fan. The 3 cables are too
short to be connected to a wrong connector when putting them back.
RELAY
JP6 JP4
JP3 JP1
JP5
Video +
Video -
RS485 +
RS485 -
AC24
AC24
EPTZ900 Baseboard
1-9
RELAY JP5
Video +
Video -
RS485 +
RS485 -
AC24
AC24
EPTZ500 Baseboard
1.3.3. EPTZ900/500 Control Board
The PCB board with two dipswitches is the control board of speed dome. The two
switches are used to set address, protocol, Baud Rate, video format and terminator
resistance.
SW1
ON
12345678
CPU
ON
12345678
SW2
ID1
ID2
ID3
ID4
ID5
ID6
ID7
ID8
Protocol
BAUD
