Evolis KC MAX Bedienungsanleitung

KC MAX

USER GUIDE

User-Guide_KSKC4_ENG_20210702

KC MAX

TABLE OF CONTENTS

Trademarks 3

Warranty 3

Environmental Information 3

Recycling End-of-life Products 3

About Your New Printer 4

Icons in the document 5

1 – Getting Started 6

Description of the Printer Functions 6

Description of the Printer Functions 8

Connecting the printer 9

Ribbons 10

Fitting the ribbon 10

Cards 11

Storing new cards 11

Inserting the cards 11

Removing printed cards 14

2 - Servicing 15

General Warranty Information 15

Printer Cleaning 16

Printer servicing 16

Servicing the Print Head 20

Maintenance of the dust ﬁlter 21

Appendix A 22

Declarations of Conformity KC MAX 22

KC MAX

Users must observe the copyright regulations applicable in their country. This manual must not be photocopied, translated, reproduced,

ortransmitted, in whole or in part, for any reason and by any electronic or mechanical means whatsoever without the express written

consentofEvolis.

All the information contained in this document is subject to change without prior notice.

Evolis cannot be held liable for any errors that may be found in this manual, or for any loss or damage arising accidentally or as a result

ofdissemination or use of this manual.

TRADEMARKS

Evolis Premium Suite®and Evolis High Trust®are trademarks of Evolis. All other trademarks belong to their respective holders.

WARRANTY

Please refer to the warranty notice for the terms and conditions and limitations. It is available on www.evolis.com>Drivers&Support>Manuals

and Documents.

Warranty limit is available on www.evolis.com>Products & Services>Card Printers>Printer>Specifications.

Please register online at www.evolis.com to receive our special offers and general information.

Once on the website, click Drivers and Support then Register your printer and fill out all the fields, specifying in particular the model

andserialnumber of your equipment found on your printer.

ENVIRONMENTAL INFORMATION

Evolis is committed to helping the environment by reducing the energy consumption of its products.

RECYCLING END-OF-LIFE PRODUCTS

Manufacturing the equipment that you have purchased required the extraction and use of natural resources. This equipment may contain

materials that are hazardous to health and the environment.

To prevent the dispersal of such materials into our environment and to reduce pressure on our natural resources, we recommend that you use

existing collection facilities. These systems will re-use or recycle most of the materials in your end-of-life equipment in an appropriate way.

For further information on collection, re-use, or recycling systems, please contact your local or regional waste management organization.

Please do not hesitate to contact us to find out more by visiting our website at www.evolis.com or by emailing the following address: inf[email protected]om.

KC MAX

ABOUT YOUR NEW PRINTER

Using your new Evolis printer, you can create a wide variety of high-quality cards and personalized badges that can be printed and laminated

invarious thicknesses, colors, and styles. This printer uses consumables and accessories available from Evolis.

Certifications and declarations of conformity:

CE, UKCA, ICES, VCCI, BIS, CCC, KC, EAC, RoHS

FCC (Evolis contact: Evolis, Rising Sun Mills, 188 Valley St., Suite 421, RI 02909 Providence, evolisnortham@evolis.com)

Icons on the printer

Evaluation for apparatus only based on altitude not exceeding 2000m, therefore it’s the only operating condition applied for the

equipment. There may be some potential safety hazard if the equipment is used at altitude above 2000m.

As evaluation for apparatus is only based on temperate climate condition, it’s the only operating condition applied for the equipment.

There may be some potential safety hazard if the equipment is used in tropical climate region.

Reminder to use existing collection facilities.

Dimensions

• Printer (HxWxD): 314 x 417x 540,5 mm

• Feet height: 18 mm

Weight

21 kg

Connectivity

USB (1.0, 1.1, 2.0, 3.0), Ethernet, Serial (option), Wi-Fi

Environmental conditions

• Standard operating temperature: 15°C / 30 °C (59° / 86 °F)

• Humidity: 20% to 65% non-condensing

• Min / Max operating temperature and humidity rate: 0° / 40° C (32° / 104° F) and 20% to 65% non-condensing

• Min/max storage temperature: –5°C / +70 °C (23° / 158 °F)

• Storage humidity:

• Operating ventilation: free air

Electrical information

• Power supply unit: 100-240 Volts AC, 50-60 Hz, 1.7A

• Printer: 24 Volts DC, 2.71 A

To view all technical specifications, please refer to www.evolis.com>Products & Services>Card Printers>Printer>Specifications.

KC MAX

Further details about certain points in the main text.

Failing to take the recommended action is likely to damage your printer.

NOTE

ICONS IN THE DOCUMENT

The following icons are used in this manual to highlight information:

A video showing the procedure is available on www.evolis.com website.

KC MAX

1 – GETTING STARTED

DESCRIPTION OF THE PRINTER FUNCTIONS

A - Bezel for card exit

B - Power cable socket

C - Control Panel

D - Feeders (100 cards each)

E - Ethernet port

F - USB port

KC MAX

G - Ejection Slot

H - Feeder Weights

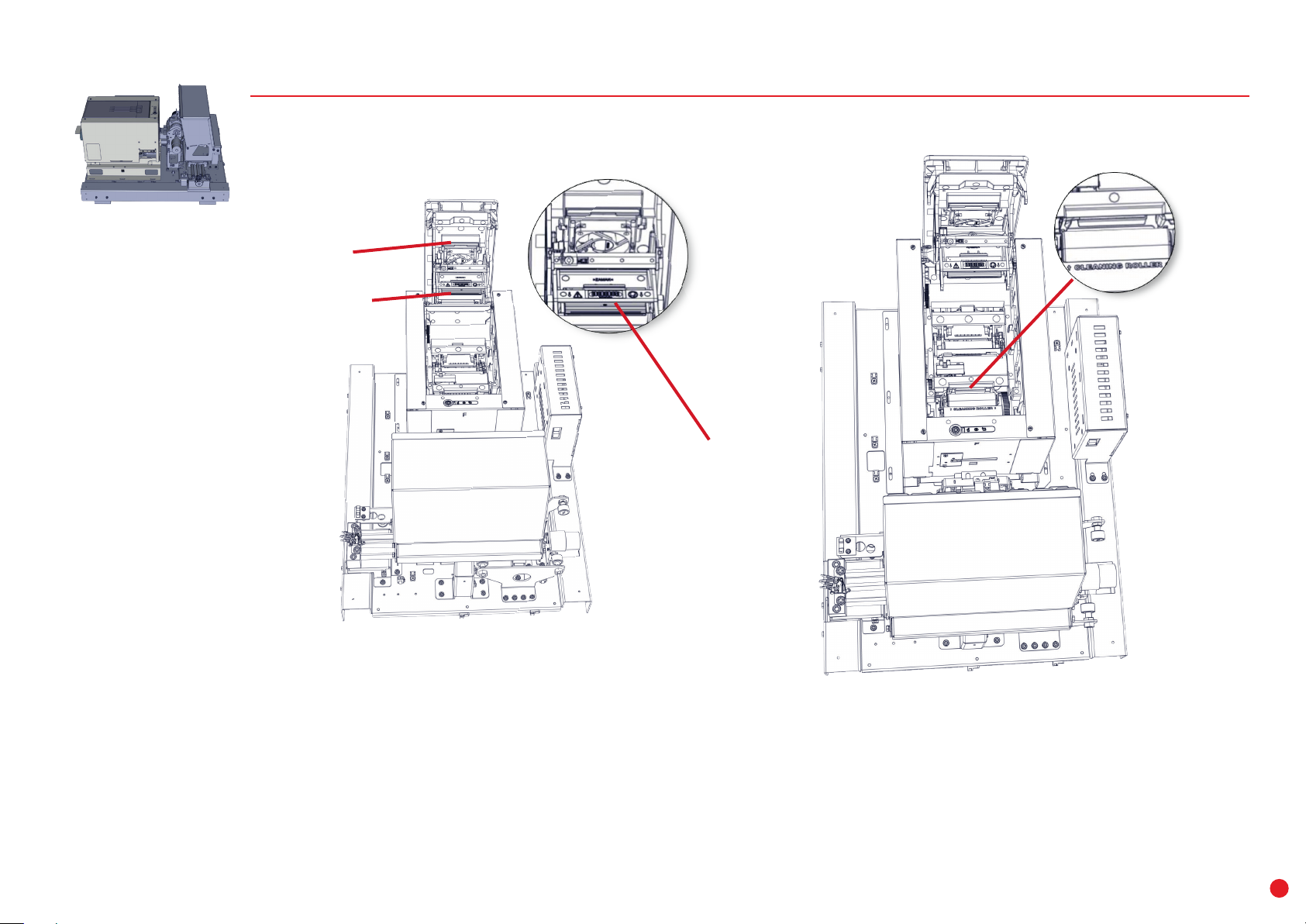

KC MAX

I - Dust Filter

J - Thermal print head

K - Serial number label

L - Cleaning Roller

DESCRIPTION OF THE PRINTER FUNCTIONS

KC MAX

Connecting the printer

The printer must be connected to a properly protected and grounded electrical system.

FI: Laite on liitettävä suojamaadoitus koskettimilla varustettuun pistorasiaan.

NO: Apparatet må tilkoples jordet stikkontakt.

SE: Apparaten skall anslutas till jordat uttag.

DK: Printeren skal tilsluttes til en korrekt beskyttet og jordforbundet el-installtion.

To do so:

• Connect the power cable to the power supply unit, then plug the power cable jack into the printer.

• Next, connect the power cable plug to a grounded power socket outside of the terminal.

• The printer is powered on: the control panel lights up indicating that the printer is working properly.

If the control panel does not light up, then either the installation has not been carried out correctly or the printer

is not working properly. Please check the installation.

KC MAX

The printer automatically recognizes the ribbon inserted.

Insert the ribbon as shown.

Ribbons

Evolis original High Trust®ribbons optimize the operation of your printer and avoid causing damage to it. The use of third-party ribbons

maydamage your printer and will void the manufacturer's warranty for the printer.

For optimum print quality, Evolis recommends that the printer is fully cleaned every time the ribbon is changed. See the Servicing chapter

ofthismanual.

Fitting the ribbon

Open the cover. Close the cover and press until

youheara click.

NOTE
