Evolis Pebble Bedienerhandbuch

Quick Operating Guide

Welcome

To The World of Evolis Card Printer Products!

Congratulations on making the Pebble printer your choice!

Please read carefully this Operating Guide before installing your printer.

It is a quick guide to help you to use your Pebble Card Printer.

No part of this document may be reproduced by any method, either mechanical, electronic,

photographic, or otherwise without prior written permission from Evolis Card Printer.

All information contained in this document is subject to changes without prior notification.

Rev.1.0

Printer description ................................................... 3

Printer connection.................................................... 4

Driver installation .................................................... 5

Indicators .............................................................. 6

Cards loading ......................................................... 9

Card feeder

............................................................. 9

Manual feed tray

..................................................... 10

Card thickness adjustment

.......................................... 10

Card output hopper

................................................... 11

Ribbon loading ..................................................... 12

Cleaning ............................................................. 13

Cleaning of the printer interior

...................................... 13

Cleaning of the print head

.......................................... 15

Maintenance of the cleaning roller

................................. 16

Help & Support ..................................................... 17

Troubleshooting

....................................................... 17

Logging on evolis.com

................................................ 19

Contacting an Evolis reseller

......................................... 19

Notes .................................................................. 20

Summary table

Output hopper Collects the printed and/or encoded cards

Cover lever Enables the printer cover to be opened and closed

Card feeder Receives the cards for printing

Control panel Shows the printer activity

Manual feed tray Enables the cards to be inserted one by one (optional)

Carrying handle Enables the printer to be carried

Electrical connector Enables the printer to be connected to its power supply

Centronics parallel port (std) Enables data to be received and sent from and to the computer

USB port (std) Enables data to be received and sent from and to the computer

DB-9 connector (optional) Enables data to be received and sent from and to the computer

or a coupler to be connected for chip cards personalization

Magnetic encoder Enables cards with magnetic tracks 1, 2 and 3 to be encoded

Cleaning roller Removes all dust before the cards are printed

Card thickness gauge Enables the thickness of the card to be adjusted from 0.25 mm to 1 mm

Thermal print head Enables the cards to be printed in 300 dpi

Identification label Indicates the model and the serial number of the printer

IMPORTANT !

The printer must be placed on a flat surface, in a dust free environment.

It is essential to be able to access the printer from all sides for its installation.

Printer description

Printer connection

IMPORTANT !

To disconnect the printer, pull the plug out of the socket which must remain

easily accessible.The printer must be connected to an electrical wiring properly

installed and equipped with a earth socket.

Use only the printer power supply provided by Evolis.

IMPORTANT !

La mise hors tension de ce produit se fait par le retrait de la fiche secteur qui

doit rester accessible. Ce produit doit être raccordé à une installation électrique

correctement protégée et équipée d’une terre.

Utiliser uniquement l’alimentation de l’imprimante fournie par Evolis.

IMPORTANTE !

Para desconectar este aparato quite el enchufe del conector, éste debe permanecer

fácilmente accesible. Este aparato debe estar conectado a una instalación eléctrica

correctamente protegida y con toma de tierra.

Utilizar unicamente la alimentación de la impresora suministrado por Evolis.

WICHTIG !

Um den Drucker vom Netz zu trennen, soll einfach der Netzstecker aus der Steckdose

gezogen werden. Der Drucker selbst soll ausschließlich an einer geeigneten

Stromquelle mit korrekter Erdung angeschlossen werden.

Nur die mit dem Evolis Drucker belieferten Stromversorgung und Stromkabel benutzen.

Power

Parallel

Driver installation

Before using the Pebble printer, you must install its driver.

The Pebble operates under Windows 2000, NT 4.0 or Xp.

The enclosed CD-Rom includes a utility which automates the installation of the

printer driver. This utility installs the suitable driver for your computer configuration.

To install the Pebble Windows Drivers, please proceed as described below:

NOTE !

For further information or, if the installation program does not run automatically,

refer to the User’s Guide supplied on the enclosed CD-Rom.

Insert the CD-Rom in your

computer CD drive.

The program runs automatically.

Click on the menu

“Driver Installation”

The driver installation runs

automatically.

There is a Control Panel on the upper part of the printer with four LED’s.

Each is associated to a symbol showing the Pebble activity during printing.

The lights show:

The Control Panel LED’s are in either of the following conditions:

SWITCHED ON SWITCHED OFF FLASHING

Turned on

Data reception

(Pushbutton)

End of

ribbon No card in the

feeder or feeder

not present

Cleaning

signal Cover open

Indicators

The push button returns the control panel to its original state after dealing with

the following cases:



ABSENCE OF CARD or INTERNAL PRINTER PROBLEM



ERROR IN MAGNETIC ENCODING



CARD EJECTION

The push button also enables:



The printer to be set to stand-by



A test card to be printed



A cleaning cycle to be started

PRINTER READY

END OF RIBBON

NO CARD IN FEEDER

OR FEEDER NOT PRESENT

PROCESSING

The printer is ready to process

The printer automatically goes into stand-by after

10 minutes of inactivity. All the lights turn off.

To re-activate power, push one second on the push

button.

The printer is receiving data.

There is no ribbon inside the printer.

The ribbon is finished.

The ribbon has been incorrectly installed.

The ribbon has cut.

Check the state of the ribbon in the printer.

If you are have a printing job in course, this restarts

with a new card.

There is no card in the feeder.

The thickness of the cards has not been

correctly adjusted.

The cards are curved.

The cards are stuck together.

The feeder is not present in the printer or is

badly inserted.

Check the state of the cards in the feeder or make

sure that the feeder is present in the printer and cor-

rectly inserted. Then, press the push button for one

second. The printing restarts.

Refer to the following conditions to determine the status or current activity of

your printer.

Indicators

The printer is waiting for a card to be

manually inserted.

The printer is fitted with the manual feed tray option:

insert a card in the printer.

The printer has to be cleaned.

See the Cleaning section for more information.

The printer has to be cleaned.

See the Cleaning section for more information.

The printer cover is open.

Close the printer cover. The activity in course restarts.

There is a card jammed.

A mechanical part in the printer is faulty.

Press the push button for one second. If the problem

persists, call your Evolis reseller for technical assistance.

The magnetic stripe card orientation in the

feeder is not correct.

The type of encoding is incorrectly set

(HICO or LOCO).

The encoding data does not comply

with ISO 7811 Norms.

Press the push button for one second. The printer restarts

the magnetic encoding cycle with a new card. If the pro-

blem persists, call your Evolis reseller for technical assistance.

The print head cooling is activated.

The printer stops working for a few seconds. As soon as the

print head reaches the normal working temperature, the

pending printing job restarts automatically.

PRINTER COVER OPEN

MECHANICAL PROBLEM

MAGNETIC ENCODING ERROR

COOLING MODE

PRINTER CLEANING ALERT

(STATUS AFTER 1000 INSERTIONS)

PRINTER CLEANING ALERT

(STATUS AFTER 1200 INSERTIONS)

CARD INSERTION SIGNAL

Indicators

Remove the feeder from

the printer as shown.

Replace the feeder in the

printer Then press on the

top of the feeder until it

clicks.

Press the spring system down

inside the feeder and insert

the cards as shown (100 cards

max. 0.76mm-30mil).

Note: The side to be printed

must be facing down.

CLIC

max.

Remove the

feeder from

the printer as

shown.

Using the lever, adjust

the thickness of the

card to MAX.

Insert the cards

as shown.

Manual feed tray (optional)

Card feeder

Place the

manual supply

tray in the

printer as indi-

cated. Then,

press on the

top of the tray

until it clicks.

CLIC

Cards loading

Andere Handbücher für Pebble

Inhaltsverzeichnis

Andere Evolis Drucker Handbücher

Evolis

Evolis Unitech Securion Bedienungsanleitung

Evolis

Evolis Dualys Bedienungsanleitung

Evolis

Evolis Primacy Bedienungsanleitung

Evolis

Evolis Securion Bedienungsanleitung

Evolis

Evolis Securion Bedienungsanleitung

Evolis

Evolis QUANTUM Bedienungsanleitung

Evolis

Evolis EDIKIO ACCESS Bedienungsanleitung

Evolis

Evolis Pebble Bedienungsanleitung

Evolis

Evolis Tattoo Bedienerhandbuch

Evolis

Evolis Zenius Bedienungsanleitung

Evolis

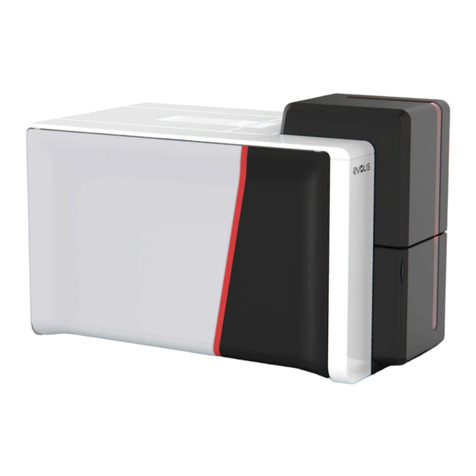

Evolis PRIMACY 2 Bedienungsanleitung
