EVOnet EVOnet-RM2000 Bedienungsanleitung
This manual is intended for users of the EVOnet-RM2000 corner
mounting bracket. It includes instructions for mounting the EVOnet-
RM2000 corner mounting bracket to a corner.
• This bracket is intended to be used with the EVOnet-WM2000
Bracket and the EVOnet series cameras. Do not use it with other
models of cameras.
• This installation should be performed by a qualied service
personnel in conformance to all local codes.
• You may need to reinforce the corner. If the corner is not strong
enough to support the camera, the camera may fall.
• Do not use this product for other purposes.
Mounting
Mount the bracket to the corner as follows:
1 Mount bracket 1 to the corner by
using the anchors and screws.
Bracket 1
Tapping Screw #8x25 4EA
Connect your camera (EVOnet series 4) to the bracket as follows:
2 Mount bracket 2 (EVOnet-WM2000 model)
to bracket 1 by using the screws. The
bracket 2 is sold separately.
Bracket 2 (EVOnet-WM2000)
Hexagon Socket Screw M5X30, 4EA
Bracket 1
S47762 EVOnet-RM2000 INSTALLATION MANUAL

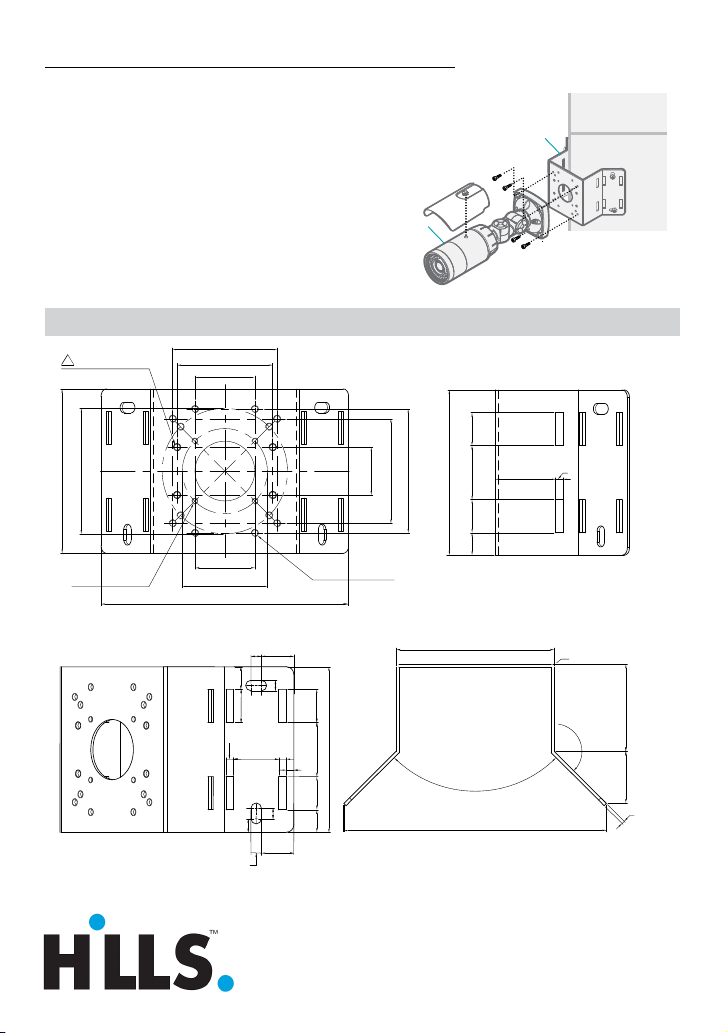

Connect your camera S45993 Evonet-C-A220-MZ3-9 Bullet Camera to the bracket as follows:
3 Mount the camera body onto bracket 1
by using the screws.
4 Turn on power.
Camera Body
Bracket 1
Dimensions Unit: mm (inch)
100 (3.94)
R2
135°
90°
55 (2.17)
32.86
(1.29)
165.71 (6.52) 2 (0.08)
40 (1.57) 5 (0.20)
15
(0.59)
22
(0.87)
36
(1.42)
22
(0.87)
110 (4.33)
36
(1.42)
22
(0.87)
110 (4.33)
7
721.5
7
30
(1.18)
5
5
5 (0.02)
9 (0.35)
21.5
(0.85)
7 (0.28)
15
(0.59)
15
22
22
40 (1.57)
70 (2.76)
70 (2.76)
83 (3.27)
12-TAP M5,TRUE
110 (4.33)
165.73 (6.52)
64 (2.52)
32 (1.26)
Ø 40 (1.57)
Ø 57 (2.24)
Ø 84 (3.31)
4-TAP M4, TRUE
14-TAP M5,TRUE
Ver.1.0
For more information on these and other best-in-class solutions
from Hills, call us on 1800 685 487 or visit hills.com.au
