Excell SK-VET Bedienungsanleitung

EXCELLPRECISION CO., LTD.

SK-VET V1.0 SME300000067

The information contained herein isthe propertyof Excell Precision Limited and is supplied

without liabilityfor errors or omissions.No part maybe reproduced or used except as

authorised bycontractor other written permission. The copyright and the foregoing

restriction on reproduction and useextend to all media in which the information maybe

embodied.

EXCELLPRECISION CO., LTD.

SK-VET V1.0 SME300000067

TABLE OF CONTENTS

BEFOREUSING THE SCALE..........................................................................................2

SAFTYINSTRUCTIONS...................................................................................................2

PREPARING TO USE THE SCALE..................................................................................3

CHAPTER 1 FEATURES AND SPECIFICATIONS..........................................................4

CHAPTER 2 DISPLAY......................................................................................................6

CHAPTER 3 KEYBOARD FUNCTION.............................................................................7

CHAPTER 4 SERVICE MODE ACCESS..........................................................................8

4-1. CAPACITY CONFIGURATION ....................................................................9

4-2. WEIGHT CALIBRATION .........................................................................12

4-3. FUNCTION SETTINGS ...........................................................................13

4-3-1 Environment Settings ................................................................14

4-3-2 Buzzer Type

..............................................................................16

4-4.SPAN CALIBRATION ..........................................................................................17

4-5.GRAVITY COMPENSATION ....................................................................................................18

CHAPTER 5 ADVANCED FUNCTIONS.........................................................................19

5-1. AUTO POWER OFF AND BACKLIGHT SETTINGS ......................................................................19

APPENDIX......................................................................................................................22

EXCELLPRECISION CO., LTD.

SK-VET V1.0 SME300000067

BEFORE USING THE SCALE

Thank you for purchasinganEXCELLElectronic Digital Scale. In ordertouse the

scale properly, please read this UserManual carefullybefore use. If you have a

problem concerning the scale, pleasecontact your supplier.

1. Please keep scale in a cool and dryplace. Do not store at high temperatures.

2. Do not allowanyliquids to come into or contact with the scale. If it ishappened, wipe the

scale drywith a cloth.

3. Avoid objectsimpacting with the scale. Do not drop loadsonto the scale or subject the

weigh pan to anystrong shock loads.

4. The load placed on the weigh pan must not exceed the maximum weighing capacityof

the scale.

5. If the scale is not going to be used for some time, please clean it and store it in a plastic

bag in dryconditions. Adesiccant sachet maybe included to prevent moisture build up.

6. Do not mixdifferent types of drybatteryor mixused drybatterieswith newdrybatteries.

SAFTYINSTRUCTIONS

1. Please confirm that the electrodes “+”“-”are on the right position.

2. To avoid the electric leakage, please do not place the batteryin high temperature, or try

to disassemble it.

3. Please do not mixdifferent type of drycells。

4. Please do not use newand old drycells at the same time.

5. Please do not leave the emptydrycells in the scale.

EXCELLPRECISION CO., LTD.

SK-VET V1.0 SME300000067

PREPARING TO USE THE SCALE

1. For accurate weight readings locate the scale on a firm level surface free from vibrations.

2. Avoid operating the scale in direct sunlight ordrafts of anykind.

3. Remove anyweight that might be on the weigh pan before the scale is switched on and

avoid leaving weight on the pan for long periods of time.

4. Once the scale has been switched on, it will go through a LCD displaytest and then

re-zero to be readyfor use.

5. The scale requires 15~20 minutes warming up the machine before operation to ensure

best accuracy.

6. Please note when symbol appears on the screen, the drybatteries need to be

replaced.

7. All goods weighed should be placed in the centre of the weigh pan for accurate weighing.

The overall dimensions ofthe goods being weighed should not exceed the dimension of

the weigh pan.

EXCELLPRECISION CO., LTD.

SK-VET V1.0 SME300000067

CHAPTER 1 FEATURESAND SPECIFICATIONS

Features:

nMulti-function operation: Fast weighing operation; Full range tare; Auto power-off; Weight

hold feature.

nDual-weighing units: Pound (lb) and kilogram (kg).

nUser-friendlydesign: Auto calibration; Large LCD display(digit height 12mm x25mm);

Gravitycompensation; Lowbatterywarning indicator; Double over-load protection.

nDual-powersource: The power source can either be from AC / DC or drybatteries.

Option:

nLED displaybacklight

Specifications:

Model CapacityMin. Cap. Division Resolution

SK-VET-150 150kg 1kg 50g 1/3000

SK-VET-300 300kg 2kg 100g 1/3000

Operating Temperature 0°C ~ 40°C (32°F~ 104°F)

Power Source 4 xAAA drybatteryor AC mains adaptor DC 9V

Weight pan Size 570 x900 mm (Iron platter)

Product Package:

nScale 1 off

nAC adapter 1 off

nUser manual 1 off

nPlease contact to your supplier, ifanyofthe items described above is missing.

nDrybatteries are not included in the product package.

EXCELLPRECISION CO., LTD.

SK-VET V1.0 SME300000067

SelectableWeightUnitsand PieceUnit:

Kilogram (kg) 1 g =0.001 kg

Gram (g) 1 g =1 g

Pound (lb) 1 g =0.002204623 lb

Pound/Ounce

(lb, oz)1 g =0.03527396 oz

Ounce (oz)1 g =0.03527396 oz

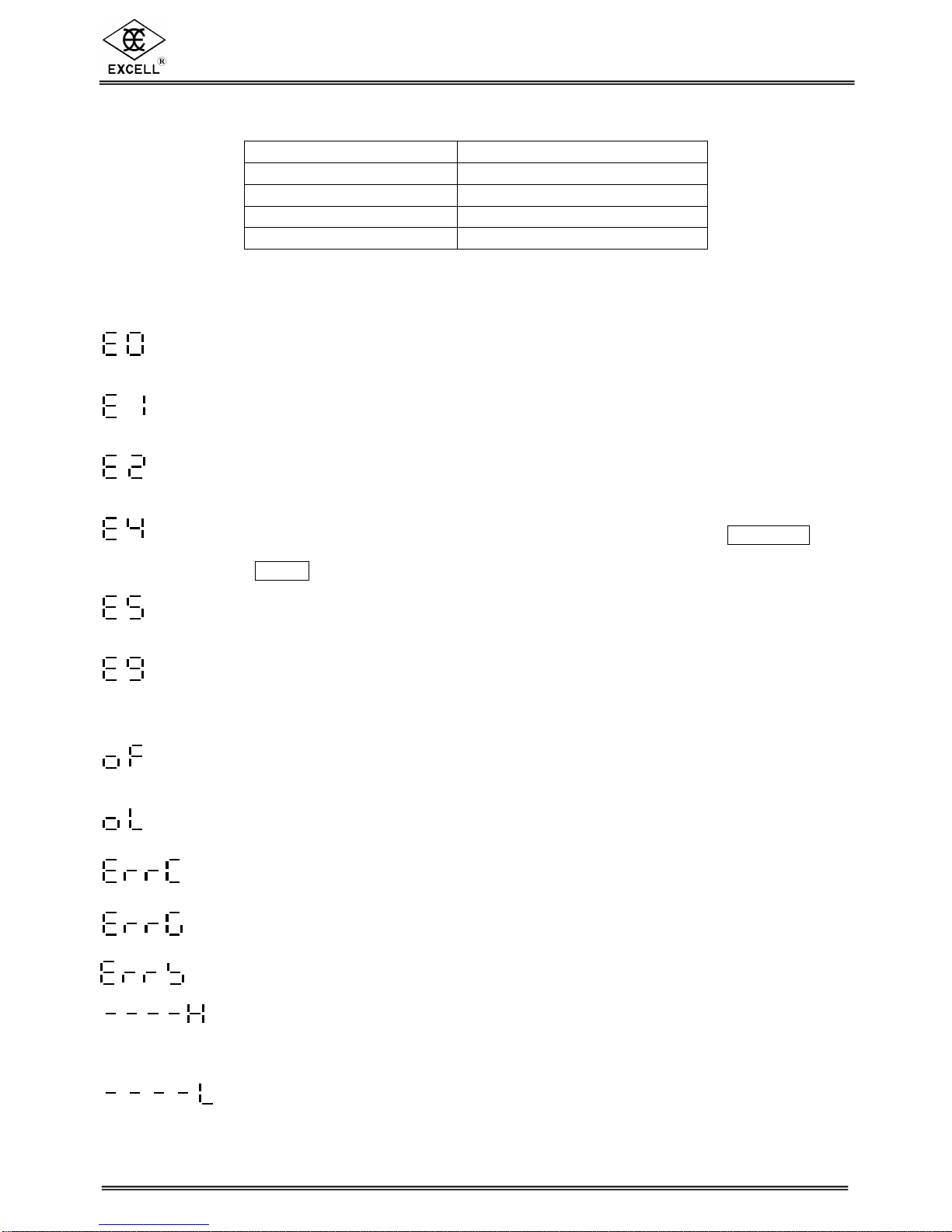

Error Messages:

⇒The EEPROMmemoryis not working correctly.

⇒Zero is higher than the zero range when switching the scale on.

⇒Zero is lower than the zero range when switching the scale on.

⇒A/D value is unstable. When switching the scale on or pressing the ON/ZERO

key

or the TARE key,the A/D value is unstable for at least 20 seconds.

⇒A/D value is less than -31250.

⇒A/D IC malfunction (cannot read A/D value). The load cell maynot be connected to

the scale correctly.

⇒A/D value is higher than +31250.

⇒The weight of the object is over the maximum capacity+ 9 divisions.

⇒After calibration the displayed resolution is greater than the internal resolution.

⇒The gravityvalue is outside the range 9.772 ~ 9.829.

⇒Error setting.

⇒The weight value is greater than the zero range, when re-zeroing the

scale.

⇒The weight value is belowthe zero range, when re-zeroing the scale.

EXCELLPRECISION CO., LTD.

SK-VET V1.0 SME300000067

CHAPTER 2 DISPLAY

TARE: “Tare”indication.

ZERO: “Zero”indication.

1: Kilogram (kg), the 1st unit indication.

2: Pound (lb), the 2nd unit indication.

3: Hold mode indication.

:“LowBattery”indication.

EXCELLPRECISION CO., LTD.

SK-VET V1.0 SME300000067

CHAPTER 3 KEYBOARD FUNCTION

OFF

:The keyto switch the scale off.

ZERO : ON/ZERO key.When the scale is off, press the keyto switch it on. When the

scale is switched on, with the weigh pan empty, ifthe displayis not showing zero, press this

keyto zero (balance) the scale.

vZero range: ±2% offull scale.

TARE

:TARE key. Press the keyto deduct the weight of the container.

vThe tare keyis not functional when the weight value shown on the displayis negative or

over the full scale capacity.

UNITS

: Units key.Press the keyto select the desired weight unit.

HOLD

: Shift between the normal weighing mode and the Animal Weight Hold mode.

EXCELLPRECISION CO., LTD.

SK-VET V1.0 SME300000067

CHAPTER 4 SERVICE MODE ACCESS

vSet thejumperSWA1 onthe mainboard to theADJ position (EEPROM

UNLOCKED). Press and hold the TARE key, followed by pressingthe

/ZERO

key.Releasethe ON

/ZERO

keyfirst and then the TARE keyto

entertheservice mode; thedisplayshows .

vSet theSWA1jumper back to theLOCK position when service configurationis

completed.

vIf theSWA1jumperissettoitsLOCKpositionduringcalibration,thescaleexits

the service mode automatically.

⇒CapacityConfiguration

⇒Weight Calibration

⇒Function Settings

Press the

ON/ZERO

key

Press the

UNITS

key

Press the

ON/ZERO

key

Press the

ON/ZERO

key

Press the

UNITS

key

Press the

UNITS

key
