TABLE OF CONTENTS

Description Page

Cutter Housing Assembly ................................................9

42” Deck Group............................................................3-4

48” Deck Group............................................................5-6

52” Deck Group............................................................7-8

Decal Group ..................................................................20

Electrical Diagram..........................................................22

Electrical Group.............................................................21

Electrical Logic Schematic.............................................23

Engine Group ................................................................17

Frame Group............................................................10-11

Fuel Group.....................................................................16

Motion Control Group ...............................................12-13

Seat Group...............................................................14-15

Transaxle Assembly ......................................................19

Transaxle Group............................................................18

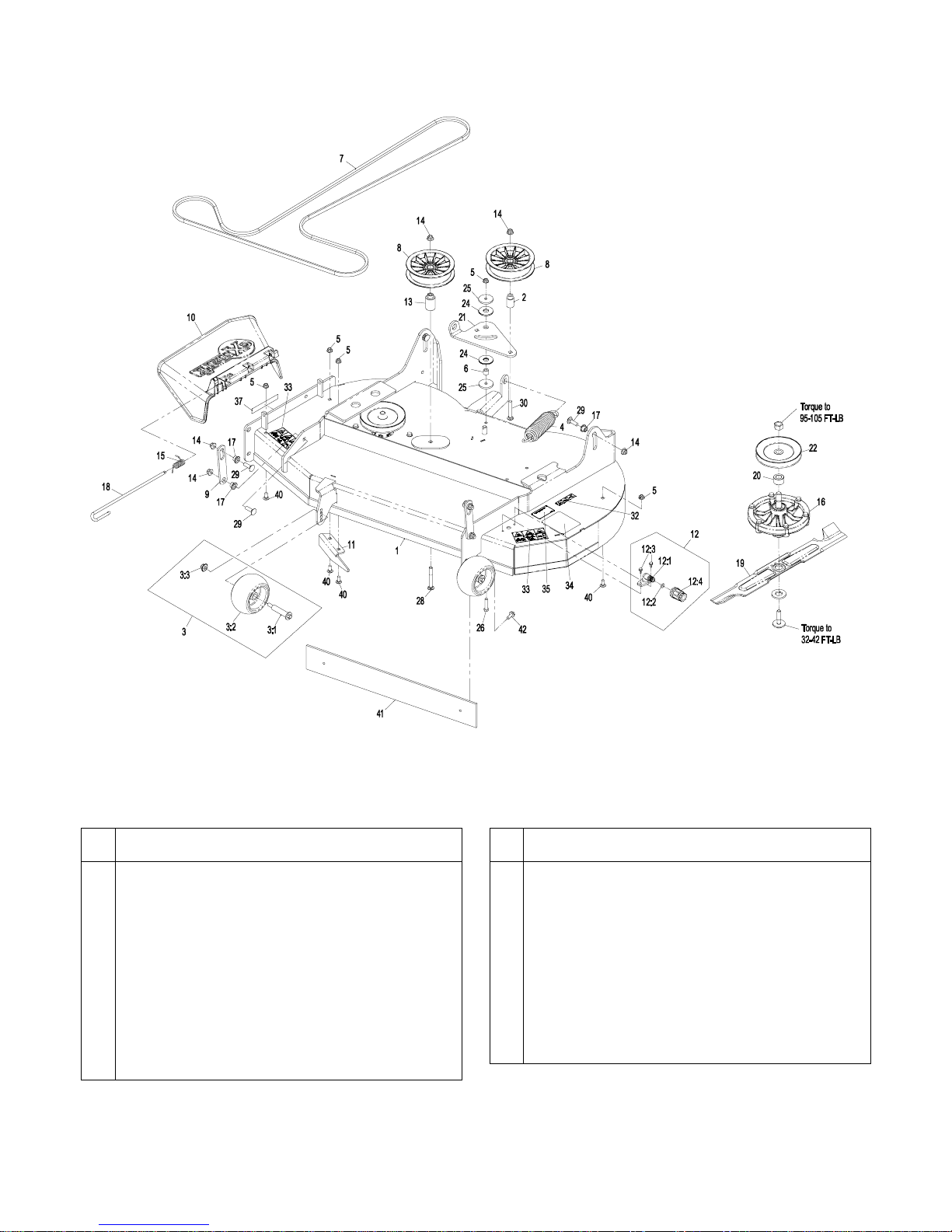

42” DECK GROUP

-3-

Item Part No. Description Qty.

1 109-9971 Asm, Deck W/ Decals ............................1

2 1-413113 Bushing-Idler..........................................1

3 109-6388 Kit, Anti-Scalp Roller..............................2

3:1 112-3977 Bolt, Shoulder ........................................1

3:2 1-603299 Roller-Scalp, Anti...................................1

3:3 104-8301 Nut, Nyloc 3/8-16 Flg .............................1

4 103-3330 Spring, Extension...................................1

5 104-8300 Nut, Nyloc 5/16-18 Flg ...........................5

6 108-1479 Spacer ...................................................1

7 108-6645 Belt-V.....................................................1

8 109-0977 Pulley, Idler 5"........................................2

9 109-3410 Hanger, Deck.........................................2

10 109-5151 Deflector, Discharge...............................1

Item Part No. Description Qty.

11 109-5498-03 Baffle, Discharge ...................................1

12 109-6393 Washout Port Kit....................................1

12:1 95-2747 Fitting-Washout......................................1

12:2 46-6290 O-Ring...................................................1

12:3 93-6083 Screw, HWH 1/2-20 x 1/2 Taptite...........2

12:4 95-3270 Connector-Hose.....................................1

13 109-6572 Bushing-Idler .........................................1

14 104-8301 Nut, Nyloc 3/8-16 Flg.............................8

15 109-6886 Spring-Torsion.......................................1

16 109-8744 Complete Cutter Housing Asm...............2

17 109-8788 Bushing-Flanged....................................6

18 109-8854 Pin-Chute...............................................1

Exmark black touch up spray paint – gloss black.

Exmark red touch up paint (spray paint - P/N 1-850337 - .6 oz liquid bottle - P/N 103-9140).

VIncludes all item shown on pages 3, 4 & 7. Does not include struts or strut hardware.

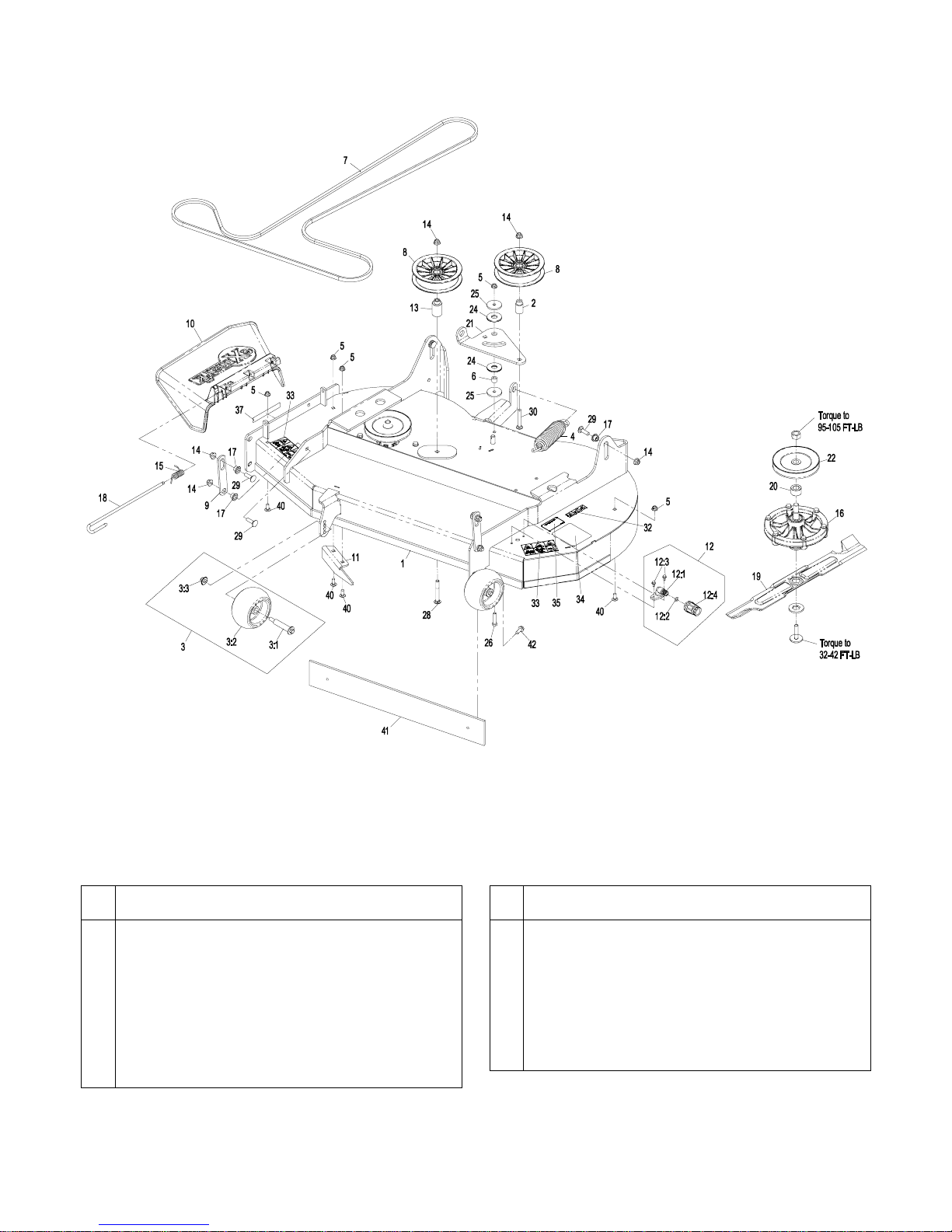

42” DECK GROUP (cont.)

-4-

Item Part No. Description Qty.

19 109-9982 Blade, High Lift Notched.........................2

20 109-9993 Spacer, Deck Sheave ............................2

21 109-9996-03 Arm, Idler...............................................1

22 110-6864 Pulley.....................................................2

24 114-0463 Washer-Friction, Composite...................2

25 115-2455 Spacer ...................................................2

26 322-7 Screw, HH 5/16-18 x 1 1/2.....................1

28 109-6868 Bolt, Carriage 3/8-16 x 3........................1

29 3231-25 Bolt, Carriage 3/8-16 x 1 1/4 ..................6

30 3231-31 Bolt, Carriage 3/8-16 x 2 1/2 ..................1

Item Part No. Description Qty.

32 109-6459 Decal-Warning, Belt Shield....................2

33 110-6691 Decal-Danger ........................................2

34 109-6036 Decal-Roller, Anti-Scalp.........................1

35 116-0533 Decal, Blade Torque..............................1

37 93-7009 Decal-Danger, Deflector ........................1

40 3230-23 Bolt, Carriage 5/16-18 x 3/4, short neck 4

41 116-1557-03 Weight...................................................1

42 32144-41 Screw, HWH 3/8-16 x 7/8 Taptite...........2

V109-9970 Asm, 42 Deck Complete

Exmark black touch up spray paint – gloss black.

VIncludes all item shown on pages 3, 4 & 9. Does not include struts or strut hardware.

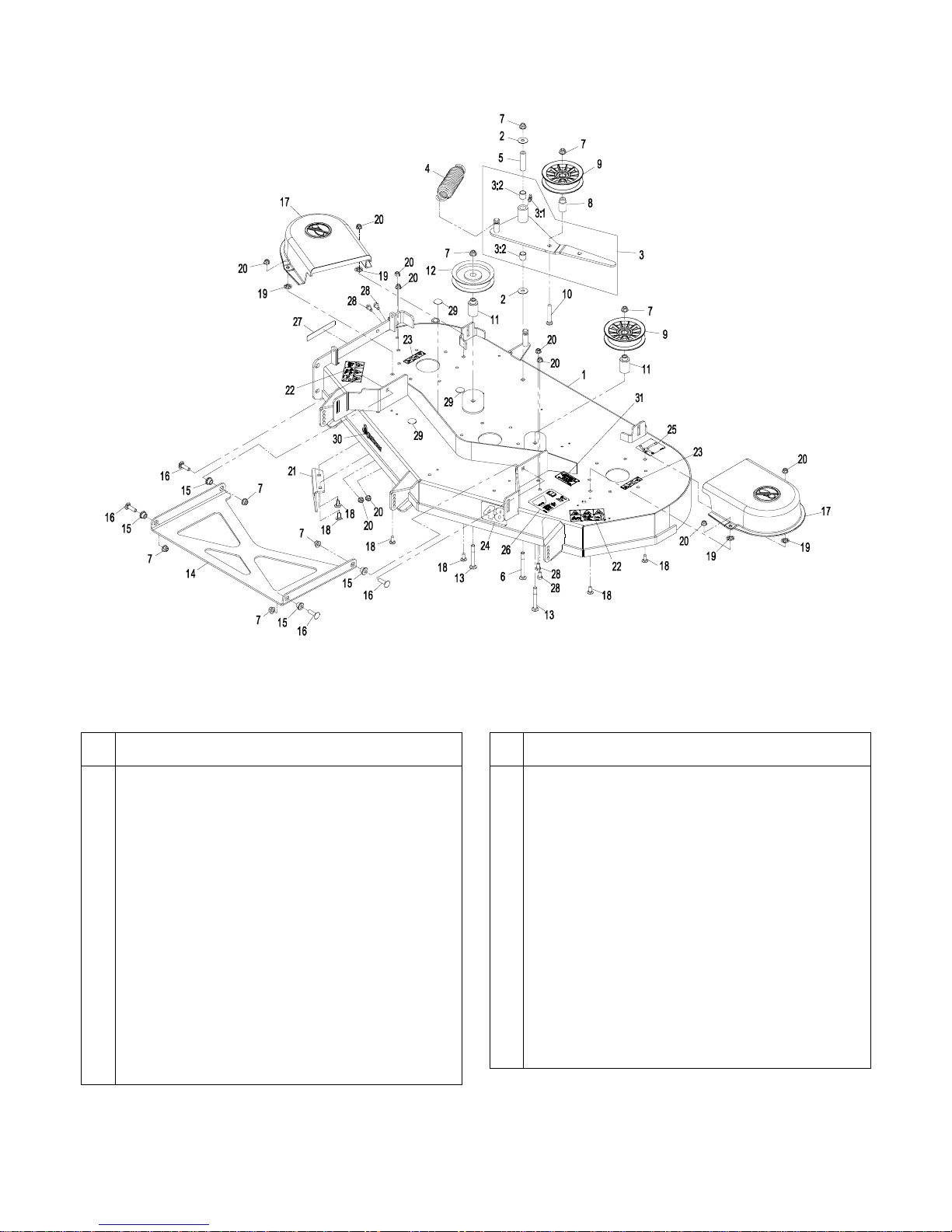

48” DECK GROUP

-5-

Item Part No. Description Qty.

1 109-6253 Asm, Deck W/Decals (Red)....................1

116-0544 Asm, Deck W/Decals (Black)..................1

2 52-2860 Washer ..................................................2

3 109-9158 Asm, Idler Arm W/Bearings....................1

3:1 302-40 Zerk, 90° 1/4-28.....................................1

3:2 1-513034 Bearing ..................................................2

4 103-3330 Spring, Extension...................................1

5 1-603384 Bushing..................................................1

6 3231-11 Bolt, Carriage 3/8-16 x 3 1/2 ..................1

7 104-8301 Nut, Nyloc 3/8-16 Flg .............................8

8 1-413113 Bushing..................................................1

9 109-8891 Asm, Pulley and Bearing........................2

10 3231-31 Bolt, Carriage 3/8-16 x 2 1/2 ..................1

11 109-6572 Bushing..................................................2

12 1-603843 Pulley, Idler............................................1

13 109-6868 Bolt, Carriage 3/8-16 x 3........................2

14 109-3723-01 Strut, Deck (Red) ...................................1

109-3723-03 Strut, Deck (Black).................................1

15 109-8788 Bushing, Flanged...................................4

Item Part No. Description Qty.

16 3231-25 Bolt, Carriage 3/8-16 x 1 1/4..................4

17 109-3449 Shield, Belt ............................................2

18 3230-23 Bolt, Carriage 5/16-18 x 3/4 Short Neck.6

19 109-5667 Ring, Bolt Retaining...............................4

20 104-8300 Nut, Nyloc 5/16-18 Flg...........................10

21 109-5498-03 Baffle, Discharge ...................................1

22 110-6691 Decal, Danger........................................2

23 109-6459 Decal, Belt Shield Warning ....................2

24 109-6034 Decal, Deck 48......................................1

25 109-6035 Decal, Belt Routing................................1

26 109-6036 Decal, Anti-Scalp Roller.........................1

27 93-7009 Decal, Danger........................................1

28 322-2 Screw, HH 5/16-18 x 5/8........................4

29 109-9159 Decal, Hole Cover..................................3

30 1-303520 Decal, Trivantage...................................1

31 116-0533 Decal, Blade Torque..............................1

V109-8745 Asm, 48 Deck Complete (Red)

V116-0545 Asm, 48 Deck Complete (Black)

Exmark black touch up spray paint – gloss black.

Exmark red touch up paint (spray paint - P/N 1-850337 - .6 oz liquid bottle - P/N 103-9140).

VIncludes all item shown on pages 5, 6 & 9. Does not include struts or strut hardware.

48” DECK GROUP (cont.)

-6-

Item Part No. Description Qty.

1 109-6388 Kit, Anti-Scalp Roller..............................3

1:1 112-3977 Bolt, Shoulder ........................................1

1:2 1-603299 Roller, Anti-Scalp...................................1

1:3 104-8301 Nut, Nyloc 3/8-16 Flg .............................1

2 109-8744 Asm, Cutter Housing Complete..............3

3 103-6401 Blade, Notched ......................................3

Q109-6389 Blade. Mulch..........................................3

109-6391 Blade, High Lift.......................................3

4109-3747 Sheave, Blade Drive ..............................3

5 109-3410 Hanger, Deck.........................................4

6 109-8788 Bushing, Flanged...................................8

Item Part No. Description Qty.

7 3231-25 Bolt, Carriage 3/8-16 x 1 1/4..................8

8 104-8301 Nut, Nyloc 3/8-16 Flg.............................8

9 109-5364 Belt........................................................1

10 109-6393 Kit, Washout Port...................................1

10:1 95-2747 Fitting, Washout Port .............................1

10:2 46-6290 O-Ring...................................................1

10:3 93-6083 Screw, HWH 1/2-20 x 1/2 Taptite...........2

10:4 95-3270 Connector, Hose....................................1

13 109-8854 Pin, Chute..............................................1

14 109-6886 Spring....................................................1

15 109-5151 Chute, Deflector.....................................1

Exmark red touch up paint (spray paint - P/N 1-850337 - .6 oz liquid bottle - P/N 103-9140).

Apply Mobil HTS grease (P/N 103-5217 1.5 oz packet) (or a food-grade anti-seize) between the spindles & sheaves.

DO NOT use a copper or nickel based anti-seize.

QRequires installation of Micro-Mulch accessory for proper mulching. Mulch kit P/N 109-5980.

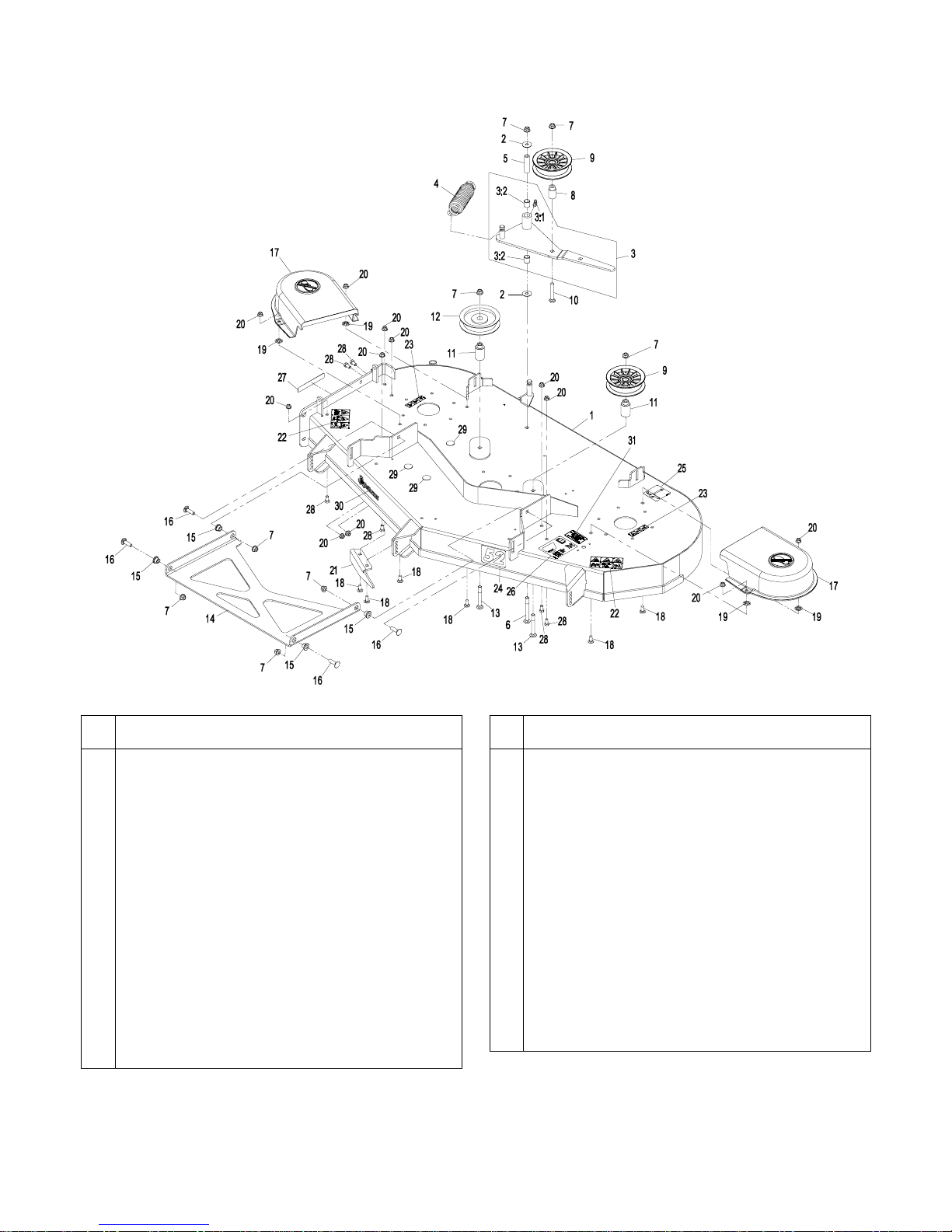

52” DECK GROUP

-7-

Item Part No. Description Qty.

1 109-6254 Asm,52 Deck W/ Decals (Red)...............1

116-0555 Asm,52 Deck W/ Decals (Black).............1

2 52-2860 Washer ..................................................2

3 109-9158 Asm, Idler Arm W/Bearings....................1

3:1 302-40 Zerk, 90° 1/4-28.....................................1

3:2 1-513034 Bearing ..................................................2

4 103-3330 Spring, Extension...................................1

5 1-603384 Bushing..................................................1

6 3231-11 Bolt, Carriage 3/8-16 x 3 1/2 ..................1

7 104-8301 Nut, Nyloc 3/8-16 Flg .............................8

8 1-413113 Bushing..................................................1

9 109-8891 Asm, Sheave and Bearing......................2

10 3231-31 Bolt, Carriage 3/8-16 x 2 1/2 ..................1

11 109-6572 Bushing..................................................2

12 1-603843 Pulley, Idler............................................1

13 109-6868 Bolt, Carriage 3/8-16 x 3........................2

14 109-3723-01 Strut, Deck (Red) ...................................1

109-3723-03 Strut, Deck (Black).................................1

15 109-8788 Bushing, Flanged...................................4

Item Part No. Description Qty.

16 3231-25 Bolt, Carriage 3/8-16 x 1 1/4..................4

17 109-3449 Shield, Belt ............................................2

18 3230-23 Bolt, Carriage 5/16-18 x 3/4 Short Neck.6

19 109-5667 Ring, Bolt Retaining...............................4

20 104-8300 Nut, Nyloc 5/16-18 Flg...........................12

21 109-5498-03 Baffle, Discharge ...................................1

22 110-6691 Decal, Danger........................................2

23 109-6459 Decal, Belt Shield Warning ....................2

24 109-6033 Decal, Deck 52......................................1

25 109-6035 Decal, Belt Routing................................1

26 109-6036 Decal, Anti-Scalp Roller.........................1

27 93-7009 Decal, Danger........................................1

28 322-2 Screw, HH 5/16-18 x 5/8........................6

29 109-9159 Decal, Hole Cover..................................3

30 1-303520 Decal, Trivantage...................................1

31 116-0533 Decal, Blade Torque..............................1

V109-8746 Asm,52 Deck Complete (Red)

V116-0556 Asm,52 Deck Complete (Black)

Exmark black touch up spray paint – gloss black.

Exmark red touch up paint (spray paint - P/N 1-850337 - .6 oz liquid bottle - P/N 103-9140).

VIncludes all item shown on pages 7, 8 & 9. Does not include struts or strut hardware.

52” DECK GROUP (cont.)

-8-

Item Part No. Description Qty.

1 109-6388 Kit, Anti-Scalp Roller..............................3

1:1 112-3977 Bolt, Shoulder........................................1

1:2 1-603299 Roller, Anti-Scalp...................................1

1:3 104-8301 Nut, Nyloc 3/8-16 Flg .............................1

2 109-8744 Asm, Cutter Housing Complete..............3

3 103-6402 Blade, Notched 18.0 ..............................3

Q109-6390 Blade. Mulch..........................................3

109-6392 Blade, High Lift ......................................3

4109-3671 Sheave, Blade Drive ..............................3

5 109-3410 Hanger, Deck.........................................4

6 109-8788 Bushing, Flanged...................................8

Item Part No. Description Qty.

7 3231-25 Bolt, Carriage 3/8-16 x 1 1/4..................8

8 104-8301 Nut, Nyloc 3/8-16 Flg.............................8

9 109-3661 Belt........................................................1

10 109-6393 Kit, Washout Port...................................1

10:1 95-2747 Fitting, Washout Port .............................1

10:2 46-6290 O-Ring...................................................1

10:3 93-6083 Screw, HWH 1/2-20 x 1/2 Taptite...........2

10:4 95-3270 Connector, Hose....................................1

13 109-8854 Pin, Chute..............................................1

14 109-6886 Spring....................................................1

15 109-5151 Chute, Deflector.....................................1

Exmark red touch up paint (spray paint - P/N 1-850337 - .6 oz liquid bottle - P/N 103-9140).

Apply Mobil HTS grease (P/N 103-5217 1.5 oz packet) (or a food-grade anti-seize) between the spindles & sheaves. DO NOT

use a copper or nickel based anti-seize.

QRequires installation of Micro-Mulch accessory for proper mulching. Mulch kit P/N 109-5982.

CUTTER HOUSING ASSEMBLY

-9-

Item Part No. Description Qty.

1 109-9380 Asm, Cutter Housing..............................1

1:1 62-3661 Spacer, Bearing.....................................1

1:2109-9379 Bearing, Ball ..........................................2

2 80-4380 Spacer...................................................1

3 80-4360 Shield, Bearing ......................................1

Item Part No. Description Qty.

4 109-7431 Spindle, Hex Pilot ..................................1

5 109-7429 Washer, Blade Drive..............................1

6 116-0005 Bolt, Sems Blade...................................1

7 3219-6 Nut, Hex 5/8-18......................................1

8 32144-41 Screw, HWH 3/8-16 x 7/8 Taptite...........6

Apply Mobil HTS grease (P/N 103-5217 1.5 oz packet) (or a food-grade anti-seize) between the spindle & bearings. DO NOT

use a copper or nickel based anti-seize.

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Exmark Rasenmäher Handbücher

Exmark

Exmark Turf Ranger TR23KC Bedienungsanleitung

Exmark

Exmark TURF TRACER X-SERIES LP Operators Bedienungsanleitung

Exmark

Exmark QUEST SP Operators Bedienungsanleitung

Exmark

Exmark Turf Tracer TT20KCC Bedienungsanleitung

Exmark

Exmark Turf tracer HP Bedienungsanleitung

Exmark

Exmark M216KA, M216KASP Bedienungsanleitung

Exmark

Exmark LAZER ZTM Bedienungsanleitung

Exmark

Exmark Viking Hydro VH15KA362 Bedienungsanleitung

Exmark

Exmark Frontrunner FR25KD Bedienungsanleitung

Exmark

Exmark QSS708GEM42200 Bedienungsanleitung

Exmark

Exmark Metro 21 Series Bedienungsanleitung

Exmark

Exmark METRO Handbuch

Exmark

Exmark Turf tracer Bedienungsanleitung

Exmark

Exmark Metro HP Bedienungsanleitung

Exmark

Exmark Quest QST24BE522 Bedienungsanleitung

Exmark

Exmark LAZER Z PROPANE LZS740PKC524 Bedienungsanleitung

Exmark

Exmark LAZER Z ADVANTAGE SERIES Bedienungsanleitung

Exmark

Exmark Laser Z XS Bedienungsanleitung

Exmark

Exmark Metro 26 Bedienungsanleitung

Exmark

Exmark Advantage Series 4500-466 Bedienungsanleitung

Exmark

Exmark Lazer Z HP Produkthandbuch

Exmark

Exmark Metro 21 Series Handbuch

Exmark

Exmark Metro 4500-352 Bedienungsanleitung

Exmark

Exmark Ultra Vac QDS Laser Z Bedienungsanleitung

Beliebte Rasenmäher Handbücher anderer Marken

RHINO

RHINO 1958 Bedienungsanleitung

Wolf Garten

Wolf Garten Compact plus 40 B Bedienungsanleitung

Cub Cadet

Cub Cadet LTX 1045 Bedienungsanleitung

Craftsman

Craftsman 917.378461 Bedienungsanleitung

GGP ITALY SPA

GGP ITALY SPA CR/CS 434 SERIES Bedienungsanleitung

Challenge

Challenge CH18V2 Betriebsanleitung

TALEN TOOLS

TALEN TOOLS AVR HGM30 Bedienungsanleitung

DEWEZE

DEWEZE ATM-725 Bedienungsanleitung

Weed Eater

Weed Eater 180083 Bedienungsanleitung

Husqvarna

Husqvarna Poulan Pro PP185A42 Bedienungsanleitung

Better Outdoor Products

Better Outdoor Products Quick Series Bedienungsanleitung

Cub Cadet

Cub Cadet 23HP Z-Force 60 Betriebsanleitung

MTD

MTD 795, 792, 791, 790 Bedienungsanleitung

Toro

Toro Groundsmaster 3505-D Bedienungsanleitung

Dennis

Dennis FT 610 Bedienungsanleitung

AIRFORCE

AIRFORCE F-15 Gen 3 Bedienungsanleitung

MTD

MTD 126-220-000 Bedienungsanleitung

Toro

Toro 74806 Bedienungsanleitung
