EXPERT GRILL XG1910200103 Installationsanleitung

Vendor Stock NO.: XG1910200103

24-INCH HEAVY-DUTY CHARCOAL GRILL

ASSEMBLY INSTRUCTION MANUAL

FOR OUTDOOR USE ONLY.

PLEASE READ INSTRUCTIONS CAREFULLY BEFORE ASSEMBLY

RETAIN THIS MANUA FOR FUTURE REFERENCE.

If you have any or problems, you can our customer

service at from 8:00am to

4:30pm eastern , Monday through Friday for assistance.

DO NOT RETURN TO THE PLACE OF PURCHASE.

Parts List with graphic

No. Descripon Part Image QTY Part#

1 ※Temperature

Gauge 1pc 17221701

2 ※Lid Decorave

Plate 1pc 17221702

3 Hood Assembly 1pc 17221703

4 Upper Hood

Hinge 2pcs 17221704

5 Warming Rack 1pc 17221705

6 Cooking Grid 2pcs 17221706

7 Lower Hood

Hinge 2pcs 17221707

8 Fire Box Back

Panel 1pc 17221708

9 Fire Box Le

Panel 1pc 17221709

10 LeShaSupport

Bracket 1 pc 17221710

No.DescriptionPartImageQTYPart#

11

FireBoxFront

Panelwith

charcoaldoor

(pre‐assembled)

1pc17221711

12ButterflyDamper4pcs17221712

13※Butterfly

DamperHandle4pcs17221713

14AshPan1pc17221714

15※AshPan

DecorativePlate1pc17221715

16※LargePipePlug4pcs17221716

17LeftBackLeg1pc17221717

18LeftFrontLeg1pc17221718

19CartHandle1pc17221719

20LegEndCap2pcs17221720

No. Part Image QTY Part#

21 Hood Handle 1pc 17221721

22 Spacers 4pcs 17221722

23 Charcoal Tray 1pc 17221723

24 Assembly 1pc 17221724

25 Right Sha

Support Bracket 1pc 17221725

26 Fire Box Right

Panel 1pc 17221726

27 ※Handle Locking

Bracket 1pc 17221727

28 Crank Handle 1pc 17221728

29 ※Handle Grip 2pcs 17221729

30 Side Shelf 1pc 17221730

No. Descripon Part Image QTY Part#

31 Door Locking

Lever 1pc 17221731

32 Trim 1pc 17221732

33 Charcoal Door

Handle 1pc 17221733

34 Ash Pan Handle 1pc 17221734

35 Bole Opener 1pc 17221735

36 Right Front Leg 1pc 17221736

37 Right Back Leg 1pc 17221737

38 Wheel 2pcs 17221738

39 Axle 1pc 17221739

40 Boom Shelf 1pc 17221740

※：NO ASSEMBLY REQUIRED

HARDWAREKIT

ASSEMBLYPREPARATION

Beforebeginningassemblyofproduct,makesureallpartsarepresent.Inspectcontentsofboxto

makesureallpartsareincludedandnotdamaged.Ifanypartismissingordamaged,donot

attempttoassembletheproduct.

NOTE:Somepartscomewithscrewspre‐installed.Loosenandtightenforfinalassembly.

EstimatedAssemblyTime:1hourbytwopeople

Toolsrequiredforassembly:

*PhillipsHeadScrewdriver1pc(notincluded);

*Wrench 1pc(notincluded)

*Plier 1pc(notincluded)

No.DescriptionPartImageQTY

AM6x12mmScrew22pcs

BM6x35mmScrew8pcs

CM6ShoulderScrew4pcs

DM10Nut1pc

EHingePin2pcs

FCotterPin2pcs

ASSEMBLYINSTRUCTIONS

IMPORTANT:ASSEMBLEONFLATANDSOFTSURFACETOAVOIDSCRATCHING.

1. Loosenpre‐assembledScrewsandleavethescrewheadsprotrudingapproximately1/5 inch.

Hangthesidepanelsontothescrewsandtightenthemasshown.

2. PutLegEndCap(20)intoLeftBackLeg(17)andLeftFrontLeg(18).

MakesuretheLegEndCapislockedintothesquareholeonthelegs.

3. Use8pcsAscrewstoattachlegstoeachcorneroftheFireboxasshown.



4. Use4pcsAScrewstoattachtheBottomShelf(40)tothe4Legs.

.



AM6X12mmScrewX 4

AM6X12mmScrewX 8

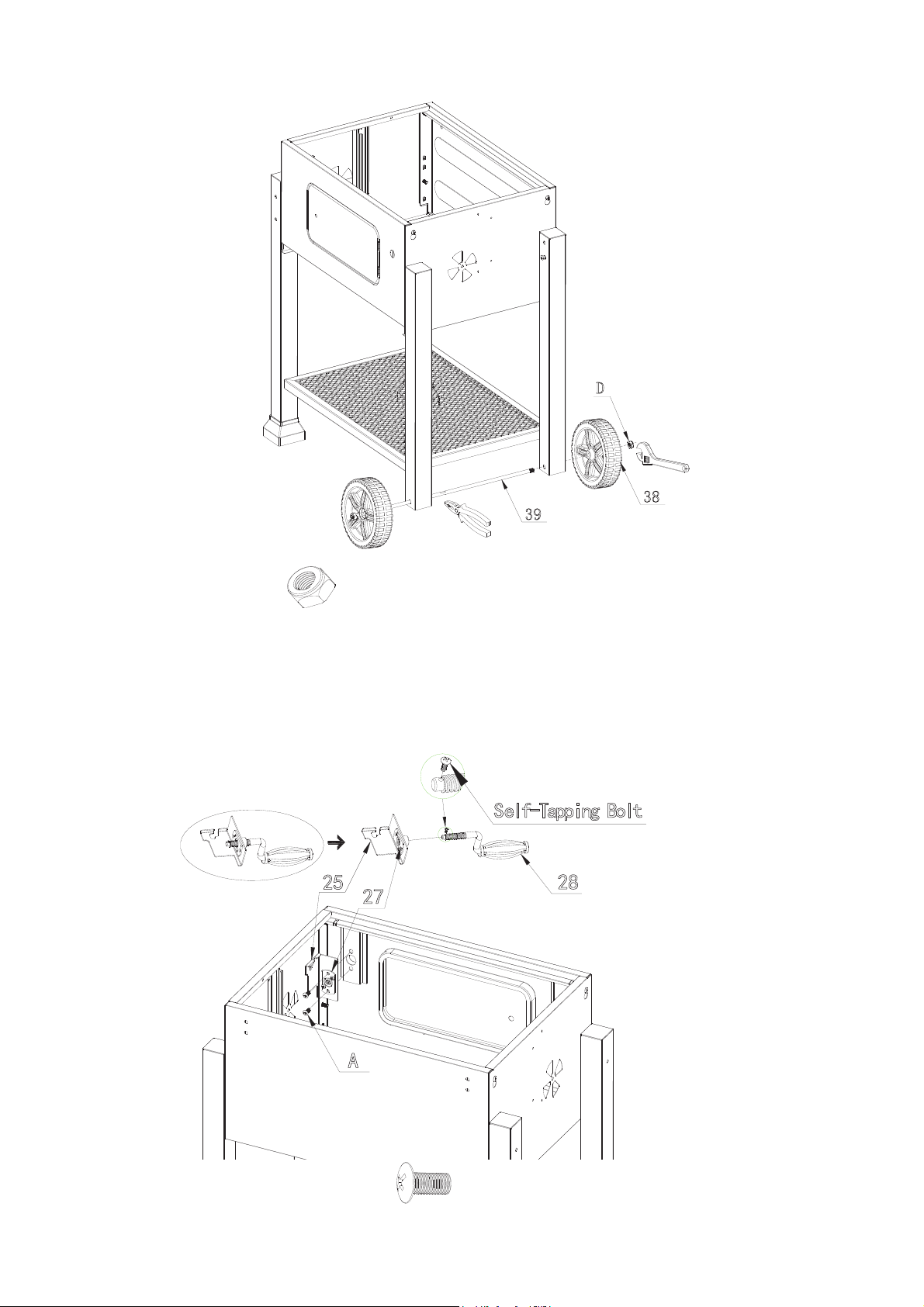

5. Thread Axle (39) through the Wheels (38), Right LeLeg and Right Back Leg, and then fasten

D Nut as shown.

6. Remove the pre-assembled Self-Tapping Bolt from the p of Crank Handle and loosen the

handle from the bracket.

Use 2pcs A Screws to aach the Right Sha Support Bracket (25) together with Handle Locking

Bracket (27) from inside of Firebox front panel.

Note: Retain the removed Self-Tapping Bolt for use in next step.

D M10 NUT X 1

A M6X12 mm Screw X 2

Self-Tapping Bolt

25 27

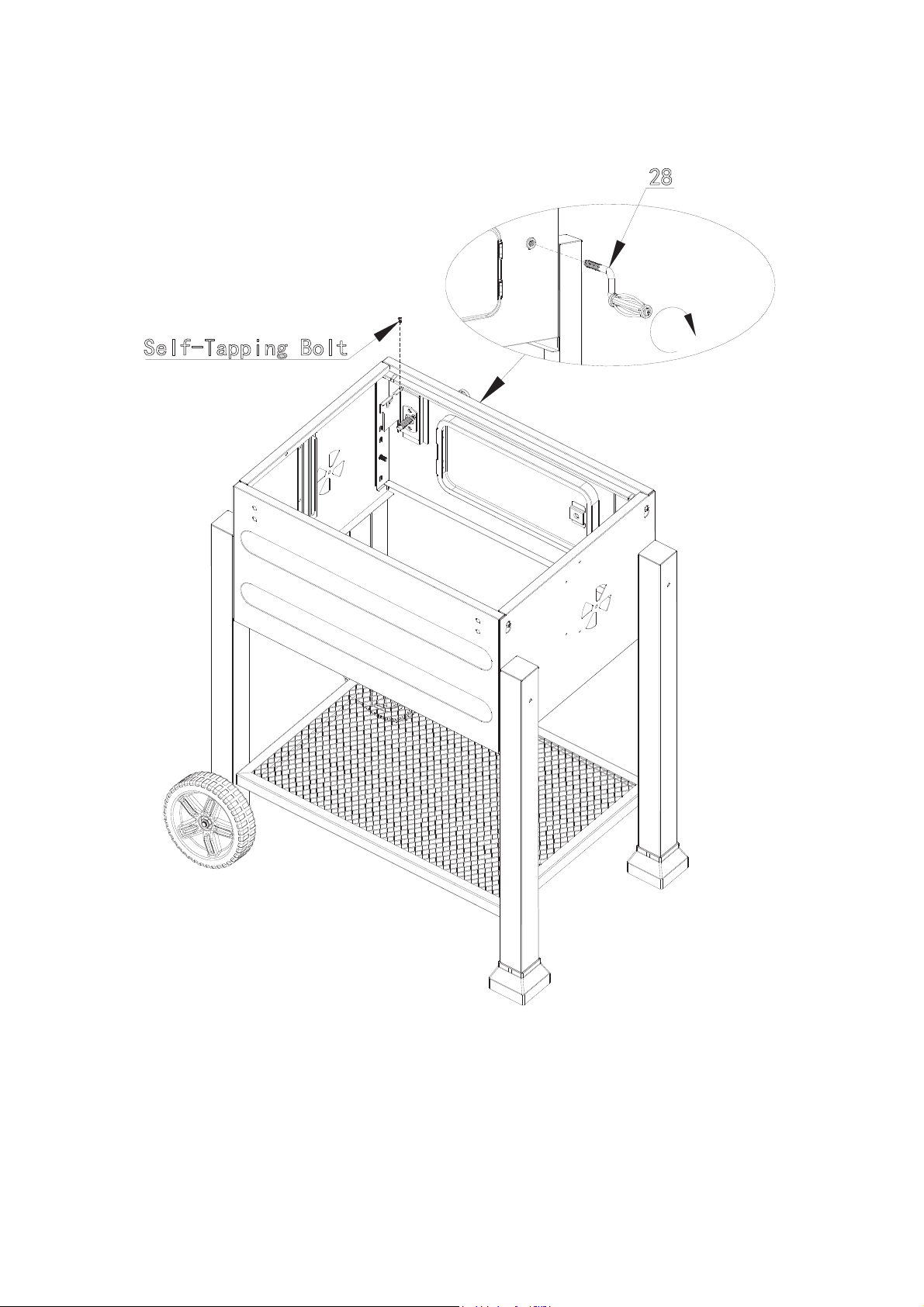

7. Rotate the Crank Handle (28) into the hole of the front panel and then fasten the Self-Tapping

Bolt to the end of the Crank Handle (28).

Note: Make sure to rotate the crank handle counterclockwise completely to the end.

Self-Tapping Bolt
