Extech Instruments TH10 Bedienungsanleitung

USER MANUAL

Temperature Datalogger

Model TH10

2 TH10A-en-US_V2.18/22

Introduction

Thank you for selecting the Extech Instruments Model TH10 Temperature Datalogger that measures

and stores up to 32,000 temperature readings. The user can easily set up the logging rate, high/low

alarm limits start-mode, and download the stored data by plugging the module into a PC's USB port

and running the supplied PC software. Temperature data can then be graphed, printed, and

exported to other applications. The data logger is supplied with a long-life lithium battery, which

can typically allow logging for one year. This device is shipped fully tested and calibrated and, with

proper use, will provide years of reliable service. Please visit our website (www.extech.com) to

check for the latest version of this User Guide, Product Updates, and Customer Support.

Features

Memory for 32,000 readings

Selectable data sampling rate: 2s to 30s, 1m, 5m, 15m, 30m, 1hr, 5hr, 12hr, 24hr

Status Indication via Red/Yellow LED and Green LED

USB Interface for Set-up and Data Download

User-Programmable Alarm Thresholds for Temperature

Analysis software used to view graph

Long battery life

Description

1. Protective cover

2. USB connector to PC port

3. Start button

4. Temperature sensor

5. Alarm LED (yellow and Red)

6. Record LED (green)

7. Mounting clip

3 TH10A-en-US_V2.18/22

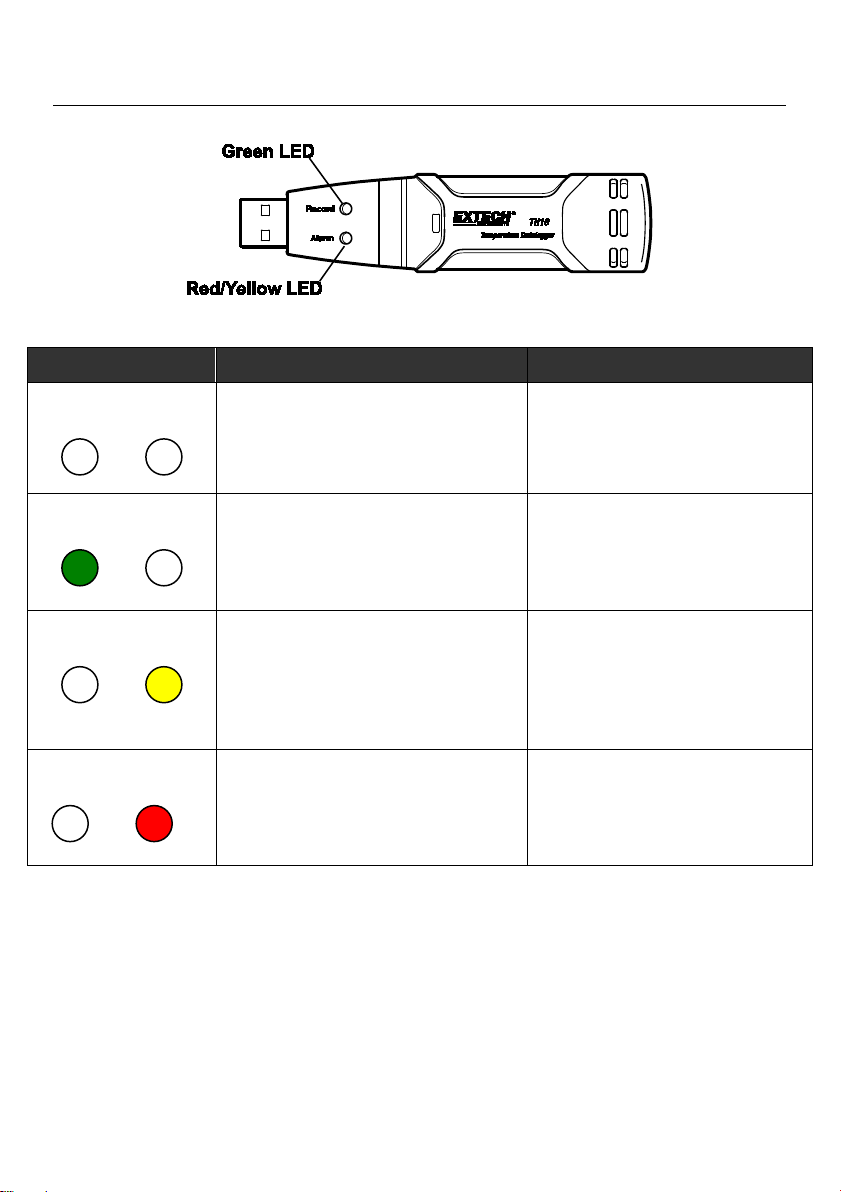

TH10 LED Status Guide

* To save power, the TH10’s LED flashing cycle can be changed via the supplied software.

** To save power, alarm LEDs for temperature can be disabled via the supplied software.

*** LED status indication alternates every cycle. For example: If there is one alarm, the REC LED

blinks for one cycle and alarm LED will blink for next cycle.

**** When the battery is low, all operations will be disabled automatically. NOTE:

Logging automatically stops when the battery weakens (logged data will be

retained). The supplied software is required to restart logging and to download

logged data.

LEDs

Meaning

Action

Record Alarm

No LEDs on

No logging in process

Or -No battery found

Or –Battery completely discharged

Fit battery in place

Replace the battery

Record Alarm

Green single flash every 10 sec. *

-Logging, no alarm**

Green double flash every 10 sec. *

-Delayed manual start

To start, Hold the start button until

Green LED flashes twice

Record Alarm

Yellow single flash every 10 sec. *

-Logging, low alarm for TEMP***

Yellow double flash every 10 sec. *

-Logging high alarm for TEMP***

Yellow single flash every 60 sec.

-Logger memory full

Download data

Record Alarm

Red single flash every 60 sec. *

-Low battery **** Replace the battery and download

the data.

No data will be lost.

4 TH10A-en-US_V2.18/22

***** To use the delay function run the datalogger Graph software. Click on the

computer icon “Datalogger Setup” or select from the File pull-down menu. The

Setup window will appear, and you will see there are two options: Manual and

Instant. If you select the Manual option, after you click the Setup button, the

logger won't start logging immediately until you press the orange button in

logger's housing.

***** When the TH10 is not logging and the memory is not full, press the orange

button in the housing of the meter for 3 seconds. The green LED will flash and the

meter will begin logging. LED flash cycle is 10 second.

Caution: When the TH10 is logging and the memory is full, press the orange button in

the meter housing for 6 seconds until the red LED flashes. This will stop the

logging and delete the contents of the memory.

Specifications

Temperature Overall Range -40 to 158oF (-40 to 70oC)

Accuracy (-40 to -30 and +60 to

+70oC)

±1.5oC

Accuracy (-10 to +40oC) ±1oC

Accuracy (-40 to +14 and 104 to

158oF)

±2.7oF

Accuracy (+14 to 104oF) ±1.8oF

Logging rate Selectable sampling interval: From 2 seconds up to 24 hours

Memory 32,000 Temperature readings

Operating temperature -31 to 176oF (-35 to 80oC )

Battery type 3.6V Lithium (1/2 AA) (SAFT LS14250, Tadiran TL-4902 or

equivalent)

Battery life 1 year (typ.) depending on logging rate, ambient temperature, &

use of Alarm LEDs

Dimensions/Weight 4.0 x 1.0 x 0.9” (101 x 25 x 23mm) / 6 oz. (172g)

5 TH10A-en-US_V2.18/22

Battery Replacement

It is highly recommended that the battery be replaced every 12 months, or prior to logging

critical data.

The TH10 does not lose its stored readings when the battery weakens or when the battery is

replaced or removed; the data logging process will however be stopped and cannot be re-started

until the battery has been replaced and the logged data has been downloaded to PC.

Use only 3.6V lithium batteries. Before replacing the battery, remove the datalogger from the PC.

Follow steps 1 through 4 below.

NOTE: Leaving the TH10 plugged into the PC USB port longer than necessary will reduce the

battery capacity.

Other Battery Safety Reminders

•Never dispose of batteries in a fire. Batteries may explode or leak.

Software Interface

The TH10 unit needs to be programmed using the supplied software before use.

The software can set the Sample rate, the temperature alarm limits, and the Start mode, as well as

download the recorded data from the logger.

Please refer to the Software Help guide that is supplied with the software to understand how to

operate the logger.

Check the software download page of the website www.extech.com for the latest version of the PC

software and its operating system compatibility.

6 TH10A-en-US_V2.18/22

Two-year Warranty

Teledyne FLIR warrants this Extech brand instrument to be free of defects in parts and

workmanship for two years from date of shipment (a six-month limited warranty applies to sensors

and cables). To view the full warranty text please visit:

http://www.extech.com/support/warranties.

Calibration and Repair Services

Teledyne FLIR offers calibration and repair services for the Extech brand products we sell. We

offer NIST traceable calibration for most of our products. Contact us for information on calibration

and repair availability, refer to the contact information below. Annual calibrations should be

performed to verify meter performance and accuracy. Product specifications are subject to change

without notice. Please visit our website for the most up-to-date product information:

www.extech.com.

Contact Customer Support

Customer Support Telephone List: https://support.flir.com/contact

Calibration, Repair, and Returns: repair@extech.com

Technical Support: https://support.flir.com

www.extech.com

This document does not contain any export-controlled information
