Extech Instruments 475040-SD Bedienungsanleitung

User's Guide

Digital Force Gauge with SD Memory

Models 475040-SD (5kg) and 475044-SD (20kg)

2 475040-044-SD-EU-EN v1.7 11/13

Introduction

Congratulations on your purchase of this Extech Meter. This meter is shipped fully tested and

calibrated and, with proper use, will provide years of reliable service.

Meter Description

Universal Sensing Head

LCD Display

Power/BACKLIGHT Button

▲/ZERO Button

Fast/SLOW/ESC Button

DISPLAY REVERSE/ ▼Button

TIME/SET Button

LOGGER/SAMPLING CHECK Button

PEAK/ENTER Button

SD card socket (side)

RS-232 output terminal

Reset button

AC Adapter Input Socket

Accessories

Flat-head Adapter

Cone adaptor

Chisel adaptor

Hook Adaptor

120mm Extension Rod

3 475040-044-SD-EU-EN v1.7 11/13

60mm (2.36”)

METER BACK AND MOUNTING SCREW DESCRIPTION

1. Mounting screws:

Hex head (#4 Allen wrench) with a thread size of metric

(ISO) M5 x 0.8. The spacing between screws is 60.0 mm

(2.36”)

2. Battery compartment access screws

3. Battery compartment

4 475040-044-SD-EU-EN v1.7 11/13

Getting Started

Tension and Compression

The meter automatically indicates TENSION (pull) or COMPRESSION (push) force during use.

Compression displays as a negative (-) value and Tension displays as a positive value.

Tension Compression

Attaching measurement Adaptors

Attach the adapter to the Sensing Head. Choose the adaptor to match the type of measurement to

be performed

Sensing Head Alignment

The sensing head with adapter must be in line with the object being measured. Avoid rotating the

sensing head.

Setup

Refer to the Setup Menu section of this manual to:

Format the SD memory card

Set the clock time

Set the sampling time for the record mode

Set the sampling time for the peak record mode

Set the auto-power off status

Set the beeper on/off

Set the measurement units

Set the SD card decimal character

5 475040-044-SD-EU-EN v1.7 11/13

Operating Procedure

Normal Measurement

1. Press the Power button to turn the meter ON. Press and HOLD the Power button for

>2seconds to turn the meter OFF.

2. If necessary, change the displayed units. See the Setup Menu section

3. Zero the meter by pressing the ZERO button.

4. Apply the force and the average reading will be displayed on the LCD.

5. If necessary, press the DISPLAY REVERSE button to invert the display.

6. Press the FAST SLOW button to change the response time.

Peak Hold Measurement

1. Press the PEAK button to enter the Peak Hold mode. The “PEAK” icon will be displayed.

2. The operation in Peak mode is identical to the Normal mode except the peak measured

value will be held and displayed.

Over Range Display

If the force measured exceeds the range of the meter, the display will indicate “¯ ¯ ¯ ¯ ¯ ¯ ¯ ¯ ¯” for tension or

“ˍˍˍˍˍˍˍˍ” for compression.

LCD Back Light On/Off

Press the BACKLIGHT button to turn the backlight ON. Press again to turn it OFF.

Alarm Beeper

If the measured value exceeds the maximum range, the internal buzzer will sound a warning.

Display Reverse

Press the display reverse button to invert the reading and provide readability in any position..

System Reset

If the meter’s buttons freeze, press the RESET button on the bottom of to reset the CPU.

Auto Power Off

If auto power off is enabled in the setup mode, after 10 minutes of inactivity the meter will beep and

then shut down. This feature extends battery life.

Mounting the Meter

Two mounting holes and hex screws are located on the rear of the meter to permit securing the

meter to a fixture or test stand.

RS232 Output

The meter can stream data to a PC using the optional software.

6 475040-044-SD-EU-EN v1.7 11/13

Datalogger

Preparation for datalogger

1. Insert an SD card (from 1G size up to 16G, ≤4G recommended) into the SD card slot at the

bottom of the meter. The card must be inserted with the front of the card (label side) facing

toward the rear of the meter.

2. If the SD card is being used for the first time it is recommended that the card be formatted and

the logger’s clock set to allow for accurate date/time stamping during datalogging sessions.

Refer to the Setup Mode section for SD card formatting and time/date setting instructions.

3. European and USA numerical formats differ. The data on the SD card can be formatted for

either format. The meter defaults to USA mode where a decimal point is used to separate units

from tenths, i.e. 20.00. The European format uses a comma, i.e. 20,00. To change this setting,

refer to the Setup Mode section.

Automatic Datalogging

In automatic datalogging mode the meter takes and stores a reading at a user-specified sampling

rate onto an SD memory card. The meter defaults to a sampling rate of two seconds. To change the

sampling rate, refer to the Setup Mode section (the sampling rate cannot be ‘0’ for automatic

datalogging):

1. To begin an automatic Datalogging session, press and hold the LOGGER button for at least 2

seconds.

2. The meter will scan for an SD card and verify that it can be used to store data. If a card is not

inserted or if the card is defective, the meter will display a blinking ‘EMPTY”. In this case,

switch the meter OFF and try again with a valid SD card.

3. If the SD card is valid, the display will display a flashing “DATA RECORD” icon and the meter

will beep (if the beeper is enabled) each time reading is stored at the programmed sample rate.

4. To pause the datalogger, momentarily press the LOGGER button. The REC icon will stop

flashing. To resume logging momentarily press the LOGGER button again.

5. To end the datalogging session press and hold the LOG button for at least 2 seconds.

Manual Datalogging

In the manual mode, data is logged when the LOGGER button is pressed.

1. Set the sampling rate to ‘0’ seconds as described in the Setup Mode section.

2. Press and hold the LOG button for at least 2 seconds; the lower portion of the display will show

p-n(n= memory position number 1-99).

3. Press the LOGGER button momentarily to log a reading into memory. The “DATA RECORD”

icon will flash each time a data point is stored.

4. Use the ▲and ▼buttons to select one of the 99 data memory positions in which to record.

5. To exit the manual datalogging mode, press and hold the LOGGER button for at least 2

seconds.

7 475040-044-SD-EU-EN v1.7 11/13

Peak Hold Datalogging

Power on the meter

2. Press the PEAK button. The display “PEAK” and “FAST” icons will appear.

3. Press the ZERO button to zero the display.

Press the " LOGGER button. The LCD will indicate " DATA RECORD " at the programmed

peak hold sampling time, in milliseconds, will briefly appear on the bottom of the LCD. (for

example " 10 "). Now the meter is ready for the Peak Hold record mode ( Fast Datalogger

measurement )

If a force is applied which is >1% of full capacity then measurements will be made and stored

at the sample rate.

When the peak value is logged, the meter will exit the "DATA RECORD" mode and the peak

value will freeze on the Display

On the bottom of the LCD the data record number will display and count down to zero. At the

same time, all the memory data will save into the SD memory card

Note: Peak measurements should be performed with the meter mounted on a stand.

Checking Time information

Power on to the normal measurement mode

2. Press the TIME button and the lower display will indicate the Hour/Minute/Second.

3. Press TIME again and the lower display will indicate the Year/Month/Date.

4. Press TIME again to exit time information.

Checking Sampling Time information

Power on to the normal measurement mode

2. Press the SAMPLING CHECK button and the set sampling time will briefly appear in the

lower display

8 475040-044-SD-EU-EN v1.7 11/13

SD Card File and Data structure

1. When an SD card is used for the first time a folder is created on the card and named FGA01.

Up to 99 spreadsheet documents (each with 30,000 readings) can be stored in this folder.

2. When datalogging begins a new spreadsheet document named FGA01001.xls is created on

the SD card in the FGA01 folder. The data recorded will be placed in the FGA01001.xls

document until 30,000 readings are reached.

3. If the measurement session exceeds 30,000 readings, a new document will be created

(FGA01002.xls) where another 30,000 readings can be stored. This method continues for up to

99 documents, after which another folder is created (FGA02) where another 99 spreadsheet

documents can be stored. This process continues in this same fashion with folders FGA03

through FGA10 (last allowable folder).

SD Data Card to PC Data Transfer

1. Complete a datalogging session as detailed in above in the previous sections. Hint: For the

first test, simply record a small amount of test data. This is to ensure that the datalogging

process is well understood before committing to critical datalogging.

2. With the meter switched OFF, remove the SD Card.

3. Plug the SD Card directly into a PC SD card reader. If the PC does not have an SD card slot,

use an SD card adaptor

4. Power the PC and run a spreadsheet software program. Open the saved documents in the

spreadsheet software program

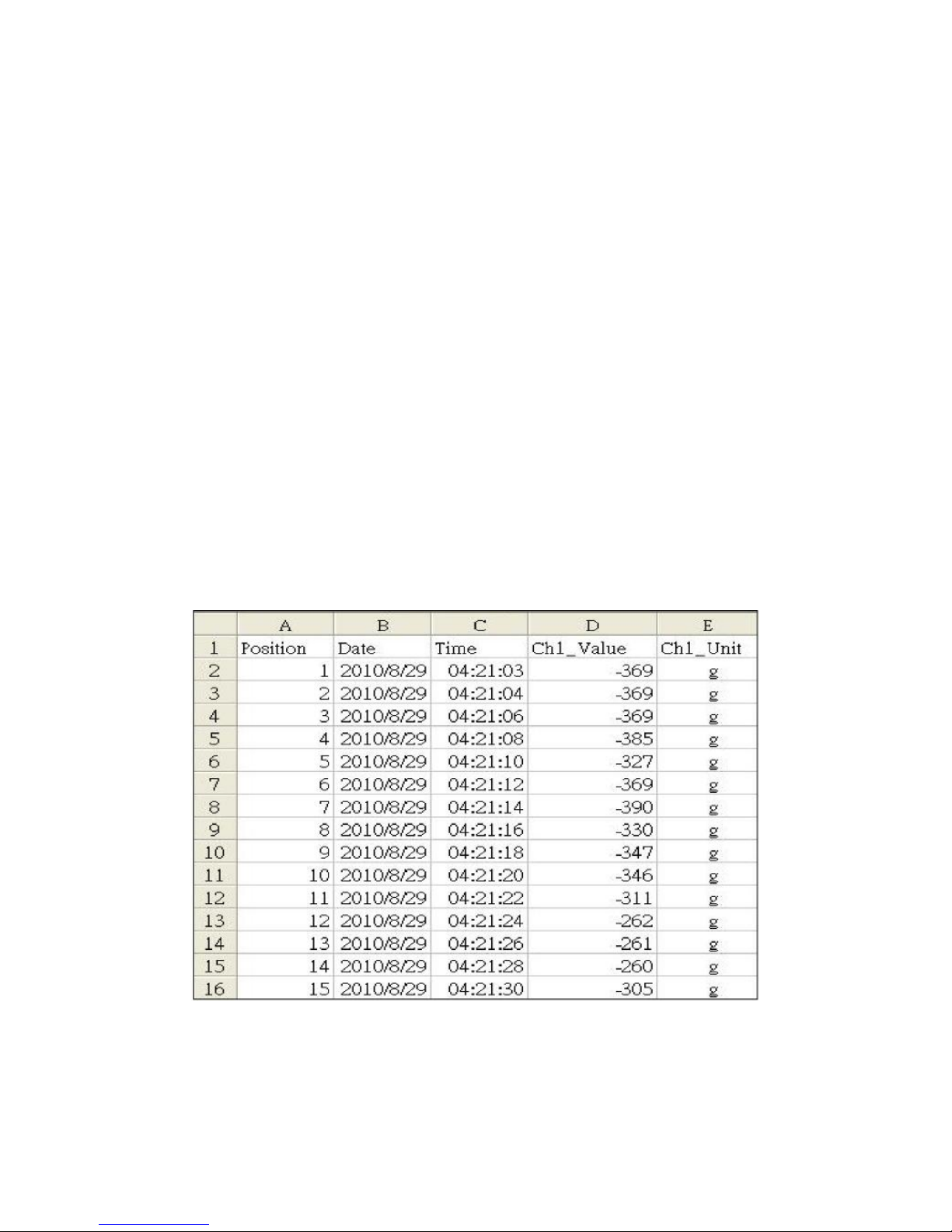

Example Excel data screen, Normal Mode

9 475040-044-SD-EU-EN v1.7 11/13

Example Excel data screen, Peak Mode

Example Excel data screen

10 475040-044-SD-EU-EN v1.7 11/13

Setup Menu

In the Normal mode, press and Hold the SET Button >2 seconds to enter the Setup mode. With

each press of the SET button the programmable functions will appear in this order:

Sd F

SD memory card Format

dAtE

Set clock time ( Year/Month/Date, Hour/Minute/Second )

SP-t

Set sampling time for normal record mode

HSPt

Set sampling time for peak record mode

PoFF

Auto power OFF enable/disable

bEEP

Set beeper sound ON/OFF

unit

Set the measurement unit

dEC

Set SD card Decimal character

ESC

Escape or exit from the setup mode

Sd F - SD Card Formatting

1. Use the arrow buttons to select “yES” to format the card (select “no” to exit).

Note: All data on the card will be lost if formatting is performed.

2. If “yES” is selected, press ENTER to confirm selection and then press ENTER a second time

to confirm the selection.

3. When the formatting is complete, the meter will return to the normal operating mode.

dAtE

- Set Clock Time ( Year/Month/Date, Hour/Minute/ Second )

1. Use the ▲button or ▼button to adjust the flashing digits to the correct setting.

2. When the desired value is set, press the ENTER button and the adjustment will move to the

next value for adjustment.

3. Repeat this for the six values.

4. Press the SET button to save the setting and move to the next function.

Note: The clock data will remain set, even with power off, as long as the batteries are have a

charge.

SP-t -

Set Sampling Time ( normal record mode )

1. Use the ▲button or ▼button to adjust the flashing digits to the desired setting.

2. When the desired value is set, press the ENTER button and the adjustment will move to the

next value for adjustment.

3. Repeat this for the three values.

4. Press the SET button to save the setting and move to the next function.

Note: The default sample rate is 2 seconds.

HSPt

- Set Peak Sampling Time (peak record mode)

1. Use the ▲button or ▼button to adjust the digits to the desired setting. The adjustment range

is 10ms to 500ms in 10ms steps.

2. When the desired value is set, press the ENTER button to store the setting.

3. Press the SET button to move to the next function.

Note: Maximum of 1000 data points can be stored in the Peak mode.

Andere Handbücher für 475040-SD

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Extech Instruments Datenlogger Handbücher

Extech Instruments

Extech Instruments 42280 Bedienungsanleitung

Extech Instruments

Extech Instruments 382100 Bedienungsanleitung

Extech Instruments

Extech Instruments SD900 Bedienungsanleitung

Extech Instruments

Extech Instruments SD800 Bedienungsanleitung

Extech Instruments

Extech Instruments CO220 Bedienungsanleitung

Extech Instruments

Extech Instruments SD700 Bedienungsanleitung

Extech Instruments

Extech Instruments DL160 Bedienungsanleitung

Extech Instruments

Extech Instruments 380340 Bedienungsanleitung

Extech Instruments

Extech Instruments TM500-NIST Bedienungsanleitung

Extech Instruments

Extech Instruments VB300 Bedienungsanleitung

Extech Instruments

Extech Instruments SD910 Bedienungsanleitung

Extech Instruments

Extech Instruments 381395 Bedienungsanleitung

Extech Instruments

Extech Instruments 380340 Bedienungsanleitung

Extech Instruments

Extech Instruments Quick Start Bedienungsanleitung

Extech Instruments

Extech Instruments 42582 Bedienungsanleitung

Extech Instruments

Extech Instruments CO210 Bedienungsanleitung

Extech Instruments

Extech Instruments EA80 Bedienungsanleitung

Extech Instruments

Extech Instruments 42280-NIST Bedienungsanleitung

Extech Instruments

Extech Instruments DL150 Bedienungsanleitung

Extech Instruments

Extech Instruments RTH20 Bedienungsanleitung

Extech Instruments

Extech Instruments SD800 Bedienungsanleitung

Extech Instruments

Extech Instruments RHT30 Bedienungsanleitung

Extech Instruments

Extech Instruments 42275 Bedienungsanleitung

Extech Instruments

Extech Instruments 42280A Bedienungsanleitung

Beliebte Datenlogger Handbücher anderer Marken

TESTO

TESTO 176 Bedienungsanleitung

HT Italia

HT Italia XL421 Bedienungsanleitung

HBM

HBM SOMAT XR CX22B-R Bedienungsanleitung

Agtrix

Agtrix 380i Bedienungsanleitung

Hobo

Hobo H8 Pro Bedienungsanleitung

Beijing ART Tech

Beijing ART Tech PCI2320 Bedienungsanleitung

Athena

Athena GET SL1 Bedienungsanleitung

Motec Systems

Motec Systems C185 Bedienungsanleitung

Beijing ART Tech

Beijing ART Tech USB2832 Bedienungsanleitung

Rotronic

Rotronic HygroLog HL20 Bedienungsanleitung

MRC

MRC DW-6092 Bedienungsanleitung

Racelogic

Racelogic VBOX LapTimer Bedienungsanleitung

Edu-Logger

Edu-Logger 900-240 Bedienungsanleitung

Elma

Elma DT173 Bedienungsanleitung

MadgeTech

MadgeTech PRTemp140 Technisches Datenblatt

Comet

Comet U0121M Bedienungsanleitung

pico Technology

pico Technology PT-104 Bedienungsanleitung

Soil Instruments

Soil Instruments GTecLink Bedienungsanleitung
