USER MANUAL

Mini Multimeter

with Non-Contact Voltage Detector (NCV)

Model EX310

EX310A-en-GB_v7.7 10/17

Introduction

Congratulations on your purchase of the Extech EX310 MultiMeter. The EX310 offers AC/DC Voltage,

AC/DC Current, Resistance, Diode, and Continuity testing plus a built-in non-contact Voltage Detector.

Proper use and care of this meter will provide many years of reliable service. For copies of this user

manual in other languages please visit the www.extech.com website.

Safety This symbol adjacent to another symbol, terminal or operating device indicates

that the operator must refer to an explanation in the Operating Instructions to

avoid personal injury or damage to the meter.

This WARNING symbol indicates a potentially hazardous situation, which if not

avoided, could result in death or serious injury.

This CAUTION symbol indicates a potentially hazardous situation, which if not

avoided, may result damage to the product.

This symbol advises the user that the terminal(s) so marked must not be

connected to a circuit point at which the voltage with respect to earth ground

exceeds 600V.

This symbol adjacent to one or more terminals identifies them as being associated

with ranges that may, in normal use, be subjected to particularly hazardous

voltages. For maximum safety, the meter and its test leads should not be handled

when these terminals are energized.

This symbol indicates that a device is protected throughout by double insulation or

reinforced insulation.

Safety Instructions

This meter has been designed for safe use, but must be operated with caution. The rules listed

below must be carefully followed for safe operation.

1. NEVER apply voltage or current to the meter that exceeds the specified maximum:

Input Protection Limits

Function

Maximum Input

V DC or V AC

600V AC and DC

mAAC/DC

200mA DC/AC

AAC/DC

10A DC/AC (for 30 seconds max. every 15 mins.)

Resistance, Diode Test, Continuity

250V DC/AC

2. USE EXTREME CAUTION when working with high voltages.

3. DO NOT measure voltage if the voltage on the "COM" input jack exceeds 600V above earth

ground.

4. NEVER connect the meter leads across a voltage source while the function switch is in the

current, resistance, or diode mode. Doing so can damage the meter.

5. ALWAYS discharge filter capacitors in power supplies and disconnect the power when making

resistance or diode tests.

6. ALWAYS turn off power and disconnect test leads before opening the covers to replace the fuse

or battery.

7. NEVER operate the meter unless the back cover and the battery and fuse covers are in place

and fastened securely.

8. If the equipment is used in a manner not specified by the manufacturer, the protection provided

by the equipment may be impaired.

WARNING

CAUTION

MAX

600V

EX310A-en-GB_v7.7 10/17

CAUTIONS

Improper use of this meter can cause damage, shock, injury or death. Read and understand

this user manual before operating the meter.

Always remove the test leads before replacing the battery or fuses.

Inspect the condition of the test leads and the meter itself for any damage before operating the

meter. Repair or replace any damage before use.

Use great care when making measurements if the voltages are greater than 25VAC rms or

35VDC. These voltages are considered a shock hazard.

Warning! This is a class A equipment. This equipment can cause interference to devices in the

home; in this case the operator can be required to carry out adequate measures to prevent

interference.

Always discharge capacitors and remove power from the device under test before performing

Diode, Resistance or Continuity tests.

Voltage checks on electrical outlets can be difficult and misleading because of the uncertainty

of connection to the recessed electrical contacts. Other means should be used to ensure that

the terminals are not "live".

If the equipment is used in a manner not specified by the manufacturer, the protection provided

by the equipment may be impaired.

This device is not a toy and must not reach children’s hands. It contains hazardous objects as

well as small parts that children could swallow. In case a child swallows any of the parts,

please contact a physician immediately.

Do not leave batteries and packing material unattended; they can be dangerous for children.

In case the device is going to be unused for an extended period of time, remove the batteries

to prevent them from draining.

Expired or damaged batteries can cause cauterization on contact with skin. Always use

suitable hand protection.

See that the batteries are not short-circuited. Do not throw batteries into fire.

EX310A-en-GB_v7.7 10/17

Description

1. AC Voltage Detector Sensor

2. AC Voltage Detector indicator light

3. Display (LCD)

4. Non-contact AC Voltage Detector test button

5. Rotary function dial

6. 10 ampere test lead jack

7. COM test lead jack

8. Test lead jack for voltage, milliamp,

resistance/continuity, and diode functions

9. Protective rubber holster (must be removed to

access the rear battery compartment)

Symbols

•))) Continuity

Diode

Battery status

m milli (10-3) (volts, amps)

k kilo (103) (ohms)

V Volts

A Amps

ΩOhms

AC Alternating current

DC Direct current

EX310A-en-GB_v7.7 10/17

Operating Instructions

WARNING: Risk of electrocution. High-voltage circuits, both AC and DC, are very dangerous and

should be measured with great care.

NOTE: On some low AC and DC voltage ranges, with the test leads not connected to a device, the

display may show a random, changing reading. This is normal and is caused by the high-input

sensitivity. The reading will stabilize and give a proper measurement when connected to a circuit.

NON-CONTACT AC VOLTAGE DETECTOR (NCV)

The EX310 can detect the presence of AC voltage (from 100 to 600VAC) simply by being held very

near to a voltage source.

WARNING: Test the AC voltage detector on a known live circuit before each use.

WARNING: Before using the meter in the AC Voltage Detector mode, verify that the battery is fresh

by confirming characters appear on the LCD when the function dial is turned to any position. Do not

attempt to use the meter as an AC Voltage Detector if the battery is weak or bad.

The NCV function works on any rotary switch position.

1. Test the detector on a known live circuit before use.

2. Press and hold the NCV button for the duration of the test. The meter will

beep once when the button is pushed and the battery icon will appear briefly

before the display goes blank.

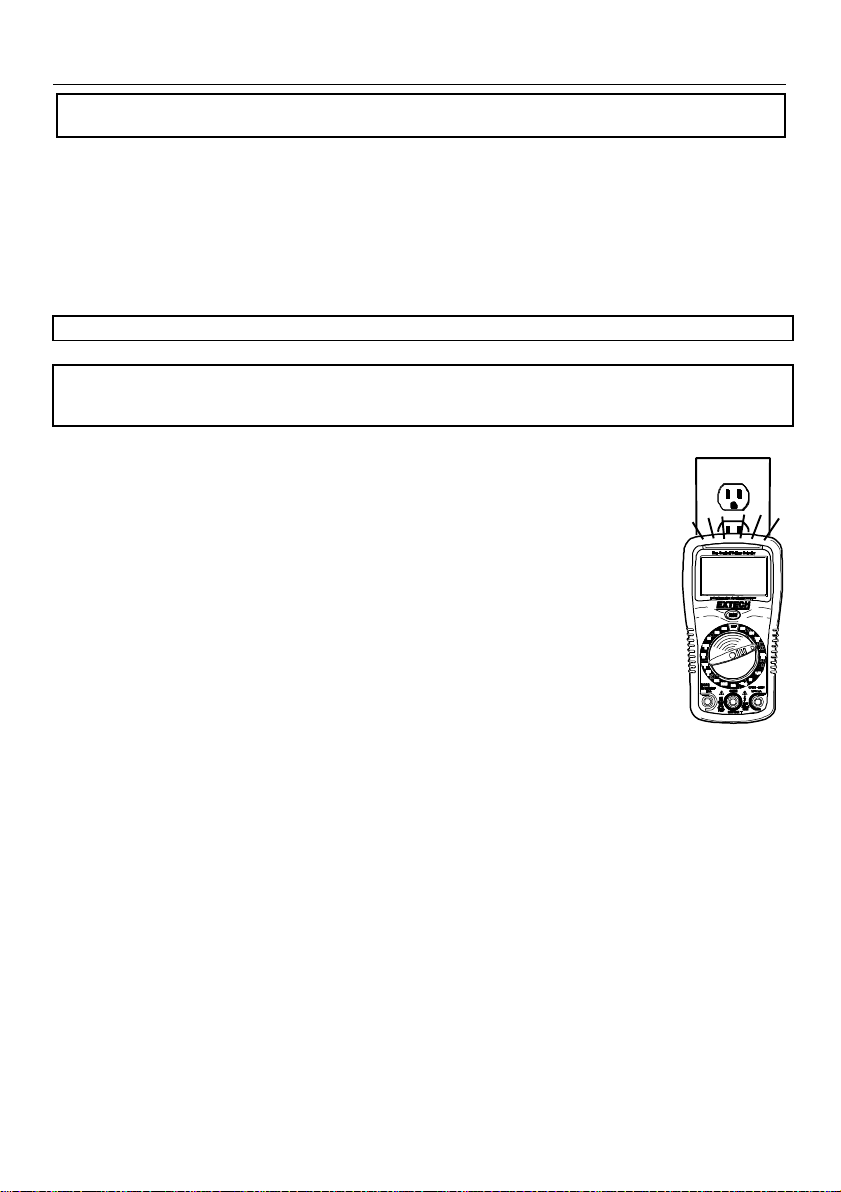

3. Hold the top of the meter very close to the voltage source as shown.

4. If voltage is present, the rim of the LCD display will flash a bright orange and

an audible warning will sound.

EX310A-en-GB_v7.7 10/17

AC VOLTAGE MEASUREMENTS

WARNING: Risk of Electrocution. The probe tips may not be long enough to contact the live parts

inside some 240V outlets for appliances because the contacts are recessed deep in the outlets. As

a result, the reading may show 0 volts when the outlet actually has voltage on it. Make sure the

probe tips are touching the metal contacts inside the outlet before assuming that no voltage is

present.

CAUTION: Do not measure AC voltages if a motor on the circuit is being switched ON or OFF.

Large voltage surges may occur that can damage the meter.

1. Set the function switch to the 600 VAC position.

2. Insert the black test lead banana plug into the negative COM jack.

Insert red test lead banana plug into the positive Vjack.

3. Touch the black test probe tip to the neutral side of the circuit.

4. Touch the red test probe tip to the “hot” side of circuit.

5. Read the voltage in the display.

DC VOLTAGE MEASUREMENTS

CAUTION: Do not measure DC voltages if a motor on the circuit is being switched ON or OFF.

Large voltage surges may occur that can damage the meter.

1. Set the function switch to the highest VDC position.

2. Insert the black test lead banana plug into the negative COM jack.

Insert the red test lead banana plug into the positive Vjack.

3. Touch the black test probe tip to the negative side of the circuit. Touch

the red test probe tip to the positive side of the circuit.

4. Read the voltage in the display. Move the function switch to

successively lower VDC positions to obtain a higher resolution reading.

BATTERY VOLTAGE TEST

CAUTION: Do not measure batteries while they are installed in the devices they are powering.

The batteries must be removed from installations before tests can be made.

1. Set the function switch to the 1.5V or 9V BAT switch position. Use

the 1.5V position for ‘AAA’, ‘AA’, ‘C’, ‘D’, and other 1.5V batteries.

Use the 9V position for square 9V transistor batteries.

2. Insert the black test lead banana plug into the negative COM jack.

Insert the red test lead banana plug into the positive Vjack.

3. Touch the black test probe tip to the negative side of the battery.

Touch the red test probe tip to the positive side of the battery.

4. Read the voltage in the display.

EX310A-en-GB_v7.7 10/17

AC / DC CURRENT MEASUREMENTS

CAUTION: Do not make current measurements at 10 Amps for longer than 30 seconds.

Exceeding 30 seconds may cause damage to the meter and/or the test leads.

1. Insert the black test lead banana plug into the negative COM jack.

2. For current measurements up to 200mA AC or DC, set the function switch to the 200m AAC or

ADC position and insert the red test lead banana plug into the mA jack.

3. For current measurements up to 10A AC or DC, set the function switch to the 10A AAC or 10A

ADC position and insert the red test lead banana plug into the 10A jack.

4. Remove power from the circuit under test, then open up the circuit at the point where you wish

to measure current.

5. Touch the black test probe tip to the negative side of the circuit. Touch the red test probe tip to

the positive side of the circuit.

6. Apply power to the circuit.

7. Read the current in the display.

RESISTANCE MEASUREMENTS

WARNING: To avoid electric shock, disconnect power to the unit under test and discharge all

capacitors before taking any resistance measurements.

1. Set the function switch to the highest Ωposition.

2. Insert the black test lead banana plug into the negative COM jack.

3. Insert the red test lead banana plug into the positive Ωjack.

4. Touch the test probe tips across the circuit or part under test. It is best to

disconnect one side of the part under test so the rest of the circuit will not

interfere with the resistance reading.

5. Read the resistance in the display. Move the function switch to

successively lower Ωpositions to obtain a higher resolution reading.

EX310A-en-GB_v7.7 10/17

CONTINUITY CHECK

WARNING: To avoid electric shock, never measure continuity on circuits that have a voltage

potential.

1. Set the function switch to the position.

2. Insert the black lead banana plug into the negative COM jack.

3. Insert the red test lead banana plug into the positive Ωjack.

4. Touch the test probe tips to the circuit or wire you wish to check.

5. If the resistance is less than approximately 100Ωthe audible signal

will sound. If the circuit is open, the display will indicate “1___”.

DIODE TEST

1. Set the function switch to the position.

2. Insert the black test lead banana plug into the negative COM

jack and the red test lead banana plug into the positive jack.

3. Touch the test probes to the diode under test.

4. A good diode will indicate approx. 700 ohms for the forward test

and “1___” for the reverse test.

5. A shorted diode will indicate the same value of resistance in both

the reverse and forward test directions. An open diode will

indicate “1___” in both test directions.

EX310A-en-GB_v7.7 10/17

Maintenance

WARNING: To avoid electric shock, disconnect the test leads from any source of voltage before

removing the back cover or the battery or fuse covers.

WARNING: To avoid electric shock, do not operate your meter until the battery and fuse covers are

in place and fastened securely.

This MultiMeter is designed to provide years of dependable service, if the following care instructions

are performed:

1. KEEP THE METER DRY. If it gets wet, wipe it off.

2. USE AND STORE THE METER IN NORMAL TEMPERATURES. Temperature extremes can

shorten the life of the electronic parts and distort or melt plastic parts.

3. HANDLE THE METER GENTLY AND CAREFULLY. Dropping it can damage the electronic

parts or the case.

4. KEEP THE METER CLEAN. Wipe the case occasionally with a damp cloth. DO NOT use

chemicals, cleaning solvents, or detergents.

5. USE ONLY FRESH BATTERIES OF THE RECOMMENDED SIZE AND TYPE. Remove old or

weak batteries so they do not leak and damage the unit.

6. IF THE METER IS TO BE STORED FOR A LONG PERIOD OF TIME, the battery should be

removed to prevent damage to the unit.

EX310A-en-GB_v7.7 10/17

BATTERY INSTALLATION and LOW BATTERY INDICATION

WARNING: To avoid electric shock, disconnect the test leads from any source of voltage before

removing the battery cover. Do not operate meter unless the battery cover is in place.

LOW BATTERY INDICATION

The icon will appear in the lower left-hand corner of the display when the battery voltage

becomes low. Replace the batteries when this appears.

BATTERY REPLACEMENT

1. Disconnect the test leads from the meter.

2. Remove the protective rubber holster. See diagram.

3. Remove the Phillips head screw located on the lower back of the instrument.

4. Remove the fuse/battery compartment cover to access the battery. See diagram.

5. Replace the 9V battery observing polarity.

6. Secure the fuse/battery compartment cover using the Phillips head screw.

7. Place the protective rubber holster on the meter.

Never dispose of used batteries or rechargeable batteries in household waste.

As consumers, users are legally required to take used batteries to appropriate

collection sites, the retail store where the batteries were purchased, or wherever

batteries are sold.

Disposal: Do not dispose of this instrument in household waste. The user is obligated to take end-of-

life devices to a designated collection point for the disposal of electrical and electronic equipment.

Other Battery Safety Reminders

oNever dispose of batteries in a fire. Batteries may explode or leak.

oNever mix battery types. Always install new batteries of the same type.

1. Removable Rubber Holster

2. Meter

3. Battery

4. Fuses

5. Compartment Cover

6. Rubber Holster

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Extech Instruments Multimeter Handbücher

Extech Instruments

Extech Instruments MultiLog ML720 Bedienungsanleitung

Extech Instruments

Extech Instruments EX570 Bedienungsanleitung

Extech Instruments

Extech Instruments MultiPro MP510 Bedienungsanleitung

Extech Instruments

Extech Instruments RHT50 Bedienungsanleitung

Extech Instruments

Extech Instruments ExStik EC505 Bedienungsanleitung

Extech Instruments

Extech Instruments MiniTec Series Bedienungsanleitung

Extech Instruments

Extech Instruments 411 Bedienungsanleitung

Extech Instruments

Extech Instruments MN45 Bedienungsanleitung

Extech Instruments

Extech Instruments EX205T Bedienungsanleitung

Extech Instruments

Extech Instruments 380947 Bedienungsanleitung

Extech Instruments

Extech Instruments Extech 470 Bedienungsanleitung

Extech Instruments

Extech Instruments LT40 Bedienungsanleitung

Extech Instruments

Extech Instruments 450 Bedienungsanleitung

Extech Instruments

Extech Instruments EX330 Bedienungsanleitung

Extech Instruments

Extech Instruments EX540-NIST Bedienungsanleitung

Extech Instruments

Extech Instruments MultiView Series Bedienungsanleitung

Extech Instruments

Extech Instruments EX210 Bedienungsanleitung

Extech Instruments

Extech Instruments 382075 Bedienungsanleitung

Extech Instruments

Extech Instruments RC200 Bedienungsanleitung

Extech Instruments

Extech Instruments 412355A Oyster Series Bedienungsanleitung

Extech Instruments

Extech Instruments EX503 Bedienungsanleitung

Extech Instruments

Extech Instruments 380946 Bedienungsanleitung

Extech Instruments

Extech Instruments 45170CM Bedienungsanleitung

Extech Instruments

Extech Instruments MA200 Bedienungsanleitung

Beliebte Multimeter Handbücher anderer Marken

Agilent Technologies

Agilent Technologies 34420A Bedienungsanleitung

Fluke

Fluke 83 Bedienungsanleitung

Hameg

Hameg HM 8012 Bedienungsanleitung

Mastech

Mastech MY70 Bedienungsanleitung

Steren

Steren MUL-300 Bedienungsanleitung

Somogyi Elektronic

Somogyi Elektronic home SMA 92 Bedienungsanleitung

Gossen MetraWatt

Gossen MetraWatt METRAmax 6 Bedienungsanleitung

PeakTech

PeakTech 4000 Gebrauchs- und Pflegehandbuch

YOKOGAWA

YOKOGAWA 90050B Bedienungsanleitung

Gossen MetraWatt

Gossen MetraWatt METRALINE DMM16 Bedienungsanleitung

Fluke

Fluke 8846A Bedienungs- und Wartungshandbuch

Tempo Communications

Tempo Communications MM200 Bedienungsanleitung

Elenco Electronics

Elenco Electronics CM-1555 Bedienungsanleitung

Mastech

Mastech MS8238C Bedienungsanleitung

SDAR

SDAR 830A, 830B, 830D, 830C Bedienungsanleitung

RS PRO

RS PRO RS-9519BT Bedienungsanleitung

BGS technic

BGS technic 8890 Bedienungsanleitung

Amprobe

Amprobe Hexagon 60 Bedienungsanleitung
