Extech Instruments EX310 Bedienungsanleitung

User's Guide

Mini Multimeter

with Non-Contact Voltage Detector (NCV)

Model EX310

www.burntec.com

Model EX310 - Version 7.1 – 05/2006

Introduction

Congratulations on your purchase of the Extech EX310 MultiMeter. The EX310 offers AC/DC

Voltage, AC/DC Current, Resistance, Diode, and Continuity testing plus a built-in non-contact

Voltage Detector. Proper use and care of this meter will provide many years of reliable

service.

Safety

This symbol adjacent to another symbol, terminal or operating device

indicates that the operator must refer to an explanation in the Operating

Instructions to avoid personal injury or damage to the meter.

This WARNING symbol indicates a potentially hazardous situation, which

if not avoided, could result in death or serious injury.

This CAUTION symbol indicates a potentially hazardous situation, which

if not avoided, may result damage to the product.

This symbol advises the user that the terminal(s) so marked must not be

connected to a circuit point at which the voltage with respect to earth

ground exceeds 600V.

This symbol adjacent to one or more terminals identifies them as being

associated with ranges that may, in normal use, be subjected to

particularly hazardous voltages. For maximum safety, the meter and its

test leads should not be handled when these terminals are energized.

This symbol indicates that a device is protected throughout by double

insulation or reinforced insulation.

SAFETY INSTRUCTIONS

This meter has been designed for safe use, but must be operated with caution. The rules

listed below must be carefully followed for safe operation.

1. NEVER apply voltage or current to the meter that exceeds thespecified maximum:

Input Protection Limits

Function Maximum Input

V DC or V AC 600V AC and DC

mA AC/DC 200mA DC/AC

A AC/DC 10A DC/AC (for 30 seconds max. every 15 mins.)

Resistance, Diode Test, Continuity 250V DC/AC

2. USE EXTREME CAUTION when working with high voltages.

3. DO NOT measure voltage if the voltage on the "COM" input jack exceeds 600V above earth ground.

4. NEVER connect the meter leads across a voltage source while the function switch is in the current,

resistance, or diode mode. Doing so can damage the meter.

5. ALWAYS discharge filter capacitors in power supplies and disconnect the power when making resistance

or diode tests.

6. ALWAYS turn off power and disconnect test leads before opening the covers to replace the fuse or battery.

7. NEVER operate the meter unless the back cover and the battery and fuse covers are in place and fastened

securely.

8. If the equipment is used in a manner not specified by the manufacturer, the protection provided by the

equipment may be impaired.

WARNING

CAUTION

MAX

600V

www.burntec.com

Model EX310 - Version 7.1 – 05/2006

Controls and Jacks

1. AC Voltage Detector Sensor

2. AC Voltage Detector indicator light

3. LCD display

4. Non-contact AC Voltage Detector test button

5. Rotary function dial

6. 10 ampere test lead jack

7. COM test lead jack

8. Test lead jack for voltage, milliamp,

resistance/continuity, and diode functions

9. Protective rubber holster (must be removed to

access the rear battery compartment)

Symbols

•))) Continuity

Diode

Battery status

m milli (10-3) (volts, amps)

k kilo (103) (ohms)

V Volts

A Amps

Ω Ohms

AC Alternating current

DC Direct current

V/ /mA

CATII-600V

EX310

MultiMeter

www.burntec.com

Model EX310 - Version 7.1 – 05/2006

Operating Instructions

WARNING: Risk of electrocution. High-voltage circuits, both AC and DC, are very

dangerous and should be measured with great care.

NOTE: On some low AC and DC voltage ranges, with the test leads not connected to a

device, the display may show a random, changing reading. This is normal and is caused

by the high-input sensitivity. The reading will stabilize and give a proper measurement

when connected to a circuit.

NON-CONTACT AC VOLTAGE DETECTOR

The EX310 can detect the presence of AC voltage (from 100 to 600VAC) simply by being

held very near to a voltage source.

WARNING: Test the AC voltage detector on a known live circuit before each use.

WARNING: Before using the meter in the AC Voltage Detector mode, verify that the battery

is fresh by confirming characters appear on the LCD when the function dial is turned to any

position. Do not attempt to use the meter as an AC Voltage Detector if the battery is weak

or bad.

NON-CONTACT VOLTAGE (NCV)

The NCV function works on any rotary switch position.

1. Test the detector on a known live circuit before use.

2. Press and hold the NCV button for the duration of the

test. The meter will beep once when the button is pushed.

3. Hold the top of the meter very close to the voltage source

as shown.

4. If voltage is present, the rim of the LCD display will flash

a bright orange and an audible warning will sound.

www.burntec.com

Model EX310 - Version 7.1 – 05/2006

AC VOLTAGE MEASUREMENTS

WARNING: Risk of Electrocution. The probe tips may

not be long enough to contact the live parts inside some

240V outlets for appliances because the contacts are

recessed deep in the outlets. As a result, the reading may

show 0 volts when the outlet actually has voltage on it.

Make sure the probe tips are touching the metal contacts

inside the outlet before assuming that no voltage is

present.

CAUTION: Do not measure AC voltages if a motor on

the circuit is being switched ON or OFF. Large voltage

surges may occur that can damage the meter.

1. Set the function switch to the 600 VAC position.

2. Insert the black test lead banana plug into the

negative COM jack. Insert red test lead banana

plug into the positive Vjack.

3. Touch the black test probe tip to the neutral side of the circuit.

4. Touch the red test probe tip to the “hot” side of circuit.

5. Read the voltage in the display.

DC VOLTAGE MEASUREMENTS

CAUTION: Do not measure DC voltages if a motor on the circuit is being switched ON or

OFF. Large voltage surges may occur that can damage the meter.

1. Set the function switch to the highest VDC position.

2. Insert the black test lead banana plug into the

negative COM jack.

Insert the red test lead banana plug into the

positive Vjack.

3. Touch the black test probe tip to the negative side

of the circuit. Touch the red test probe tip to the

positive side of the circuit.

4. Read the voltage in the display. Move the function

switch to successively lower VDC positions to

obtain a higher resolution reading.

www.burntec.com

Model EX310 - Version 7.1 – 05/2006

BATTERY VOLTAGE TEST

CAUTION: Do not measure batteries while they are installed in the devices they are

powering. The batteries must be removed from installations before tests can be made.

1. Set the function switch to the 1.5V or 9V BAT

switch position. Use the 1.5V position for ‘AAA’,

‘AA’, ‘C’, ‘D’, and other 1.5V batteries. Use the

9V position for square 9V transistor batteries.

2. Insert the black test lead banana plug into the

negative COM jack.

Insert the red test lead banana plug into the

positive Vjack.

3. Touch the black test probe tip to the negative

side of the battery. Touch the red test probe tip

to the positive side of the battery.

4. Read the voltage in the display.

AC / DC CURRENT MEASUREMENTS

CAUTION: Do not make current measurements at 10 Amps for longer than 30 seconds.

Exceeding 30 seconds may cause damage to the meter and/or the test leads.

1. Insert the black test lead banana plug into the negative COM jack.

2. For current measurements up to 200mA AC or DC, set the function switch to the

200m AAC or ADC position and insert the red test lead banana plug into the mA

jack.

3. For current measurements up to 10A AC or DC, set the function switch to the 10A

AAC or 10A ADC position and insert the red test lead banana plug into the 10A

jack.

4. Remove power from the circuit under test, then open up the circuit at the point

where you wish to measure current.

5. Touch the black test probe tip to the negative side of the circuit. Touch the red test

probe tip to the positive side of the circuit.

6. Apply power to the circuit.

7. Read the current in the display.

1.50

V/ /mA

CATII-600V

EX310

MultiMeter

www.burntec.com

Model EX310 - Version 7.1 – 05/2006

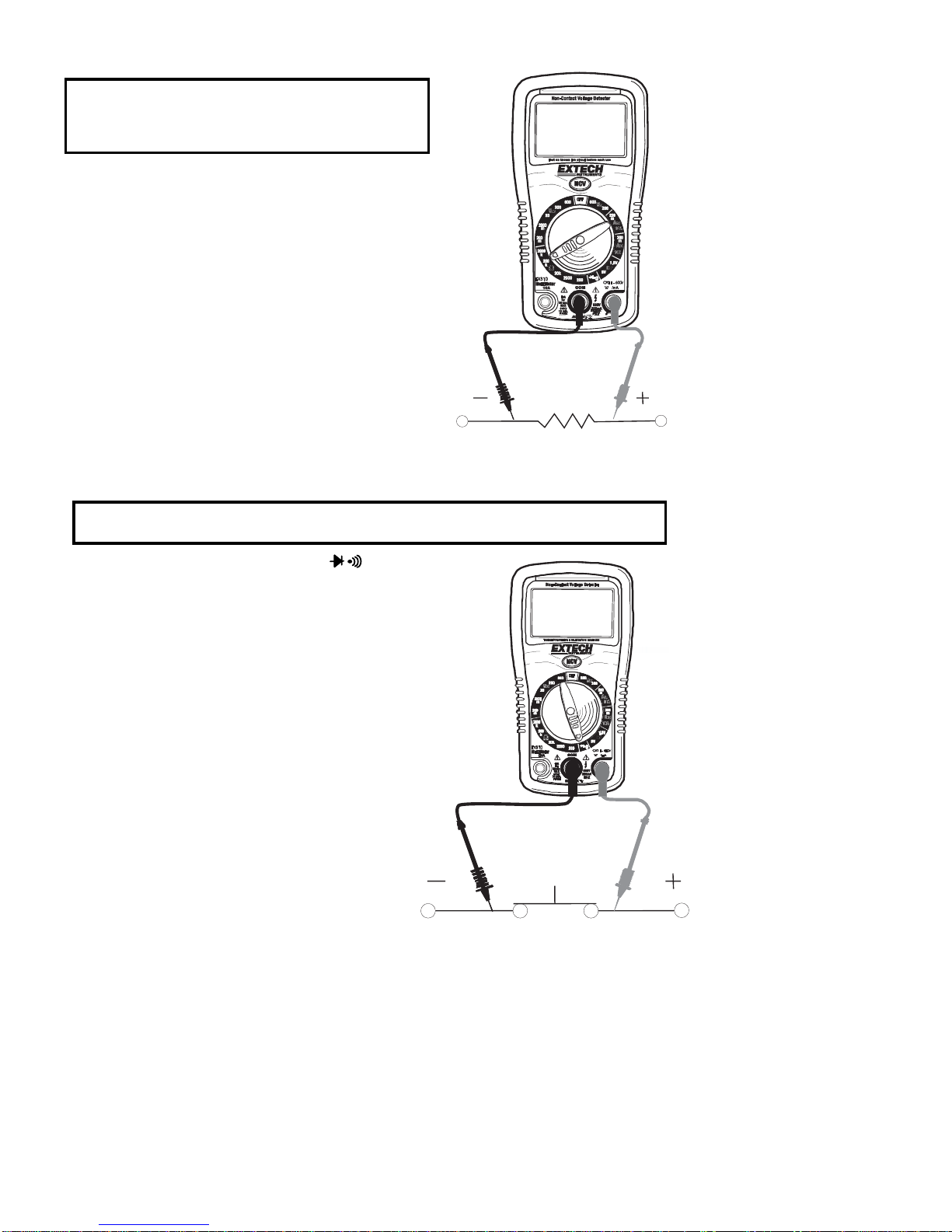

RESISTANCE MEASUREMENTS

WARNING: To avoid electric shock, disconnect

power to the unit under test and discharge all

capacitors before taking any resistance

measurements.

1. Set the function switch to the highest Ω

position.

2. Insert the black test lead banana plug into

the negative COM jack.

3. Insert the red test lead banana plug into the

positive Ωjack.

4. Touch the test probe tips across the circuit or

part under test. It is best to disconnect one

side of the part under test so the rest of the

circuit will not interfere with the resistance

reading.

5. Read the resistance in the display. Move the

function switch to successively lower Ω

positions to obtain a higher resolution

reading.

CONTINUITY CHECK

WARNING: To avoid electric shock, never measure continuity on circuits that have a

voltage potential.

1. Set the function switch to the

position.

2. Insert the black lead banana plug into

the negative COM jack.

3. Insert the red test lead banana plug into

the positive Ωjack.

4. Touch the test probe tips to the circuit

or wire you wish to check.

5. If the resistance is less than

approximately 100Ω, the audible signal

will sound. If the circuit is open, the

display will indicate “1___”.

www.burntec.com

Model EX310 - Version 7.1 – 05/2006

DIODE TEST

1. Set the function switch to the

position.

2. Insert the black test lead banana plug

into the negative COM jack and the red

test lead banana plug into the positive

jack.

3. Touch the test probes to the diode

under test.

4. A good diode will indicate approx. 700

ohms for the forward test and “1___” for

the reverse test.

5. A shorted diode will indicate the same

value of resistance in both the reverse

and forward test directions. An open

diode will indicate “1___” in both test

directions.

www.burntec.com

Model EX310 - Version 7.1 – 05/2006

Maintenance

WARNING: To avoid electric shock, disconnect the test leads from any source of voltage

before removing the back cover or the battery or fuse covers.

WARNING: To avoid electric shock, do not operate your meter until the battery and fuse

covers are in place and fastened securely.

This MultiMeter is designed to provide years of dependable service, if the following care

instructions are performed:

1. KEEP THE METER DRY. If it gets wet, wipe it off.

2. USE AND STORE THE METER IN NORMAL TEMPERATURES. Temperature

extremes can shorten the life of the electronic parts and distort or melt plastic parts.

3. HANDLE THE METER GENTLY AND CAREFULLY. Dropping it can damage the

electronic parts or the case.

4. KEEP THE METER CLEAN. Wipe the case occasionally with a damp cloth. DO

NOT use chemicals, cleaning solvents, or detergents.

5. USE ONLY FRESH BATTERIES OF THE RECOMMENDED SIZE AND TYPE.

Remove old or weak batteries so they do not leak and damage the unit.

6. IF THE METER IS TO BE STORED FOR A LONG PERIOD OF TIME, the battery

should be removed to prevent damage to the unit.

www.burntec.com

Model EX310 - Version 7.1 – 05/2006

BATTERY INSTALLATION and LOW BATTERY INDICATION

WARNING: To avoid electric shock, disconnect the test leads from any source of voltage

before removing the battery cover. Do not operate meter unless the battery is in place.

LOW BATTERY INDICATION

The icon will appear in the lower left-hand corner of the display when the battery

voltage becomes low. Replace the batteries when this appears.

BATTERY REPLACEMENT

1. Disconnect the test leads from the meter.

2. Remove the protective rubber holster. See diagram.

3. Remove the Phillips head screw located on the lower back of the instrument.

4. Remove the fuse/battery compartment cover to access the battery. See diagram.

5. Replace the 9V battery observing polarity.

6. Secure the fuse/battery compartment cover using the Phillips head screw.

7. Place the protective rubber holster on the meter.

1.Removable Rubber Holster

2.Meter

3.Battery

4.Fuses

5.Compartment Cover

6.Rubber Holster

www.burntec.com

Andere Handbücher für EX310

Inhaltsverzeichnis

Andere Extech Instruments Multimeter Handbücher

Extech Instruments

Extech Instruments EX503 Bedienungsanleitung

Extech Instruments

Extech Instruments ExStik EC500 Bedienungsanleitung

Extech Instruments

Extech Instruments MultiLog ML720 Bedienungsanleitung

Extech Instruments

Extech Instruments MN15A Bedienungsanleitung

Extech Instruments

Extech Instruments MultiPro MP510 Bedienungsanleitung

Extech Instruments

Extech Instruments 380942 Bedienungsanleitung

Extech Instruments

Extech Instruments EX540-NIST Bedienungsanleitung

Extech Instruments

Extech Instruments EX210 Bedienungsanleitung

Extech Instruments

Extech Instruments EX310 Bedienungsanleitung

Extech Instruments

Extech Instruments 380946 Bedienungsanleitung

Extech Instruments

Extech Instruments LT40 Bedienungsanleitung

Extech Instruments

Extech Instruments 412355A Oyster Series Bedienungsanleitung

Extech Instruments

Extech Instruments EX210T Bedienungsanleitung

Extech Instruments

Extech Instruments EX530 Bedienungsanleitung

Extech Instruments

Extech Instruments EX330 Bedienungsanleitung

Extech Instruments

Extech Instruments 401025 Bedienungsanleitung

Extech Instruments

Extech Instruments 38070 Bedienungsanleitung

Extech Instruments

Extech Instruments EX360 Bedienungsanleitung

Extech Instruments

Extech Instruments EX810 Bedienungsanleitung

Extech Instruments

Extech Instruments MiniTec Series Bedienungsanleitung

Extech Instruments

Extech Instruments EX410A Bedienungsanleitung

Extech Instruments

Extech Instruments EX420-NIST Bedienungsanleitung

Extech Instruments

Extech Instruments RC200 Bedienungsanleitung

Extech Instruments

Extech Instruments MiniTec Series Bedienungsanleitung

Beliebte Multimeter Handbücher anderer Marken

Agilent Technologies

Agilent Technologies 34420A Bedienungsanleitung

Fluke

Fluke 83 Bedienungsanleitung

Hameg

Hameg HM 8012 Bedienungsanleitung

Mastech

Mastech MY70 Bedienungsanleitung

Steren

Steren MUL-300 Bedienungsanleitung

Somogyi Elektronic

Somogyi Elektronic home SMA 92 Bedienungsanleitung

Gossen MetraWatt

Gossen MetraWatt METRAmax 6 Bedienungsanleitung

PeakTech

PeakTech 4000 Gebrauchs- und Pflegehandbuch

YOKOGAWA

YOKOGAWA 90050B Bedienungsanleitung

Gossen MetraWatt

Gossen MetraWatt METRALINE DMM16 Bedienungsanleitung

Fluke

Fluke 8846A Bedienungs- und Wartungshandbuch

Tempo Communications

Tempo Communications MM200 Bedienungsanleitung

Elenco Electronics

Elenco Electronics CM-1555 Bedienungsanleitung

Mastech

Mastech MS8238C Bedienungsanleitung

SDAR

SDAR 830A, 830B, 830D, 830C Bedienungsanleitung

RS PRO

RS PRO RS-9519BT Bedienungsanleitung

BGS technic

BGS technic 8890 Bedienungsanleitung

Amprobe

Amprobe Hexagon 60 Bedienungsanleitung
