Extech Instruments 42515 Bedienungsanleitung

User Manual

Wide Range InfraRed (IR) Thermometer

with Type K input and Laser Pointer

MODEL 42515

42515-EU-EN v4.5 5/14

Introduction

Congratulations on your purchase of the Model 42515 IR Thermometer. The Model 42515 IR

thermometer measures and displays non-contact (infrared) temperature readings up to 1472oF

(800oC). The built-in laser pointer increases target accuracy while the backlit LCD and handy

push-buttons combine for convenient, ergonomic operation. The Type K thermocouple input

provides contact measurements up to 2498oF (1370oC)*. The adjustable emissivity feature allows

the IR thermometer to measure the temperature of virtually any surface. This meter is shipped

fully tested and calibrated and, with proper use, will provide years of reliable service.

* The supplied thermocouple is rated for 482oF (250oC).

Safety

Use extreme caution when the laser pointer is on

Do not point the beam toward anyone's eye or allow the beam to

strike the eye from a reflective surface

Do not use the laser near explosive gases or in other potentially

explosive areas

42515-EU-EN v4.5 5/14

Meter Description

1. Laser pointer

2. IR Sensor

3. Measurement Trigger

4. Battery and Switch compartment

5. LCD Display

6. Function Buttons

7. Type-K thermocouple

8. Temperature units (oC or oF) switch

9. Test lock ON / OFF switch

10. Alarm ON / OFF switch

Note that switches are located in the battery compartment behind the battery.

42515-EU-EN v4.5 5/14

Operating Instructions

IR (non-contact) Measurements

1. Hold the meter by its handle and point it toward the surface to be measured.

2. Pull and hold the trigger to turn the meter on and begin testing. The temperature reading, the

flashing ‘SCAN’ icon, the emissivity, and the unit of measure will appear. Note: Replace the 9V

battery if the display does not switch on.

3. Release the Trigger and the reading will hold for approximately 7 seconds (HOLD will appear on

the LCD) after which the meter will automatically shut off. The only exception to this is if the

TEST LOCK switch is set to ON.

Note: Select the temperature units (ºF/ºC) using the top switch inside the battery compartment

Backlight/Laser Pointer

1. While pulling the Trigger, push the backlight/laser button once to turn on the backlight.

2. Press it again to turn on the laser pointer. When the laser is ON the laser icon will appear in

the LCD.

3. Press the laser button to turn the backlight off.

4. Pressing it again turns the laser off.

Note: Backlight and Laser settings will be retained after the meter powers down.

Type-K (contact) Measurements

1. Plug the Type-K thermocouple sensor into the jacks at the bottom of the instrument. The jack

accepts a standard sub-miniature connector. Note that one plug spade is wider than the other

and the plug can only be inserted into the meter in one direction.

2. Pull the trigger to turn the instrument ON.

3. In order to keep the instrument’s power on while testing, the user can a:) hold the trigger or b:)

lock the instrument on by setting the center dip switch to the ON position (switches are located

inside of the battery compartment).

4. Repeatedly press the MODE button until the bottom display line of the LCD reads ‘T k’. The

temperature shown to the right of the ‘T k’ symbol is the temperature that the Type-K

thermocouple is sensing.

5. Hold the thermocouple in air or touch the tip of the sensor to the device that is to be tested. The

LCD’s bottom temperature display will provide the measurement value.

6. The supplied thermocouple is rated for 482oF (250oC).

42515-EU-EN v4.5 5/14

The MODE button options

The MODE button is used to access the programming functions of the instrument. The selected

function is displayed on the bottom line of the LCD. Each parameter is listed below with a detailed

account of its use. Press the MODE button to step from one parameter to the next.

EMS (Emissivity Value)

To change the emissivity value, use the UP and DOWN arrows (the range is 0.10 to 1.00). The

current emissivity setting is always shown at the top of the LCD display. A setting of 0.95

covers about 90% of all applications. Emissivity is discussed in a dedicated section of this

manual.

MAX (Maximum function)

In the MAX mode, only the highest reading encountered in the current measurement session is

displayed

MIN (Minimum function)

In the MIN mode, only the lowest reading is displayed

DIF (Max minus Min value)

In the DIF mode, the MAX less the MIN is displayed.

AVG (Average value)

In the AVG mode, all of the readings in the current measurement session are averaged and

the value is displayed.

HAL (High Alarm setting)

The temperature that, when exceeded, causes the audible/visual alarm to trip.

LAL (Low Alarm setting)

The temperature that, when exceeded high to low, causes the audible/visual alarm to trip.

T k (Type-K contact thermocouple sensor function)

The temperature reading of the Type-K contact probe is shown next to the ‘T k’ icon display. If

the sensor is not correctly inserted to the meter the display will show all dashes ‘-----‘. The

supplied thermocouple is rated for 482oF (250oC).

LOG 1 through 20 (20 reading internal Datalogger)

Repeatedly press the MODE button unit the LOG icon is displayed on the lower left. Take a

reading and then press the SET button to store the reading to the location represented by the

number shown next to the LOG icon. Use the arrow keys to navigate the 20 storage locations.

All dashes indicate that there is no reading stored in a memory location.

Automatic Emissivity Adjustment

The 42515 has the ability to automatically calibrate the emissivity setting. However, in order to do

so, the temperature of the measured surface must be above 212ºF (100ºC).

Follow the steps below to use the automatic emissivity adjustment feature:

1. Press the MODE button until the EMS (Emissivity) icon appears on the lower LCD line.

2. Press and hold the Laser/Backlight button until the EMS icon begins to blink and the emissivity

value is displayed as “___”.

3. The IR temperature will be displayed on the middle line of the LCD and the Type-K temperature

will be displayed on the lower LCD line.

4. Touch the Type-K sensor to the surface and, at the same time, take an IR reading.

5. When both the IR and the Type-K measurements stabilize, press the UP or DOWN arrow

button. The new emissivity value will now be displayed.

6. Proceed to take measurements.

42515-EU-EN v4.5 5/14

Over-range Indicator

If the temperature measurement exceeds the specified temperature range, the thermometer will

display dashes in place of a temperature reading.

High and Low Alarm Feature

The Model 42515 has an alarm feature whereas a High Alarm setting and a Low Alarm setting can

be programmed by the user. When either Alarm point is reached the meter will alert the user via an

audible beep and LCD display icon. Follow the steps below:

1. Press the MODE button until the HAL (High Alarm) parameter is displayed. Use the UP and

DOWN arrow keys to set the desired High Alarm setting.

2. Press the MODE button until the LAL (Low Alarm) parameter is displayed. Use the UP and

DOWN arrow keys to set the desired Low Alarm setting.

3. When an alarm limit is reached, the audible alarm will sound and the display icon HIGH or

LOW will appear in the lower right hand corner of the LCD.

4. Note that if the bottom dip switch (located in the battery compartment) is set to OFF, the

audible alarm will be disabled.

Internal Datalogging

The Model 42515 has a 20-reading internal memory.

1. Use the MODE button to scroll to the LOG display (small LOG icon on the bottom left of the

LCD)

2. Take a reading and then press and hold the SET button to store the current reading in the

memory location represented by the number shown next to the LOG icon

3. Use the arrow keys to scroll and view the data in the 20 locations

Battery Replacement

When the low battery symbol appears on the lower left side of the display,

replace the meter’s battery (9V). The battery compartment is located behind the

light green panel that surrounds the meter’s trigger (see diagram). Open the

compartment by pulling the light green panel down from the trigger area. Replace

the 9V battery and close the battery compartment cover.

You, as the end user, are legally bound (EU Battery ordinance) to return all used

batteries, disposal in the household garbage is prohibited! You can hand over your

used batteries / accumulators at collection points in your community or wherever batteries

/ accumulators are sold!

Disposal: Follow the valid legal stipulations in respect of the disposal of the device at the

end of its lifecycle

42515-EU-EN v4.5 5/14

IR Measurement Notes

1. The object under test should be larger than the spot (target) size calculated by the field of view

diagram (printed on the side of the meter and in this guide).

2. Before measuring, be sure to clean surfaces that are covered with frost, oil, grime, etc.

3. If an object's surface is highly reflective, apply masking tape or flat black paint to the surface

before measuring. Allow time for the paint or tape to adjust to the temperature of the surface it is

covering.

4. Measurements through transparent surfaces such as glass may not be accurate.

5. Steam, dust, smoke, etc. can obscure measurements.

6. The meter automatically compensates for deviations in ambient temperature. However, it can

take up to 30 minutes for the meter to adjust to extremely wide changes.

7. To find a hot spot, aim the meter outside the area of interest then scan across (in an up and

down motion) until the hot spot is located.

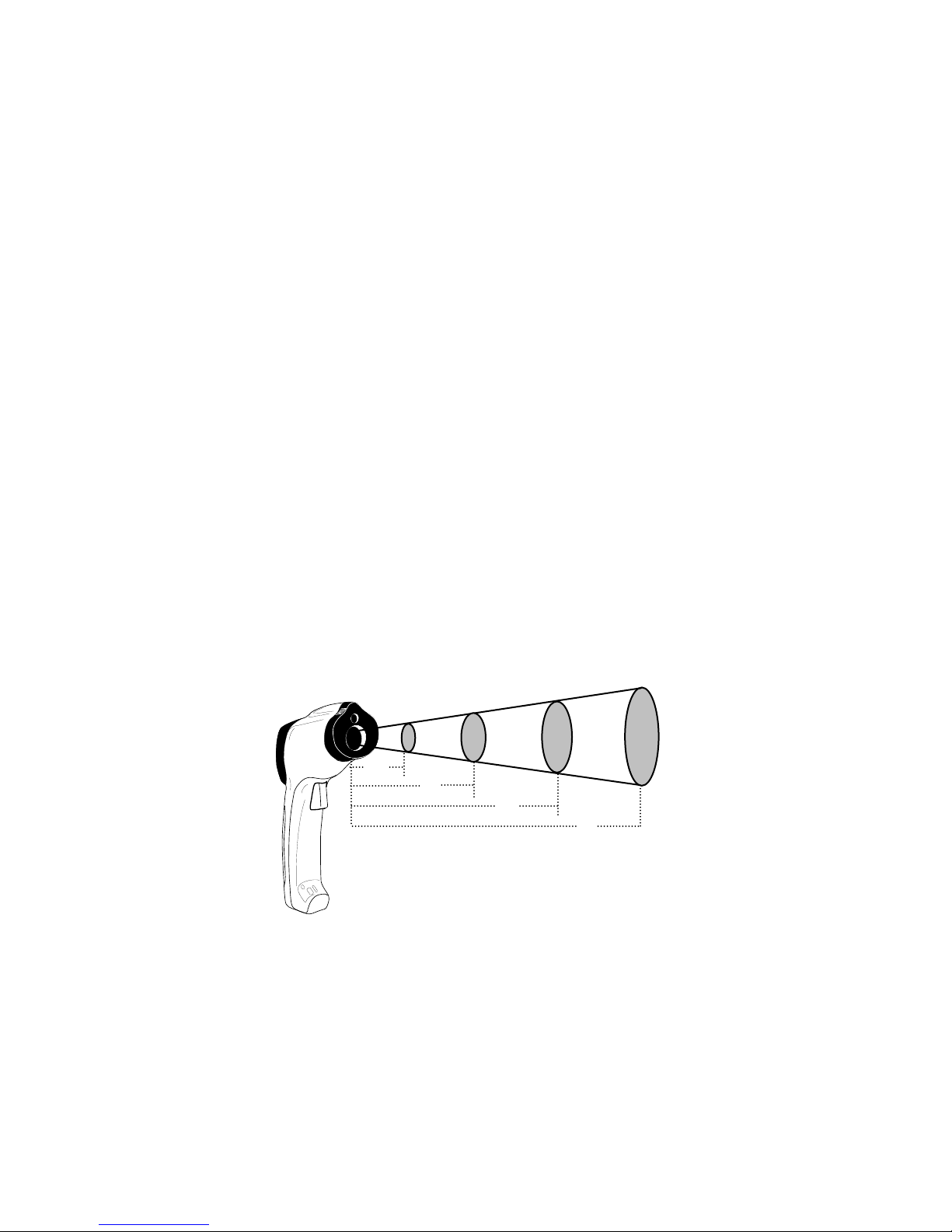

Field of View

The meter’s field of view is 13:1. For example, if the meter is 13 inches from the target (spot), the

diameter of the target must be at least 1 inch. Other distances are shown in the field of view

diagram. Note that measurements should normally be made as close as possible to the device

under test. The meter can measure from moderate distances but the measurement may be affected

by external sources of light. In addition, the spot size may be so large that it encompasses surface

areas not intended to be measured.

2”

3” 4”

13”

26”

39”

Distance to Object

Diameter of Spot

1”

52”

42515-EU-EN v4.5 5/14

Emissivity and IR Measurement Theory

IR Thermometers measure the surface temperature of an object. The thermometer’s optics sense

emitted, reflected, and transmitted energy. The thermometer’s electronics translate the information

into a temperature reading which is then displayed on the LCD.

The amount of IR energy emitted by an object is proportional to an object's temperature and its

ability to emit energy. This ability is known as emissivity and is based upon the material of the object

and its surface finish. Emissivity values range from 0.1 for a very reflective object to 1.00 for a flat

black finish. For the Model 42515, the emissivity is adjustable from 0.1 to 1.00. Most organic

materials and painted or oxidized surfaces have an emissivity factor of 0.95. When in doubt, set the

emissivity to 0.95.

Emissivity Factors for Common Materials

Material under test Emissivity Material under test Emissivity

Asphalt 0.90 to 0.98 Cloth (black) 0.98

Concrete 0.94 Skin (human) 0.98

Cement 0.96 Leather 0.75 to 0.80

Sand 0.90 Charcoal (powder) 0.96

Soil 0.92 to 0.96 Lacquer 0.80 to 0.95

Water 0.92 to 0.96 Lacquer (matt) 0.97

Ice 0.96 to 0.98 Rubber (black) 0.94

Snow 0.83 Plastic 0.85 to 0.95

Glass 0.90 to 0.95 Timber 0.90

Ceramic 0.90 to 0.94 Paper 0.70 to 0.94

Marble 0.94 Chromium Oxides 0.81

Plaster 0.80 to 0.90 Copper Oxides 0.78

Mortar 0.89 to 0.91 Iron Oxides 0.78 to 0.82

Brick 0.93 to 0.96 Textiles 0.90

42515-EU-EN v4.5 5/14

Specifications

Infrared Thermometer (Non-contact) Specifications

Range / Resolution -50.0 to 800.0oC (-58.0 to 1472.0oF) Resolution: 0.1o

Accuracy -50 to -1°C (-58 to 30°F) ± 2.0%rdg or ±6°F/3°C whichever is

greater

-0.5 to 65°C (31°F to 150°F) ± 2.0%rdg or ±4.5°F/2.5°C

whichever is greater

66 to 315°C (151°F to 600°F) ± 2.0%rdg or ±4°F/2°C whichever is

greater

316 to 800°C (600F to 1472°F) ± (2.5%rdg + 5°F/2.5°C)

Note: Accuracy is specified for the following ambient temperature range:

73 to77°F (23 to 25°C)

Emissivity 0.10 to 1.00 adjustable (Automatic adjust above 212oF or 100oC)

Field of View D/S = Approx. 13:1 ratio (D = distance; S = spot or target)

Laser pointer Class 2 laser < 1mW power; Wavelength is 630 to 670nm

IR Spectral response 8 to 14 m (wavelength)

Type K Thermocouple (Contact) Specifications

Range / Resolution -58.0 to 1999.9oF (-50.0 to 1370.0oC)

2000°F to 2498°F*

0.1o

1°

Accuracy ± (1.5% of rdg + 2ºF or 1ºC)

Note: Accuracy is specified for the following ambient temperature range:

18 to 28ºC (64 to 82ºF)

* The supplied thermocouple is rated for 250oC (482oF)

General Specifications

Display Backlit LCD display with function indicators

Display update rate 1 second approx.

Operating Temperature 0oC to 50oC (32oF to 122oF)

Operating Humidity 80% Relative Humidity max.

Power Supply 9V battery

Automatic Power Off Meter shuts off automatically after 7 seconds

Weight 180g / 6.4 oz.

Dimensions 82 x 42 x 160mm (3.2 x 1.6 x 6.3”)

www.extech.com

Andere Handbücher für 42515

Inhaltsverzeichnis

Andere Extech Instruments Thermometer Handbücher

Extech Instruments

Extech Instruments IRT600 Bedienungsanleitung

Extech Instruments

Extech Instruments 42530 Bedienungsanleitung

Extech Instruments

Extech Instruments RH250W Bedienungsanleitung

Extech Instruments

Extech Instruments EA10 Bedienungsanleitung

Extech Instruments

Extech Instruments 42570 Bedienungsanleitung

Extech Instruments

Extech Instruments EasyView EA20 Bedienungsanleitung

Extech Instruments

Extech Instruments 42530 Bedienungsanleitung

Extech Instruments

Extech Instruments EA15-NIST Bedienungsanleitung

Extech Instruments

Extech Instruments SDL200-NIST Bedienungsanleitung

Extech Instruments

Extech Instruments 421504 Bedienungsanleitung

Extech Instruments

Extech Instruments IRT25 Bedienungsanleitung

Extech Instruments

Extech Instruments 445715 Bedienungsanleitung

Extech Instruments

Extech Instruments EzSmart RHT3 Bedienungsanleitung

Extech Instruments

Extech Instruments IR200 Bedienungsanleitung

Extech Instruments

Extech Instruments 407445 Bedienungsanleitung

Extech Instruments

Extech Instruments K.J.E.T. 422324 Bedienungsanleitung

Extech Instruments

Extech Instruments 42535 Bedienungsanleitung

Extech Instruments

Extech Instruments EasyView EA20 Bedienungsanleitung

Extech Instruments

Extech Instruments 445703 Bedienungsanleitung

Extech Instruments

Extech Instruments RH101 Bedienungsanleitung

Extech Instruments

Extech Instruments MD13628 Bedienungsanleitung

Extech Instruments

Extech Instruments IR250 Bedienungsanleitung

Extech Instruments

Extech Instruments IR260 Bedienungsanleitung

Extech Instruments

Extech Instruments RHM15 Bedienungsanleitung

Beliebte Thermometer Handbücher anderer Marken

Delton

Delton 981A Bedienungsanleitung

Baker

Baker MM2P Bedienungsanleitung

Tarmo

Tarmo 320281 Bedienungsanleitung

Citizen

Citizen CTD 504 Bedienungsanleitung

TFA

TFA 14.1500 Bedienungsanleitung

Vive

Vive DMD1010 Bedienungsanleitung

Gotemp

Gotemp THB4002 Bedienungsanleitung

GREISINGER

GREISINGER G 1202 Bedienungsanleitung

Amprobe

Amprobe TMD-53W Bedienungsanleitung

Trotec

Trotec BP10 Bedienungsanleitung

Radiance instruments

Radiance instruments RT616 Series Bedienungsanleitung

Eurolec

Eurolec IR151 Bedienungsanleitung

Scaneo

Scaneo TS42B Bedienungsanleitung

Sper scientific

Sper scientific 800043 Bedienungsanleitung

Microlife

Microlife NC 200 Bedienungsanleitung

Motorola

Motorola MBP69SN Konfigurationshandbuch

The MeatStick

The MeatStick The MeatStick Bedienungsanleitung

Hama

Hama TH35-A Bedienungsanleitung
