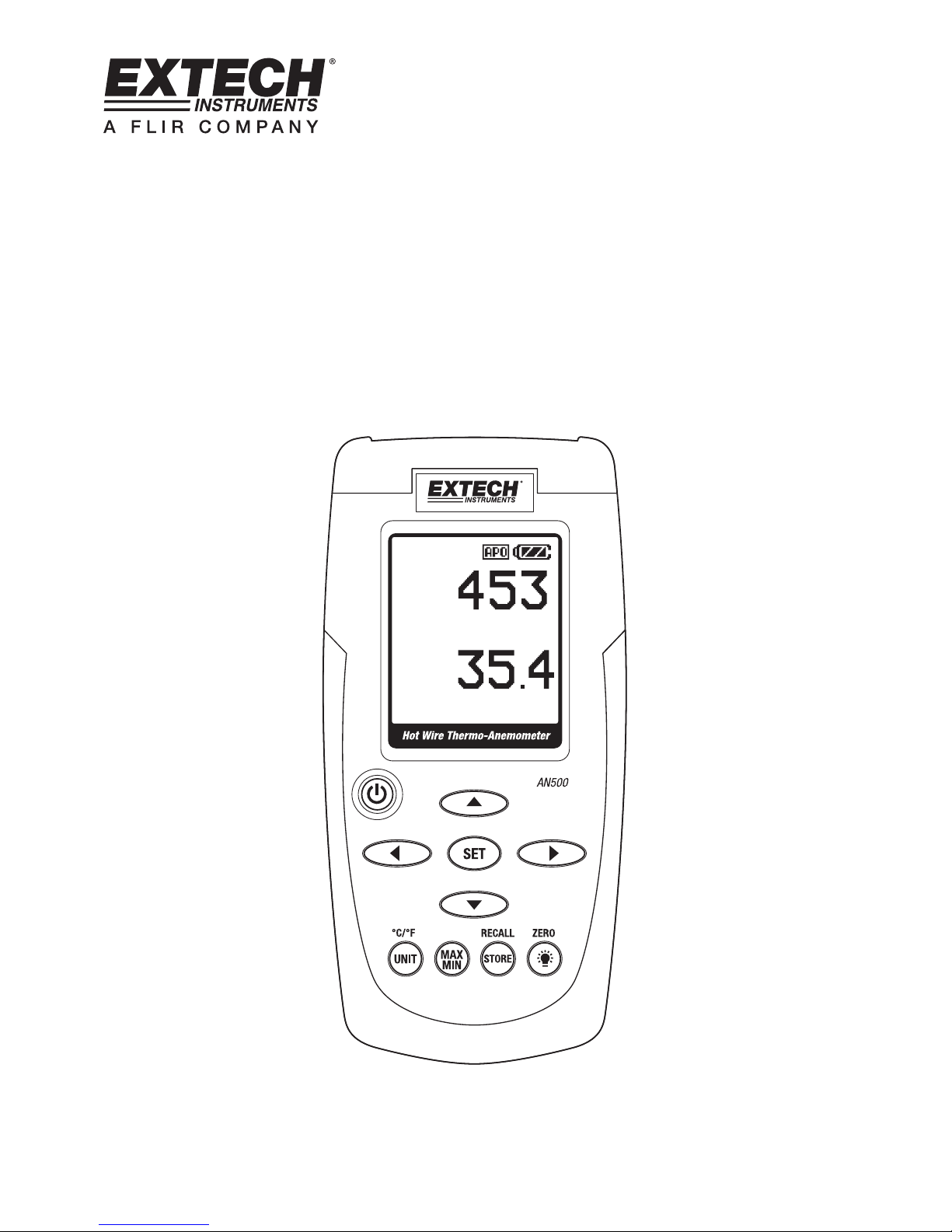

USER GUIDE

Hot Wire CFM/CMM Thermo-Anemometer

Model AN500

ft/min

AN500-EU-EN v1.5 1/13

Introduction

Thank you for selecting the Extech Hot Wire CFM/CMM Thermo-Anemometer. This instrument

measures air flow and temperature by placing the sensor into an airway such as a duct or a vent. The

sensor is situated at the end of the telescoping wand for convenience. This device is shipped fully

tested and calibrated and, with proper use, will provide years of reliable service. Please visit our

website (www.extech.com) to check for the latest version of this User Guide. The Extech Instruments

brand, a wholly owned subsidiary of FLIR Systems, Inc., is ISO-9001 certified.

Description

Meter Description

1. Probe input jack (insert probe plug here)

2. AC adaptor jack

3. Power ON-OFF button

4. Left arrow button

5. SET button

6. UNIT button

7. MAX-MIN button

8. STORE-RECALL button

9. ZERO and Backlight button

10. Down arrow button

11. Right arrow button

12. Up arrow button

13. LCD display

Note: Battery compartment and Tilt Stand located on the back of the meter

312

ft/min

AN500-EU-EN v1.5 1/13

Push-button Description

Power: Switches the meter ON and OFF

C/F: Select the temperature units

MAX/MIN: Press to Record and track the highest (MAX) and lowest (MIN) reading

STORE: Store readings into memory

RECALL: Display STORED readings

UNIT: Air velocity units or airflow units of measure

ZERO: Press to zero the display

BACKLIGHT: Turn LCD backlight ON and OFF

SET: Atmospheric compensation setting or airflow

parameters setting

◄►▲◄: Atmospheric compensation adjustment

arrows (also used for general menu navigation)

Probe Description

1. Probe Connector

2. Probe cabling

3. Telescoping sensor handle - Extends to 39” (1m)

4. Sensor opening (Air must flow through this

opening in the direction of the arrow shown in item

5 below for proper measurement)

5. Air direction arrow image

6. Ergonomic handle grip

AN500-EU-EN v1.5 1/13

Operation

Initialization and Zero

The meter should always be zeroed at temperature before use using the ZERO button. Do not

rely on the initial zero display.

Notes:

The meter does not display negative numbers.

Open antenna to desired length.

1. Connect the sensor to the input jack on top of the meter and open antenna to desired length.

2. Switch the meter ON using the Power button. The meter will perform a self-test during which the

display will show SELF CHECK.

3. Select the desired temperature units by holding in the C/F select button. The LCD will reflect the

selection.

4. Select the desired air velocity units using the UNIT button. The LCD will reflect the selection.

5. Place the sensor in the area to be measured and allow a short time for the sensor to reach the

temperature of the air under test.

6. Press the ZERO button to zero the meter.

Taking Air Velocity Measurements

1. Zero the meter as described above.

2. Place the sensor in the air current to be measured. Have the air flow in the direction of the arrow

shown on the top of the sensor head.

3. View the air velocity and temperature readings on the LCD Display. The top LCD display

indicates the Air Velocity reading. The lower LCD display indicates the temperature reading.

MAX/MIN Function

1. To begin capturing the Minimum (MIN), Maximum (MAX), and Average (AVG) readings, press

the MAX-MIN button momentarily. The RECORD icon will appear on the LCD (flashing on and

off).

2. Take readings as described previously.

3. Press MAX/MIN button again to stop recording.

4. The MAX-MIN-AVG display screens will automatically scroll from one to the next showing the

highest (MAX), lowest (MIN), and average (AVG) readings captured since the MAX-MIN button

was first pressed.

5. Press the MAX-MIN button again to continue recording. The RECORD icon will continue

flashing.

6. Press and hold the MAX-MIN button for 1 second to exit the MAX-MIN mode and return to the

normal operating screen. The MAX-MIN-AVG readings will be reset.

AN500-EU-EN v1.5 1/13

Auto Power OFF

The meter is equipped with an Auto Power OFF (APO) feature. The meter will automatically switch

OFF after 10 minutes of inactivity (no button pressed). Press and hold the POWER button for 1

second to disable the APO feature (the APO display icon will switch OFF). When the meter is

powered ON for the next session, the Auto Power OFF feature will be engaged again.

Change Units of Measure

1. Press the CF/UNIT button momentarily to switch between units of measure (m/s, km/hr, MPH,

ft/min, knots, CMM and CFM).

2. Press and hold CF/UNIT button for 1 second to switch between C and F temperature units.

Store Readings (Datalogging)

1. Press the RECALL/STORE button momentarily to store and hold the reading.

2. Press the RECALL/STORE button again to return to normal measurement mode.

Recall Readings

1. Press and hold the RECALL/STORE button for 1 second to enter recall mode.

2. Momentarily press the ►or ◄button to scroll through the memory locations and view the stored

data.

3. Press the RECALL/STORE button once more to exit recall mode. The meter will display 'END'

and return to normal operation.

Up to 36 readings can be stored in the AN500

Clear Stored Readings

While in RECALL mode press and hold RECALL/STORE button for 1 second to clear stored data.

The meter will display 'CLEAR MEM' then return to normal operation.

Atmospheric Pressure Compensation Setting

1. Press and hold the SET button for 1 second to enter Atmospheric Pressure Compensation

Adjustment mode.

2. Momentarily press the ▲or ▼button to adjust the PA from 500-1010 mbar.

3. Press the SET button to enter the next step.

4. Momentarily press the ▲or ▼button to adjust the GAIN from 0.00-2.00.

5. Press and hold the SET button for 1 second to store the settings in non-volatile memory and

return to the normal measurement mode. Or press the SET to return normal operation. The

atmospheric pressure compensation parameters will reset to the previous setting when next on.

6. While in atmospheric pressure setting, the unit will return to normal operation if no button is

pressed for 8 seconds. The data will not be stored.

AN500-EU-EN v1.5 1/13

Zero Adjustment

Press and hold the ZERO button for 1 second to zero the reading.

Backlight

Press the Zero/BL button at any time to turn on/off the backlight.

Airflow Parameters Settings

1. While in airflow measurement mode press and hold SET for 1 second to enter next step.

2. Momentarily press the ►or ◄button to choose circle or rectangle function.

3. Press SET to enter next step.

4. Press ▲or ▼to adjust R in circle mode or L and W in rectangle mode. Adjustment will be from

0.0-101.5 cm in CMM mode or 0.0-40.0 in CFM mode.

5. Press SET to enter next step.

6. Press ▲or ▼to adjust GAIN from 0.10-1.00.

7. Press and hold the SET button for 1 second to store the settings in non-volatile memory and

return to the normal measurement mode. Or press the SET to return normal operation. The

airflow parameters will reset to the previous setting when next on.

8. While in Airflow parameters setting, the unit will return to normal operation if no button is

pressed for 8 seconds. The data will not be stored.

AN500-EU-EN v1.5 1/13

Battery Replacement

When the displayed battery symbol appears empty or begins to blink, replace the batteries as

soon as practical. If battery voltage is too low the meter will not switch ON. The battery compartment

is located on the rear of the instrument (behind the tilt stand) secured by one Phillips head screw.

1. Open the rear battery compartment by first swiveling out the tilt stand.

2. Remove the Phillips head screw.

3. List the compartment cover to access the batteries.

4. Replace the six ‘AA’ 1.5V batteries observing polarity.

5. Replace the battery compartment cover and secure with the Phillips head screw.

EU users are legally bound by the Battery Ordinance to return used batteries to community

collection points or wherever batteries / accumulators are sold.

Disposal in household trash or refuse is prohibited.

Disposal: Follow the valid legal stipulations with respect to the disposal of the device at the

end of its lifecycle

Battery Safety Reminders

Please dispose of batteries responsibly; always observe local, state, and federal regulations

with regard to battery disposal.

Never dispose of batteries in a fire. Batteries may explode or leak.

Never mix battery types. Always install new batteries of the same type.

AN500-EU-EN v1.5 1/13

Specifications

General Specifications

Circuit configuration Custom one-chip LSI microprocessor circuit

Display Dot Matrix LCD backlit display

Measurements m/s (meters per second), km/h (kilometers per hour), ft/min (feet/per

minute), knots (nautical miles per hour), MPH (miles per hour), CMM

(m3/min), and CFM (ft3/min), Temperature: °C, °F

Temperature sensor Two temperature sensors on glass pad

Min/Max Recording Capture Maximum (MAX), Minimum (MIN), and Average (AVG) readings

Datalogger 36 readings can be stored and recalled

Operating Temperature 0 to 50 °C (32 to 122°F)

Operating Humidity Max. 80% RH

Power Supply Six (6) 1.5V ‘AA’ batteries

Power Consumption Approx. 30 mADC

Weight 355g (0.78 lbs.) including batteries & probe

Dimensions Main instrument: 180 x 72 x 32 mm (7.1 x 2.8 x 1.3”)

Sensor: 12mm (0.5”) diameter

Telescoping handle with cable: 2.1m (7’) max. length with cable

Range Specifications

Units Range Resolution Accuracy

0.0 to 9.99 m/s 0.01 m/s

m/s 10.0 to 20.0 0.1 m/s

±(3.0%rdg+0.2m/s)

km/h 0.0 to 75.0 km/h 0.1 km/h ±(3.0%rdg+0.7km/h)

ft/min 0 to 4000 ft/min 1 ft/min ±(3.0%rdg+38ft/min)

MPH 0.0 to 45.0 MPH 0.1 MPH ±(3.0%rdg+0.4MPH)

knots 0.0 to 40.0 knots 0.1 knots ±(3.0%rdg+0.4knots)

Units Range Resolution Gain

CMM (cubic

meters per minute) 0 to 1298.0 m3/min 0.1 m3/min 0.10-1.00

CFM (cubic feet

per minute) 45922 ft3/min 1 ft3/min 0.10-1.00

mbar 502-1012 mbar 2 mbar 0.00-2.00

Power Consumption’=(1+(1010/mbar-1)*gain)*power consumption

CMM=(60*m/sec*R*R*PI*gain)/40000 Circle

CMM=(60*m/sec*L*W*gain)/10000 Rectangle

CFM=(ft/min*R*R*PI*gain)/576 Circle

CFM=(ft/min*L*W*gain)/144 Rectangle

R & L & W: 1.5-101.5cm (0.5) or 0.6-40.0in. (0.2)

Temperature 0 to 60oC (0 to 140 oF) 0.1 oF and oC 1.0

oC (1.8 oF)

Note: m/s: meters per second; km/h: kilometers per hour; ft/min: feet per minute; Knots: nautical miles per hour;

MPH: miles per hour; CMM: cubic meters per min; CFM: cubic ft per min

AN500-EU-EN v1.5 1/13

Useful Equations and Conversions

Area equations

The volume of air flowing through a duct or vent can be determined by taking the area of the duct

in square units (i.e. square feet) and multiplying this value by the measured linear velocity (i.e., feet

per minute). This gives: ft/min x ft2= ft3/min (CFM)

Cubic equations

CFM (ft3/min) = Air Velocity (ft/min) x Area (ft2)

CMM (m3/min) = Air Velocity (m/sec) x Area (m2) x 60

Units Conversion Table

m/s ft/min knots km/hr MPH

1 m/s 1196.85 1.944 3.6 2.237

1 ft/min 0.00508 10.00987 0.01829 0.01136

1 knot 0.5144 101.27 11.852 1.151

1 km/hr 0.2778 54.68 0.54 10.6214

1 MPH 0.447 88 0.869 1.6093 1

www.extech.com

A = pi x R

A = W x H

Andere Handbücher für AN500

Inhaltsverzeichnis

Andere Extech Instruments Thermometer Handbücher

Extech Instruments

Extech Instruments 42545A Bedienungsanleitung

Extech Instruments

Extech Instruments IR270 Bedienungsanleitung

Extech Instruments

Extech Instruments EasyView EA20 Bedienungsanleitung

Extech Instruments

Extech Instruments SL250W Bedienungsanleitung

Extech Instruments

Extech Instruments RH200W Bedienungsanleitung

Extech Instruments

Extech Instruments EA10-NIST Bedienungsanleitung

Extech Instruments

Extech Instruments 445715 Bedienungsanleitung

Extech Instruments

Extech Instruments 42570 Bedienungsanleitung

Extech Instruments

Extech Instruments 42510A Bedienungsanleitung

Extech Instruments

Extech Instruments 42580 Bedienungsanleitung

Extech Instruments

Extech Instruments 42560 Bedienungsanleitung

Extech Instruments

Extech Instruments 42530 Bedienungsanleitung

Extech Instruments

Extech Instruments 42545 Bedienungsanleitung

Extech Instruments

Extech Instruments 421504 Bedienungsanleitung

Extech Instruments

Extech Instruments VIR50 Bedienungsanleitung

Extech Instruments

Extech Instruments 42545-NIST Bedienungsanleitung

Extech Instruments

Extech Instruments 42545 Bedienungsanleitung

Extech Instruments

Extech Instruments EzSmart RHT3 Bedienungsanleitung

Extech Instruments

Extech Instruments RH30 Bedienungsanleitung

Extech Instruments

Extech Instruments 407445 Bedienungsanleitung

Extech Instruments

Extech Instruments RH490 Bedienungsanleitung

Extech Instruments

Extech Instruments SDL500 Bedienungsanleitung

Extech Instruments

Extech Instruments 421502 Bedienungsanleitung

Extech Instruments

Extech Instruments EasyView Dual K EA10 Bedienungsanleitung

Beliebte Thermometer Handbücher anderer Marken

Delton

Delton 981A Bedienungsanleitung

Baker

Baker MM2P Bedienungsanleitung

Tarmo

Tarmo 320281 Bedienungsanleitung

Citizen

Citizen CTD 504 Bedienungsanleitung

TFA

TFA 14.1500 Bedienungsanleitung

Vive

Vive DMD1010 Bedienungsanleitung

Gotemp

Gotemp THB4002 Bedienungsanleitung

GREISINGER

GREISINGER G 1202 Bedienungsanleitung

Amprobe

Amprobe TMD-53W Bedienungsanleitung

Trotec

Trotec BP10 Bedienungsanleitung

Radiance instruments

Radiance instruments RT616 Series Bedienungsanleitung

Eurolec

Eurolec IR151 Bedienungsanleitung

Scaneo

Scaneo TS42B Bedienungsanleitung

Sper scientific

Sper scientific 800043 Bedienungsanleitung

Microlife

Microlife NC 200 Bedienungsanleitung

Motorola

Motorola MBP69SN Konfigurationshandbuch

The MeatStick

The MeatStick The MeatStick Bedienungsanleitung

Hama

Hama TH35-A Bedienungsanleitung
