Extron electronics MBC Sparc Buffer Bedienungsanleitung

User's Guide

MBC Sparc Buffer

P/N 26-283-01

POWER

79-09

68-074-01

Rev. E3

EXTRON ELECTRONICS, ASIA

41B Kreta Ayer Road

Singapore 089003

+65-226-0015 FAX +65-226-0019

Singapore

EXTRON ELECTRONICS

1230 South Lewis Street

Anaheim, CA 92805

(714) 491-1500 FAX (714) 491-1517

U.S.A.

EXTRON ELECTRONICS, EUROPE

Beeldschermweg 6C

3821 AH Amersfoort

+31-33-453-4040 FAX +31-33-453-4050

The Netherlands

im Vertrieb von

CAMBOARD Electronics

www.camboard.de

Tel. 07131 911201

Fax 07131 911203

[email protected]

Extron • MBC SPARC Buffer • User’s Guide

Page 1

Internal Jumper P1

Internal jumper P1 is located on the circuit board near (behind) the Power LED.

The two possible positions for the jumper are "NEXT/SGI" and "SUN"; the factory

setting is SUN. If you are experiencing sync problems, check/change the position

of P1.

To check or change jumper P1, do the following:

___ Do not open the plastic case while power is applied.

1. The tip of a flat blade screwdriver may be used in the slots on each side to

pry open the plastic case. See the diagram above for the location of jumper

P1.

2. After checking/changing P1, reassemble the unit and go to the installation

instructions.

Circuit Board

(

Inside Plastic Cabinet)

Installation Instructions

1. Power OFF the computer.

2. Connect the Extron MBC Sparc Buffer to the Extron analog interface

using the 9 pin D sub connector (2a) and plug the 9 volt DC power

plug (2b) into the power jack. Set the Extron interface termination

switch (if available) to HIGH Z (un-terminated).

3. Connect the Local Monitor (SUNSPARC, SILICON GRAPHICS,

NeXT COLOR, or any other computer that uses the 13W3 connector)

to the Local Monitor female input (3) on the MBC Sparc Buffer.

4. Connect the 13W3 Male six foot cable (4) to the CPU (Workstation).

5. Be sure that all cable connector screws are secure.

6. Power ON the computer.

POWER

MBC SPARC Buffer Operation and Installation MBC SPARC Buffer Operation and Installation

Extron • MBC SPARC Buffer • User’s Guide Page 2

im Vertrieb von

CAMBOARD Electronics

www.camboard.de

Tel. 07131 911201

Fax 07131 911203

[email protected]

Andere Extron electronics Adapter Handbücher

Extron electronics

Extron electronics ASA 100 Series Bedienungsanleitung

Extron electronics

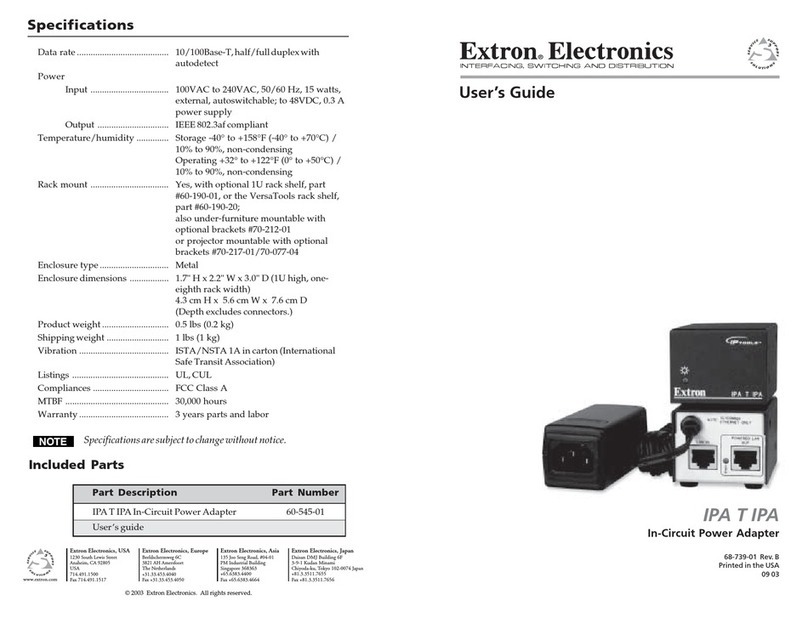

Extron electronics IPA T IPA Bedienungsanleitung
