Extron electronics ADA 6 Component Bedienungsanleitung

User’s Guide

Extron Electronics, USA

1230 South Lewis Street

Anaheim, CA 92805

USA

714.491.1500

Fax 714.491.1517

Extron Electronics, Europe

Beeldschermweg 6C

3821 AH Amersfoort

The Netherlands

+31.33.453.4040

Fax +31.33.453.4050

Extron Electronics, Asia

135 Joo Seng Road, #04-01

PM Industrial Building

Singapore 368363

+65.6383.4400

Fax +65.6383.4664

Extron Electronics, Japan

Daisan DMJ Building 6F

3-9-1 Kudan Minami

Chiyoda-ku, Tokyo 102-0074 Japan

+81.3.3511.7655

Fax +81.3.3511.7656

www.extron.com

Component/HDTV Distribution Amplifier

68-462-01 Rev. B

Printed in the USA

02 02

ADA 6 Component

Video output

Number/signal type ................... 6 RGsB, component video, S-video,

composite video

Connectors ................................... 6 x 3 BNC female

Minimum/maximum levels ....... 0.5V to 1.5V p-p

Impedance .................................... 75 ohms

Return loss .................................... -44dB @ 5 MHz

DC offset ....................................... ±13mV maximum with input at 0 offset

General

Power ............................................ 100VAC to 240VAC, 50/60 Hz, 20 watts,

internal, auto-switchable

Temperature/humidity .............. Storage -40° to +158°F (-40° to +70°C) /

10% to 90%, non-condensing

Operating +32° to +122°F (0° to +50°C) /

10% to 90%, non-condensing

Rack mount .................................. Yes, with optional shelf # 60-030-01 (2U) or

front panel #60-126-01 (3U)

Enclosure type .............................. Metal

Enclosure dimensions ................. 3.4" H x 8.5" W x 6.3" D (2U high, 1/2 rack

width)

8.6 cm H x 20.3 cm W x 16.0 cm D

Product weight ............................. 3.6 lbs (1.6 kg)

Shipping weight ........................... 5 lbs (2.3 kg)

Vibration ....................................... ISTA/NSTA 1A in carton (International

Safe Transit Association)

Approvals ..................................... UL, CUL

Compliances ................................. CE, FCC Class A

MTBF ............................................. 30,000 hours

Warranty ....................................... 3 years parts and labor

Part Numbers

ADA 6 Component ..................... 60-310-01

BNC 75-ohm termination plug .. 20-300-01

Specifications are subject to change without notice.

ADA 6 ComponentADA 6 Component

ADA 6 Component

The Extron ADA 6 Component is a component/HDTV (high-

definition television) distribution amplifier. It is designed for use

when one component/HDTV video signal must be sent to up to

six output devices (11 with looping) without loss of signal quality.

Features

• Accepts and outputs component video.

• High bandwidth provides signal distribution with no loss of

picture quality.

• Looping allows two amplifiers to be connected to provide up to

11 outputs.

Installation

To install the ADA 6 Component, do the following:

1. Remove power cords from the amplifier and all input and

output devices.

2. If you are rack mounting the amplifier, attach it to a rack

front panel (Extron part number 60-126-01) or rack shelf

(Extron part number 60-030-01), and then mount the

assembly in the rack.

3. Connect the input BNC connectors to the signal source, such

as a high-definition television (HDTV). There are three

connectors: R-Y, B-Y, and Y.

4. If you are looping amplifiers, choose the unit that will be #1,

and connect one set of its outputs to the input on

amplifier #2.

5. Connect each output to the R-Y, B-Y, and Y connectors on its

destination, such as a monitor or large screen projector.

6. Attach a BNC 75-ohm termination plug to each unused

output connector.

7. Reattach power cords, and apply power to the amplifier and

to all input and output devices.

Operation

The figure below shows the amplifier’s front and rear panels.

Power LEDs — Light to indicate that the amplifier is on.

AC/DC Coupling switches (3) — Normally, set to AC (up).

If the application requires DC coupling, set to DC (down).

Specifications

Video

Gain ................................................ Unity

Bandwidth ..................................... 180 MHz (-3dB), fully loaded

Video input

Number/signal type ................... 1 RGsB, component video, S-video,

composite video

Connectors ................................... 3 BNC female

Minimum/maximum levels ....... Analog ....... 0.5V to 1.5V p-p with no DC

offset at unity gain

Impedance .................................... 75 ohms

Horizontal frequency .................. 15 kHz to 150 kHz

Vertical frequency ....................... 15 Hz to 140 Hz

Return loss .................................... -38dB @ 5 MHz

AC/DC coupling ......................... Yes, switch-selectable

ADA 6 Component

INPUT

HDTV Large Screen

Display

HDTV CRT

HDTV Receiver

R-Y

B-Y

R-Y

B-Y

R-Y

B-Y

R-Y

COUPLING

B-Y

R-Y

B-Y

R-Y

B-Y

R-Y

B-Y

100-240 V 50/60 Hz

0.20AMAX

1 2

R-Y

B-Y

R-Y

B-Y

R-Y

B-Y

R-Y

COUPLING

B-Y

R-Y

B-Y

R-Y

B-Y

R-Y

B-Y

100- 240 V 50/60Hz

0.20A MAX

ADA 6 Component

Component/HDTV Distribution Amplifier

Inhaltsverzeichnis

Andere Extron electronics Verstärker Handbücher

Extron electronics

Extron electronics Extron P/2 DA2xi Bedienungsanleitung

Extron electronics

Extron electronics DVI DA2 Bedienungsanleitung

Extron electronics

Extron electronics HPA 1001-70V Bedienungsanleitung

Extron electronics

Extron electronics Video and Audio Line Drivers with Gain and EquaLization CVEQ 100... Bedienungsanleitung

Extron electronics

Extron electronics DA2 HD 8K L Bedienungsanleitung

Extron electronics

Extron electronics DA 6V EQ Bedienungsanleitung

Extron electronics

Extron electronics MPA 122 Bedienungsanleitung

Extron electronics

Extron electronics DTP HD DA4 4K 230 Bedienungsanleitung

Extron electronics

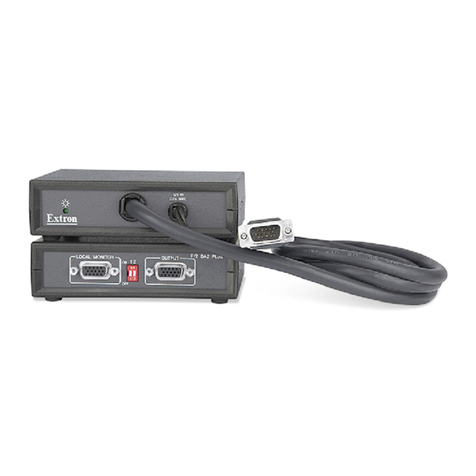

Extron electronics Extron P/2 DA2 PLUS Bedienungsanleitung
