Extron electronics FOX 3G DVC Bedienungsanleitung

Product Category

FOX 3G DVC • Setup Guide

The Extron FOX 3G DVC receives ﬁber optic SD-SDI, HD-SDI, and 3G-SDI serial digital video signals over a single ﬁber and

converts them to DVI-D and analog RGB or component video. It is compatible with the FOX 3G HD-SDI Fiber Optic Extender

as well as FOX Series distribution ampliﬁers, switchers, and matrix switchers. The FOX 3G DVC features extraction of

embedded AES3 audio, RS-232 and USB serial control, and a ﬁber optic input loop-through that allows multiple FOX 3G DVC

and FOX 3G HD-SDI units to be daisy-chained. The FOX 3G DVC is compliant with SMPTE 259M, 292M, 424M, and ITU

digital video standards. The RGB output can be set for RGBHV, RGBS, and RGsB. Bi-level or tri-level sync can be selected

when the unit is set for component video output. The FOX 3G DVC MM supports multimode ﬁber at 850 nm for moderate

transmission distances up to 500 m (1,640 feet). The FOX 3G DVC SM supports singlemode ﬁber at 1310 nm for long

distances of up to 30 km (18.75 miles).

NOTE: For full installation, conﬁguration, and operation details, see the FOX 3G DVC User Guide, available at

www.extron.com.

Rear Panel Features and Connections

Installation Steps

1. Disconnect power from all equipment.

2. (Optional) Mount the unit to a rack or furniture.

3. Connect the video input. Connect an SD-SDI, HD-SDI, or 3G-SDI source to the SDI/HD-SDI (Rx) port of the ﬁber optic

LC input connector (cin the rear panel illustration above).

4. Connect the video output. Connect a display or other output device to the DVD-D digital video connector (e) or to

the RGB/R-Y,Y,B-Y analog RGB (RGBHV, RGBS, and RGsB) or YUV component video connector (f).

5. Connect a control device. Connect a host device such as a computer or touchpanel control system to one or both of

the following DVC ports to conﬁgure and control the DVC via Simple Instruction Set (SIS™) commands.

zRS-232 port (rear panel) — Connect a host device s to the Tx, Rx, and _(ground) pins of this 5-pole captive

screw connector (h). The ﬁrst and second pins of this connector are not used. The default protocol for this port is

9600 baud, 1 stop bit, no parity, 8 data bits, and no ﬂow control.

zCong port (front panel) — Connect a USB cable (USB A to USB mini B) between a USB port on your computer

and this port (aon the front panel illustration on the next page).

6. Connect the audio output. Connect an ampliﬁer or other audio output device to the 5-pole captive screw audio

connector (gon the rear panel illustration), as shown below.

Do not tin the wires!

Balanced Audio Output

Tip

Ring

Tip

Ring

Sleeves

Unbalanced Audio Output

Tip

Sleeves

CAUTION: For unbalanced audio, connect the sleeves to the ground contact. DO NOT connect them to negative (–)

contacts.

7. (Optional) Daisy-chain additional FOX 3G devices. Connect another FOX 3G DVC or a FOX 3G HD-SDI to the

Buffered Loop-Through (Tx) port of the input connector (b). Up to three devices can be daisy-chained from this port.

8. Connect power to the FOX 3G DVC by plugging a standard IEC power cord (provided) from a 100 to 240 VAC, 50-60 Hz

power source into the power receptacle (a).

100-240V ~ 0.3A MAX

50/60 Hz

3G/HD/SD-SDI

INPUT

BUFFERED LOOP-THROUGH

OUTPUT

DVI-D

RS-232

N/A Tx Rx

AUDIO

LINK

RGB / R-Y, Y, B-Y

12567

4aAC power connector

bTx port (buffered

loop-through)

cRx port

dLink LED

eDVI-D output connector

fRGB/YUV output

connector

gAudio output connector

hRS-232 connector

68-1518-51 Rev. C

09 11

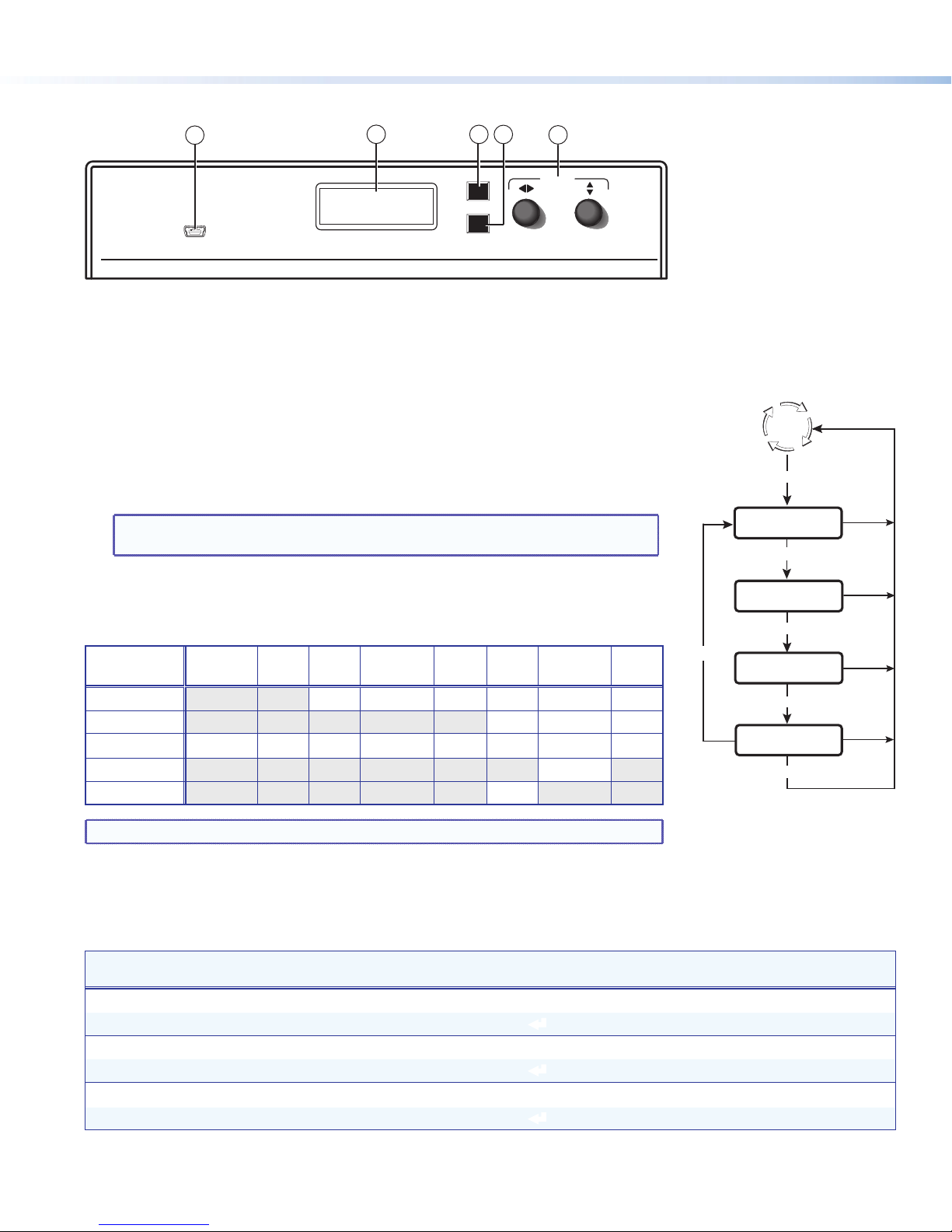

Front Panel Features

Extron

FOX 3G DVC

DIGITAL VIDEO CONVERTER

ADJUST

CONFIG

1235

Conguring the FOX 3G DVC Using the Front Panel

Menu selections are displayed on the front panel LCD screen. To use any menu, press the Menu button repeatedly until the

desired menu is displayed (see the menu ﬂow diagram at lower-right). Press the Next button repeatedly until the desired

submenu appears. Rotate an Adjust knob to select an item from a submenu. To return to the main menu at any time, press

Menu. After 30 seconds of inactivity, the screen displays the default cycle.

1. From the Output Conﬁg submenus, use the Adjust knobs to select the output signal

type and the sync polarity to match the requirements of the display device.

2. From the Advanced Conﬁg menu, Test Pattern submenu, select the Crop, Crosshatch,

Colorbars, and Grayscale test patterns to conﬁrm that the settings of the display

device are correct.

NOTE: Test pattern timings are based on the incoming SDI signals and are not

displayed if an active signal is not present.

3. Use the Audio Conﬁg submenus to conﬁgure the audio as desired.

Supported Input Resolutions

Supported

Resolutions 23.98 Hz 24 Hz 25 Hz 29.97 Hz 30 Hz 50 Hz 59.94 Hz 60 Hz

720p X X X X X X

1080i X X X

1080p X X X X X X X X

NTSC X

PAL X

NOTE: The output resolution always matches the input resolution.

Simple Instruction Set (SIS) Commands

When setting up the FOX 3G DVC, you can issue SIS commands from your computer via RS-232 or USB as an alternative to

the front panel controls. See the FOX 3G DVC Series User Guide for a complete list of available SIS commands.

Command ASCII command

(Host to Converter)

Response

(Converter to Host) Additional Description

Mute video 1B Vmt1]Mute the video output.

Unmute video 0B Vmt0 ]Display the video output.

Mute audio 1Z Amt1 ]Mute the audio output.

Unmute audio 0Z Amt0 ]Unmute the audio output.

Enable lock (executive) mode 1X Exe1]Lock all front panel functions.

Disable lock mode 0X Exe0 ]Enable all front panel functions.

AUDIO

CONFIG

30 sec.

Default

Cycle

EXIT MENU

PRESS NEXT

OUTPUT

CONFIG 30 sec.

30 sec.

ADVANCED

CONFIG

30 sec.

aUSB Conﬁg port

bLCD screen

cMenu button

dNext button

eAdjust knobs
