Chapter One

Introduction to the RGB 302/304

SmartSave™

LCD Menu Driven Controls

Memory Blocks and Memory Cycling

Image Display Controls

Automatic Sync Output Detection

Keyboard Lockout

RS-232 Control Interface

Front Panel Controls

Specifications

RGB 302/304 Universal Digital Interface

User’s manual

im Vertrieb von

CAMBOARD Electronics

www.camboard.de

Tel. 07131 911201

Fax 07131 911203

[email protected]

Extron RGB 302/304 Universal Interface • User’s Manual

The Extron RGB 302/304 is a digitally controlled

UniversalAnalog/ECLComputer-VideoInterface.It

can connect most computers to a video presentation

device, such as a large screen projector or data

monitor. The RGB 302/304’s SmartSave™ feature

automatically selects sync settings and other

parameters for a quick and easy setup.

AmongtheRGB302/304features are RGB input/

outputconnectors,an MBC power jack, audio input/

outputconnectors,an RS-232 connector, and rear

panel DIP switches.

TheRGB304isidentical in performance and features

as the RGB 302 with the exception being that, unlike

the RGB 302, the RGB 304 has its 9-pin Analog/ECL

input,Audioinput,andMBCpowerjacklocatedonthe

frontpanel of the unit, as shown below. This difference

allows the RGB 304 to be installed in situations where

front panel access to such connectors may be

necessary, such as the mounting of the unit in a rack

mountenvironment.

RGB302/304 Features

The RGB 302/304 features allow video output to be

controlled in several ways:

• Automaticsync output detection and setup for quick

installation

• CustomsetupandadjustmentsmadefromtheFront

Panel(shownbelow)

• RGB 302/304 Windows® software, through an RS-232

interface

• User-writtenprogramsthroughtheRS-232port

Page 1-1

Chapter 1 • Introduction to the RGB 302/304

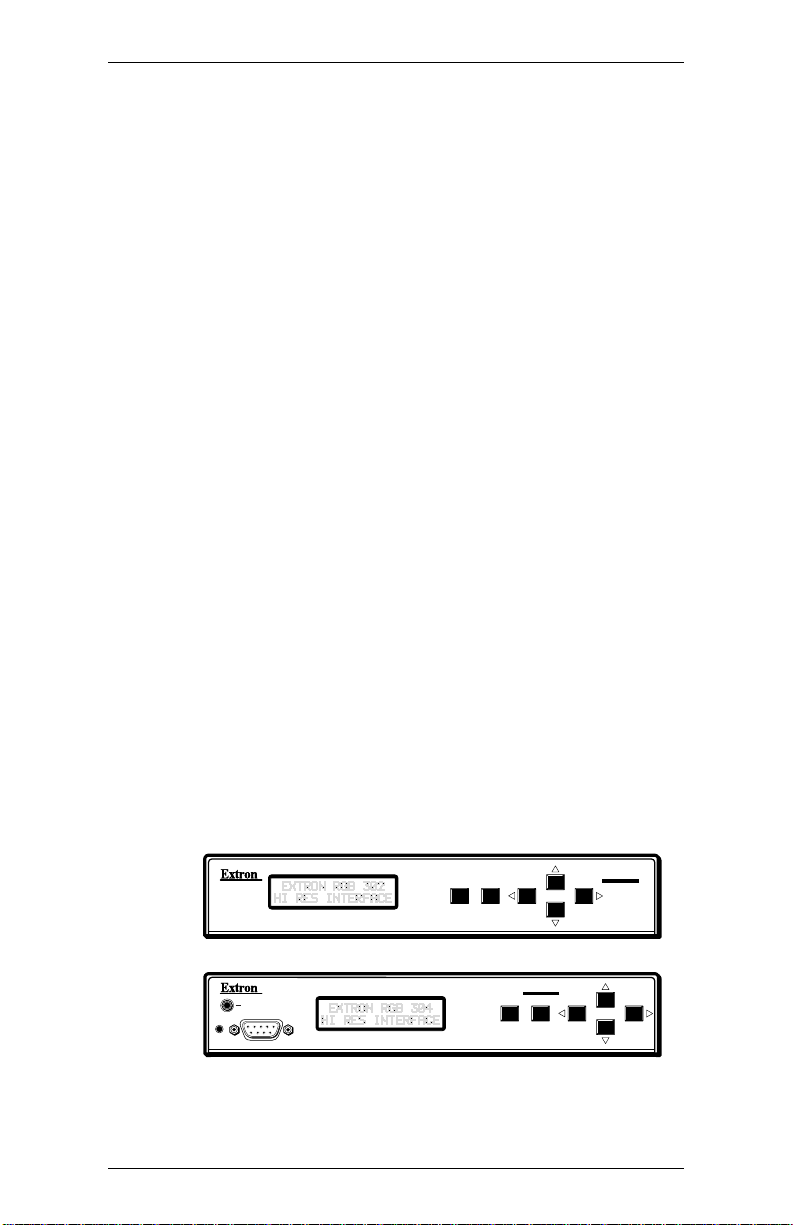

MENU NEXT

RGB 302

MENU NEXT

RGB 304

MBC

POWER

ANALOG/ECL

AUDIO IN

INPUT

im Vertrieb von

CAMBOARD Electronics

www.camboard.de

Tel. 07131 911201

Fax 07131 911203

[email protected]

Extron RGB 302/304 Universal Interface • User’s Manual

SmartSave

™

Thisunique featuregreatlysimplifiesthevideo

configurationsetupoftheRGB302/304. The

RGB 302/304 comes preset with various video

configurationstomatchmostcomputer video

requirements.Theproperconfigurationis

automaticallyselectedandimplementedfortheuser.

Inaddition,theRGB302/304will automaticallysave

anyusermodificationstothe videoconfigurationand

willrecallthecorrectconfigurationwithout needfor

userintervention.

LCD Menu Driven Controls

The RGB 302/304 does not have front panel “knobs”

or “switches” to control its operation. Instead, the

“controls”aredisplayedand adjusted using theFront

Panel LCD display and the six front panel buttons.

The Front Panel display can be used in any of four

languages:English,French,SpanishandGerman.

The display serves two purposes:

1. The RGB 302/304 automatically detects and

displaysvitaltroubleshootinginformation,suchas

thehorizontalandverticalscanfrequencies.

2. The user can step through and display any of the

controlsorfeaturesin the interface.

___ Chapter 3has detailsonusingtheFrontPanel.

Memory Blocks and Memory Cycling

There are 15 preset memory blocks which store video

format information, such as video, sync and control

settings. Each block is preloaded by Extron and

definesonevideoconfiguration(e.g.VESA3,MAC16",

etc.). These preset memory blocks define most video

requirements.Inaddition,thereare25user-definable

memoryblocksavailable.

The RGB 302/304 automatically cycles through

(MemoryCycling)the user-definedmemoryblocks

and loads the video format that most closely matches

thecomputer’svideooutput.Should a match notbe

found, the 15 preset memory blocks are searched

next (refer to

the section “Memory Cycling Feature”

Chapter2).

Level Control (picture)

This feature is similar to the brightness control on a

datamonitor and is used toadjust the intensity of the

videolevelontheprojector/monitorscreenbyusing

the cursor keys. There are 255 levels for this control.

Page 1-2

Chapter 1 • Introduction to the RGB 302/304

im Vertrieb von

CAMBOARD Electronics

www.camboard.de

Tel. 07131 911201

Fax 07131 911203

[email protected]

Extron RGB 302/304 Universal Interface • User’s Manual

Peaking Control (sharpness)

This control is similar to the sharpness control on a

datamonitor. It is also used to compensate for long

cable runs. There are eight Peaking levels which are

selected by using the cursor keys.

Horizontal Shift Control (centering)

Thisfeatureshifts the displayed image to the leftor

rightontheprojector/monitorscreenbyusingthe

cursor keys. There are 255 positions for this control.

Vertical Shift Control (centering)

Thisfeature shifts the displayed imageup or down on

the projector/monitor screen by using the cursor keys.

Thereare 255 positions for thiscontrol.

Automatic Sync Output Detection

The RGB 302/304 automatically detects which cables

are connected and sends either Sync On Green,

CompositeSyncorSeparateHorizontalandVertical

sync signals to the correct output cables. This

functioncan beoverriddenthroughmenucontrols.

Automatic Sync Stripping

The RGB 302/304 automatically strips all incoming

sync from the red, green, and blue channels for clean,

crisp signal processing. Sync may be recombined with

the green channel if necessary.

Keyboard Lockout

The RGB 302/304 features a Keyboard Lockout

function which allows the user to “lock out” the front

panel controls by using “hot keys”. This feature

disablesfrontpaneloperationaftersetup.

Auto-switching Power Supply

The RGB 302/304 is equipped with an internal auto-

switchingpower supply that operates fromany input

voltage in the 100 to 240 VAC, 50/60 Hz range. No

equipmentchangesare necessary.

Audio InterfaceThe RGB 302/304 includes a PC/computer audio (600

ohm)toline-levelaudio(balanced)converter.For

computers which have a sound card, the audio

interfacewillprocesstheaudiosignal along with the

video(audio follow).Theaudiooutputcanbe

connected to an external stereo system.

Page 1-3

Chapter 1 • Introduction to the RGB 302/304

im Vertrieb von

CAMBOARD Electronics

www.camboard.de

Tel. 07131 911201

Fax 07131 911203

[email protected]

Extron RGB 302/304 Universal Interface • User’s Manual Page 1-4

Chapter 1 • Introduction to the RGB 302/304

DIP Switch Settings

The RGB 302/304 includes a rear panel DIP switch

bank which will activate Digital Display Sync

Processing, remove/pass serration pulses, and set 75

Ohm/highimpedancevideoinputtermination.

RS-232 Control Interface for Remote Control

The RGB 302/304 has a built-in RS-232 interface to

allowtheunittobecontrolledremotelyineitheroftwo

ways:

1. Use the Windows® RGB 302/304 Control Panel

software provided by Extron (see next section).

2. The user may write software to control the RGB 302/

304 from a PC or control system. See the

Programmer’s Guide inAppendix A.

The RS-232 protocol is fixed at 9600 baud, no parity, 8

data bits and 1 stop bit.

Benefits of Windows® RGB 302/304 Software

UsingtheWindows® software provided with the

RGB 302/304 adds several advantages over Front

Paneloperation.

• All of the controls are quick and easy to use with

theon-screencontrolpanel.

• Application setups can be stored as disk files,

therefore,anunlimited numberofsetupscanbe

stored and reloaded from the PC’s hard drive or

floppydisk.

Refer to Chapter 4 for details on using this software.

im Vertrieb von

CAMBOARD Electronics

www.camboard.de

Tel. 07131 911201

Fax 07131 911203

[email protected]

Andere Handbücher für RGB 302

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Extron electronics Aufnahmegeräte Handbücher

Extron electronics

Extron electronics DMP 128 Plus Bedienungsanleitung

Extron electronics

Extron electronics Extender AAP Bedienungsanleitung

Extron electronics

Extron electronics RGB 440 Bedienungsanleitung

Extron electronics

Extron electronics IPL T S Series Bedienungsanleitung

Extron electronics

Extron electronics IPL T S1 Bedienungsanleitung

Extron electronics

Extron electronics RGB 190FV Bedienungsanleitung

Extron electronics

Extron electronics Architectural Series Universal Interfaces with Audio and ADSP RGB... Bedienungsanleitung

Extron electronics

Extron electronics RGB 500 AKM Bedienungsanleitung

Extron electronics

Extron electronics RGB 160 Bedienungsanleitung

Extron electronics

Extron electronics IPL T SF Series Bedienungsanleitung

Extron electronics

Extron electronics CIA111 Bedienungsanleitung

Extron electronics

Extron electronics RGB 203 Rxi VTG Bedienungsanleitung

Extron electronics

Extron electronics EBP 108 RAAP Button Panel Bedienungsanleitung

Extron electronics

Extron electronics RGB 158xi Bedienungsanleitung

Extron electronics

Extron electronics RGB 109xi Bedienungsanleitung

Extron electronics

Extron electronics AXI 22 AT D Bedienungsanleitung

Extron electronics

Extron electronics CVEQ1 WM Bedienungsanleitung

Extron electronics

Extron electronics IP Link IPL T CR48 Bedienungsanleitung

Extron electronics

Extron electronics DVI-RGB 150 Bedienungsanleitung

Extron electronics

Extron electronics Computer-Video Interface RGB 508 AKM Bedienungsanleitung

Extron electronics

Extron electronics IPL EXP PDU4H Bedienungsanleitung

Extron electronics

Extron electronics RGB 580xi AAP Bedienungsanleitung

Extron electronics

Extron electronics RGB 190F Bedienungsanleitung

Extron electronics

Extron electronics VNM Enterprise Bedienungsanleitung

Beliebte Aufnahmegeräte Handbücher anderer Marken

KV2 Audio

KV2 Audio 500 Series Bedienungsanleitung

Robotics Technologies

Robotics Technologies microBus-Cam II Bedienungsanleitung

Seca

Seca 460 Bedienungsanleitung

Cognex

Cognex MVS-8000 Series Bedienungsanleitung

Mect

Mect MPNC006 Series Bedienungsanleitung

Bad Caf

Bad Caf THE LEASH Bedienungsanleitung

Strymon

Strymon NIGHTSKY Bedienungsanleitung

Mitsubishi Electric

Mitsubishi Electric 16CH DIGITAL RECORDER DX-TL5000U Bedienungsanleitung

Tews Technologies

Tews Technologies TPMC465 Bedienungsanleitung

Honeywell

Honeywell Excel 50 Bedienungsanleitung

SeaLevel

SeaLevel COMM+8.LPCI Bedienungsanleitung

Arturia

Arturia AUDIOFUSE STUDIO Bedienungsanleitung

Rukra

Rukra RK-1240 Bedienungsanleitung

Samson

Samson SCOM Bedienungsanleitung

Dynacord

Dynacord DPS260 Bedienungsanleitung

Nice

Nice Core Bedienungsanleitung

Pyle Pro

Pyle Pro PSS8 Bedienungsanleitung

RF-System

RF-System TinyGate Gebrauchs- und Pflegehandbuch
