HAI 100 4K •Setup Guide

The Extron HAI 100 4K is an audio embedder that embeds either two-channel analog audio, or two-channel or multi-channel

S/PDIF digital audio onto the HDMI output signal. The HAI 100 4K includes an HDMI input, analog stereo audio and S/PDIF audio

inputs, as well as an HDMI output.

Mounting

The HAI 100 4K can be placed on a desktop or tabletop using the included rubber feet, or mounted to a rack or furniture (see the

HAI 100 4K User Guide, available at www.extron.com, for mounting options and instructions).

Cabling

Rear Panel Features and Cabling

CONFIG

HAI 100 4KE

SIGNAL

HDCP

IN OUT

POWER

12V

0.4A MAX

OUTPUT AUDIO INPUTSINPUT

HAI 100 4K

S/PDIFANALOG

AA BB CC BB EE

AA DD

Figure 1. HAI 100 4K Rear Panel

APower input — Connect the provided power supply to the 3.5 mm, 2-pole captive

screw power receptacle (see the image at right).

ATTENTION:

• Do not connect the power supply before reading the Attention in the

Power Supply section of the HAI 100 4K User Guide.

• Ne branchez pas la source d’alimentation externes avant d’avoir lu

les mises en garde dans la section «PowerSupply» du HAI 100 4K

User Guide.

BHDMI input — Connect an HDMI input source into this female HDMI type A

connector.

NOTE: By default, the EDID stored at the HDMI input is set to 720p at 60 Hz with 2-channel audio. EDID can be

congured using Extron PCS software or SIS commands (see Configuration on the next page).

CHDMI output — Connect an HDMI output device into this female HDMI type A connector.

DAnalog audio input — Connect an analog audio device to this 5-pole 3.5 mm captive screw connector (see figure 2). This

connector accepts 2-channel stereo balanced or unbalanced audio.

NOTE: Analog audio is embedded automatically by default, replacing any existing embedded digital audio. The

input audio format setting can be configured using PCS or SIS commands (see Configuration on the next page).

Do not tin the wi

res!

Balanced Audio Input

Tip

Ring

Tip

Ring

Sleeves

Unbalanced Audio Input

Tip

No Ground Here

Tip

Sleeves

Figure 2. Analog Input Connector Wiring

ATTENTION:

• Connect the sleeve to the ground (Gnd) terminal. Connecting the sleeve to a negative (-) terminal will damage the

audio output circuits.

• Connectez le manchon à la terminaison terre (Gnd). Connecter le manchon à une terminaison négative (-)

endommagera les circuits de la sortie audio.

SECTION A–A

Power Supply

Output Cord

Captive Screw

Connector

Ridges

Smooth

3/16"

(5 mm) Max.

APower input DAnalog audio input

BHDMI input ES/PDIF audio input (see the next page)

CHDMI output

68-2801-50

Rev. A

04 16

ES/PDIF audio input — Connect a S/PDIF audio output device into this female RCA connector. This connector accepts

digital S/PDIF audio formats (2-channel LPCM, Dolby Digital, or DTS).

NOTE: By default, the unit is congured to always embed analog audio. Therefore, the S/PDIF input is inactive.

The input audio format setting can be congured using PCS or SIS commands (see “Conguration” below).

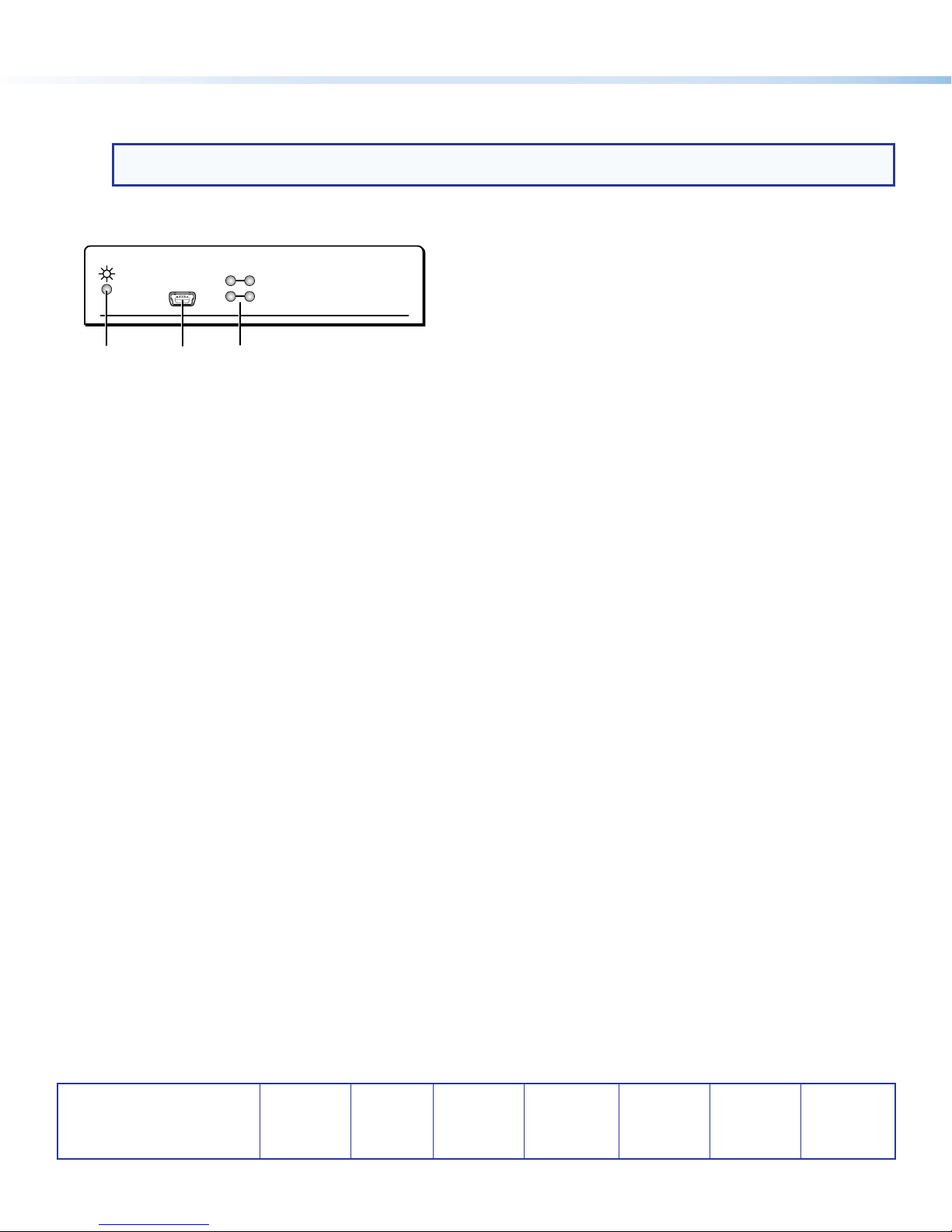

Front Panel Features and Cabling

CONFIG

HAI 100 4KE

SIGNAL

HDCP

IN OUT

POWER

12V

0.4A MAX

OUTPUT AUDIO INPUTSINPUT

HAI 100 4K

S/PDIFANALOG

BB EE

AA DD

Figure 3. HAI 100 4K Front Panel

APower LED — The LED indicator lights when the unit is receiving power.

BConfig port — Connect a control PC to this female type B mini USB Cong port to update the rmware, congure various

functions of the unit, and view the current status of the unit.

CInput and Output LEDs — These four LEDs provide the status of the HDMI input and output:

• Signal — Input LED lights when the unit is receiving a signal on the HDMI input.

Output LED lights when a sink device is connected to the HDMI output.

• HDCP — Input LED lights when the input signal is HDCP encrypted.

Output LED lights when an HDCP compliant sink device is detected and the output is encrypted.

Conﬁguration

Several HAI 100 4K features, including EDID Minder®, can be congured using Extron PCS software or SIS commands:

• Extron Product Conﬁguration Software (PCS): To congure the unit using PCS, download the software from

www.extron.com (see the HAI 100 4K User Guide for details).

• Simple Instruction Set™ (SIS) commands: SIS commands can be sent from a PC to the HAI 100 4K using Extron

DataViewer or other command interface (see the “SIS Commands” section of the HAI 100 4K User Guide).
