Ezi Rider Vantage Bedienungsanleitung
Model Features:
Motor: 36v 300w
Battery: Ananda 36v 11Ah Lithium battery with Samsung battery components
PAS: Power Assisted plus Regenerative charging
Controller: Intelligent controller
Frame: 6061 Aluminum alloy
Speed Gears: Shimano 7-speed gears
Brake: Front Disk-brake, Rear Brake R-Servo
Tyre: Kenda 20" x 1.95 (note spare tubes Warehouse approx $7.00)
Rim: Double wall alloy
Lights: Front and Rear LED lights
Charging time: about 2 hours
Battery Life: approx 1000 times charge
Range per charge: 50 Km + on Throttle, Peddle assist + Throttle 70km.
With Regeneration modes 1-3 much more km depending on terrain and rider.
Max NZ legal speed 32km/hr
Load capacity: 130Kgs
Weight: 24Kg with battery
Carton size: 87 x 37 x 78cm
Folded size: 90 x 30 x 70cm
20 inches electric folding bike 300W, 36V 10Ah, Shimano 7 speed gears
Remember to switch key off after use
Tyre Pressure Front 45 lbs rear 50lbs
Includes a powerful 36V 11 amp Li - Ion
Battery and can travel 50km on a single
journey with Power alone, but Pedal
Assist and Regenerative charging, gives
a far longer range depending on the
terrain.

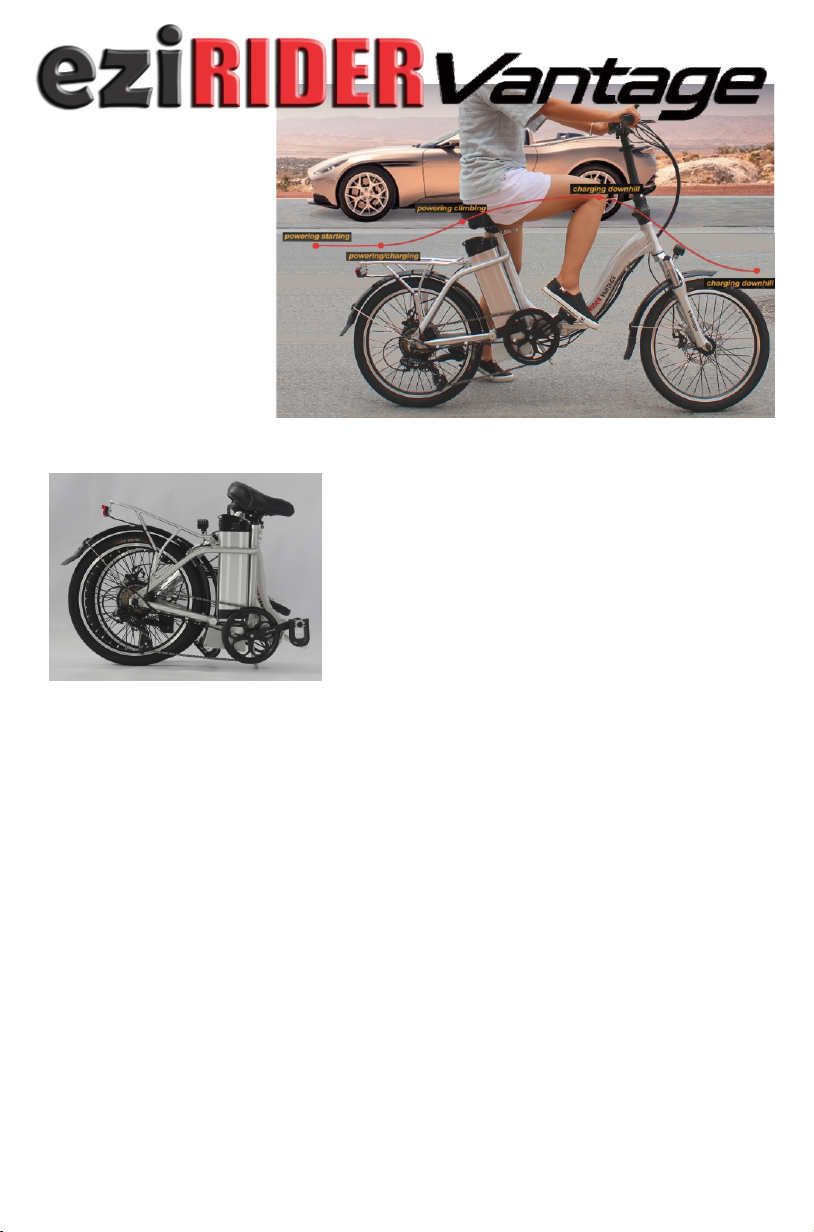

New Zealands
first
Regenerative
charging
e-bike
CHARGING BATTERY The battery can be checked
for charge by pushing button on top of battery. If only
RED light LED is the only one showing, then charging is
needed. Depending on trips and distance will determine
whether to charge. Two GREEN LEDS and a RED
LED, the battery is charged to a suitable level.
However the charger itself shows the true battery status
when LED turns from RED to GREEN indicating a truly
fully charged battery. It is suggested for the first 3
charges that the battery is left on charge for 12 hours
even when GREEN is on the charger. When finished
charging swing flap on battery to protect battery socket
from dirt entry.
CHARGING SOCKET

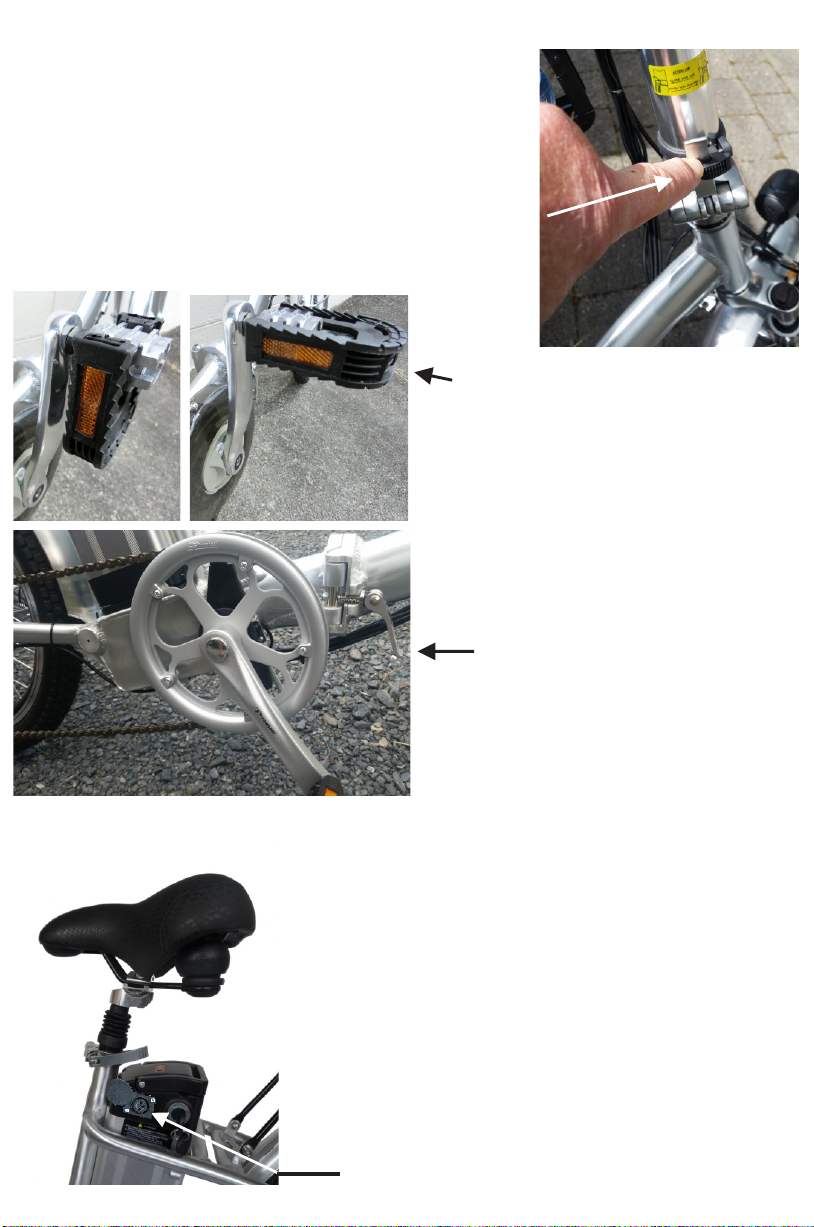

PEDALS can be folded by putting
finger through centre oval hole in
pedal and compressing in direction
of the arrow.
Folding Electric Bike: 3 easy steps
MAIN FRAME FOLD
Lift lever and swing to left. When
at 90 degrees then pin lifts up
and the two parts can hinge so
that the front folds together with
the back wheel.
HANDLE BAR ASSEMBLY
Make sure handlebar is secured as per
instruction on unit.
Finger pointing to Handle bar shaft folding
lock / unlock mechanism.
Features
New Model with Latest Design And Advanced Features
This Is A High Specification Advanced Bike
Auto Safety Cut off feature - When you press the Brake
Lever the Motor automatically cuts out
Shimano Gears
Quick Release Battery and locking system
On bicycle or Off Barrery charging
Rear Servo Assisted Brakes
Front Tektro V Brakes
Full Front Wheel Suspension
Full Size Frame
Height Adjustable Handle Bars
Height Adjustable Seat
Latest Saddle
Zoom Suspension front forks
LED Lights Included
Double reflector pedals
50 Km + Range
Seven Speed Shimarno Gear change. Note you
should not change through many gear settings while
bike is stationary otherwise it will result in the chain
coming off and crunching the mechanism. Its a good
practice to end up in gear 1-3 when stopping so a
startoff is easier to achieve. Practice on flat ground to
ensure you are familiar with operation even before
you start with assisted power. If the chain comes off,
to get back on sprockets, is by rotating pedals
backwards and guiding chain over the main power
sprocket wheel.
MODE 0 normal ebike Pedal & Throttle
MODE 1 speed >17km/h Pedal only
MODE 2 speed >21km/h Pedal only
MODE 3 speed >25km/h Pedal only
Modes 1-3 are for Self-Charging
Please do not use the Throttle
4 MODE - ELECTRIC CONTROLLER
PAS Regenerative Charging
1. Going down hill it charges the battery.
2. Flat road, as long as the required speed
is exceeded, it charges the battery.
Setting Speed Charging request:
MODE 1 speed greater than 17km/h
MODE 2 speed greater than 21km/h
MODE 3 speed greater than 25km/h
Multi Mode Electric Bike:
Pedal Power Only - Just like a normal bike
Throttle Power – No pedaling required MODE 0
Power Assist (PAS) = Adds power to your pedaling MODE 0
Power Assist (PAS) + Regenerative Charging MODES 1 - 3

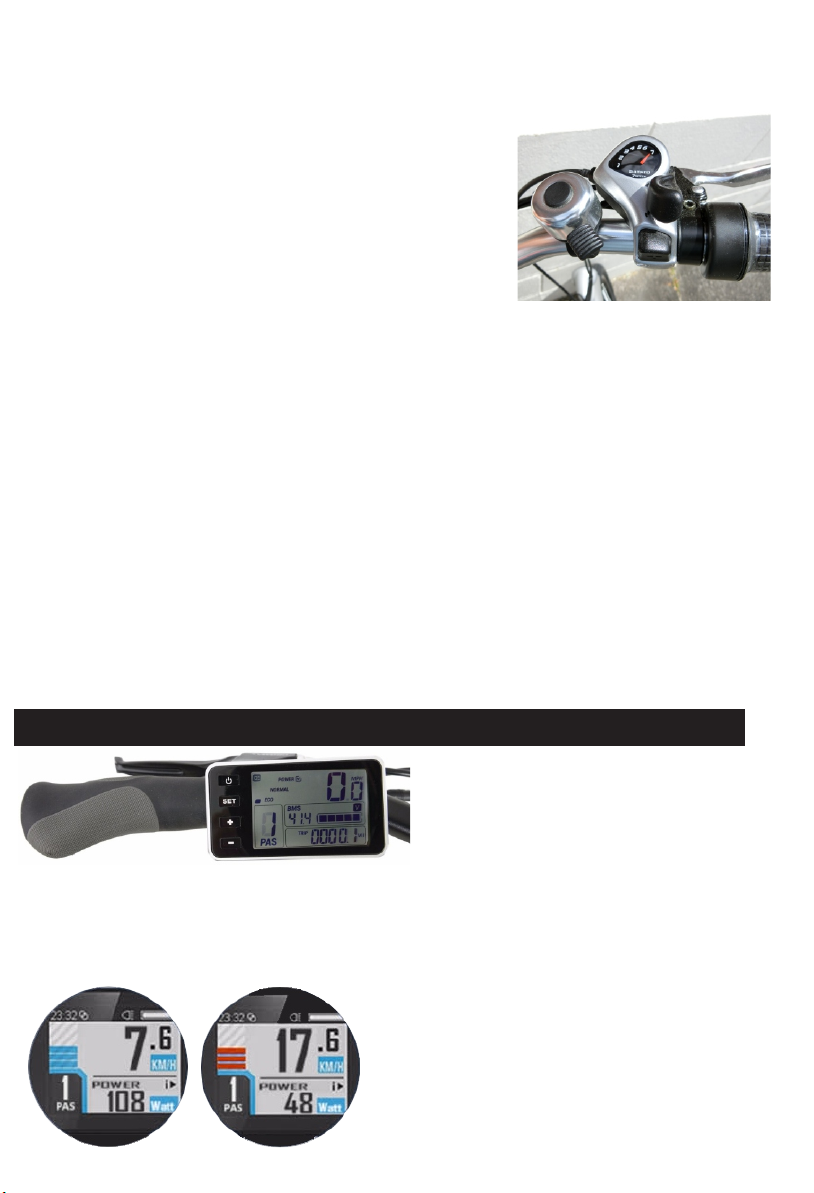

When charging, the display on the battery
balance will change from blue to dark red
colour. Please see the below the two images.
TO TURN ON THE BIKE LIGHTS
Press power button and then hold + button for 3 seconds.
ABOUT THIS BIKE:
Shocks: Zoom
Battery: Samsung Cell made in Korea assembled by Ananda China 36v 11Ah Li-ion
Motor and electronics: Ananda
Handle Bars and controller: Wuxing
Gears and gear train: Shimano
Frame and component fittings: Kalin
What makes this Electric foldaway Bicycle better than others currently sold on the NZ
market. It has front wheel Zoom fork shocks by HL Corporation. Quality welded frame, top
quality components, the efficient brushless motor power train by the Ananda company and
regenerative charging of which we are the first to introduce in NZ on the eziRIDER
Vantage.
TYRES: Front Pressure = 45lbs / sq in
Rear Pressure = 50lbs / sq in
With an older type bike pump its very hard to inflate to this pressure but possible. Easier at
the local garage unless you want to invest in a more substantial foot pump from
Supercheap or Repco. Unfortunately, if you ride with soft tyres, there’s a risk of rim and
tube or tire damage should you hit a pothole or rock. The impact compresses the tyre,
allowing the object to smack into the rim, possibly bending the rim and puncturing the tube.
Besides this, it’s much harder to pedal a bike with soft tyres, and the tyres wear quicker
when used under inflated.
CLEANING and WASHING
Braking causes aluminum rims to oxidize, leaving a layer of grit that can contaminate brake
pads. Depending on use and conditions particularly dusty, muddy, sandy or wet conditions
you can wash down but, wipe your rims with a dry cloth.
Every third or fourth clean / wash, give your frame and fork a layer of car wax.
It restores the paint's luster and keeps road tar and bugs from sticking. The Shock absorber
needs an film of oil or light grease. Chain can be kept lubricated by bike chain lubricant.
LEGAL THINGS NZ
In New Zealand the legal speed limit for power assisted bicycles is 32 km/h with maximum
motor wattage of 300 watts. By law you need to wear a safety helmet and its advisable to
wear bright colours. You are more safe when riding an electric bikes in NZ if you can keep
up with the flow of city traffic rather than being slower and constantly overtaken. This bike
will never leave you short of assisted speed and acceleration if you need it.
Assisted Cycle NZ Law Definition: A power assisted cycle has an auxiliary electric
motor with a maximum power not exceeding 300W and is designed to be primarily
propelled by the muscular energy of the rider.
Where there is a cycle path, you may ride on the cycle path or on the road. Where
there is no cycle path, you must ride on the road and keep as far left as you safely can. If
specifically prohibited by a sign from riding on the road, you must ride on any cycle path or
use an alternative road. If you are cycling on a shared path, be courteous to pedestrians.
Often pedestrians can't hear cyclists approaching, especially from behind or the side. Call
out politely or use the bell.

EZI RIDER Vantage Electric Foldaway
Features
New Model with Latest Design And Advanced Features
This Is A High Specification Advanced Bike
Auto Safety Cut off feature - When you press the Brake
Lever the Motor automatically cuts out
Shimano Gears
Quick Release Battery and locking system
On bicycle or Off Barrery charging
Rear Servo Assisted Brakes
Front Tektro V Brakes
Full Front Wheel Suspension
Full Size Frame
Height Adjustable Handle Bars
Height Adjustable Seat
Latest Saddle
Zoom Suspension front forks
LED Lights Included
Double reflector pedals
50 Km + Range
Seven Speed Shimarno Gear change. Note you
should not change through many gear settings while
bike is stationary otherwise it will result in the chain
coming off and crunching the mechanism. Its a good
practice to end up in gear 1-3 when stopping so a
startoff is easier to achieve. Practice on flat ground to
ensure you are familiar with operation even before
you start with assisted power. If the chain comes off,
to get back on sprockets, is by rotating pedals
backwards and guiding chain over the main power
sprocket wheel.
MODE 0 normal ebike Pedal & Throttle
MODE 1 speed >17km/h Pedal only
MODE 2 speed >21km/h Pedal only
MODE 3 speed >25km/h Pedal only
Modes 1-3 are for Self-Charging
Please do not use the Throttle
4 MODE - ELECTRIC CONTROLLER
PAS Regenerative Charging
1. Going down hill it charges the battery.
2. Flat road, as long as the required speed
is exceeded, it charges the battery.
Setting Speed Charging request:
MODE 1 speed greater than 17km/h
MODE 2 speed greater than 21km/h
MODE 3 speed greater than 25km/h
Multi Mode Electric Bike:
Pedal Power Only - Just like a normal bike
Throttle Power – No pedaling required MODE 0
Power Assist (PAS) = Adds power to your pedaling MODE 0
Power Assist (PAS) + Regenerative Charging MODES 1 - 3
When charging, the display on the battery
balance will change from blue to dark red
colour. Please see the below the two images.
TO TURN ON THE BIKE LIGHTS
Press power button and then hold + button for 3 seconds.
ABOUT THIS BIKE:
Shocks: Zoom
Battery: Samsung Cell made in Korea assembled by Ananda China 36v 11Ah Li-ion
Motor and electronics: Ananda
Handle Bars and controller: Wuxing
Gears and gear train: Shimano
Frame and component fittings: Kalin
What makes this Electric foldaway Bicycle better than others currently sold on the NZ
market. It has front wheel Zoom fork shocks by HL Corporation. Quality welded frame, top
quality components, the efficient brushless motor power train by the Ananda company and
regenerative charging of which we are the first to introduce in NZ on the eziRIDER
Vantage.
TYRES: Front Pressure = 45lbs / sq in
Rear Pressure = 50lbs / sq in
With an older type bike pump its very hard to inflate to this pressure but possible. Easier at
the local garage unless you want to invest in a more substantial foot pump from
Supercheap or Repco. Unfortunately, if you ride with soft tyres, there’s a risk of rim and
tube or tire damage should you hit a pothole or rock. The impact compresses the tyre,
allowing the object to smack into the rim, possibly bending the rim and puncturing the tube.
Besides this, it’s much harder to pedal a bike with soft tyres, and the tyres wear quicker
when used under inflated.
CLEANING and WASHING
Braking causes aluminum rims to oxidize, leaving a layer of grit that can contaminate brake
pads. Depending on use and conditions particularly dusty, muddy, sandy or wet conditions
you can wash down but, wipe your rims with a dry cloth.
Every third or fourth clean / wash, give your frame and fork a layer of car wax.
It restores the paint's luster and keeps road tar and bugs from sticking. The Shock absorber
needs an film of oil or light grease. Chain can be kept lubricated by bike chain lubricant.
LEGAL THINGS NZ
In New Zealand the legal speed limit for power assisted bicycles is 32 km/h with maximum
motor wattage of 300 watts. By law you need to wear a safety helmet and its advisable to
wear bright colours. You are more safe when riding an electric bikes in NZ if you can keep
up with the flow of city traffic rather than being slower and constantly overtaken. This bike
will never leave you short of assisted speed and acceleration if you need it.
Assisted Cycle NZ Law Definition: A power assisted cycle has an auxiliary electric
motor with a maximum power not exceeding 300W and is designed to be primarily
propelled by the muscular energy of the rider.
Where there is a cycle path, you may ride on the cycle path or on the road. Where
there is no cycle path, you must ride on the road and keep as far left as you safely can. If
specifically prohibited by a sign from riding on the road, you must ride on any cycle path or
use an alternative road. If you are cycling on a shared path, be courteous to pedestrians.
Often pedestrians can't hear cyclists approaching, especially from behind or the side. Call
out politely or use the bell.
EZI RIDER Vantage Electric Foldaway
Model Features:
Motor: 36v 300w
Battery: Ananda 36v 11Ah Lithium battery with Samsung battery components
PAS: Power Assisted plus Regenerative charging
Controller: Intelligent controller
Frame: 6061 Aluminum alloy
Speed Gears: Shimano 7-speed gears
Brake: Front Disk-brake, Rear Brake R-Servo
Tyre: Kenda 20" x 1.95 (note spare tubes Warehouse approx $7.00)
Rim: Double wall alloy
Lights: Front and Rear LED lights
Charging time: about 2 hours
Battery Life: approx 1000 times charge
Range per charge: 50 Km + on Throttle, Peddle assist + Throttle 70km.
With Regeneration modes 1-3 much more km depending on terrain and rider.
Max NZ legal speed 32km/hr
Load capacity: 130Kgs
Weight: 24Kg with battery
Carton size: 87 x 37 x 78cm
Folded size: 90 x 30 x 70cm
20 inches electric folding bike 300W, 36V 10Ah, Shimano 7 speed gears
Remember to switch key off after use
Tyre Pressure Front 45 lbs rear 50lbs
Includes a powerful 36V 11 amp Li - Ion
Battery and can travel 50km on a single
journey with Power alone, but Pedal
Assist and Regenerative charging, gives
a far longer range depending on the
terrain.
New Zealands
first
Regenerative
charging
e-bike
CHARGING BATTERY The battery can be checked
for charge by pushing button on top of battery. If only
RED light LED is the only one showing, then charging is
needed. Depending on trips and distance will determine
whether to charge. Two GREEN LEDS and a RED
LED, the battery is charged to a suitable level.
However the charger itself shows the true battery status
when LED turns from RED to GREEN indicating a truly
fully charged battery. It is suggested for the first 3
charges that the battery is left on charge for 12 hours
even when GREEN is on the charger. When finished
charging swing flap on battery to protect battery socket
from dirt entry.
CHARGING SOCKET
PEDALS can be folded by putting
finger through centre oval hole in
pedal and compressing in direction
of the arrow.
Folding Electric Bike: 3 easy steps
MAIN FRAME FOLD
Lift lever and swing to left. When
at 90 degrees then pin lifts up
and the two parts can hinge so
that the front folds together with
the back wheel.
HANDLE BAR ASSEMBLY
Make sure handlebar is secured as per
instruction on unit.
Finger pointing to Handle bar shaft folding
lock / unlock mechanism.
