EZi-3 Digital User Manual
Page 2

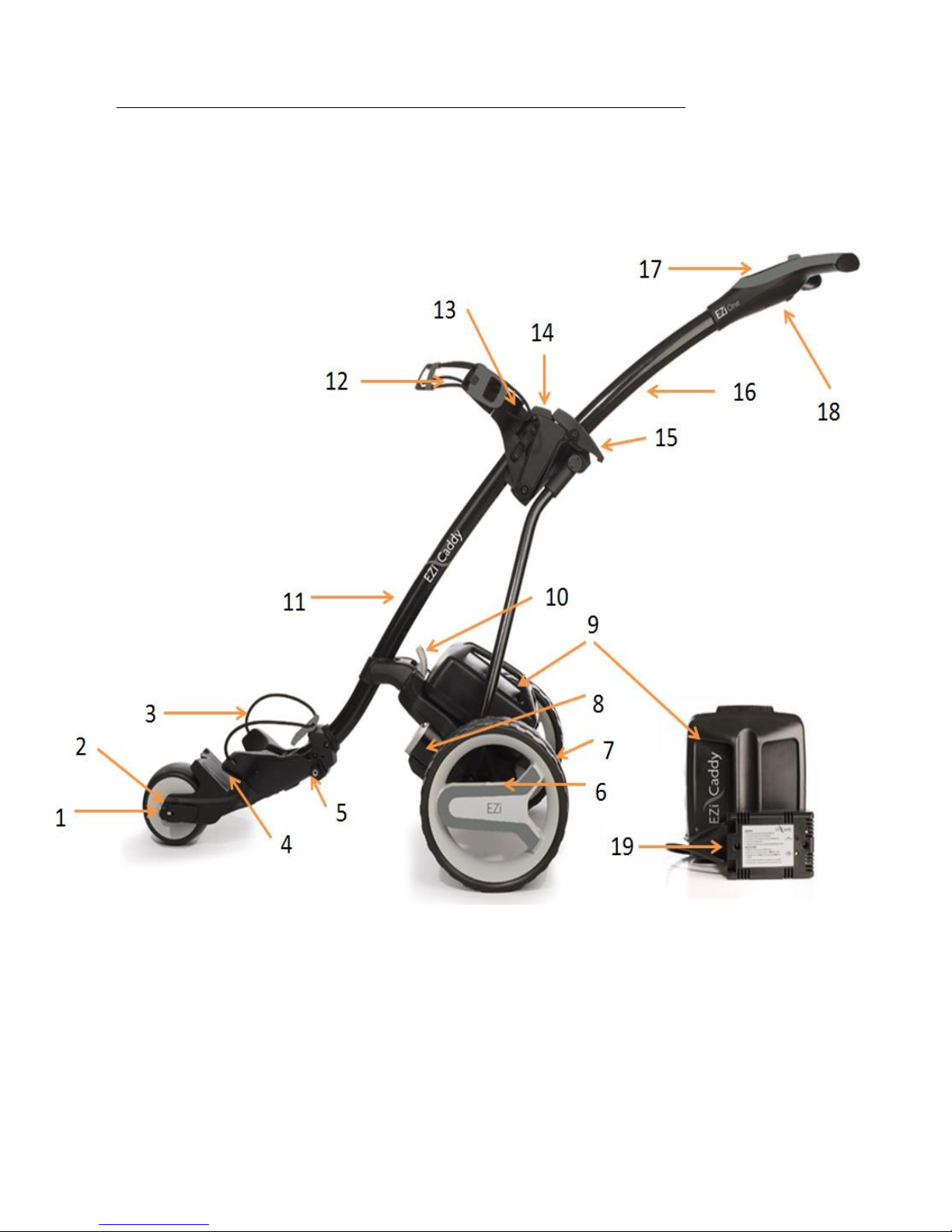

YOUR EZICADDY EZI-3 DIGITAL TROLLEY
Page 3
1. Front Wheel Adjuster Nut
2. Camlock Lever
3. Lower Bungee Strap
4. Bottom Bag Stay
5. Front Wheel Release Lever (on Right-Hand side of
trolley)
6. Quick Release Lever for wheel
7. Rear Wheel
8. Motor
9. Battery (normally, one Standard or Lithium battery is
supplied with each cart)
10. Unfolding Release Lever and Battery Release Lever
(Battery Catch)
11. Lower/Main Spar
12. Upper Bungee Strap
13. Upper Bag Stay
14. Height Adjustment Screw
15. Folding Release Lever
16. Upper Spar
17. Handle, Controls and Display
18. USB Port
19. Charger ( Automatically detects Standard or Lithium
batteries )
Page 4
YOUR NEW EZI-3 DIGITAL
Congratulations on your purchase of an EZi-3 Digital trolley - a powered
trolley from a company founded by two of the most experienced
professionals in the business, with over 50 years’ experience in electric
golf trolleys between us. From the earliest stages of development, the
mantra has been ‘make it easy’ – easy to open, easy to fold, easy to
carry, easy to manoeuvre, easy plug’n’play battery, easy to operate, even
easy-on-the-eye. Every little detail has been designed and engineered
to be ‘easy’. We hope you enjoy your new trolley and welcome your
feedback and comments.
Your new cart has also been designed for easy, minimum maintenance.
Please read these instructions carefully, and your new EZiCaddy trolley
should give you many years of faithful service.
FINDING YOUR TROLLEY SERIAL NUMBER
The serial number for your EZi-3 Digital trolley can be found on the
underside of the main spar. The same number is on the box you
received with your trolley. Please keep this box for shipping purposes.
YOUR EZICADDY TROLLEY IS SIMPLE TO MAINTAIN:
Store in a dry protected place.
Never jet-wash it or immerse it in water.
Avoid using detergents, oils or solvents on it.
Wipe clean whenever it gets wet or wipe with a damp cloth
when it gets dirty.
Occasionally remove the wheels and apply grease to the axle.
Page 5
FOLDING AND UNFOLDING YOUR TROLLEY
To unfold the upper section of your trolley, depress the release lever 10
and pull the handle away from the main spar. Continue unfolding until
the upper spar clicks into place. To unfold the bottom bag-stay section,
depress the release lever 5 and pull the wheel away from the main spar.
Continue unfolding until the bottom bag-stay clicks into place.
To fold your trolley, make sure you have removed your battery. Then
depress lever 15 to release the upper handle section and continue
folding until it clicks closed. Then depress lever 5 to release the front
wheel and continue folding until it clicks into place.
The folded trolley is designed to be stable standing upright or flat on its
back.
Never put your trolley into your car boot with the battery plugged in. It
could get switched on.
Page 6
ADJUSTING THE HANDLE HEIGHT
Your EZiCaddy has 5 height adjustment settings. To adjust the handle
height, first fold the trolley. Then unscrew the locking screw 14 by
about 8 mm until the handle adjuster plate can be lifted off the teeth
below. This then allows you to select one of the 5 available handle
heights. Move the plate forward to raise the handle height and
backwards to reduce the handle height. Please note that the
adjustment plate cannot be moved if the trolley is open. Finally, re-do
screw 14 tightly.
Page 7
FITTING THE PLUG-N-PLAY BATTERY
To fit the battery, hold it vertically and, from the rear of the trolley,
present it base downwards to the main chassis. The notch in the base
of the battery will locate in the recess of the chassis. The top of the
battery can then be pushed firmly forwards to engage with the battery
catch at the top of the battery.
To release the battery, press the battery release lever at the top and pull
the battery out of its docking station.
Always remove the battery before folding your trolley.
ADJUSTING THE FRONT WHEEL.
If the steering of your trolley gets knocked out of alignment, it can
usually be corrected using the front wheel adjustment nut (1).
Tracking / poor steering can also be affected by the way you load your
bag. This is why an anti-twisting “cart bag” often provides a better
driving experience.
Lift the cam-lock lever (2) to release it. Rotate the front wheel
adjustment nut (1) clockwise to make the trolley go more to the right
and anticlockwise to get it to track more to the left. When you are
happy that it is tracking correctly, push back the cam-lock lever 2 to fix
it back in position. The cam-lock needs to grip very firmly to prevent
subsequent movement.
Page 8
REMOVING THE MAIN WHEELS.
You might occasionally want to take off the main wheels either for
cleaning purposes or to squeeze your trolley into a tighter space.
Press button 6 to allow you to release and pull off the wheel. Replace
the wheel by sliding the wheel into the clutch, align the wheel so that it
starts to engage properly and then push until you hear the engagement
click
THE UPPER AND LOWER BAG STAYS
The upper and lower bag stays are designed to accommodate a wide
range of golf-bag shapes and sizes. Ideally, you will be using a “Cart-Bag”
with symmetrically balanced pockets and an anti-twist base.
To lock the base of your bag in place, stretch the bungee strap 3 over
the bottom of the bag. This strap is not adjustable because most bag
bases have the same dimensions.
To hold the top of your bag in place, stretch the upper bungee straps 12
and clip in place as shown opposite.
Page 9
Page 10

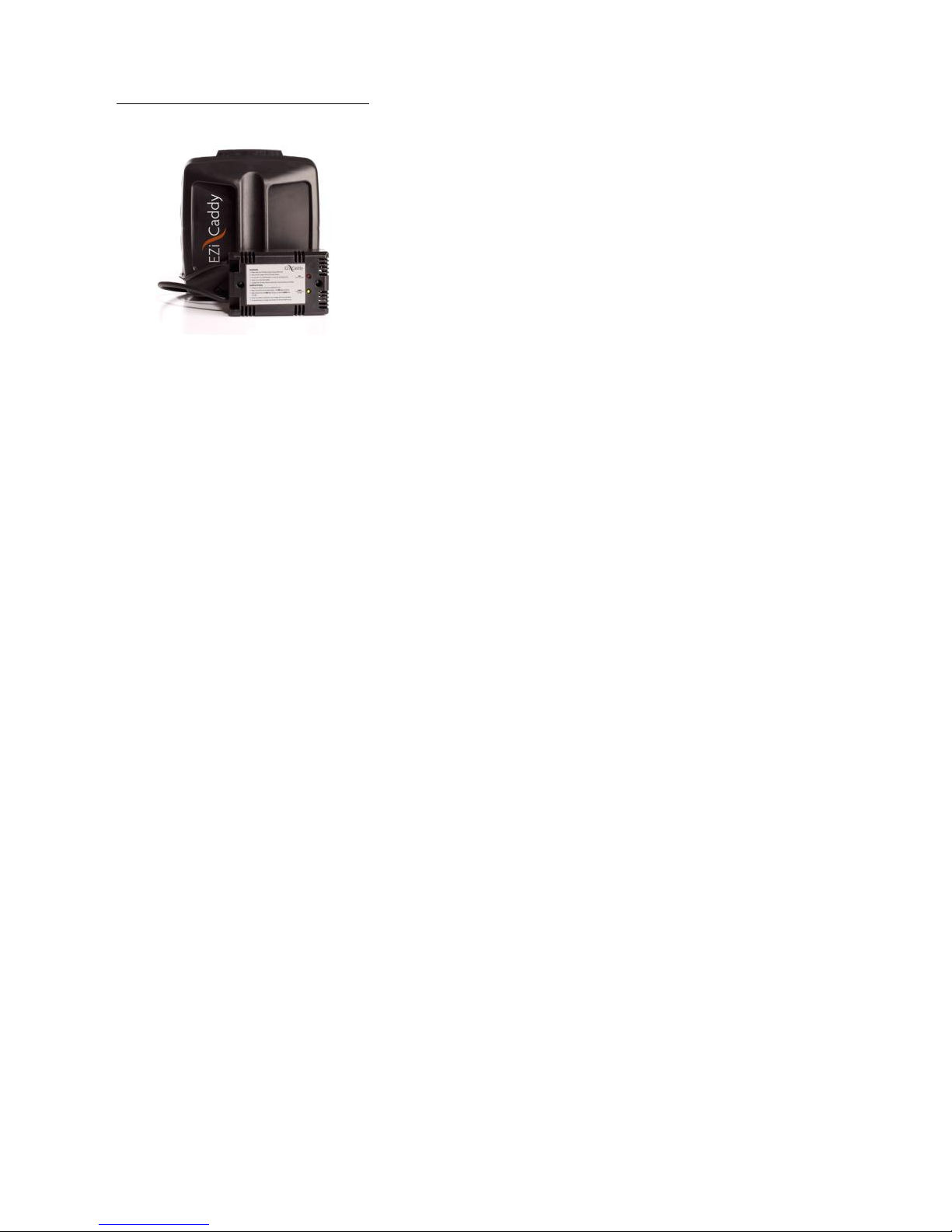

EZICADDY CHARGER
Only use this charger with your EZiCaddy Standard battery or EZiCaddy
Lithium battery. It recognises which EZiCaddy battery you are using and
adjusts accordingly. Do not use a non-EZiCaddy charger with your
EZiCaddy battery or vice versa; a mismatch of battery and charger could
cause damage.
Your charger should be placed on a hard surface, in a dry, well-
ventilated place. Do not charge in direct sunlight. Unplug it from the
mains supply before connecting or disconnecting the battery.
Do not open the charger casing there are no serviceable components
inside
Always check that the charger casing and cables are in a good condition.
1. Connect your battery to your charger when you first receive it
and, thereafter, as soon as possible after use.
2. Plug in and switch on at the mains supply. The red light will
come on.
3. After some minutes or several hours, according to the initial
charge on the battery, the red light will go out and the green
light will come on. If you are charging a brand new battery (and,
