Ezviz LC1 Bedienungsanleitung

Quick Start Guide

What's in the Box

Floodlight Camera

Wire Connector (x3)

Gasket (x1)

Long Bracket Screw (x1)

Short Mounting Screw (x2)

Short Base Screw(x1)

Mounting Bracket (x1)

Screwdriver (x1) Quick Start Guide (x1)

Floodlight Camera

IP65 Junction Box

*Purchased Seperately

Mounting Bracket Gasket Bracket ScrewBottom Button Floodlight

Mounting Base ScrewMounting BaseWire ConnectorBracket Screw

Floodlight Camera Installation

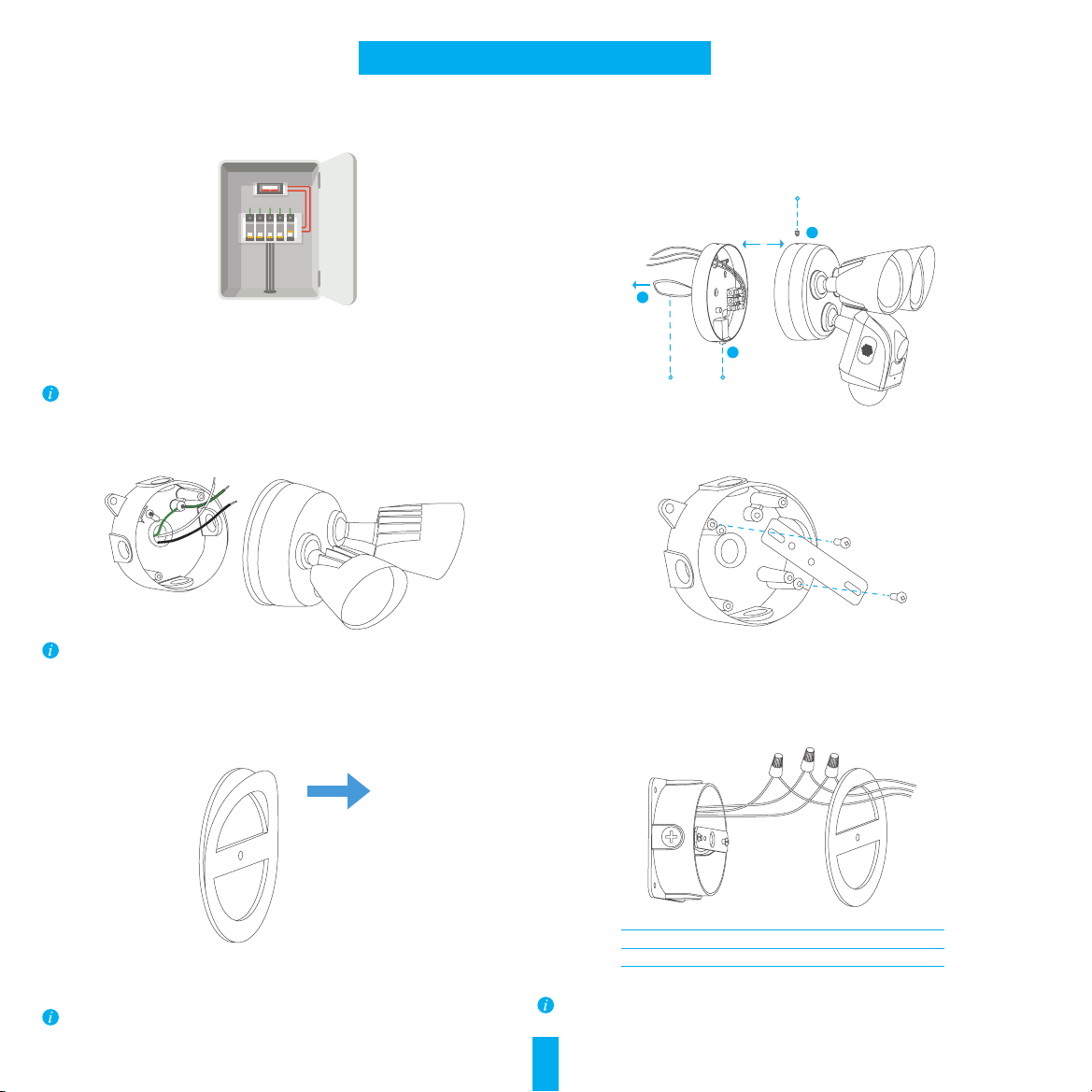

Step1 Shut down the electricity at the breaker that controls ﬂoodlight camera's

circuit. Step2 Pull the ﬂoodlight camera completely off the base.

Keep the breaker off at any time during the installation process.

Unscrew the mounting base screw, then press the bottom button all the way down ,and pull the string to take the

mounting base off.

Bottom ButtonString

Mounting Base Screw

Step 3 Remove your existing ﬂoodlight from the junction box. Step 4 Install the bracket to the junction box with the mounting screws.

Disconnect the three sets of wires from the ﬂoodlight, if there is any existing mounting bracket attached to

your junction, remove that as well.

Step 5 Peel off the white tape from the gasket and stick the gasket to the

mounting base. Step 6 Connect the junction box and ﬂoodlight camera 3-wire connector.

Ensure the center hole lines up with the center one on the mounting base.

Wire from Junction box Connect to Matching Wire on Camera

Green/Copper-Ground Green

Black-Hot Black

White-Neutral White

Match each color wire from the ﬂoodlight camera to the same color from the junction box (green to green,

white to white, black to black).

Mounting Screw

Step7

Mount the base with the provided long bracket screw through the center screw-hole.

Step8 Mount the Floodlight Camera to the base plate.

Long Bracket Screw

Ensure the gasket and base is tighten and does not move.

Adjust the camera position and ersure the top screw-hole matches the one on the base. Mount the camera

to the base with the mounting base screw in the top base. Fix the bottom button ﬁrst and mount the top

screw later.

Bottom Button

Mounting Base Screw

Step9 Adjust the position of the LED lights and camera. The installstion is complete.

LED Indicator

Step10Turn on power to your ﬂoodlight camera’s circuit.

Floodlight Camera Setup

Step1 Create a user account

- Connect your mobile phone to Wi-Fi.

- Download and install the app.

- Launch the app and register for a user account following the start-up wizard.

Step2 Add a ﬂoodlight camera to APP

- Log in the app.

- From the app Home screen, tap “+” on the upper-right hand corner to go to the scan QR code interface.

- Scan the QR Code on the the Floodlight Camera.

- Follow the app wizard to ﬁnish Wi-Fi conﬁguration.

If you want to change your ﬂoodlight camera's Wi-Fi, press and hold the reset button for 5s and repeat this part.

•The floodlight camera works with 2.4GHz Wi-Fi signals. If you have a dual-band router with separate 2.4GHz and 5GHz networks, make sure your phone is connected to the 2.4GHz one.

•If your Wi-Fi network signal is less than 50% where you want to install the floodlight camera ,a Wi-Fi signal extender is recommended to boost the signal at the installation point.

LED Indicator

Solid Red Initializing

Flashing Blue Ready for Wi-Fi Conﬁguration

Solid Blue Network Connected

Appendix

Install Memory Card (Optional)

- Remove the door on the side of the camera.

- Remove the silicone plug.

- Insert a microSD card into the slot until a click.

- Put the silicone plug back and make sure it is fully plugged in the SD card slot.

- Place the door cover back on.

microSD Card •Recommended compatibility: Class 10, Max.128GB.

•Initialize the card in the app before using it.

Reset Button Hold for 5 seconds to restart and reset all parameters to default.

Initialize Memory Card

1. In the app, check the memory card status by tapping on the Storage Status in the Device Settings interface.

2. If the memory card status displays as Uninitialized, tap to initialize it. The status will then change to Normal.
