1Introduction

The appliance can only be installed by a competent person in accordance with the Gas

Safety. We urgently advise you to read this installation manual properly.

This appliance complies with the Gas Appliance Regulation (EU) 2016/426.

Harmonized standards applied EN 613 2000/A1 2003.

2Safety instructions

Please note:

It is advisable to always install a screen for the fireplace if children, elderly or disabled

people are present in the same room as the fireplace. If regularly vulnerable persons can

be present in the room without supervision, sufficient protection must always be placed

around the fireplace.The appliance should be placed, connected and annually checked in

accordance with these installation instructions and valid national and local Gas Safety

(Installation and Use) Regulations.

The appliance is designed for atmospheric and heating purposes, meaning that all

visible surfaces, including the glass, can become hotter than 100 ° C.

Do not use the remote control and / or app outside the room where the fire is

located. So that you are always aware of the situation around the fireplace when it

is being operated.

Check whether the data on the registration plate are in agreement with the local

type of domestic gas and pressure.

The fitter is not permitted to change these adjustments or the construction of the

appliance!

Do not place any additional imitation logs or glowing coals on the burner or in the

combustion chamber.

Do not use the remote control and / or app outside the room where the fireplace is

located. So you are always aware of possible attendees and the situation around

the fireplace when it is ignited.

Do not place any inflammable materials within a of 0,5m. of the radiation of the

appliance and ventilation grills.

Due to natural air circulation of the appliance, moisture and volatile components

from paint, building materials, floor coverings etc. that haven’t yet set, can be

drawn through the convection system and can be deposited on cold surfaces as

soot. That is why you should not use the appliance shortly after a renovation.

4 < <<<

The first time the appliance is switched on, Let the fire run on maximum setting for

several hours so that the lacquer coating will have an opportunity to set and

possible vapours released can be safely removed by ventilation. We advise you to

be outside the room as much as possible during this process!

Please, note that:

all transport packaging should be removed.

children and pets should not be present in the room.

3Installation requirements

3.1 The fire

This appliance must be installed in a chlorine-free environment.

The appliance must be built into an existing or a newly to be constructed false

chimney breast.

3.2 False chimney breast

The false chimney breast must be constructed of a non-combustible material.

Always ventilate the space above the appliance by means of the grills or a

comparable alternative with a minimum air supply of 200 cm².

Keep a free distance of min. 50mm on the back site of the fire (See fig. 1.1)

For the finish, use special stucco (min. 100°C resistant) or glass fibre wallpaper to

prevent discoloration or cracks etc. Recommended drying time: for plaster is a

minimum of 24 hours per mm of coat applied.

The false chimney breast and its construction may not rest on the appliance.

3.3 Requirements flue system and outlets

You should always make use of the materials prescribed by Faber International Ltd.

Only by using these materials can Faber International Ltd. guarantee a proper

functioning.

The outside of the concentric flue material can reach a temperature of

Approx 150°C. Make sure of proper insulation and protection in case of transit

through combustible wall or ceiling constructions. And observe sufficient distance.

Make sure that the concentric flue materials are bracketed every 2m. when they

have an extended length, so that the weight of the flue material is not resting on

the appliance itself.

You may never start with a cut-down concentric pipe directly on to the appliance.

5 < <<<

3.4 Terminals

The flue outlet can end on an external wall or a roof . Check whether the outlet desired

by you complies with local requirements concerning good function and ventilation

systems.

For a proper functioning the terminal should be at least 0,5m. away from:

Corners of the building.

Roof overhangs and balconies.

Eaves, with the exception of the roof ridge (See Capital 15).

3.5 Existing chimney

You can also connect the appliance to an existing chimney. The existing chimney will

function as an air supply and a flexible stainless steel pipe drawn up through the chimney

will remove the combustion gas.

The flexible stainless steel pipe of Ø100mm should have a CE mark for temperatures up to

600°Celsius.

The chimney should comply with the following requirements:

The diameter of the flue system must be at least 150x150mm.

There should be no more than 1 appliance connected to a flue pipe.

The chimney must be in good condition:

oNo leakage and

oIt should be properly swept.

For more information about connections to existing flue systems, see the manual

“connections”.

4Preparation and Installation instructions

4.1 Gas connection

The gas connection must comply with locally valid standards.

We advise Pipe work from the meter to the appliance must be of adequate size, with near

the appliance a gas isolator tap that should always be accessible. Place the gas connection

in such a way that this is easily accessible and that before service, the burner unit can be

disconnected at all times.

6 < <<<

4.2 Electric connection

If an adapter is used for the power supply, then a wall socket 230VAC –50Hz must be

mounted in the vicinity of the hearth.

4.3 Preparation of the appliance

Remove the packaging of the appliance. Make sure the gas pipes underneath the

appliance are not damaged.

Clear a safe space to store the frame and the glass.

Remove the frame, (if necessary) and the glass and take the separately wrapped

parts out of the appliance.

Prepare the gas connection to the gas control valve.

4.4 Placing the appliance

Take the installation requirements into account (see chapter 3).

Place the appliance into the proper position and if necessary,

There is no possibility to adjust the height of the fire.

4.5 Mounting the smoke emission outlet materials

In case of a wall or roof terminal, the hole must be at least 5mm bigger than the

diameter of the flue material.

Horizontal parts must be installed at a (3 degree) slope up away the appliance.

Build up the system from the appliance. If this is not possible, you should make use

of an adjustable pipe.

For fitting the system a ½ metre cut-down pipe should be used. Make sure the

inner pipe is always 2cm longer than the outer pipe. Wall and roof terminal are also

shortened. These parts must be secured with a self-tapping screw.

Do not insulate but ventilate build-in flue material (approx. 100cm2).

4.6 Building a false chimney breast

Before constructing the chimney breast we advise you to perform a function test with the

appliance as described in chapter 7 “checking the installation”.

Construct the false chimney breast from non-combustible material in combination

with metal profiles or of brickwork / aerated concrete bricks.

Take the grills into account. (See fig. 1.1 and 1.2). Place a protective shield made

of non-inflammable material above the grills (see fig. 1.1 A).

Always use a lintel if the chimney breast is constructed of brickwork. These should

not be placed directly onto the appliance.

7 < <<<

Construct the chimney breast against the build-in frame (see fig. 1.1 B).

Keep a minimum margin of 3mm between chimney breast and the appliance in

connection with the expansion of the appliance.

The depth of the recess into the chimney breast has no influence on the removal of

the glass.

5Removing the glass

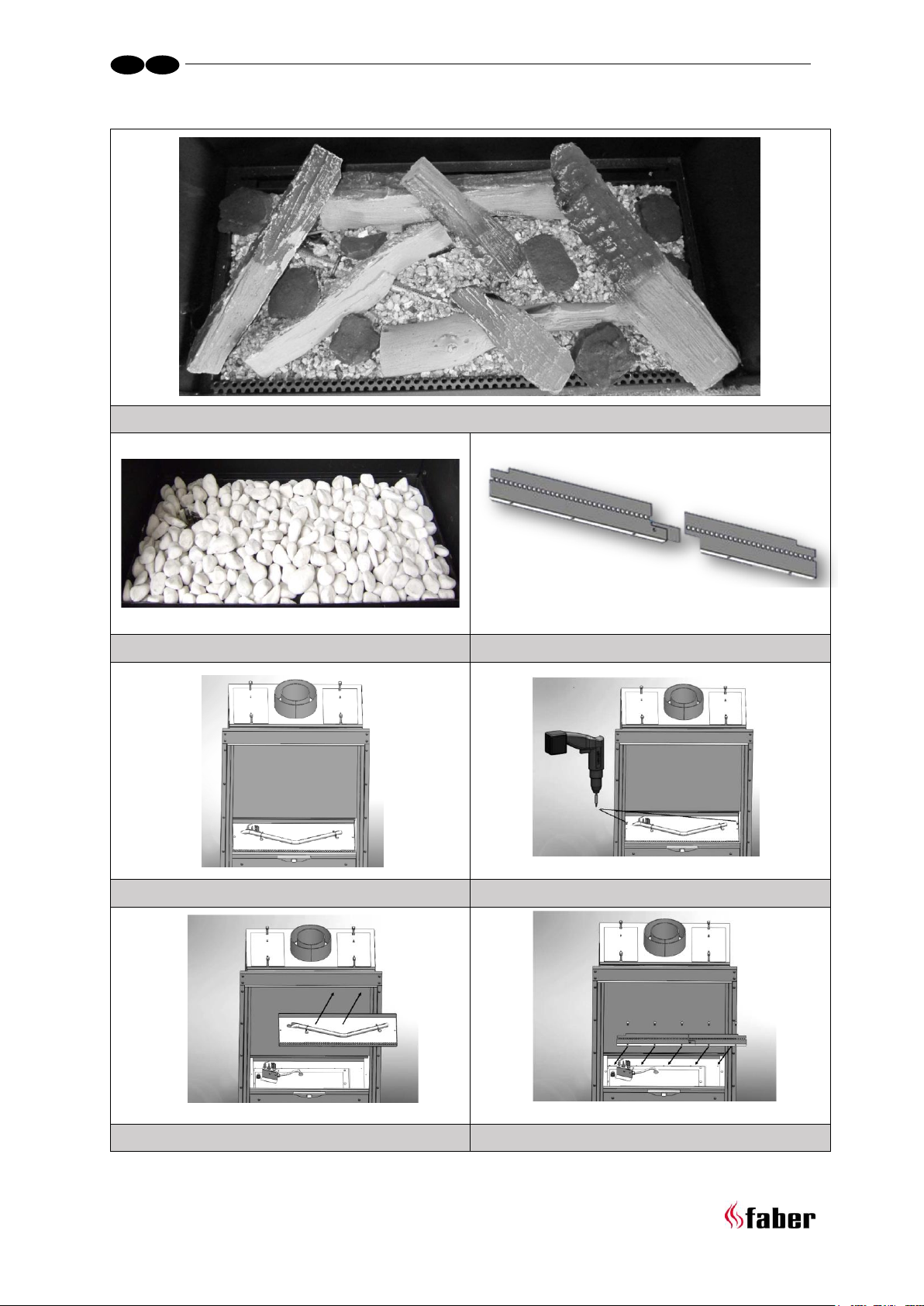

Remove the cover strips on the left and right hand side (see fig. 2.1).

Remove the glass clips, by using a screwdriver (see fig. 2.2).

Place the suction discs onto the glass (see fig. 1.6).

Slide the glass upwards so that the bottom edge is released. Now gradually

move the bottom edge of the glass forwards and lower the glass (see fig. 2.3).

To replace the glass repeat the process in reverse order.

Remove all fingerprints from the glass, these will be burned into it once the appliance is

used.

6Placing the decorative material

It is not allowed to add different or more materials to the combustion chamber.

Always keep the pilot burner free from decorative material!

Do not toss all the decorative material onto the burner all at once, as the very fine dust

may block the holes in the burner.

6.1 Imitation logs

Spread the vermiculate preferably by hand over the tube burners. The surface of

the pebbles may be very slightly elevated from the burner plate but it should be

level throughout the entire length.

Place the imitation logs according to instructions. (see fig. 3.1 or the instruction

card).

It is optional whether you apply chips to the combustion chamber or not. Prevent

chips from covering the burner, this has a negative effect on the fire image.

Start the pilot en main burner, according to the instructions in the user’s manual.

Assess whether the flame distribution is correct.

Place the glass and check the flame picture into the appliance.

8 < <<<

6.2 Pebbles

Place the pebbles over the burner and the bottom. Spread the pebbles evenly to a

double layer. The surface of the pebbles may be very slightly higher than the

burner tube (see fig. 3.2 or the instruction card).

Place the glass and check the flame picture into the appliance.

7Checking the installation

7.1 Checking the ignition of the pilot burner, main burner.

Start the pilot and main burner according to the instructions in the user manual.

Check whether the pilot light is properly positioned above the main burner and is

not covered by chips, an imitation log or pebbles.

Check the ignition of the main burner at full mark or low mark.

(the ignition should take place quickly and easily).

7.2 Checking for gas leakage

Check all connections and joins for possible gas leaks by means of a gas leak detector or

spray.

7.3 Checking the burner pressure and the pre-pressure

Check whether the burner pressure and the inlet pressure measured agree with the data

indicated on the registration plate.

Measuring the inlet pressure:

Turn off the gas control tap.

Open the pressure gauge nipple (see figure 1.4 B) a few turns and connect a

pressure gauge hose to the gas control valve.

Carry out this measurement when the appliance is on at full gas mark and when it is

on the pilot light.

If the inlet pressure is too high you are not permitted to connect the appliance.

Measuring the burner pressure:

Only perform this measurement if the inlet-pressure is correct.

Open the pressure gauge nipple (see fig. 1.4 A) a few turns and connect a pressure

gauge hose to the gas control valve.

9 < <<<

The pressure must agree with the value indicated on the registration plate. In case

of deviations, get in touch with the manufacturer.

Close the pressure gauge nipples and check these for gas leaks.

7.4 Checking the flame picture

Allow the appliance to burn for at least 20 minutes at full and then check the flame

picture for:

Distribution of the flames.

Color of the flames.

If either one or both points are unacceptable, then check:

The positioning of the imitation logs and/or the quantity of pebbles or chips on the

burner.

The connections of the flue materials for leakage (in case of blue flames).

Whether the correct flue restrictor has been mounted.

The outlet:

oWall terminal is installed correctly.

oRoof terminal is fitted and sited correctly.

The flue system is correctly calculated.

8Instructing the client

Recommend that the appliance be serviced annually by a competent person in

order to guarantee a safe use and a long lifespan.

Advise and instruct the client about maintenance and cleaning of the glass.

Emphasize the risk of burning in fingerprints.

Instruct the client about the operation of the appliance and the remote control

unit, including the replacement of the batteries and adjusting the receiver for

initial use.

Hand over to the client:

oInstallation manual

oUser manual

oLogset instruction card

oSuction lifters

Inhaltsverzeichnis

Andere Faber Kamin im Innenbereich Handbücher

Faber

Faber e-MatriX mood 800/500 I Bedienungsanleitung

Faber

Faber MatriX 450/500 III Bedienungsanleitung

Faber

Faber e-MatriX 800/650 Bedienungsanleitung

Faber

Faber BASKET BSK20 Bedienungsanleitung

Faber

Faber Blokhus 40011609-1545 Bedienungsanleitung

Faber

Faber e-MatriX 800-500 I Bedienungsanleitung

Faber

Faber e-MatriX 800-500 I Bedienungsanleitung

Faber

Faber Dimplex 510 I Bedienungsanleitung

Faber

Faber Vaska Bedienungsanleitung

Faber

Faber MatriX 800/500 RD H Bedienungsanleitung

Faber

Faber e-SliM OLF46-EU Bedienungsanleitung

Faber

Faber GV36MER Bedienungsanleitung

Faber

Faber e-MatriX heat 800/500 I Bedienungsanleitung

Faber

Faber Opti-V Fire Bedienungsanleitung

Faber

Faber Ease (BF100H) Bedienungsanleitung

Faber

Faber CAS500 Bedienungsanleitung

Faber

Faber Opti-V Fire Bedienungsanleitung

Faber

Faber 4Seasons Premium Bedienungsanleitung

Faber

Faber Honest Bedienungsanleitung

Faber

Faber VASKA B11 Bedienungsanleitung

Faber

Faber Farum Bedienungsanleitung

Faber

Faber Clear Bedienungsanleitung

Faber

Faber e-MatriX 1050/400 I Bedienungsanleitung

Faber

Faber e-MatriX 800-500 I Bedienungsanleitung

Beliebte Kamin im Innenbereich Handbücher anderer Marken

Brigantia

Brigantia 35-DVRS31N-2 Betriebsanleitung

Nordpeis

Nordpeis Bergen Bedienungsanleitung

Superior

Superior BCT2536TMN Bedienungsanleitung

Quadra-Fire

Quadra-Fire 5100I-GD-B Bedienungsanleitung

Renaissance

Renaissance RUMFORD 1000 Bedienungsanleitung

Lacunza

Lacunza IV-800 Bedienungsanleitung

Baxi

Baxi 940 Gebrauchsanweisung

Dru

Dru Maestro 60/2 Tall RCH Bedienungsanleitung

Diamond Fireglass

Diamond Fireglass SS-O22 Bedienungsanleitung

HearthStone

HearthStone Windsor Bay 8830 Programmierhandbuch

Napoleon

Napoleon ASCENT B42 Bedienungsanleitung

Enviro

Enviro E33GI Bedienungsanleitung

Smeg

Smeg L30 FABE Montageanleitung

KEDDY

KEDDY K700 Bedienungsanleitung

Godin

Godin 3451 Bedienungsanleitung

Jøtul

Jøtul Jotul GI 535 DV IPI New Harbor Bedienungsanleitung

Austro Flamm

Austro Flamm Heidi Back 2.0 945048 Bedienungsanleitung

Desa

Desa CCFPDFT Bedienungsanleitung
