Faber Spectra Frameless Bedienungsanleitung

Spectra Frameless

Spectra Nostalgic

Installation Guide

IRLU

40010563 - 0602

1 <<<<

UK IRL

Content

1Introduction ......................................................................................... 1

2Safety and general information .................................................................. 2

3Installation requirements ......................................................................... 3

3.1 Builders opening and surround............................................................. 3

3.2 Dimensions of the appliance ............................................................... 4

3.3 Flue requirements............................................................................ 8

Determining of the right flue restrictor ..........................................................10

4Instruction for Installation .......................................................................12

4.1 Gas Connection..............................................................................12

4.2 Preparing the appliance....................................................................12

4.3 Placing the appliance.......................................................................12

4.4 False chimney Brest without surround...................................................13

4.5 False chimney with surround..............................................................13

Removal of the glass.................................................................................14

4.6 Placing the log set ..........................................................................15

5Installation of the flue............................................................................16

5.1 Connection with use of concentric duct material .....................................16

5.2 Connection onto an existing chimney....................................................16

6Commissioning (functional checks) .............................................................18

6.1 Pilot ignition check .........................................................................18

6.2 Check functional burner and pilot burner...............................................18

7Handing over (final check and customer briefing) ...........................................19

8Servicing ............................................................................................19

8.1 Routine anual servicing ....................................................................19

1 <<<<

UK IRL

1Introduction

Note: these instructions should be read carefully and retained for future reference. Please

leave these instructions with the user.

There are two models of the Spectra Frameless:

•Spectra Frameless with steelplated interior

•Spectra Frameless Nostalgic with bricklining

This manual covers both models. Both are developed to be installed in 3 ways:

•Frameless in an existing builders opening or false chimney breast

•in combination with the Jellum surround

•in combination with the Wirdum surround

Specific information about the installation of both surrounds can be found in the

installation guide delivered with the Jellum and Wirdum surround. Details concerning the

installation of the appliance in relation to the surrounds are explained in this installation

guide.

Special features:

•Realistic flame and glow effect because of the "Log Burner" technology

•Room sealed appliance, inlet and outlet are led to the outside using a natural

draught concentric pipe system (100 mm/150 mm) (no power fan required)

•Air supply and flue-gases go to outside atmosphere through wall or roof. A

maximum horizontal extension of 6 meters is possible

•Remote Control standard on both models

•Meets the requirements of the European Gas Appliance Directive (GAD) and carries

the CE mark

>>>>2

IRL

2Safety and general information

Before installation, ensure that the local distribution conditions (identification of the type

of gas and pressure) and the adjustment of the appliance are compatible.

This gas appliance is factory set and can not be adjusted.

This appliance does not contain any component manufactured from asbestos or any

asbestos related products.

The pilot and flame sensing device fitted to this fire is also a safety device. If for any

reason any part of the pilot assembly is to be replaced, the entire assembly, including the

pilot burner, thermocouple, electrode and injector, must be exchanged complete for a

pilot assembly from the original manufacturer only.

Ventilation

This appliance is room-sealed and doesn't require purpose provided ventilation.

Never use the appliance if it has a broken glass.

General safety

It is the law in the UK that all gas appliances, are installed by a competent person in

accordance with the Gas Safety (Installation and Use) Regulations (as amended), the

relevant British Standards for Installation work, Building Regulations, Codes of Practice and

the manufacturers instructions.

Always use an additional guard if there are elderly, infirm or children in the same room of

the appliance.

The installation should also be carried out in accordance with the following where

relevant:

•BS5871 Part1

•BS5440 Parts 1 & 2

•BS1251

•Building Regulations Document J (as applicable)

•Building Regulations and Standards issued as relevant by the Department of the

Environment or the Scottish Development Department

•In the Republic of Ireland installation should be carried out in accordance with

IS813, ICP3, IS327, Building Regulations, Codes of Practice, the manufacturers

instructions and all other regulations in force

Failure to comply with the above could leave the installer liable to prosecution and

invalidate the appliance warranty.

3 <<<<

UK IRL

3Installation requirements

Note: Since the appliance is a source of heat, circulation of air occurs. Therefore it is of

importance that you do not use the appliance shortly after a renovation of the home. Due

to the natural circulation of air, moist and volatile components from paint, building

materials, carpet etc. will be attracted to the lit appliance. These components can settle

onto cold surfaces in the form of soot.

As on all heat producing appliances, soft furnishings such as blown vinyl wallpaper placed

too near the appliance may become scorched or discoloured. This should be born in mind

when installing the appliance.

3.1 Builders opening and surround

The appliance can be installed in the following situations:

In a non-combustible fireplace or builders opening. This could be either an existing

builders opening or a new made prefab builders opening.

In both cases keep the following in mind:

•do not place the appliance on combustible materials or carpets

•the (false) chimney breast has to be made of non-combustible material (e.g.

Promatect)

•do not place the lintel, surround or marble stone directly onto the appliance. If

possible, apply a lintel made of cement or something similar

•always ventilate the space above the appliance. Use a Faber ventilation grid

•to avoid cracking, the plaster has to dry for at least 1 day per millimetre plaster

•to avoid discolouring the plaster has to be heat resistant to min. 100 °C

•in case of a surround the front of the appliance has to stick sufficiently out of the

wall:

oJellum surround: 50mm

oWirdum surround: 166mm

>>>>4

IRL

3.2 Dimensions of the appliance

Builders opening

(

)

Wirdum surround Jellum surround

No surround

Opening width 1070 1070 1070

Opening height 1050 1050 1050

Opening depth 290 410 465

Min. Height shelf

from top opening

N.a. N.a. 350

Shelf depth N.a. N.a. 150

Dimensions of the

appliance

Box width 1024 1024 1024

Box depth 276 396 442

Box height 990 990 960

I Frame width 1440 1440 N.a.

Frame height 1100 1090 N.a.

Frame thickness 370 370 N.a.

Position flue collar

measured from frame

143 263 313

Position flue collar

measured from the

back of the box

147 147 147

5 <<<<

UK IRL

Surround

Wall

Close builders opening

with promatect

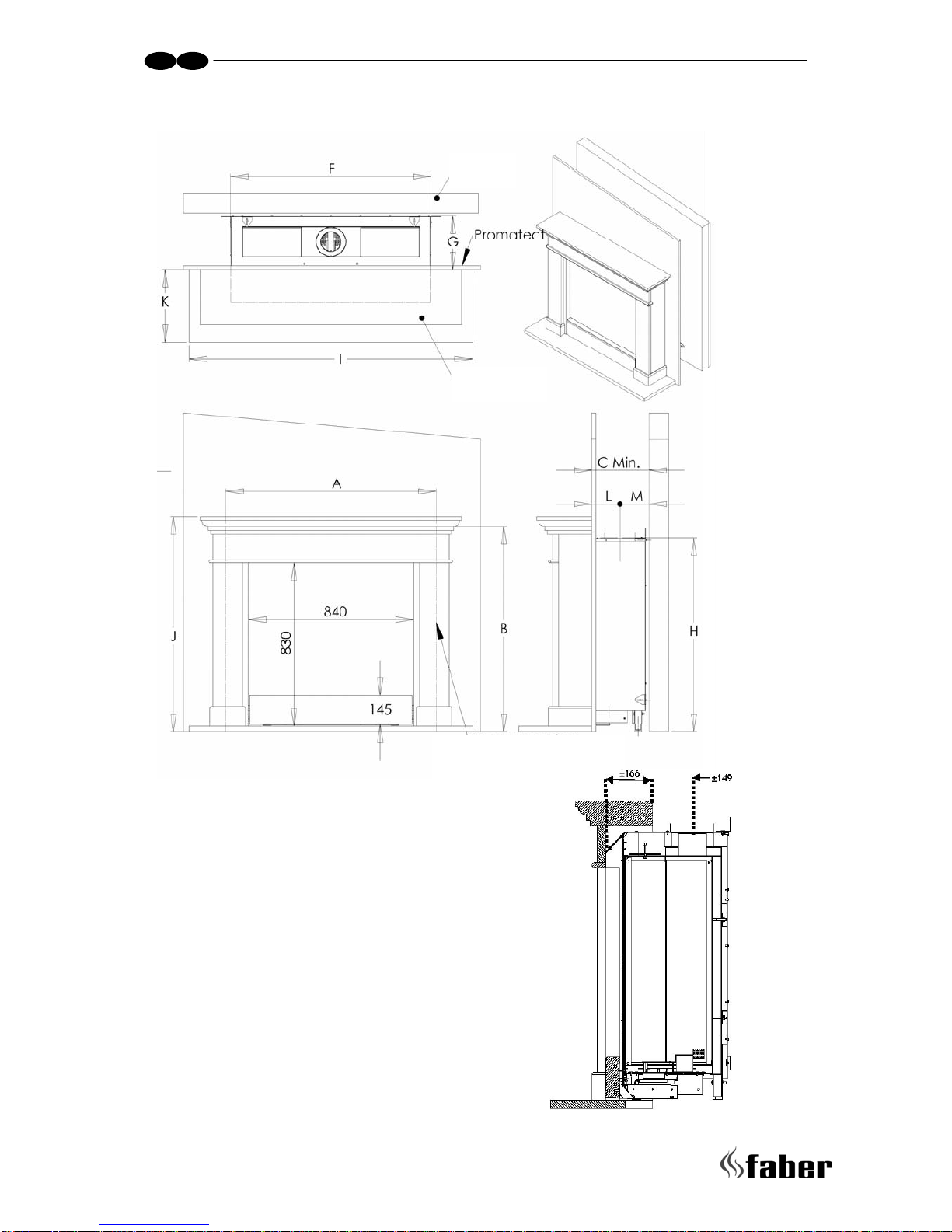

3.2.1 Appliance with Wirdum surround

>>>>6

IRL

Wall

Surround

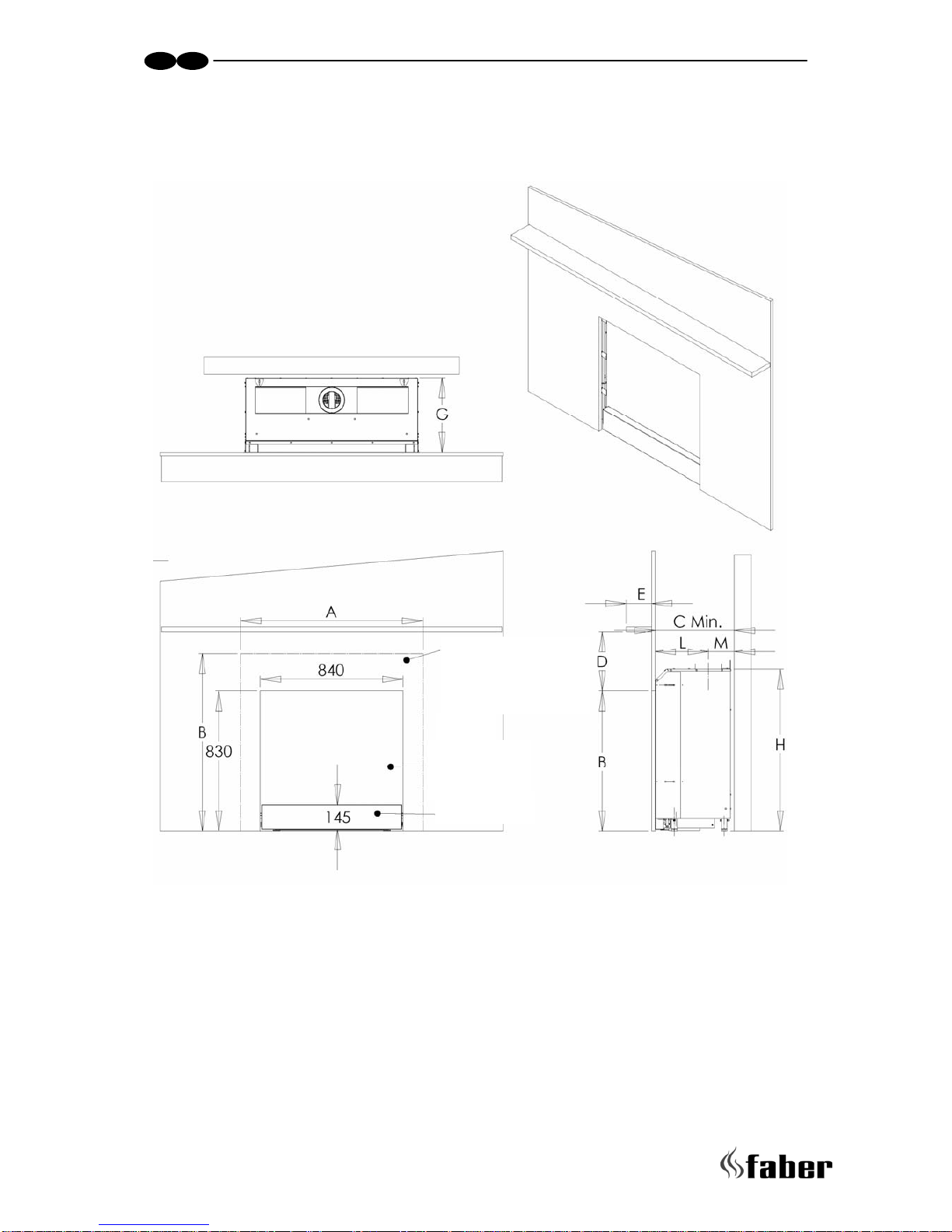

3.2.2 appliance with Jellum surround

7 <<<<

UK IRL

Close builders

opening using

promatect

Window

opening

Threshold

3.2.3 Appliance without surround

>>>>8

IRL

3.3 Flue requirements

The appliance is of the type C11/C31. The appliance will need to be supplied with the

approved Faber flue pipes and terminal, it is not possible to supply your own. The

minimum effective height of the flue system must be 0,5 or 1 meter, depending on the

appliance.

Flue routing:

•a horizontal extension with elbows is allowed for a maximum of 6 meters

(depending on the routing)

•vertical max. 12 meters

Determine, depending on the type and terminal position, if the desired routing is possible.

To establish this you will need to calculate:

The effective height (this is the real difference in height between the upper side of

the appliance and the terminal)

The total horizontal extension. This is the total horizontal flue length where:

1. each elbow, which is in the horizontal area, counts for 2 meters

2. each 90-degree bend, which is in the horizontal area, counts for 2 meter

3. each 45-degree bend, which is in the horizontal area, counts for 1 meter

4. elbows and bends at the transition from horizontal to vertically are not to

be counted

5. the wall mounted terminal counts for 1 meter

Flue restrictor

If applicable, in the table is also stated the size of a flue restrictor. This restrictor needs

to be fitted in the combustion chamber when placing the appliance (see chapter 4.2).

Normally the smallest flue restrictor is fitted at production.
