Factory Cat 34 Kurzanleitung

www.factorycat.com

Operator, Parts, &

Service Manual

Model 34

Industrial Sweeper

R.P.S. Corporation Phone: 1-800-634-4060

P.O. Box 368 Fax: 1-866-632-6961

Racine, Wisconsin 53401

ACTORY A

Edition 7, World Rights Reserved.

PAGE 14

TROUBLESHOOTING GUIDE

THE ENGINE COMPARTMENT.

PROBLEM: BROOMS ROTATE, BUT MACHINE DOES NOT SWEEP WELL.

PROBLEM: MACHINE SWEEPS UP DEBRIS FINE, BUT BLOWS DUST.

PROBLEM: MACHINE SWEEPS OK, DUST CONTROL PICKS UP DUST, BUT BLOWS IT INTO

and vaccuuming the filter.

1. Filter is dirty. With power off, turn crank 20 times to clean filter.

2. Air is shut off. Open air shutoff control.

3. Filter is clogged from mud. Remove and inspect filter. Clean if necessary by shaking

4. Air leaks. Check and replace neoprene floor seals as needed.

5. Is fan turning with main motor? (Has set screw come out of fan?).

1. Remove the black filter cover. (There are three screws at the rear. Cover fits into a slot

2. Check filter for pinhole leaks and repair or replace as needed. (You can pull filter and its

of main broom fiber, main broom should have 1.0" of fiber or more to sweep really well.

be replaced.

Cause of broom bounce is generally bent fiber on one side, causing broom to become oval.

This, in turn, is caused by leaving the broom on the ground for long periods of time without

broom rotating, which will bend the fiber. A second cause is use of a mainbroom that is

made incorrectly. For this reason, avoid "will-fit" main brooms made by other manufacturers

to fit our machines. Our design requires brooms in perfect balance and perfectly round.

1. Main Broom may be worn out. While machine can sweep with as little as one half inch

2. Main Broom bounces. This will cause skipping over debris. If this occurs, broom must

3. Check rubber flap on lip of the hopper. This piece is very important to good sweeping,

and must be in good condition or machine will throw debris forward of machine. If

flap is torn or missing, replace with a new part.

at the front). Then check for improper seal between filter and body. Filter is taped to the

filter element support grill (Part No. 4-505) with double-sided carpet tape. This seal must

be tight.

mounting grid straight out of the machine once the filter cover is removed. You can also

inspect the filter from undeneath the machine).

Hopper's

Rubber Flap

PAGE 15

SPARE PARTS BOOK

Walk-Behind Sweepers

Spare parts are sold through authorized Dealers. If you have forgotten your dealer's name,

or you have moved the machine to a new location, please Call us at: 1 (800) 634-4060, or

Fax us at: 1 (866) 901-3335 and we will re-establish a dealer contact for you.

TO ORDER PARTS:

Please provide the machine's Serial No. with your order. Normally, ordinary parts orders

are shipped out the same day the order is received.

EMERGENCY ORDERS:

Within the Continental United States, We can supply any part that weighs under 70lbs

within 3 business days, not counting weekends or National Holidays.

However, if parts are ordered on an "Emergency" basis, this means that we will ship them

by fastest means, generally by air courier service, at the customers expense.

FREIGHT:

Within the United States, the normal shipment method is by customer choice, while the

emergency shipment method is by R.P.S. choice - normally by fastest means. This

means that emergency orders will generally cost the customer more than normal orders.

In both cases, the customer is responsible for all freight costs.

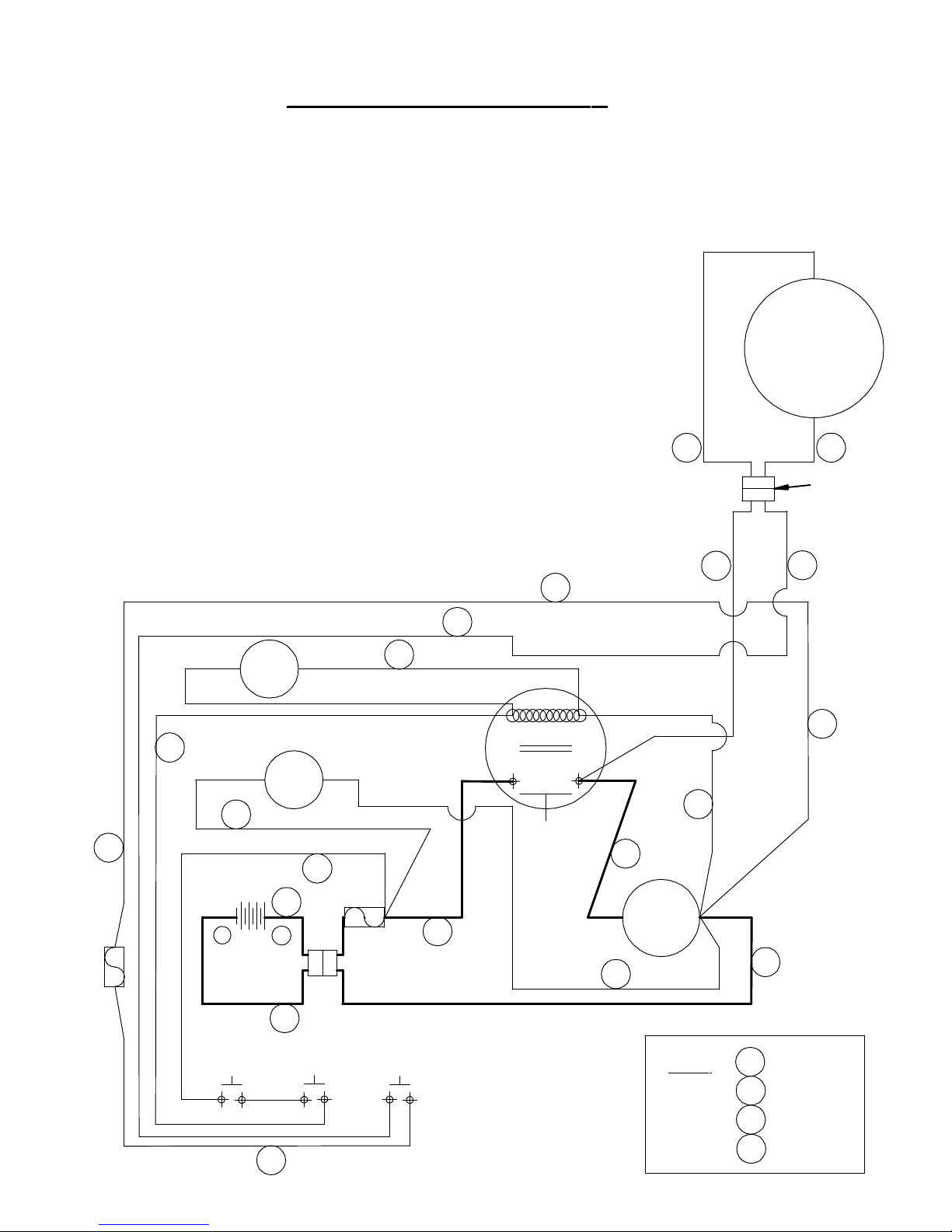

For machines after Serial No. "BY-2220"

with Side Broom Circuit Breaker

WiringSchematics

= Battery (12 Volt)

= Main Relay

= Main Broom Motor

= Side Broom Motor

= Side Broom Circuit Breaker (6 Amp)

= Main Circuit Breaker (80 Amp)

= Safety Switch

= Master Switch

= Side Broom Switch

= Hour Meter

= Battery Charger

= Grey 50 Connector

= Plug: Side Broom Harness

Wire:= Red

= White

= Black

= Blue

S1 S2

RM1

F1 R

GF2

PAGE 16A

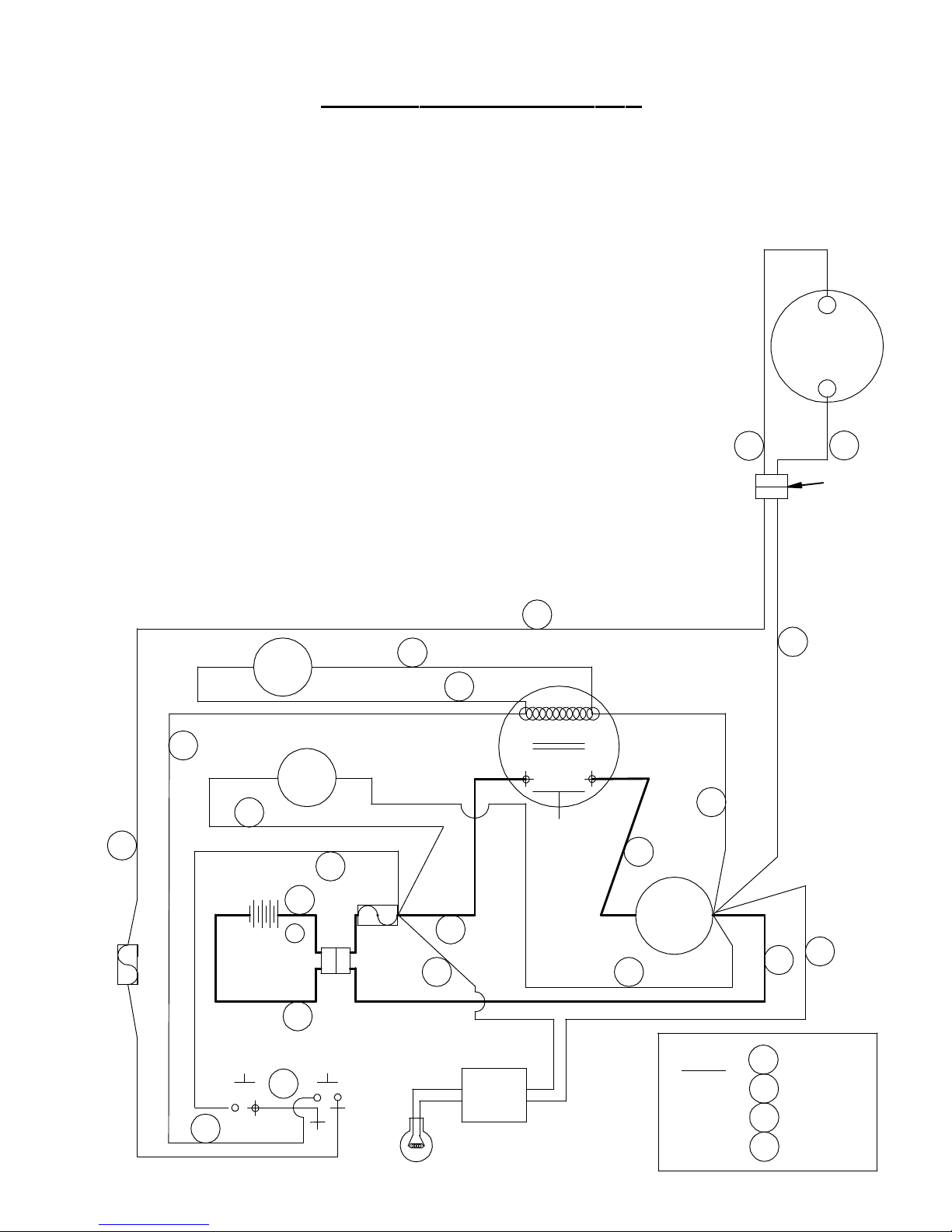

For machines after Serial No. "CI-3200" with

Single Electrical Switch for Main and Side Brooms

WiringSchematics

= Battery (12 Volt)

= Main Relay

= Main Broom Motor

= Side Broom Motor

= Side Broom Circuit Breaker (6 Amp)

= Main Circuit Breaker (80 Amp)

= Safety Switch

= Main and Side Broom Switch

= Hour Meter

= Battery Charger

= Grey 50 Connector

= Plug: Side Broom Harness

= Warning Light Unit

Wire:= Red

= White

= Black

= Blue

S1 S2

RM1

GF2

BRB

PAGE 16B

11 15

20 36

29 34

21 27

28 31 33

PAGE 17

Upper Body Assy

CLUTCH LEVER ASSY

P/N 4-134

COMPLETE HANDLEBAR ASSY

P/N 4-121

HANDLEBAR MNTG BKT ASSY

P/N 4-122

Item Part No. Description Comments Qty

14-101

21-0101 SERIAL NO. PL. (FACTORY CAT)

SERIAL NO. PL. (TOMCAT) 1

24-110 HOOD 1

34-111 MAIN BODY 1

44-112 2" BLK STRIP BUMPER 1

54-122A HANDLEBAR MTG BKT 4

64-122B BLACK PLASTIC CLAMP 8

74-124 HOOD LATCH 1

84-126A HOOD CABLE 1

94-128 BATTERY TRAY 1

10 4-128A BATTERY TRAY LINER 1

11 4-131 HINGE 23 3/4" SS 1

12 4-132 HANDLE BAR WELDMENT 1

13 4-134A CLUTCH LEVER 1

14 4-140 BUMPER 1

15 4-170 RUBBER HOOD STOP 2

16 4-370 CLUTCH/BRAKE CABLE 1

17 4-371 CLUTCH CABLE RETURN SPRING 1

18 4-379 CLUTCH CABLE ADJ. NUT 1

19 4-387 TUBE PLUG 1

20 4-388 CLUTCH TENSION SPRING 1

21 H-1032HCN HCN #10-32 7

22 H-13003 HCS 1/4"-20 X 3/4" 2

23 H-13005 HCS 1/4"-20 X 1" 10

24 H-13015 HCS 1/4"-20 X 3" 8

25 H-19901 FB CASHD 1/4"-20 X 1/2" 4

26 H-21259 CB 5/16"-18 X 1 1/2" 1

27 H-250HCN HCN 1/4"-20 50

28 H-28679 PPH #4-40 X 1/2" 4

29 H-29049 PPH #10-32 X 1/2" 8

30 H-33008 FW 3/8" SAE 1

31 H-33066 FW #4 SAE 4

32 H-36102 HN 1/4"-20 14

33 H-37006 NYLOK #4-40 4

34 H-37015 NYLOK #10-32 8

35 H-37018 NYLOK 1/4"-20 2

36 H-37021 NYLOK 5/16"-18 1

37 H-71063 LW 1/4" SS 12

38 H-72683 FHP #10-32 X 5/8" 4

PAGE 18

4-122 INCL. 4-122A, 4-122B, & HARDWARE

12 FT SECTION

COMPLETE 2 PC WITH RIVETS

INCLUDES HARDWARE (OPTIONAL)

P/N 4-121INCL. ITEMS 12,13,16,19,20,26,30, & 36

P/N 4-134 INCL. ITEMS 19,20,26,30,& 36

15 40

730

PAGE 19

Air System

434

COMPLETE FILTER ELEMENT

P/N 4-500.

Item Part No. Description Comments Qty

14-111 MAIN BODY 1

24-125 MOTOR SUPT BRACKET 1

34-201 12V,TWIN SHAFT MOTOR 1

44-201B MOTOR CRADLE 1

54-210 TERMINAL CLIP 1

64-232 CIR. BREAKER - 12V/80A 1

74-233 12V SOLENOID 1

84-301 MAIN DRIVE PULLEY 1

94-501 FILTER HOOD 1

10 4-502 FILTER ELEMENT 1

11 4-503A FILTER WEIGHT ROD 9

12 4-505 FILTER GRILL 1

13 4-506 FILTER BEATER BAR 1

14 4-507 BEATER BAR 1

15 4-509 BEATER BAR HANDLE 1

16 4-511 BLOWER HOUSING 1

17 4-512 BLOWER WHEEL 1

18 4-513 BLOWER DOOR 1

19 4-520A BLOWER HOSE 1

20 4-521A FILTER SEPARATOR 9

21 4-522 DOOR LATCH 1

22 H-002 1/2" DBL SIDED TAPE 1

23 H-00287 .375 HEYCO COLLAR 1

24 H-048 3/16" PVC FOAM 1

25 H-1032HCN HCN #10-32 15

26 H-10436-00106 HXMS #10-32 X 1" 1

27 H-10436-00107 FB #8-32 X 3/4" 1

28 H-13053 HCS 5/16"-18 X 3/4" 1

29 H-13103 HCS 3/8"-16 X 3/4" 1

30 H-19901 FB CASHD 1/4"-20 X 1/2" 1

31 H-250HCN HCN 1/4"-20 50

32 H-25328 SSS CP 1/4"-20 X 3/8" 1

33 H-29048 RPH #10-32 X 1/2" 2

34 H-312HCN HCN 5/16"-18 4

35 H-31810 HW #10 X 1/2 1

36 H-33008 FW 3/8" USS 1

37 H-33074 FW #10 SAE 2

38 H-33620 LW 5/16" 1

39 H-37012 NYLOK #8-32 1

40 H-37024 NYLOK 3/8"-16 1

41 H-37408 KN #10-32 1

42 H-K14320 3/16" X 1 1/4" KEY 2

PAGE 20

P/N 4-502 INCL. P/N 4-502K, SEAL KIT

P/N 4-503 INCL. SET OF 9 RODS

P/N 4-521 INCL. SET OF 9 SEPARATORS

P/N 4-502K INCL. P/N H-002 & H-048

INCLUDESSET OF 2

18 9

51 13

38 30

24 38

47 10

40 36

PAGE 21

Lower Body Assy

47 26

15 36

42 6

36 47

45 53

52 46

COMPLETE FLOOR SEAL KIT

P/N 4-550

COMPLETE HOPPER ASSEMBLY

P/N 4-118

21 22 24 25
