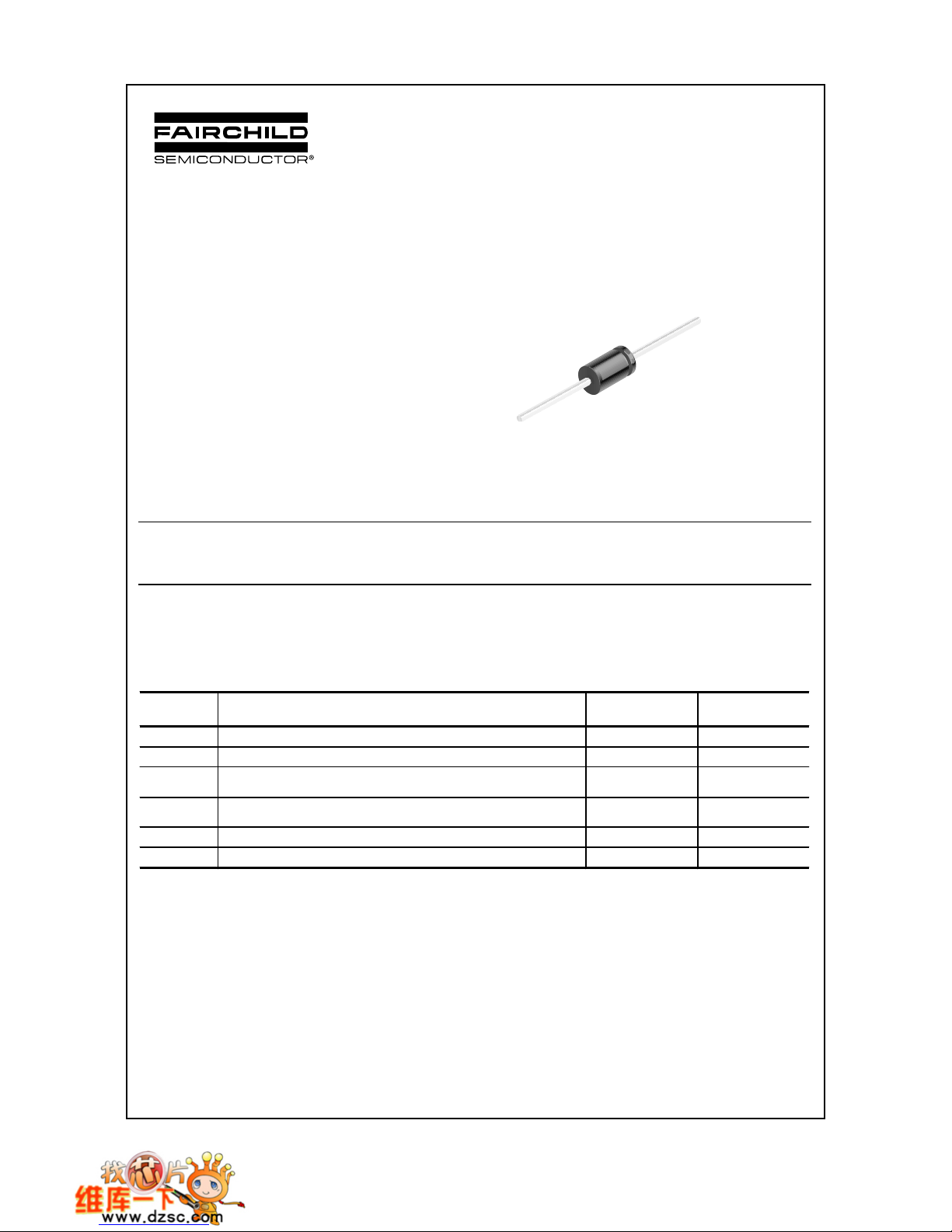

Fairchild 1V5KE440(C)A Bedienungsanleitung

1V5KE6V8(C)A - 1V5KE440(C)A

1V5KE6V8(C)A - V5KE440(C)A, Rev. D

Transient Voltage Suppressors

1V5KE6V8(C)A - 1V5KE440(C)A

1500 Watt Transient Voltage Suppressors

Absolute Maximum Ratings* TA= 25°C unless otherwise noted

2002Fairchild Semiconductor Corporation

Symbol

Parameter

Value

Units

PPPM Peak Pulse Power Dissipation at TP=1ms 1500 W

IPPM Peak Pulse Current see table A

PDPower Dissipation

.375 " lead length @ TA= 75°C 5.0 W

IFSM Non-repetitive Peak Forward Surge Current

superimposed on rated load (JEDEC method) (Note 1) 200 A

Tstg Storage Temperature Range -65 to +175 °C

TJOperating Junction Temperature + 175 °C

Features

•Glass passivated junction.

•1500W Peak Pulse Power capability

at 1.0 ms.

•Excellent clamping capability.

•Low incremental surge resistance.

•Fast response time; typically less

than 1.0 ps from 0 volts to BV for

unidirectional and 5.0 ns for

bidirectional.

•Typical IRless than 1.0 µA above 10V.

•UL certified, UL #E210467.

DEVICESFOR BIPOLAR APPLICATIONS

- Bidirectional types use CA suffix.

- Electrical Characteristics apply in both directions.

DO-201AE

COLOR BAND DENOTES CATHODE

ON UNIDIRECTIONAL DEVICES ONLY. NO

COLOR BAND ON BIDIRECTIONAL DEVICES.

*Theseratingsarelimiting values above whichtheserviceability of any semiconductordevicemay be impaired.

Note 1:Measuredon8.3ms single half-sinewave; Duty cycle = 4 pulses perminute maximum.

1V5KE6V8(C)A - 1V5KE440(C)A

1V5KE6V8(C)A - 1V5KE440(C)A, Rev. D

Transient Voltage Suppressors

(continued)

Electrical Characteristics TA=25°C unless otherwisenoted

Uni-directional

Bi-directional (C)

Device

Reverse

Stand-off Voltage

VRWM (V)

Breakdown Voltage

VBR (V) Test

Current

IT(mA)

Clamping

Voltage @IPPM

VC(V)

Peak Pulse Current

IPPM (A) Reverse

Leakage VRWM

IR(uA)*

Min Max

1V5KE6V8(C)A5.80 6.45 7.14 10 10.5 143 1000

1V5KE7V5(C)A6.40 7.13 7.88 10 11.3 133 500

1V5KE8V2(C)A7.02 7.79 8.61 10 12.1 124 200

1V5KE9V1(C)A7.78 8.65 9.55 1 13.4 112 50

1V5KE10(C)A8.55 9.50 10.5 1 14.5 103 10

1V5KE11(C)A9.40 10.5 11.6 1 15.6 96.2 5

1V5KE12(C)A10.2 11.4 12.6 1 16.7 90.0 5

1V5KE13(C)A11.1 12.4 13.7 1 18.2 82.0 5

1V5KE15(C)A12.8 14.3 15.8 1 21.2 71.0 5

1V5KE16(C)A13.6 15.2 16.8 1 22.5 67.0 5

1V5KE18(C)A15.3 17.1 18.9 1 26.2 59.5 5

1V5KE20(C)A17.1 19.0 21.0 1 27.7 54.2 5

1V5KE22(C)A18.8 20.9 23.1 1 30.6 49.0 5

1V5KE24(C)A20.5 22.8 25.2 1 33.2 45.2 5

1V5KE27(C)A23.1 25.7 28.4 1 37.5 40.0 5

1V5KE30(C)A25.6 28.5 31.5 1 41.4 36.2 5

1V5KE33(C)A28.2 31.4 34.7 1 45.7 33.0 5

1V5KE36(C)A30.8 34.2 37.8 1 49.9 30.1 5

1V5KE39(C)A33.3 37.1 41.0 1 53.9 28.0 5

1V5KE43(C)A36.8 40.9 45.2 1 59.3 25.3 5

1V5KE47(C)A40.2 44.7 49.4 1 64.8 23.2 5

1V5KE51(C)A43.6 48.5 53.6 1 70.1 21.4 5

1V5KE56(C)A47.8 53.2 58.8 1 77.0 19.5 5

1VKE62(C)A53.0 58.9 65.1 1 85.0 17.7 5

1V5KE68(C)A58.1 64.6 71.4 1 92.0 16.3 5

1V5KE75(C)A64.1 71.3 78.8 1 104.0 14.6 5

1V5KE82(C)A70.1 77.9 86.1 1 113.0 13.3 5

1V5KE91(C)A77.8 86.5 95.5 1 125.0 12.0 5

1V5KE100(C)A85.5 95.0 105.0 1 137.0 11.0 5

1V5KE110(C)A94.0 106.0 116.0 1 152.0 9.9 5

1V5KE120(C)A102.0 114.0 126.0 1 165.0 9.1 5

1V5KE130(C)A111.0 124.0 137.0 1 179.0 8.4 5

1V5KE150(C)A128.0 143.0 158.0 1 207.0 7.2 5

1V5KE160(C)A136.0 152.0 168.0 1 219.0 6.8 5

1V5KE170(C)A145.0 162.0 179.0 1 234.0 6.4 5

1V5KE180(C)A154.0 171.0 189.0 1 246.0 6.1 5

1V5KE200(C)A171.0 190.0 210.0 1 274.0 5.5 5

1V5KE220(C)A185.0 209.0 231.0 1 328.0 4.6 5

1V5KE250(C)A214.0 237.0 263.0 1 344.0 4.5 5

1V5KE300(C)A256.0 285.0 315.0 1 414.0 3.8 5

1V5KE350(C)A300.0 333.0 368.0 1 482.0 3.2 5

1V5KE400(C)A342.0 380.0 420.0 1 548.0 2.8 5

1V5KE440(C)A376.0 418.0 462.0 1 602.0 2.6 5

* For bidirectional parts with VRWM<10V, the IRmax limit is doubled.

1V5KE6V8(C)A - 1V5KE440(C)A

1V5KE6V8(C)A - 1V5KE440(C)A, Rev. D

Transient Voltage Suppressors

(continued)

Typical Characteristics

0 25 50 75 100 125 150 175 200

1.25

2.5

3.75

Lead Temperature [ºC]

Power Dissipation [W]

0 25 50 75 100 125 150 175 200

100

Ambient Temperature [ºC]

Pulse Power [%]

12 51020 50100

100

200

Number of Cycles at 60Hz

Peak Forward Surge Current, IFSM [A]

T = T max

8.3ms Single Half Sine-Wave

JEDEC Method

A A

UNIDIRECTIONAL ONLY

0.0001 0.001 0.01 0.1 1 10

0.1

100

Pulse Width [ms]

PulsePower[kW]

T = 25 C

01234

100

150

Time [ms]

Peak Pulse Current [%]

T = 25 C

Pulse Width (td) is Defined

as the Point Where the Peak

Current Decays to 50% of Ipp

10/1000µ

µµ

µsec Waveform

as Defined by R.E.A.

tf = 10µ

µµ

µsec

e-kt

Peak Value

Ippm

Half Value-Ipp

5 10 20 50 100 200 500

100

1000

10000

Reverse Voltage, VR[V]

Total Capacitance, CT[pF]

T = 25 C

f = 1.0 MHz

Visg = 50m Vp-p

Measured at

Zero Bias

Measured at

Stand-Off

Voltage (V mw)

Unidirectional

Bidirectional

Unidirectional

Figure 1. Peak Pulse Power Rating Curve Figure 2. Pulse Derating Curve

Figure 3. Pulse Waveform Figure 4. Total Capacitance

Figure 5. Steady State Power Derating Curve Figure 6. Non-Repetitive Surge Current

DISCLAIMER
