SMCJ5.0(C)A - SMCJ170(C)A
SMCJ5.0(C)A-SMCJ170(C)A, Rev. C
Transient Voltage Supressors
(continued)
Electrical Characteristics TA=25°C unless otherwise noted
Uni-directional
Bi-directional (C)
Device
Part
Marking* Reverse
Stand-off Voltage
VRWM (V)
Breakdown Voltage
VBR (V)
min max
Test
Current
IT (mA)
Max Clamping
Voltage @IPPM
VC (V)
Max Peak Pulse
Surge Current
IPPM (A)
Max Reverse
Leakage VRWM
IR (uA)**
SMCJ5.0(C)A GDE 5.0 6.40 7.0 10 9.2 163.0 1000
SMCJ6.0(C)A GDG 6.0 6.67 7.37 10 10.3 145.6 1000
SMCJ6.5(C)A GDK(BDK) 6.5 7.22 7.98 10 11.2 133.9 500
SMCJ7.0(C)A GDM 7.0 7.78 8.60 10 12.0 125.0 200
SMCJ7.5(C)A GDP(BDP) 7.5 8.33 9.21 1 12.9 116.3 100
SMCJ8.0(C)A GDR(BDR) 8.0 8.89 9.83 1 13.6 110.3 50
SMCJ8.5(C)A GDT(BDT) 8.5 9.44 10.4 1 14.4 104.2 20
SMCJ9.0(C)A GDV(BDV) 9.0 10.0 11.1 1 15.4 97.4 10
SMCJ10(C)A GDX(BDX) 10 11.1 12.3 1 17.0 88.2 5
SMCJ11(C)A GDZ 11 12.2 13.5 1 18.2 82.4 5
SMCJ12(C)A GEE(BEE) 12 13.3 14.7 1 19.9 75.3 5
SMCJ13(C)A GEG 13 14.4 15.9 1 21.5 69.8 5
SMCJ14(C)A GEK(BEK) 14 15.6 17.2 1 23.2 64.7 5
SMCJ15(C)A GEM(BEM) 15 16.7 18.5 1 24.4 61.5 5
SMCJ16(C)A GEP 16 17.8 19.7 1 26.0 57.7 5
SMCJ17(C)A GER 17 18.9 20.9 1 27.6 54.3 5
SMCJ18(C)A GET(BET) 18 20.0 22.1 1 29.2 51.4 5
SMCJ20(C)A GEV(BEV) 20 22.2 24.5 1 32.4 46.3 5
SMCJ22(C)A GEX(BEX) 22 24.4 26.9 1 35.5 42.3 5
SMCJ24(C)A GEZ(BEZ) 24 26.7 29.5 1 38.9 38.6 5
SMCJ26(C)A GFE(BFE) 26 28.9 31.9 1 42.1 35.6 5
SMCJ28(C)A GFG(BFG) 28 31.1 34.4 1 45.4 33.0 5
SMCJ30(C)A GFK(BFK) 30 33.3 36.8 1 48.4 31.0 5
SMCJ33(C)A GFM(BFM) 33 36.7 40.6 1 53.3 28.1 5
SMCJ36(C)A GFP(BFP) 36 40.0 44.2 1 58.1 25.8 5
SMCJ40(C)A GFR(BFR) 40 44.4 49.1 1 64.5 23.3 5
SMCJ43(C)A GFT(BFT) 43 47.8 52.8 1 69.4 21.6 5
SMCJ45(C)A GFV 45 50.0 55.3 1 72.7 20.6 5
SMCJ48(C)A GFX 48 53.3 58.9 1 77.4 19.4 5
SMCJ51(C)A GFZ 51 56.7 62.7 1 82.4 18.2 5
SMCJ54(C)A GGE 54 60.0 66.3 1 87.1 17.2 5
SMCJ58(C)A GGG 58 64.4 71.2 1 93.6 16.0 5
SMCJ60(C)A GGK 60 66.7 73.7 1 96.8 15.5 5
SMCJ64(C)A GGM 64 71.1 78.6 1 103.0 14.6 5
SMCJ70(C)A GGP 70 77.8 86.0 1 113.0 13.3 5
SMCJ75(C)A GGR 75 83.3 92.1 1 121.0 12.4 5
SMCJ78(C)A GGT 78 86.7 95.8 1 126.0 11.9 5
SMCJ85(C)A GGV 85 94.4 104.0 1 137.0 10.9 5
SMCJ90(C)A GGX 90 100.0 111.1 1 146.0 10.3 5
SMCJ100(C)A GGZ 100 111.0 123.0 1 162.0 9.3 5
SMCJ110(C)A GHE 110 122.0 135.0 1 177.0 8.5 5
SMCJ120(C)A GHG 120 133.0 147.0 1 193.0 7.8 5
SMCJ130(C)A GHK 130 144.0 159.0 1 209.0 7.2 5
SMCJ150(C)A GHM 150 167.0 185.0 1 243.0 6.2 5
SMCJ160(C)A GHP 160 178.0 197.0 1 259.0 5.8 5
SMCJ170(C)A GHR 170 189.0 209.0 1 275.0 5.5 5
* Color band denotes cathode on unidirectional devices only. No color band on bidirectional
devices.

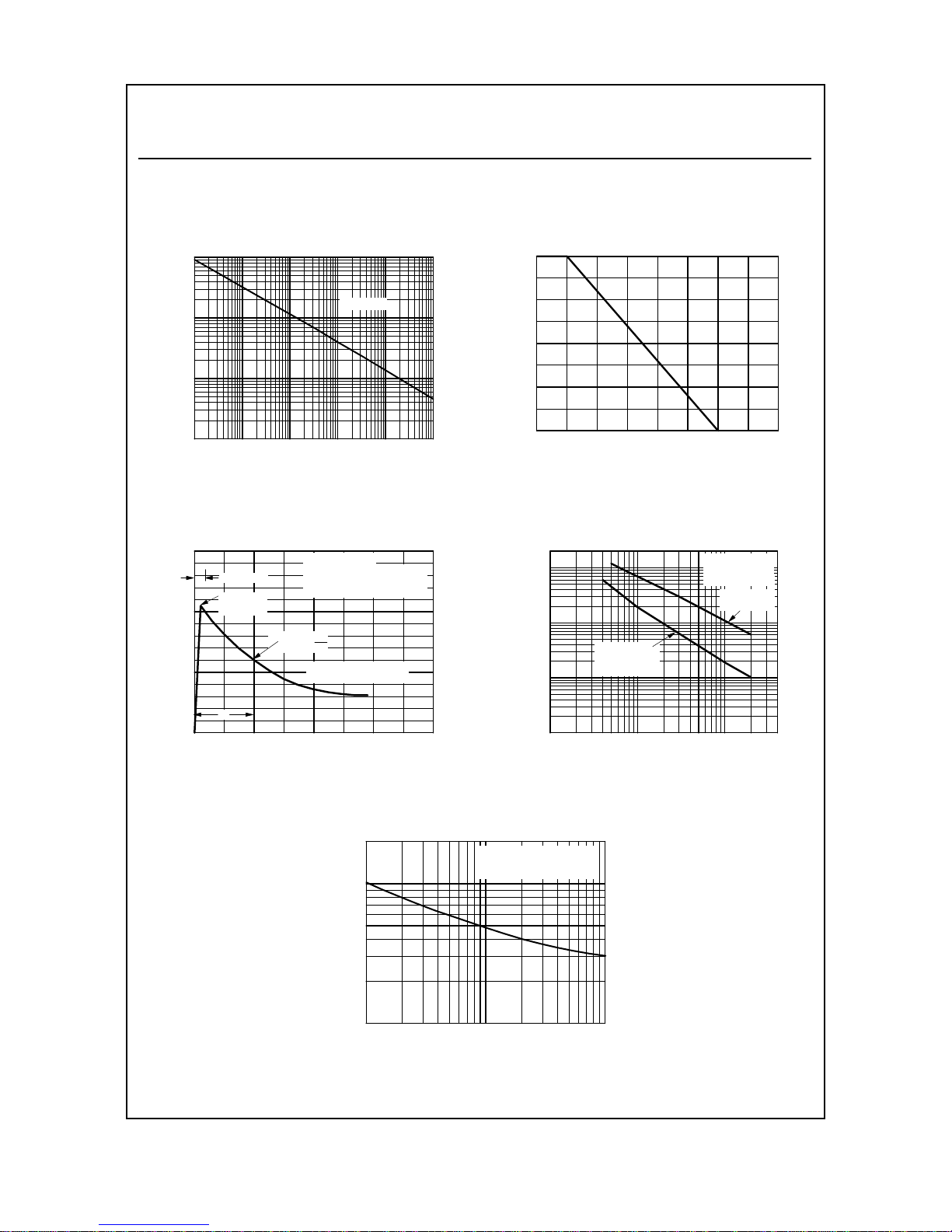

** For bidirectional parts with VRWM<10V, the IRmax limit is doubled.
