FC53 program card is designed for AG22, MG22 in site setting, and it can work as Lipo battery
voltage meter for 2S-8S lipo battery, PWM signal test, and Servo test. It is convenient for
user to set, test and maintain the flight controller in the field.
CN SHANGHAI FAMTECHS CO., LTD.

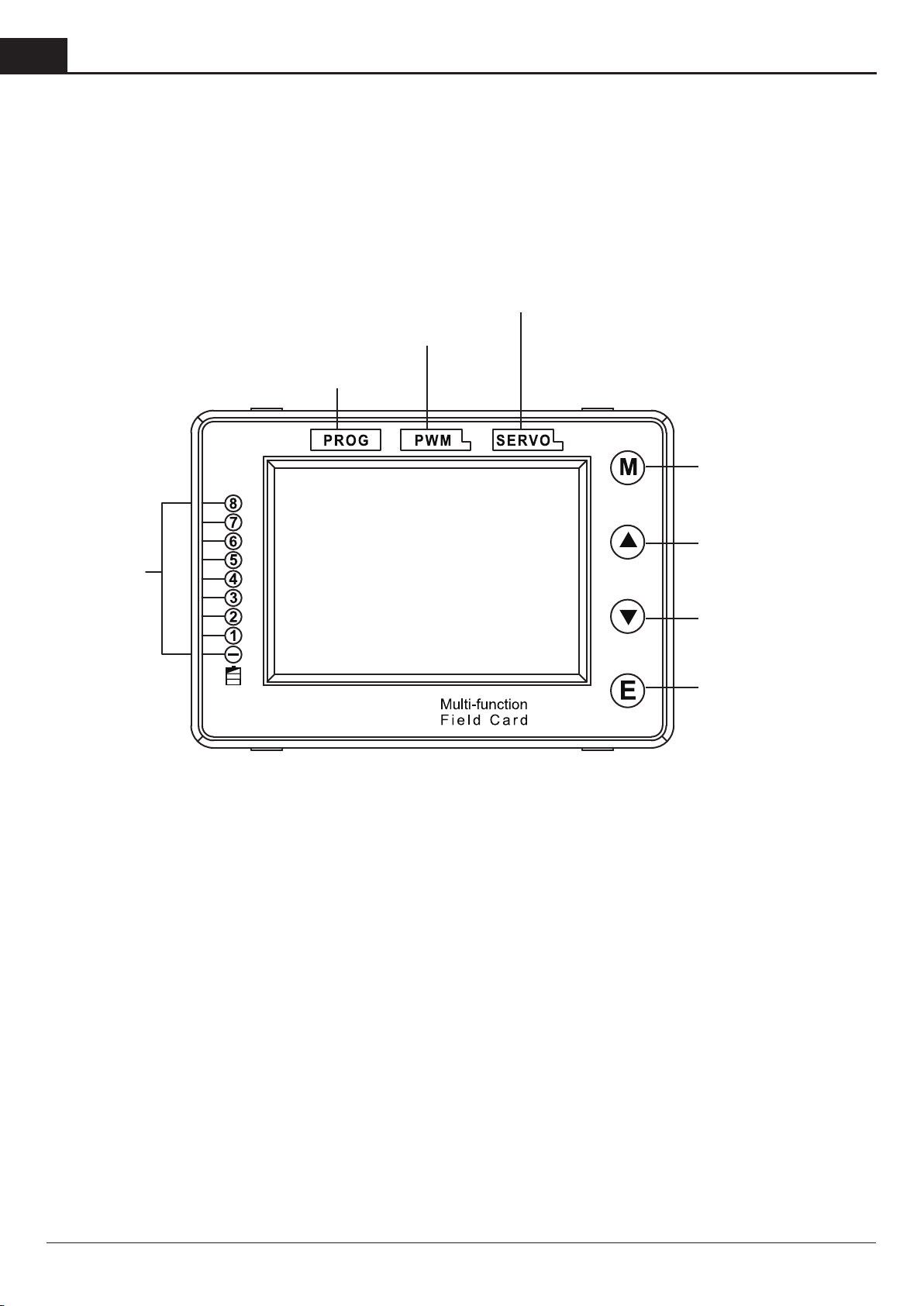

●FC53 connections and buttons are as follows
FC53
Connect to
AG22 or MG25
Connect to receiver
Connect to servo
Select current menu,
item, set value,
restore default value
(long press)
2S-8S battery
balance port
Exit current
menu/cancel selected
item/cancel setting
value
Move up/increase
setting value
Move down/decrease
setting value
●Main menu
With 5 options
1.SYSTEM MENU
2.BATTERY MONITOR
3.PWM TEST
4.SERVO TEST
5.PROGRAM CARD
(一) SYSTEM MENU
With 3 options to set the program card
CONTRAST
BRIGHTNESS
BACKLIGHT TIME
page<2>
CN SHANGHAI FAMTECHS CO., LTD.
Single cell voltage
Battery total voltage Battery mean voltage
(二) BATTERY MONITOR
FC53 can test 1S-8S lipo battery voltage, the following is the connection with lipo
battery and the test interface.
Lipo battery
FC53
BATTERY MONITOR
1:3.84
v
2:3.84
v
3:3.85
v
BATTERY MONITOR
T:11.53
V
M:3.84
V
*
For example, FC53 is connected to 3S lipo battery.
(三) PWM TEST
This option is used to test the receiver signal width, frequency, and period. The
following is the PWM test connection and test interface.
PWM TEST
WIDTH 1503us
FREQUENCY 55h
z
PERIOD 18.2ms
PWM width
PWM signal frequency
PWM signal period
PWM signal width
FC53
Receiver
page<3>
CN SHANGHAI FAMTECHS CO., LTD.
(四) SERVO TEST
This option is used to test the servo working status. The following is the servo test
connection and test interface.
FC53 v1.2
SYSTEM MENU
BATTERY MONITOR *
PWM TEST
SERVO TEST
PROGRAM CARD
FC53
SERVO TEST
AUTO Mid
MANUAL 1520us
TRAVEL SETTING
FC53
Flight
Controller
Servo
In travel setting, the servo PWM signal Neutral, Maximum, or
Minimum are select for Auto or Manual.
In Auto, minimum,
neutral, maximum,
and auto can be
selected
Connect to receiver battery
In manual, the servo
PWM signal can be
selected by UP or
Down bottun.
(五) PROGRAM CARD
FC53 can set airplane flight controller AG22 and multirotor flight controller MG25. It
is convenient to set the flight controller in the field. The following is the connection and
setting interface.
page<4>
CN SHANGHAI FAMTECHS CO., LTD.
When the flight controller is powered on and initialized, select “CONNECT DEVICE”,
you will see following interface.
You can set the flight controller now.
Note: when the data is changed, the data is not saved to the flight controller yet, please
move to “SAVE” menu and press “M” button to save the setting to the flight
controller.
The following is the AG22 and MG25 menu list.
AG22
AG22 V1.2 1/4
*****SAVE*****
MOUNT DIRECTION →
WING TYPE →
RECEIVER TYPE →
GYRO DIR-A NOR
Save settings
Set mount direction
Set Wing type
Set receiver type
Gyro Aileron Servo Direction
AG22 V1.2 2/4
GYRO DIR-E NOR
GYRO DIR-R NOR
BASIC GAIN-A 150
BASIC GAIN-E 150
BASIC GAIN-R 150
Gyro Elevator servo direction
Gyro rudder servo directoin
Aileron basic gain
Elevator basic gain
Rudder basic gain
AG22 V1.2 3/4
HEADING-A LOCK
HEADING-E LOCK
HEADING-R UNLOCK
MAX ANGLE-ROLL 65
MAX ANGLE-CLIMB 65
Aileron heading lock
Elevator heading lock
Rudder heading lock
Maximum roll angle
Maximum climb angle
AG22 V1.2 4/4
MAX ANGLE-DIVE 45
AIL~ELE MIX 50
TRIM ANGLE-R 0.0
TRIM ANGLE-P 0.0
Maximum dive angle
Ail and ele mixing control
Roll angle trim
Pitch angle trim
page<5>
CN SHANGHAI FAMTECHS CO., LTD.
FAMTECH All Rights Reserved
MG25
Save settings
Set frame type
Set receiver type
Set idle speed
Roll basic gain
MG25 V1.2 1/4
*****SAVE*****
FRAME TYPE →
RECEIVER TYPE →
IDLE SPEED LOW
BASIC GAIN-R 50
MG25 V1.2 2/4
BASIC GAIN-P 50
BASIC GAIN-Y 50
MAX RATE-R 120
MAX RATE-P 120
MAX RATE-Y 180
Pitch basic gain
Yaw basic gain
Maximum Roll rate
Maximum pitch rate
Maximum yaw rate
MG25 V1.2 3/4
ATTITUDE GAIN-R 100
ATTITUDE GAIN-P 100
MAX ANGLE-R 65
MAX ANGLE-P 65
TRIM ANGLE-R 0.0
Roll attitude gain
Pitch attitude gain
Roll maximum angle
Pitch maximum angle
Roll angle trim
MG25 V1.2 4/4
TRIM ANGLE-P 0.0 Pitch angle trim
Shanghai Famtechs Co., Ltd.
Add: Rm.575,No.31, Shaochang Rd,Fengxian district ,Shanghai,China
P.C: 201413
Mail:[email protected]
Web: www.fam-techs.com
